Pioneer SPH-EVO109DAB 10.1" Floating Screen Wireless CarPlay Android Auto Head Unit with Dolby Atmos and DAB+
A 10.1" floating/separable screen wireless AV receiver from Pioneer, the SPH-EVO109DAB features Dolby Atmos in-car audio, Stereo Spatial Sound, wireless and wired Apple CarPlay with split screen, wireless and wired Android Auto, DAB/DAB+ tuner, AM/FM, Bluetooth dual phone, Pioneer Autotuning with Seat Calibration, a 720P HD capacitive floating touchscreen, Luminous Bar, iDataLink Maestro compatible, WebLink 3.0 and WebLink Cast, PxLink app support, premium 48-bit dual-core DSP, full HD USB video playback, 1-DIN chassis with floating or flush mount capability, and Advanced Sound Retriever with time alignment.
Product Overview
The Pioneer SPH-EVO109DAB is Pioneer's flagship 10.1" floating screen AV receiver, combining the world's first in-car Dolby Atmos experience with the premium features, connectivity, and audio performance expected at this level. The 10.1" 720P HD capacitive touchscreen uses a high-brightness display with high-proximity panel construction for a clear, wide-angle display with capacitive touch keys and a new Direct key for instant access to the Apple CarPlay or Android Auto interface.

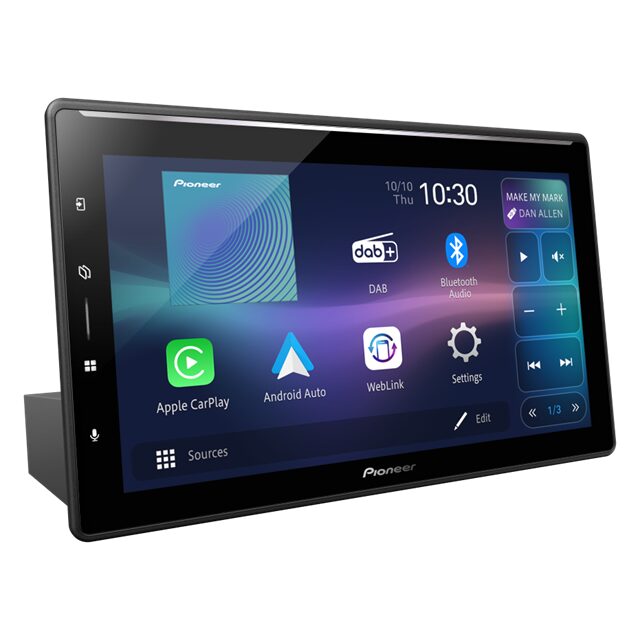

The floating/separable screen design provides installation flexibility unique to this platform: the 1-DIN chassis installs in a standard DIN opening while the 10.1" display can be configured as a floating mount for most vehicles with horizontal, vertical, and tilt adjustability, or as an in-dash flush mount in specific vehicles with a compatible third-party installation kit. This makes the SPH-EVO109DAB compatible with vehicles where a standard double DIN or trapezoid opening is not available.
Dolby Atmos delivers immersive, multi-dimensional in-car audio from Dolby Atmos content available on Apple Music, Apple Music Classical, and Audible without requiring additional speakers. Stereo Spatial Sound intelligently analyses standard two-channel sources in real time to expand the soundstage for non-Atmos content. Pioneer Autotuning with Seat Calibration analyses the vehicle interior and calibrates timing, volume, and frequency response, with per-seat position calibration so any passenger can become the focal point of the audio experience.
iDataLink Maestro RR or RR2 compatibility (module sold separately) enables touchscreen control of steering wheel controls, factory AUX and USB, hands-free telephone, voice commands, secondary display support, visual parking assistance, HVAC 1 and 2, and multi-camera control in compatible vehicles.
Features & Benefits

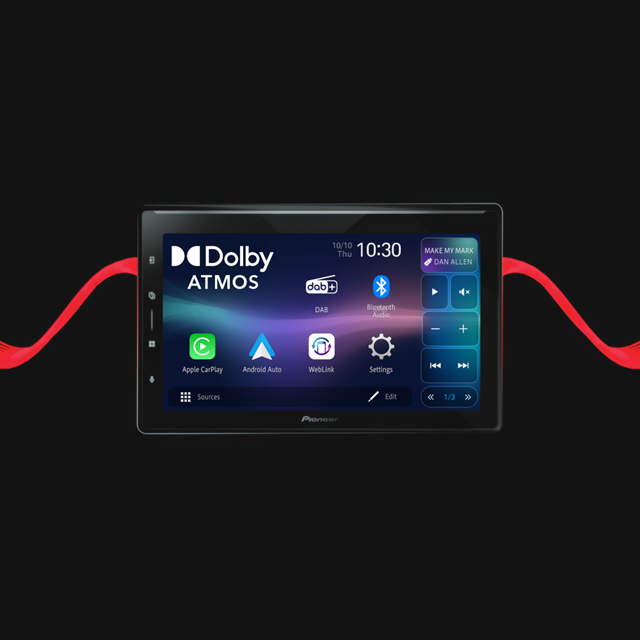

Dolby Atmos In-Car Audio - No Extra Speakers Required: Pioneer and Dolby have brought Dolby Atmos immersive multi-dimensional audio to the vehicle for the first time, available via Apple Music, Apple Music Classical, and Audible content without requiring additional speaker channels.
Stereo Spatial Sound - Immersive Audio from Standard Sources: When Dolby Atmos content is not available, Stereo Spatial Sound intelligently analyses standard two-channel stereo sources in real time and expands the soundstage for a more immersive multi-dimensional listening experience.
Pioneer Autotuning with Seat Calibration: Pioneer's exclusive Autotuning technology analyses the vehicle interior and automatically calibrates timing, volume, and frequency response, with individual seat position selection allowing any passenger to become the focal point of the spatial audio calibration.
10.1" 720P HD Capacitive Floating Touchscreen: The 10.1" 720P HD high-brightness capacitive display with high-proximity panel construction delivers a clear, wide-angle viewing experience with capacitive touch keys, a new Direct key for instant CarPlay/Android Auto access, and top-panel hard keys for volume and mute control.

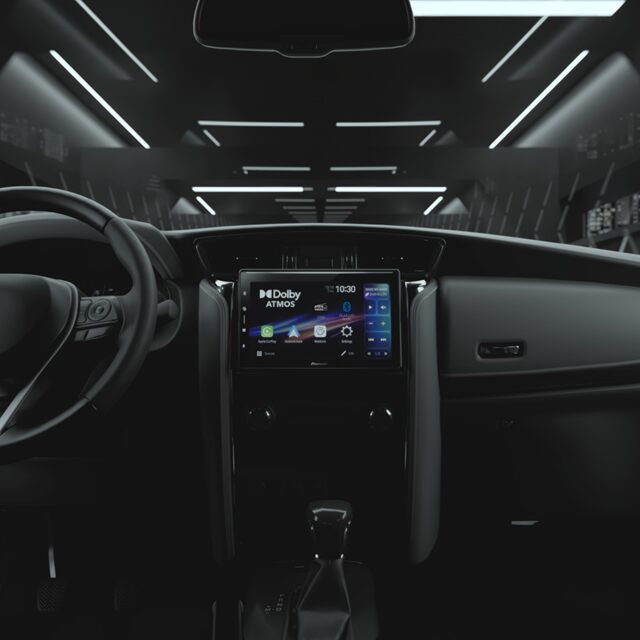

Floating and Separable Screen - Flexible Installation: The floating/separable design combines a 1-DIN chassis with a 10.1" display that can be installed as a floating mount in most vehicles with horizontal, vertical, and tilt adjustability, or as an in-dash flush mount in specific compatible vehicles with a third-party installation kit.

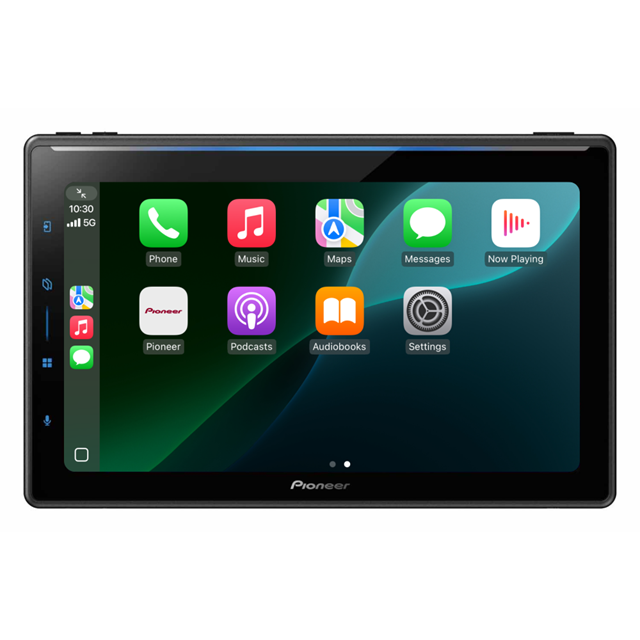

Certified Wireless and Wired Apple CarPlay with Split Screen: Certified wireless and wired Apple CarPlay with split screen display allows CarPlay and the receiver menu to be shown simultaneously on the 10.1" display.

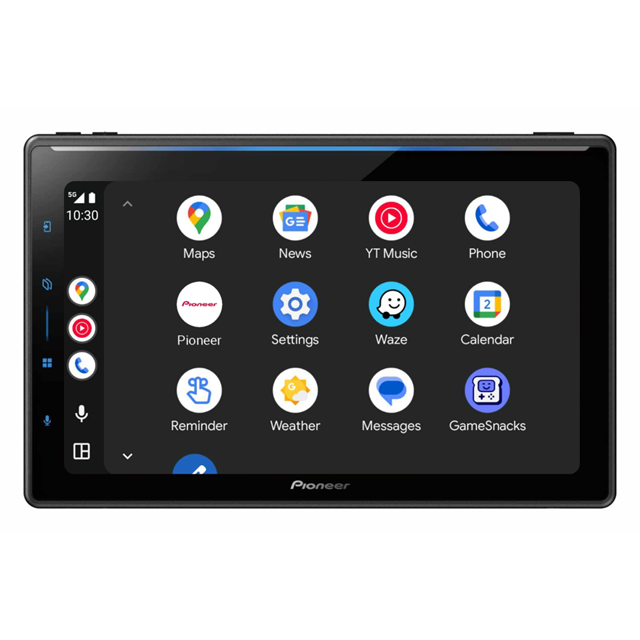

Certified Wireless and Wired Android Auto: Certified wireless and wired Android Auto for full Android smartphone integration. Requires Android 8 or higher with an active data plan.
DAB/DAB+ Digital Radio and AM/FM Tuner: Built-in DAB/DAB+ tuner provides access to digital radio stations alongside the AM/FM tuner.
iDataLink Maestro Compatible - Factory Feature Retention: Compatible with iDataLink Maestro RR and RR2 integration interfaces (sold separately) for touchscreen control of steering wheel controls, factory USB and AUX, HVAC, hands-free telephone, voice commands, secondary display, visual parking assistance, and multi-camera control in supported vehicles.
Luminous Bar - Turn Guidance, Ambient Light, and Voice Assistant Notification: The Luminous Bar provides intuitive turn guidance support for select CarPlay and Android Auto navigation apps, customisable ambient lighting to match key lighting, and notification of voice assistant activation.
48-Bit Dual-Core DSP with Advanced Sound Retriever and Time Alignment: The premium 48-bit dual-core DSP with Advanced Sound Retriever and time alignment technology provides professional-grade audio processing for the Dolby Atmos and spatial audio platforms.
Bluetooth Dual Phone - WebLink 3.0 and WebLink Cast: Bluetooth dual phone connection, WebLink 3.0 with compatible third-party apps, WebLink Cast smartphone mirroring for iOS and Android, and full HD USB video playback.
PxLink App - Remote Control and OTA Firmware Updates: The Pioneer PxLink app enables customisation of the receiver display, OTA firmware updates, shortcut key layout customisation, and remote receiver control from a compatible smartphone.
Technical Specs
| Specification | Detail |
|---|---|
| SKU | SPH-EVO109DAB |
| Brand | Pioneer |
| Screen Size | 10.1" |
| Screen Type | 720P HD Capacitive Touchscreen |
| Screen Design | Floating and Separable |
| Chassis | 1-DIN |
| Mount Type | Floating or In-Dash Flush (vehicle dependent) |
| Apple CarPlay | Yes (Wireless and Wired, Certified, Split Screen) |
| Android Auto | Yes (Wireless and Wired, Certified) |
| Dolby Atmos | Yes |
| Stereo Spatial Sound | Yes |
| DAB Tuner | Yes (DAB/DAB+) |
| AM/FM Tuner | Yes |
| Bluetooth | Yes (Dual Phone) |
| WebLink | Yes (3.0, Wireless and Wired) |
| WebLink Cast | Yes (iOS and Android) |
| iDataLink Maestro | Yes (RR and RR2, Module Sold Separately) |
| Luminous Bar | Yes |
| Pioneer Autotuning | Yes (with Seat Calibration) |
| DSP | 48-Bit Dual-Core |
| Advanced Sound Retriever | Yes |
| Time Alignment | Yes |
| USB Video Playback | Full HD |
| PxLink App | Yes (OTA Updates, Customisation) |
| Hard Keys | Volume and Mute (Top Panel) |
| Direct Key | Yes (CarPlay/Android Auto Shortcut) |
Compatible With
The SPH-EVO109DAB uses a 1-DIN chassis with a 10.1" floating/separable display. Floating mount suits most vehicles. In-dash flush mount capability varies by vehicle and requires a compatible third-party installation kit sold separately. iDataLink Maestro RR or RR2 interface module required for factory feature retention and is sold separately. Certified wireless Apple CarPlay requires a compatible iPhone. Certified wireless Android Auto requires Android 8 or higher with an active data plan. Dolby Atmos requires compatible Dolby Atmos content from Apple Music, Apple Music Classical, or Audible. PxLink app requires mobile data access. Confirm installation requirements with your installer before purchase.
Frequently Asked Questions
What makes the SPH-EVO109DAB different from other Pioneer head units?
The SPH-EVO109DAB is Pioneer's first head unit to deliver in-car Dolby Atmos immersive audio from Apple Music, Apple Music Classical, and Audible content without requiring additional speaker channels, combined with Pioneer Autotuning with Seat Calibration, Stereo Spatial Sound for non-Atmos content, the Luminous Bar, and the floating/separable 1-DIN chassis design that makes it compatible with a wider range of vehicles than fixed double DIN or trapezoid units.
What is the floating/separable screen design?
The SPH-EVO109DAB separates the 10.1" display from the 1-DIN chassis, allowing the display to be mounted in a floating position above or in front of the dash in most vehicles with horizontal, vertical, and tilt adjustability. In specific compatible vehicles it can also be flush mounted in the dash using a third-party installation kit sold separately.
Does the SPH-EVO109DAB require iDataLink Maestro to retain factory features?
iDataLink Maestro RR or RR2 integration is optional and is required only if you want to retain and control factory features such as steering wheel controls, factory USB and AUX ports, HVAC controls, and secondary display support. The iDataLink Maestro module is sold separately.
What Dolby Atmos content is available for the SPH-EVO109DAB?
Dolby Atmos content is available via Apple Music, Apple Music Classical, and Audible through the Apple CarPlay platform. Apple Music subscription and compatible hardware and software are required. Not all content is available in Dolby Atmos.
Is the Luminous Bar customisable?
Yes. The Luminous Bar can be customised as an ambient light to match the vehicle's key lighting, provides turn guidance support for select CarPlay and Android Auto navigation apps, and notifies when the voice assistant is activated.
