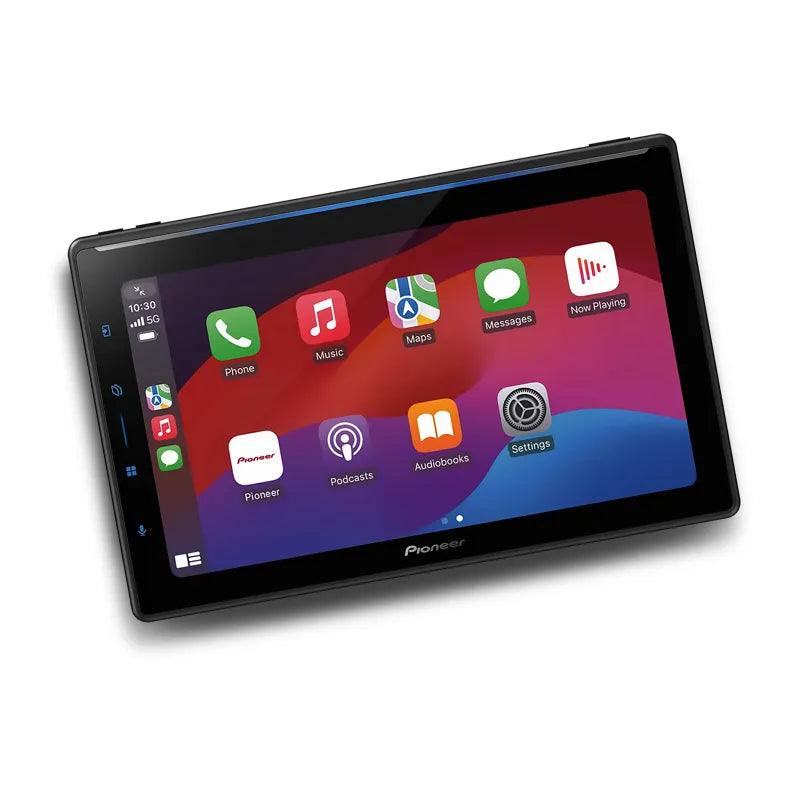

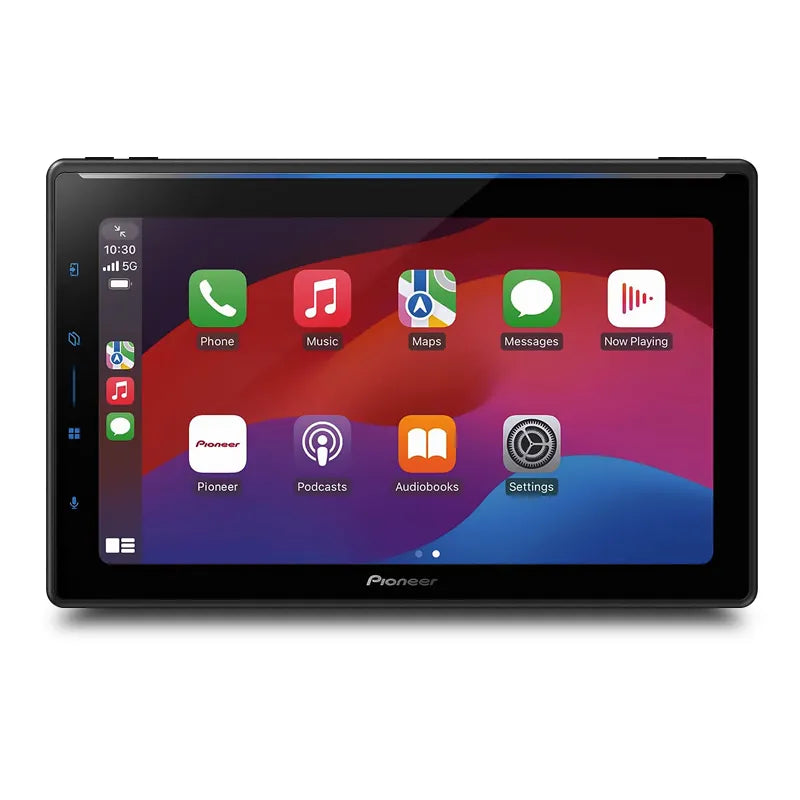

Pioneer SPH-EVO107DAB 10.1” HD Capacitive “Floating/Separable” Wireless AV Receiver

The New Evolution of Pioneer AV is Here With the Pioneer SPH-EVO107DAB!

10.1″ Wireless AV Receiver
This stunning design supports a massive 10.1″ HD (1,280 x 720 pixel) capacitive screen with capacitive keys incorporated, including our new “Direct” key to quickly access the Apple CarPlay or Android Auto GUI. The inclusion of convenient hard keys on top for volume and mute control also helps make life that little easier. Thanks to our highly successful “Floating/Separable” screen design, you have the ability to mount the unit in a wide selection of positions to ensure the perfect look for your vehicle. Also supporting our “Light and Dark” GUI options and new high proximity panel construction, helps to ensure not just the best picture quality but also a wide viewing angle is achieved. The new Pioneer GUI also supports customizable shortcut keys allowing quick access to key functions of the unit.

Our new “Luminous Bar” not only looks great but can also assist in making your drive a little safer!

It’s not just about looks either! With professional engineering, we closely examined the key audio components to ensure premium sound quality was achieved. Additionally, the inclusion of our “Advanced Sound Retriever” feature ensures improved quality of compressed audio playback.

Supporting a wide selection of entertainment and information services including:

• Apple CarPlay™ (wireless or cable connection) including a “Split screen” viewing option
• Android Auto™ (wireless or cable connection)
• iDataLink Maestro compatible(*)
• Luminous Bar
• WebLink® 3.0
• WebLink® Cast for compatible iOS and Android™ Handsets
• Spotify(#)
• Full HD video playback from USB***
• Bluetooth (Dual Phone##)
• AM/FM and DAB Tuners and more!

With this much choice, you will never want to leave your car!

BIG 10.1″ HD DISPLAY
The new Pioneer 10.1″ HD (1,280 x 720 pixels) capacitive screen is able to produce high-definition images. Utilising a high-brightness display and high proximity panel construction allows for a bright easy-to-read display with a wide viewing angle.

LUMINOUS BAR
The new Pioneer “Luminous Bar” provides users with:

• An intuitive turn guidance support when using select navigation apps in Apple CarPlay or Android Auto
• A customisable ambient light to match your key lighting
• Notification of activation of voice assistant when using Apple CarPlay or Android Auto

APPLE CARPLAY™ (WIRELESS OR WIRED CONNECTION)
The best iPhone® experience on four wheels; Apple CarPlay™ is a smarter, safer way to use your iPhone® while you drive. You can get directions, make calls, send and receive messages, and enjoy your favourite music. You can even connect wirelessly to stay focused on the road.

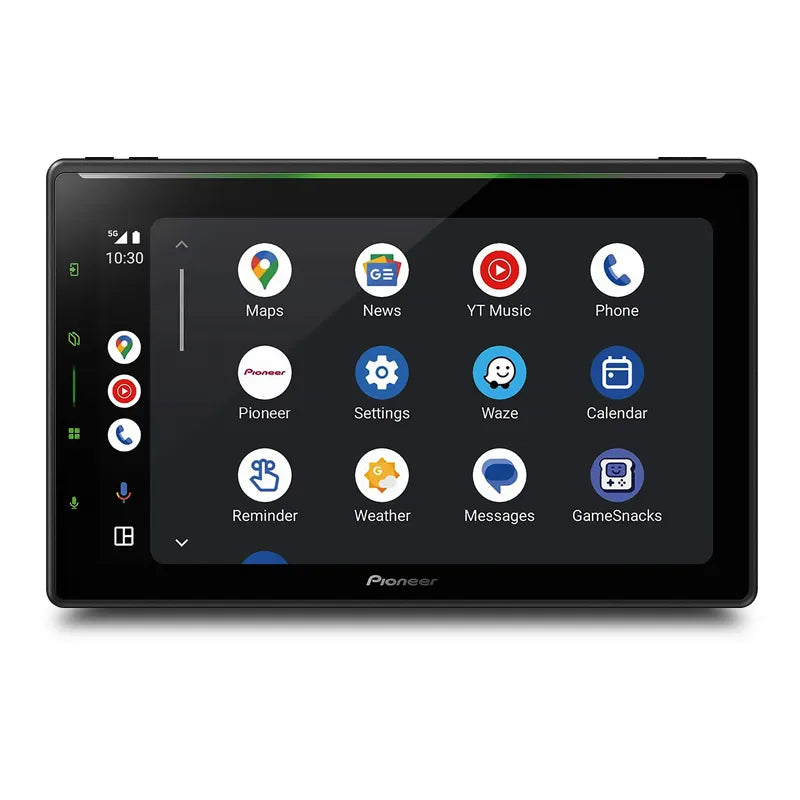

ANDROID AUTO™ (WIRELESS OR WIRED CONNECTION)
Enjoy seamless connectivity and control of your compatible Android™ smartphone in the car. Android Auto is a simpler, safer way to use your phone in the car. Get all your favourite maps, media, and messaging apps on your car display.

IDATALINK MAESTRO COMPATIBLE
Keep your factory features and expand your level of in-vehicle connectivity with Pioneer receivers and iDatalink Maestro RR or RR2 integration interface. When your SPH-EVO107DAB receiver is installed in a compatible vehicle using the iDatalink Maestro RR or RR2 integration interface# (sold separately), you’ll be able to enjoy the performance and features of the SPH-EVO107DAB receiver plus touchscreen control over key factory audio features.

The SPH-EVO107DAB supports factory functions via the iDatalink Maestro RR or RR2 integration interface including, Steering Wheel Controls, Media Player (including the factory AUX-in and USB ports), Hands-Free Telephone, Voice Commands, Secondary Display Support, Visual parking assistance, HVAC 1 or 2 compatible, Multi-camera control*……and more! For more information on iDataLink Maestro products please follow the following link: iDataLink Maestro Australia

SPLIT SCREEN FOR APPLE CARPLAY
You can now display Apple CarPlay and the receiver’s menu at the same time on one screen. This function is useful such as when you want to operate the music (i.e. Radio or USB) while looking at the map screen.

IMPROVED BLUETOOTH AND WI-FI CONNECTIVITY
Improved Bluetooth and Wi-Fi connectivity have been achieved to provide users with clearer hands-free calling, and improved sound quality when streaming music with Apple CarPlay or Android Auto as well as ensuring a more stable connection.

“FLOATING/SEPARABLE” DISPLAY
The design of the SPH-EVO107DAB structure is unique, combining a universal 1-DIN size chassis with a large 10.1-inch display that can be configured for installation either as a floating mount type applicable to most vehicles1 or as an in-dash flush mount type in specific compatible vehicles2. When installed as a floating mount type, the screen offers horizontal, vertical, and tilt adjustability to ensure the best fit and usability in the vehicle’s dash*.
* In-dash type flush mount capability varies by vehicle and/or third-party installation kit availability, sold separately. Custom mount not provided. Limited cable length is available.

SELECTABLE VIEWING MODES
Light / Dark mode for enhanced visibility – By changing the colours of the UI background and text, visibility and legibility can be optimized based on ambient light conditions, such as day or night. Light mode is intended to reduce the effect of ambient light reflections in bright conditions (daytime), while Dark mode may help to reduce screen glare in dark conditions (nighttime). Light / Dark mode can be selected manually or set to automatically correspond to the time of day and/or illumination settings of the vehicle*.

WEBLINK® & WEBLINK® CAST
WebLink® 3.0 enables a compatible smartphone with the WebLink Host app installed to display and control compatible third-party applications from the in-dash receiver touchscreen4. WebLink-compatible apps provide services such as turn-by-turn navigation (i.e. Waze®), point of interest information and reviews, restaurant reservations, music entertainment, and more5. WebLink enables this Pioneer receiver to deliver a modern infotainment system.

Additionally, with the built-in WebLink® Host application and a USB connection, drivers can also use the WebLink® Cast feature to mirror and interact with their iOS or Android smartphone’s screen on the receivers’ displays and access virtually all the same powerful navigation, communication, productivity, and entertainment apps on a bigger screen and driver-friendly format.

PxLink APP
With the new Pioneer “PxLink” smartphone app users can customize the display on their compatible multimedia receiver including adding their own background image, performing OTA (Over The Air) firmware updates, customise “Shortcut” key layout, other App launching as well as control your compatible AV receiver from your smartphone*. Pioneer is putting the control in your hands!

2 x PHONE FULL-TIME BLUETOOTH CONNECTION*
You can now simultaneously connect and control 2x smartphones via Bluetooth. The auto connection function automatically pairs the two phones so incoming calls can be picked up by either of the paired phones. No more having to pair and un-pair devices. Bluetooth Audio Streaming (A2DP, AVRCP 1.6) makes it possible to display information embedded in songs.
* Connection conditions apply.

DUAL REVERSE CAMERA INPUTS
Reversing can be a stressful experience. The dual camera inputs allow you to connect a reverse camera as well an optional camera for improved safety (visibility of hazards) and peace of mind. Particularly helpful when parking your vehicle or towing.

Features:

• 10.1” HD Capacitive “Floating/Separable” Touch Panel Screen
• Apple CarPlay™ (Wireless or Wired Connection) Including “Split Screen” Viewing Option
• Android Auto™ (Wireless or Wired Connection)
• iDataLink Maestro Compatible
• Luminous Bar
• DAB Tuner
• Customizable Shortcut Keys
• Bluetooth (Dual Phone)
• Dual Camera Inputs
• WebLink® Cast for Smartphone Mirroring (iOS and Android Devices)

Specifications:

• Display:
  Screen Size: 10.1"
  Resolution: HD (1280 x 720)
  Touchscreen: Capacitive
  LED Backlight: Yes
  Colour Customisation: 5 Display & 112 Key Colours
• Bluetooth:
  Built-in Bluetooth: Yes Ver. 5.2
  Dual Phone Connection: Yes
  Hands-Free Profile (HFP): Yes
  Audio/Video Remote Control Profile (AVRCP): Yes
  Advanced Audio Distribution Profile (A2DP): Yes
  Serial Port Profile (SPP): Yes
  Smartphone Pairing Memory: 5 Devices
• Tuner:
  AM/FM Tuner: Yes
  DAB+ Tuner: Yes
  Presets: 18 FM, 6 AM, 18 DAB
  Best Station Memory (BSM): Yes
  Local Seek Tuning: Yes
  RDS: Yes
• Smartphone Integration:
  Apple CarPlay™: Yes (Cable or Wireless) Inc Split Screen Function
  Android Auto™: Yes (Cable or Wireless)
  Alexa Built In: No
  Smartphone App: PxLink (iOS & Android)
  Spotify® Control: Yes (via CarPlay / Android Auto)
  WebLink®: Yes Ver. 3.0
  Live Information: No
  Siri® Eyes Free: iPhone Only
  Web Browser: No
• Digital Media Playback:
  CD/CD-R/CD-RW Playback: No
  DVD/DVD-R/RW/DVD-Video Playback: No
  MP3 Audio Playback: USB
  WMA Audio Playback: USB
  AAC Audio Playback: USB
  WAV Audio Playback: USB
  FLAC Audio Playback: USB
  MPEG-4 Video Playback: USB
  DivX Video Playback: No
  WMV Video Playback: USB
  JPEG Photo Slideshow Viewer: USB
  Full HD Video Playback: USB
• Audio:
  Hi-Res Audio Certified: No
  RCA Pre-outs: 3 pair 4v (front/rear/subwoofer)
  Built-in Amplifier: MOSFET 4 x 50W
  Auto EQ & Time Alignment (CD-MC20 required): No
  Specialized Audio Parts: Yes
  D/A Converter: 24-bit
  Crossover Network: HPF/LPF
  3-Way Audio Network Mode: Yes
  Subwoofer Control: Yes
  Advanced Sound Retriever: Yes
  Manual Time Alignment: Yes
  Equalizer: 13 Band Graphic EQ
• Expandability:
  Wi-Fi Connectivity: Yes
  USB: Single Rear Type-A
  AUX: Rear (Audio/video)
  Reverse Camera Input: Yes (Dual Camera)
  Parking Assist Guidelines: Yes
  Wired Remote Input: Yes (Learning)
  HDMI: Yes (Type-A)
  Composite Video Output: Yes
• General:
  Remote Control: No
  Warranty: 12 Month
  Chassis Size: 1 DIN (156mm Depth)
