Pioneer DMH-A4450BT Apple CarPlay & Android™ Auto Head Unit

Quick answer

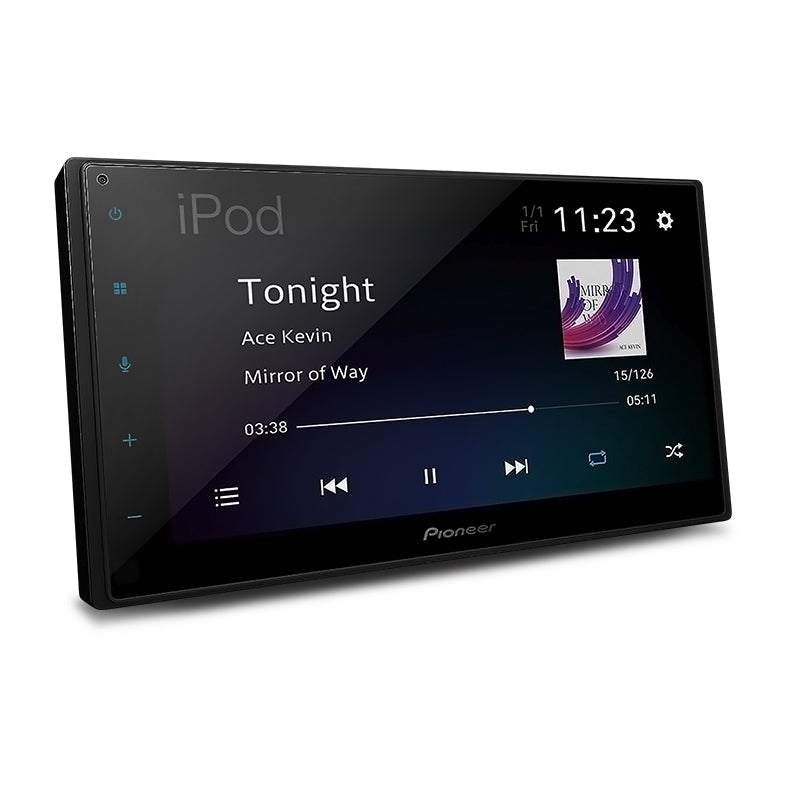

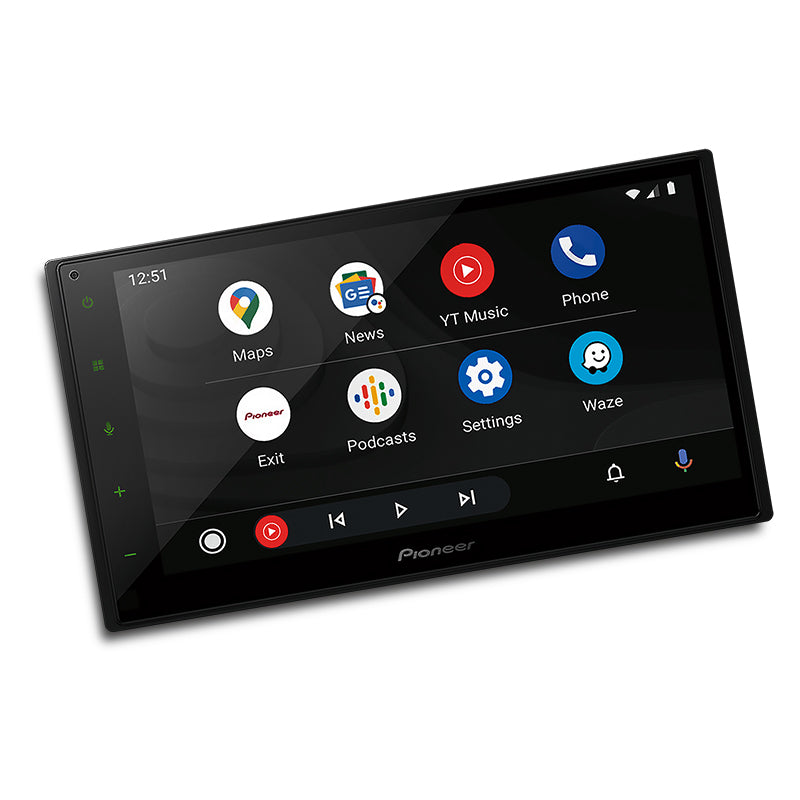

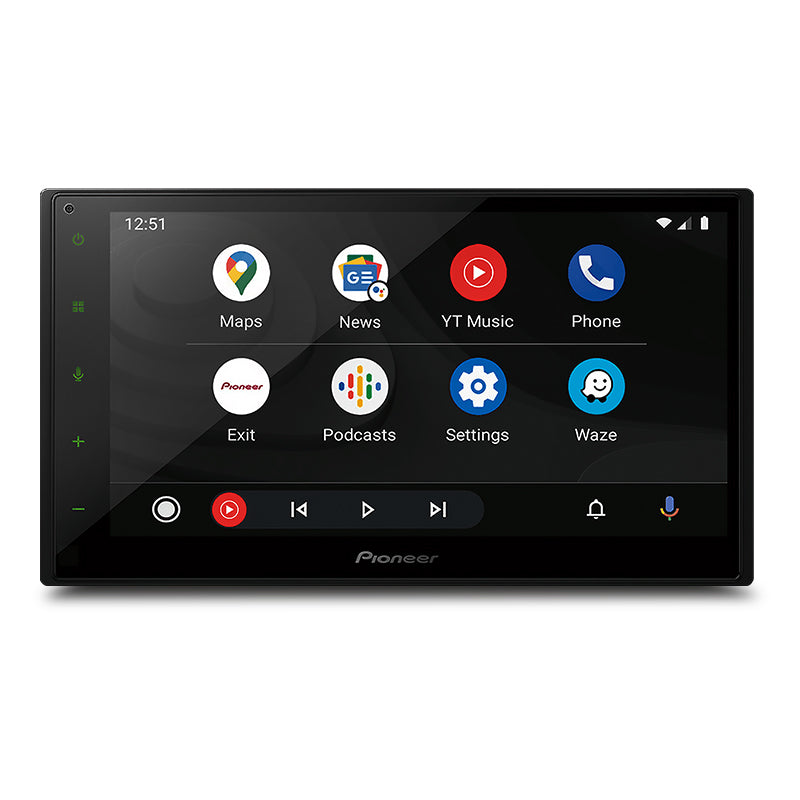

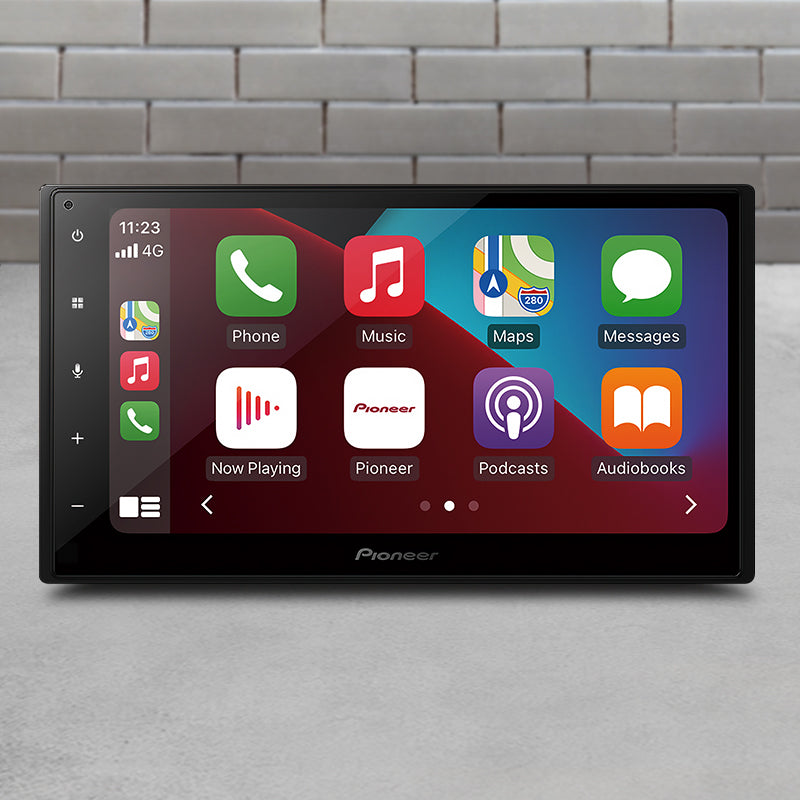

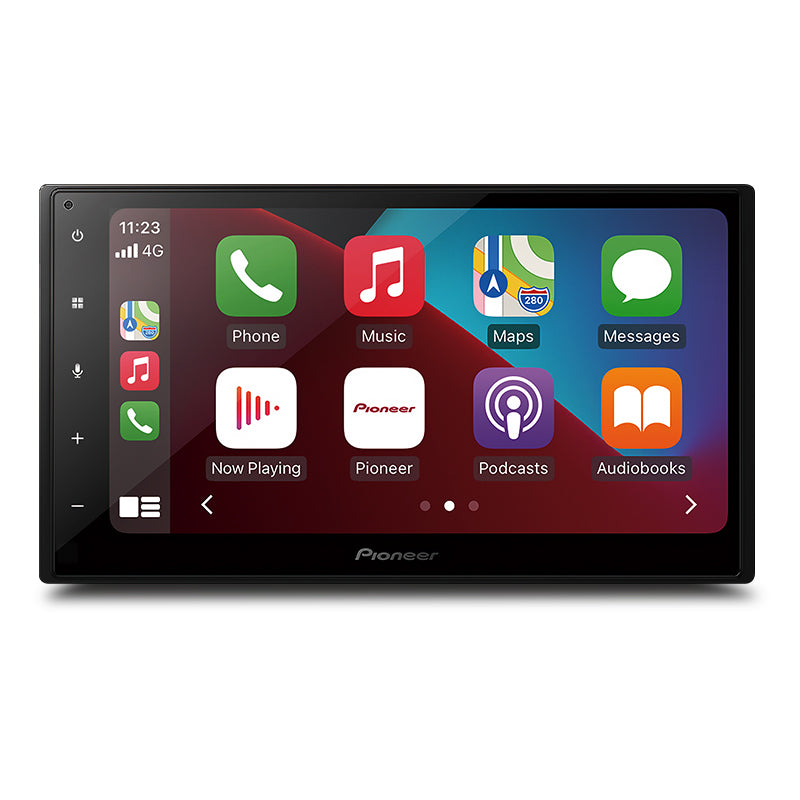

The Pioneer DMH-A4450BT is a 6.8 inch double DIN receiver with wired Apple CarPlay and Android Auto.

Plug your phone into the USB cable and maps, music and messages move onto the capacitive screen. Bluetooth handles calls and streaming, and the short chassis leaves room behind the dash in tight double DIN openings.

Problems it solves

• Phone mounts and loose cables. Navigation and music run on the head unit screen instead.
• Reversing blind. There is a camera input for an optional reversing camera.
• No path for a future amplifier. Front, rear and subwoofer preouts are fitted.

Specifications

• Screen: 6.8 inch capacitive touchscreen
• Smartphone: Apple CarPlay and Android Auto, wired
• Bluetooth: hands free calling and audio streaming
• Sources: USB, AM and FM tuner, Bluetooth
• Audio: 13 band graphic EQ, crossover settings
• Power: 4 x 50W maximum
• Preouts: 3, front, rear and subwoofer
• Camera: reversing camera input
• Chassis: double DIN, short depth

Fitment and compatibility

Needs a double DIN opening, or a vehicle fascia kit, plus the matching wiring harness and antenna adaptor. Steering wheel buttons need a separate interface.

What is in the box

The DMH-A4450BT head unit. Ask us for the full packing list before you buy.

Install notes

Run the USB lead to a spot where the phone can sit safely, and route the microphone near the driver for clear calls. The reversing camera trigger wire goes to the reverse light feed.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the DMH-A4450BT

Will the DMH-A4450BT fit my car?

Most cars with a double DIN slot, or a single DIN slot with the right fascia kit. Ask us with your make and model and we will check the kit.

Is CarPlay wireless on the DMH-A4450BT?

No. Apple CarPlay and Android Auto both run over a USB cable.

Does the DMH-A4450BT have DAB+?

It tunes AM and FM only, so look at a DAB+ model if you want digital radio.

What else do I need to install the DMH-A4450BT?

A vehicle fascia, a harness and an antenna adaptor, plus a steering wheel interface if you want to keep the wheel buttons. The DMH-A4450BT head unit. Needs a double DIN opening, or a vehicle fascia kit, plus the matching wiring harness and antenna adaptor.
