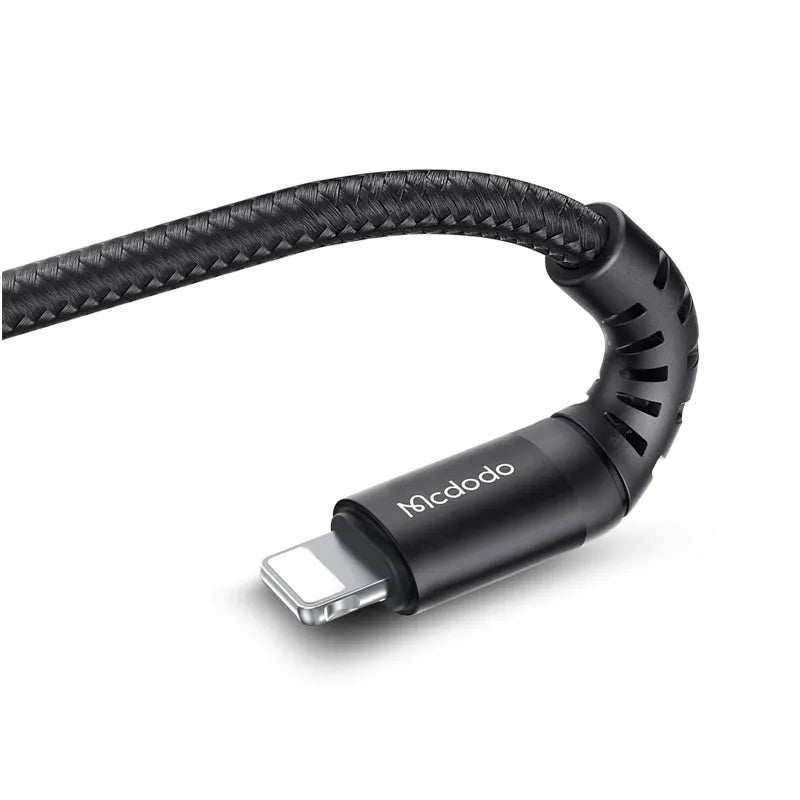

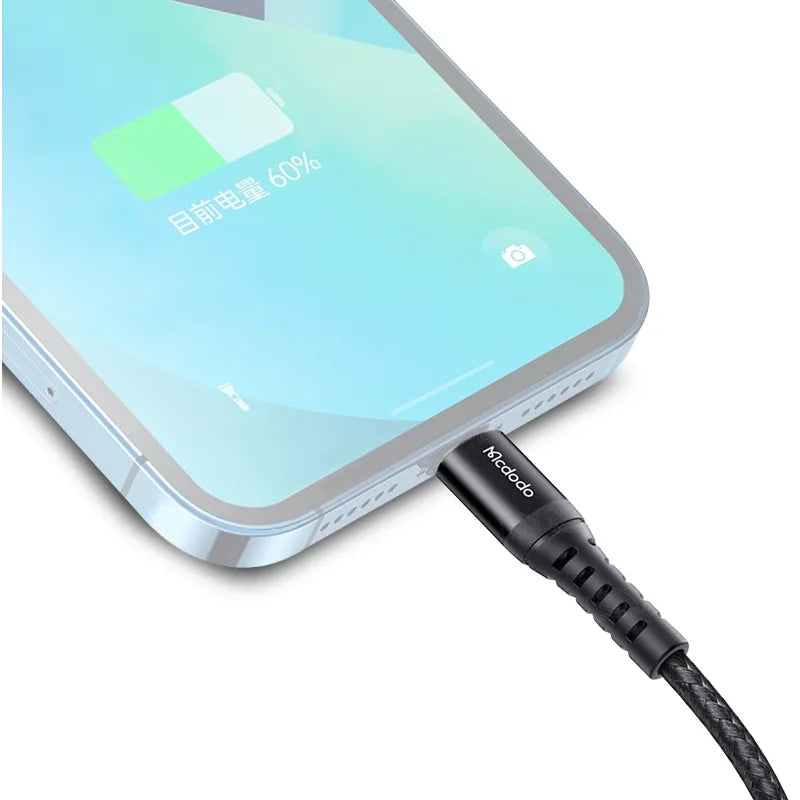

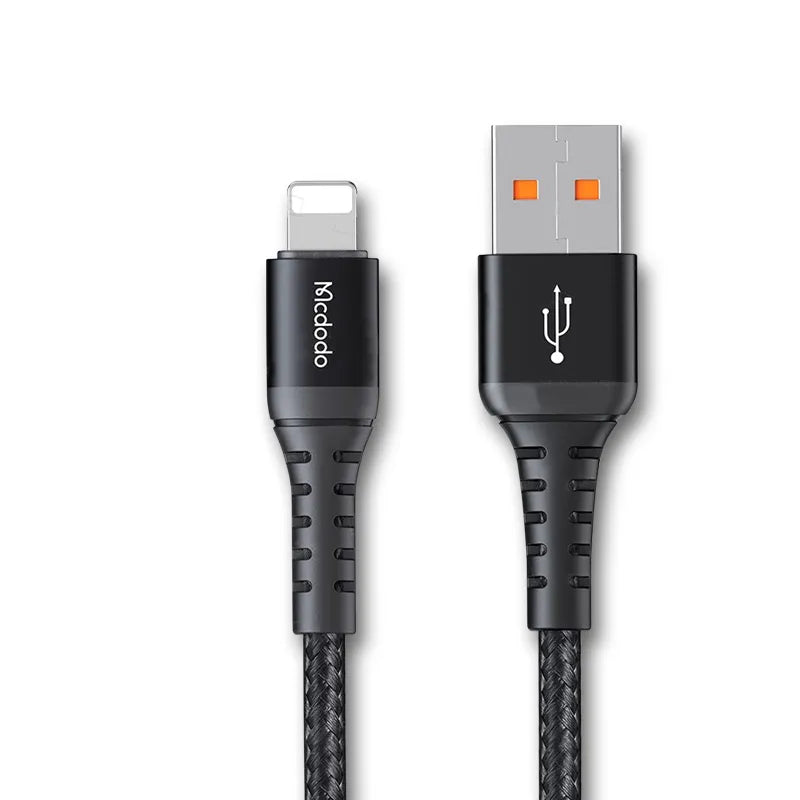

McDodo MCA2261 3 Amp USB To Lightning Braided Lead - 1 Metre
McDodo MCA2261 3 Amp USB To Lightning Braided Lead - 1 Metre

McDodo

McDodo MCA2261 3 Amp USB To Lightning Braided Lead - 1 Metre

Price
$14.95

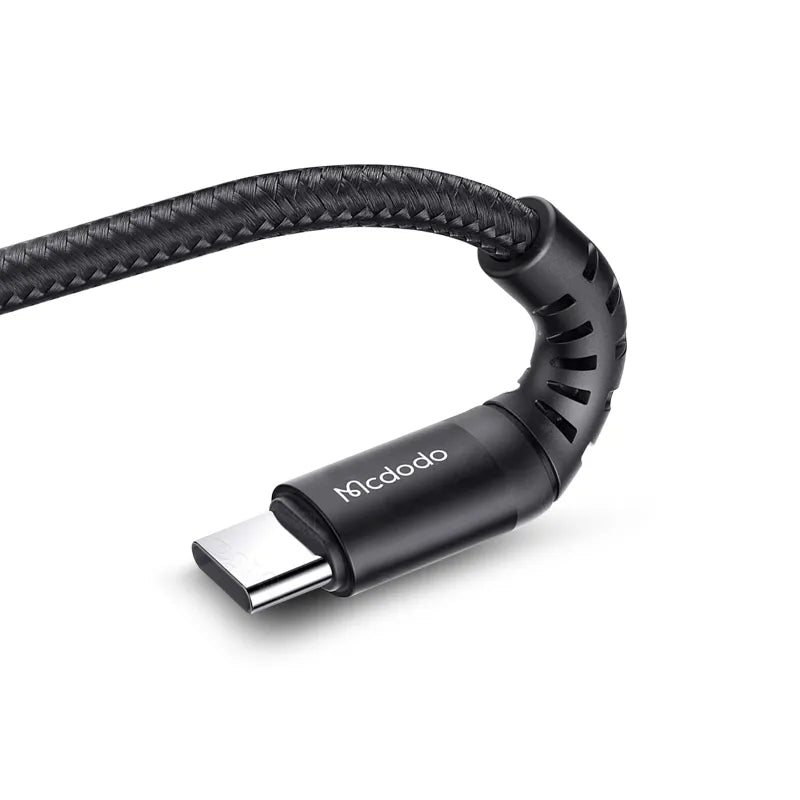

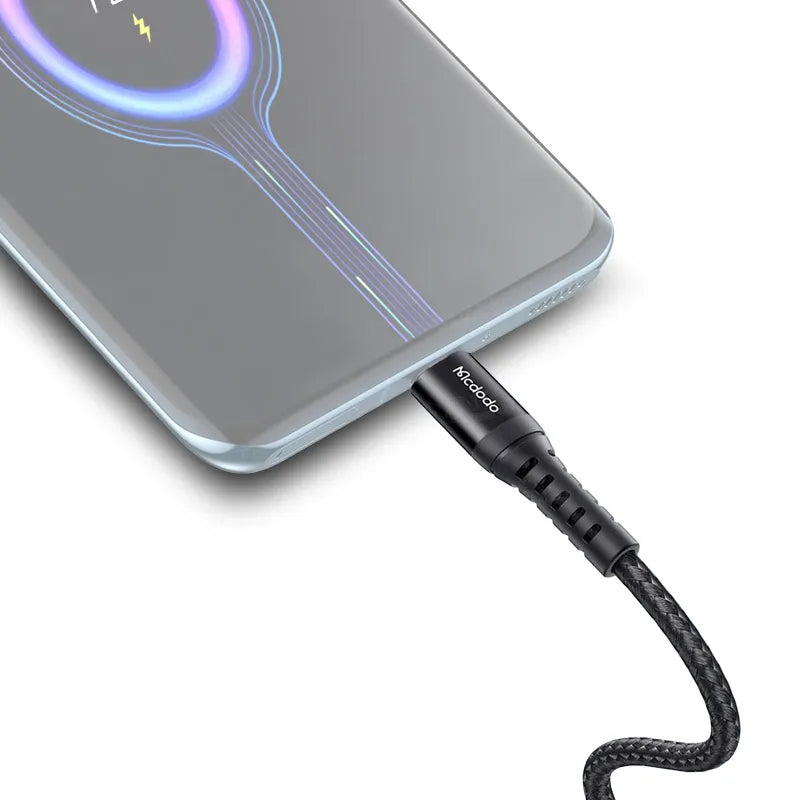

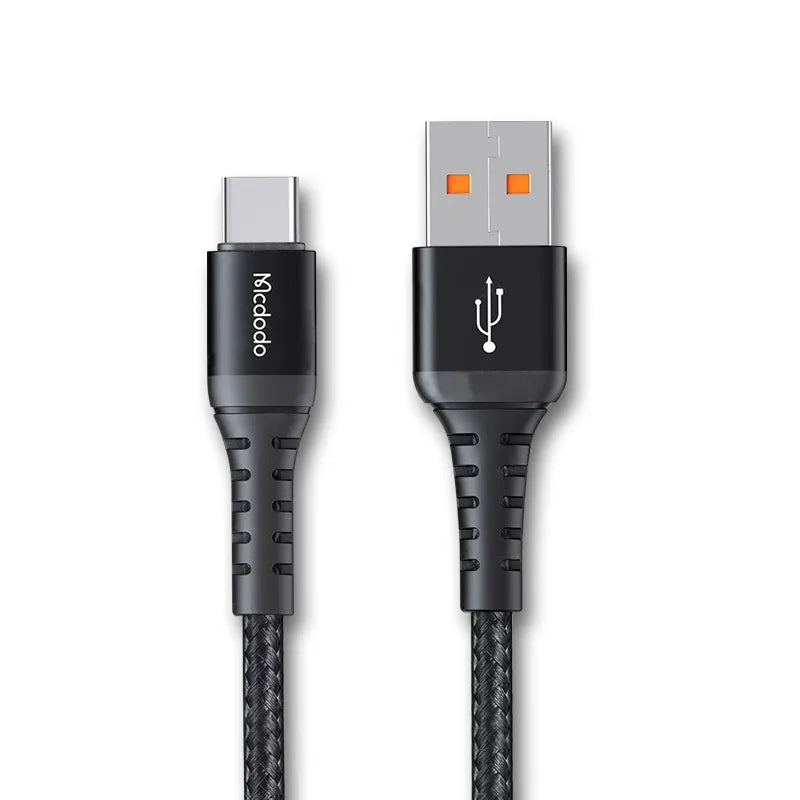

McDodo MCA2271 3 Amp USB To Type-C Braided Lead - 1 Metre
McDodo MCA2271 3 Amp USB To Type-C Braided Lead - 1 Metre

McDodo

McDodo MCA2271 3 Amp USB To Type-C Braided Lead - 1 Metre

Price
$14.95
InstallPRO IPPRYTL Steel Pry (Boeing) Tool
InstallPRO IPPRYTL Steel Pry (Boeing) Tool

InstallPRO

InstallPRO IPPRYTL Steel Pry (Boeing) Tool

Price
$49.95
Aerpro APRTK2 Removal Tool Kit, 2PC
Aerpro APRTK2 radio removal tool

Aerpro

Aerpro APRTK2 Removal Tool Kit, 2PC

Price
$14.99
Scosche E2DM Magnetic Phone/GPS Mount
Scosche E2DM Magnetic Phone/GPS Mount

Scosche

Scosche E2DM Magnetic Phone/GPS Mount

Price
$26.99
Recommended retail price
$29.95
Difference from recommended retail price
$2 below RRP
PIONEER logo

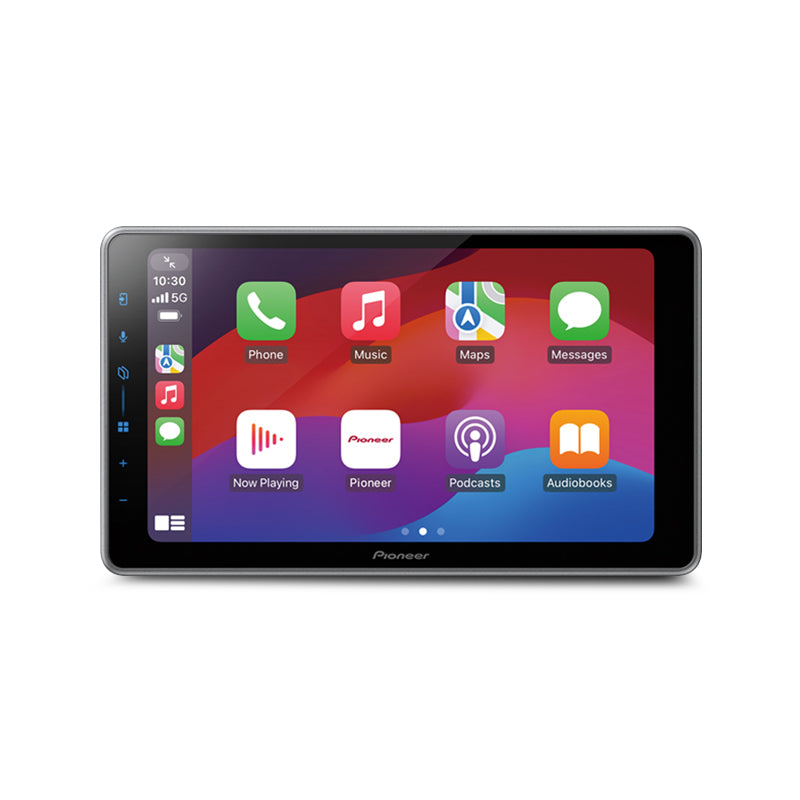

Pioneer DMH-ZF7650BT 9″ Apple CarPlay/Android Auto Wireless AV Receiver

SKU: DMHZF7650BT
Price
$639.63
Recommended retail price
$1,075.00
Difference from recommended retail price
$435 below RRP
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Pairs perfectly with

CAR AUDIO CONNECT HISOPN2 16 Pin ISO Harness for Pioneer Head Units
Car Audio Connect HISOPN2 Pioneer 16 pin to double ISO harness

CAR AUDIO CONNECT

CAR AUDIO CONNECT HISOPN2 16 Pin ISO Harness for Pioneer Head Units

Price
$22.99
Stinger CPLEAD 30cm Universal SWC Head Unit Patch Lead
Stinger CPLEAD with 3.5mm angled plug, multi pin connector and three red bullet terminals

Stinger

Stinger CPLEAD 30cm Universal SWC Head Unit Patch Lead

Price
$9.86
Aerpro APP9PIO8 Secondary ISO Harness and SWC Patch Lead for Pioneer AV Head Units
5.0
Aerpro APP9PIO8 Pioneer 16 pin secondary ISO harness and SWC patch lead

Aerpro

Aerpro APP9PIO8 Secondary ISO Harness and SWC Patch Lead for Pioneer AV Head Units

Price
$28.76
Recommended retail price
$29.99
Difference from recommended retail price
$1 below RRP
Pioneer RCAMAVIC Compact Reverse Camera for Pioneer AV and Navigation Receivers
5.0
Small black square camera on a hinged mounting bracket, angled from the front

Pioneer

Pioneer RCAMAVIC Compact Reverse Camera for Pioneer AV and Navigation Receivers

Price
$160
McDodo MCA2261 3 Amp USB To Lightning Braided Lead - 1 Metre
McDodo MCA2261 3 Amp USB To Lightning Braided Lead - 1 Metre

McDodo

McDodo MCA2261 3 Amp USB To Lightning Braided Lead - 1 Metre

Price
$14.95
McDodo MCA2271 3 Amp USB To Type-C Braided Lead - 1 Metre
McDodo MCA2271 3 Amp USB To Type-C Braided Lead - 1 Metre

McDodo

McDodo MCA2271 3 Amp USB To Type-C Braided Lead - 1 Metre

Price
$14.95
InstallPRO IPPRYTL Steel Pry (Boeing) Tool
InstallPRO IPPRYTL Steel Pry (Boeing) Tool

InstallPRO

InstallPRO IPPRYTL Steel Pry (Boeing) Tool

Price
$49.95
Aerpro APRTK2 Removal Tool Kit, 2PC
Aerpro APRTK2 radio removal tool

Aerpro

Aerpro APRTK2 Removal Tool Kit, 2PC

Price
$14.99
Scosche E2DM Magnetic Phone/GPS Mount
Scosche E2DM Magnetic Phone/GPS Mount

Scosche

Scosche E2DM Magnetic Phone/GPS Mount

Price
$26.99
Recommended retail price
$29.95
Difference from recommended retail price
$2 below RRP
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

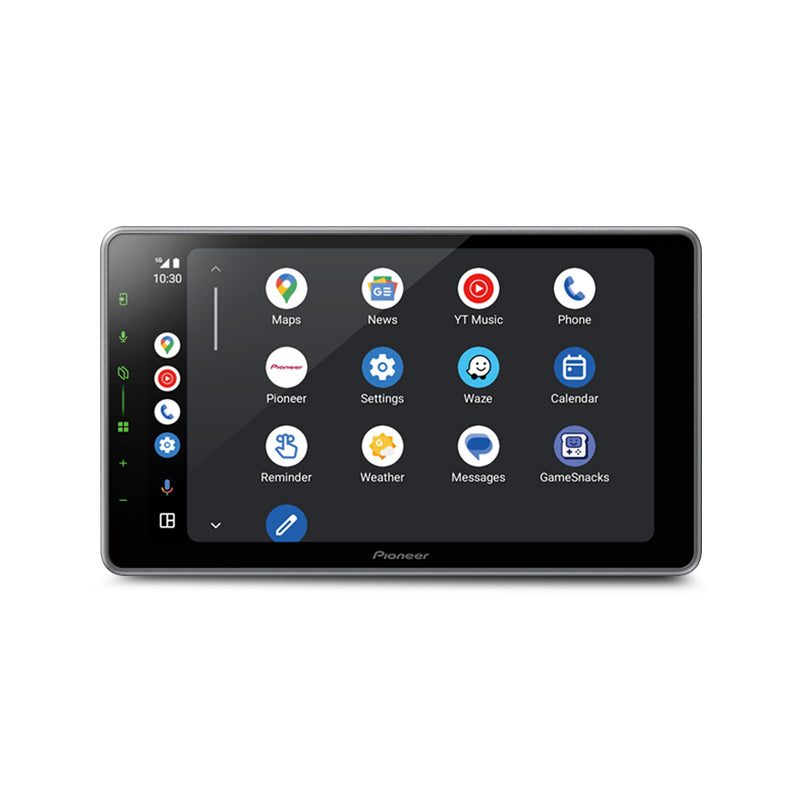

Pioneer DMH-ZF7650BT 9 inch screen showing the Android app launcher

Pioneer DMH-ZF7650BT 9″ Apple CarPlay/Android Auto Wireless AV Receiver

Price
$639.63
Recommended retail price
$1,075.00
Difference from recommended retail price
$435 below RRP

Product features

Quick answer

The Pioneer DMH-ZF7650BT is a 9 inch floating screen receiver on a single DIN chassis, made for cars with a 1 DIN slot.

Plenty of cars have a single DIN slot and a flat stretch of dash above it. The screen adjusts up, down, sideways and for tilt, and it runs wireless or wired Apple CarPlay and Android Auto.

Problems it solves

  • A small or awkward radio slot. The 1 DIN body takes a 9 inch screen that floats in front of the dash.
  • Cables everywhere. CarPlay and Android Auto connect wirelessly.

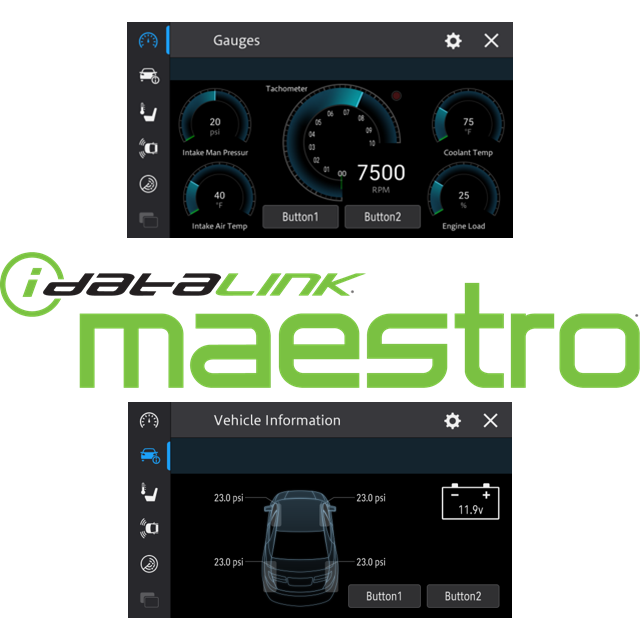

  • Losing car settings and gauges. With an iDataLink Maestro module it can show vehicle information, climate and parking data.
  • Plans for amps later. Three RCA pre outs at 4V make the system easy to grow.

Specifications

  • Screen: 9 inch WSVGA 1024 x 600 capacitive, floating
  • Chassis: 1 DIN, 156mm depth
  • Smartphone: Apple CarPlay and Android Auto, wireless or wired; WebLink Cast
  • Tuner: AM and FM, no DAB+
  • Amplifier: 4 x 50W MOSFET
  • Pre outs: 3 RCA, 4V
  • EQ: 13 band
  • Camera: reverse camera input
  • Vehicle integration: iDataLink Maestro compatible (module sold separately)

Fitment and compatibility

It suits most vehicles with a single or double DIN opening once the floating mount clears the dash, along with the harness and fascia for your car. Some dashes have controls or vents right above the slot, so we check that before ordering.

What is in the box

Pioneer does not list the carton contents on the page we read. Ask us if you need a specific part confirmed.

Install notes

Set the screen position before the dash trim goes back on. A Maestro module adds steering wheel controls and vehicle data on supported cars.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the DMH-ZF7650BT

Will the DMH-ZF7650BT floating screen fit my dash?

Most cars with a DIN slot can take it, but vents or hazard buttons above the opening can block the screen. Send us a photo of the dash and the car details.

Does the DMH-ZF7650BT have DAB+?

No. This model has an AM and FM tuner only.

How do I mount the DMH-ZF7650BT floating screen?

The screen sits on the front of the 156mm deep 1 DIN chassis. Set its height, side position and tilt before the dash trim goes back on. It suits most vehicles with a single or double DIN opening once the floating mount clears the dash, along with the harness and fascia for your car.

What does the Maestro module add to the DMH-ZF7650BT?

Steering wheel controls, vehicle information, climate display and parking data on supported vehicles. It is sold separately.
