Pioneer DMH-Z5350BT 6.8" Apple CarPlay & Android Auto with RCAMAVIC Camera

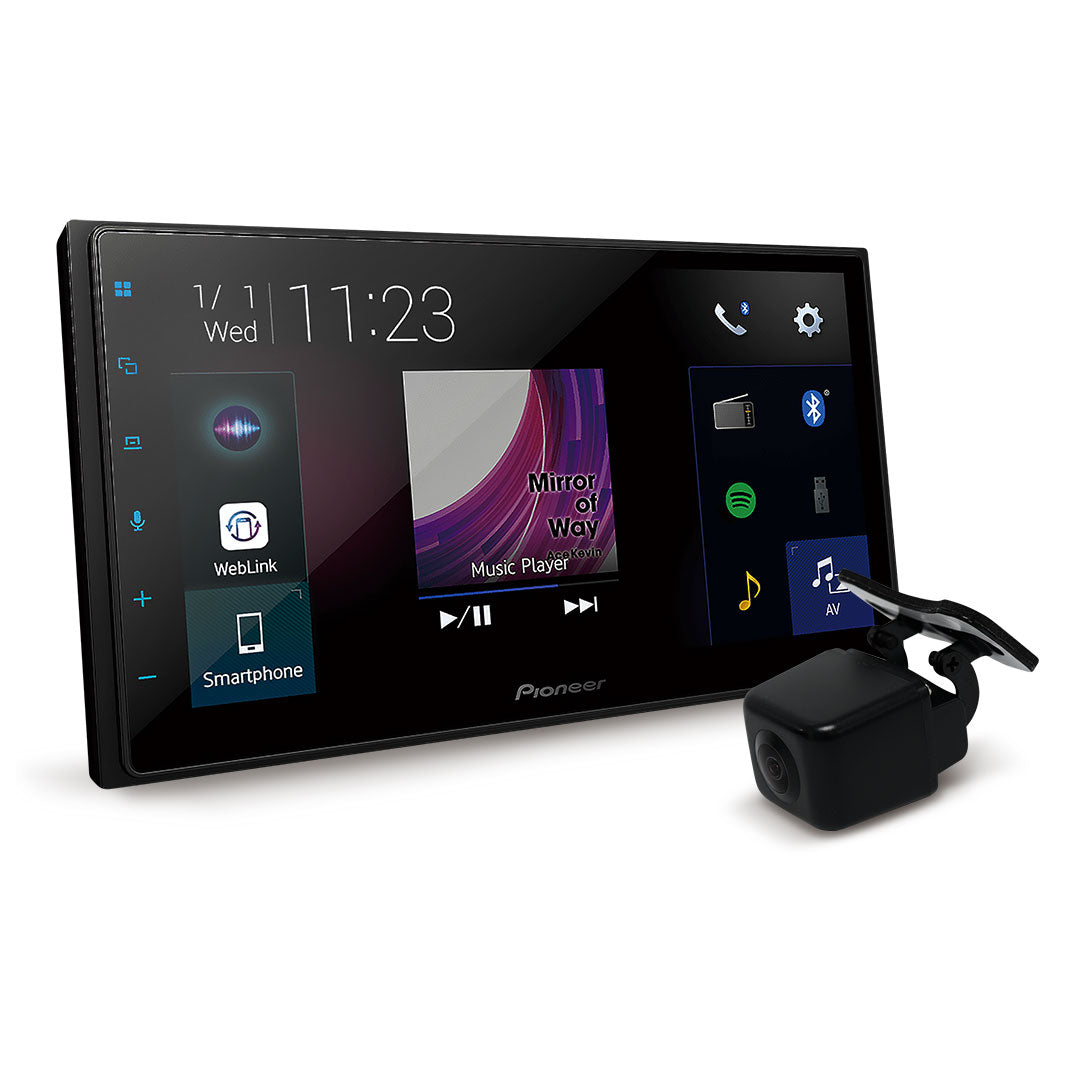

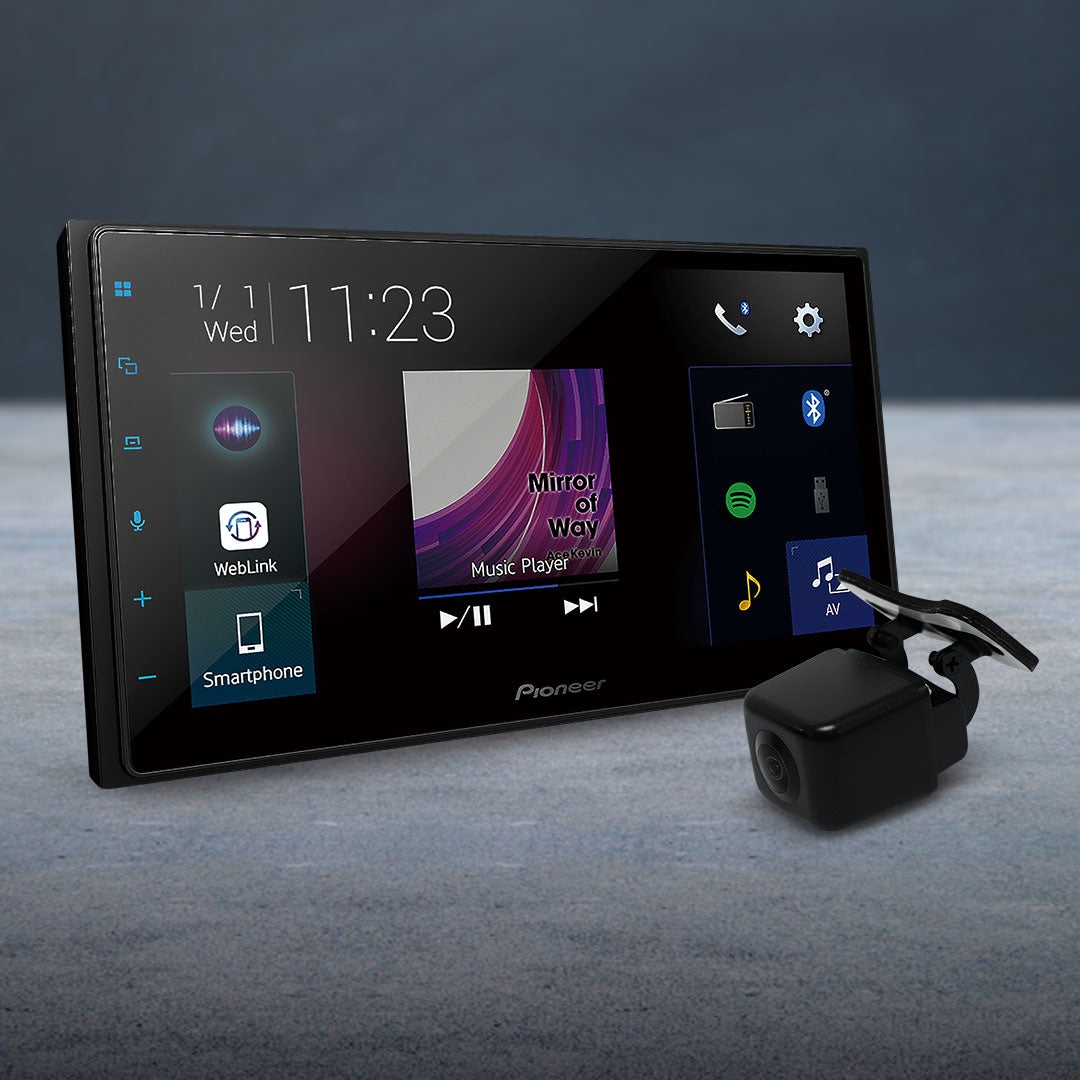

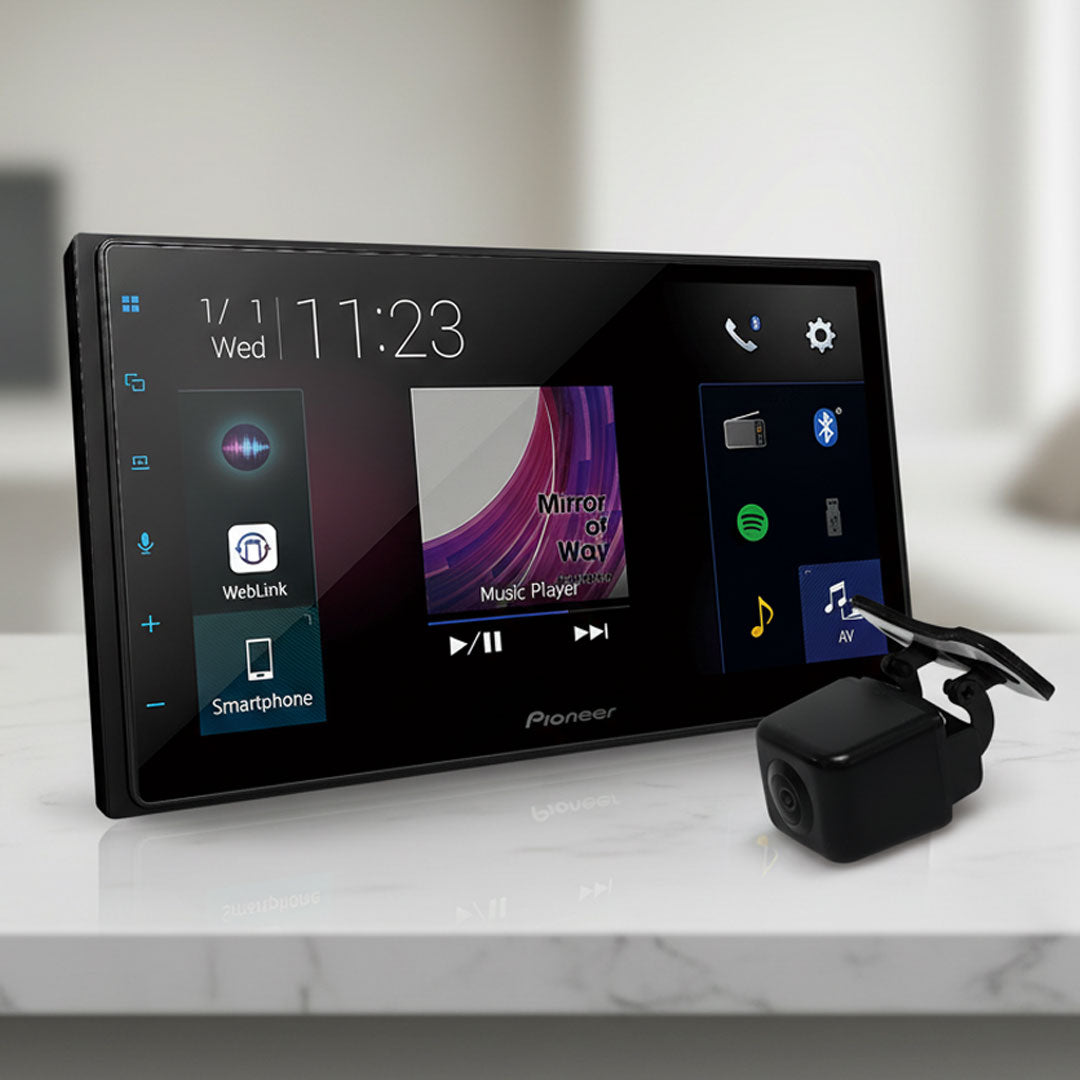

Pioneer DMH-Z5350BT 6.8" Apple CarPlay & Android Auto with RCAMAVIC Camera Bundle

Product Overview

The Pioneer DMH-Z5350BT with RCAMAVIC Camera Bundle delivers premium automotive smartphone technology featuring wired Apple CarPlay, wired Android Auto, dual Bluetooth connection, and dual reverse camera capability with the bundled IP67-rated RCAMAVIC camera. The 6.8-inch capacitive touchscreen supports 24-bit True Colour panel capable of reproducing up to 16,777,216 colours, achieving 256 times conventional display colour depth for beautifully crisp visuals with enhanced visibility. Navigation via Apple Maps, WAZE, or Google Maps, hands-free calling, music streaming, and SMS messaging are controlled through the highly customizable interface.

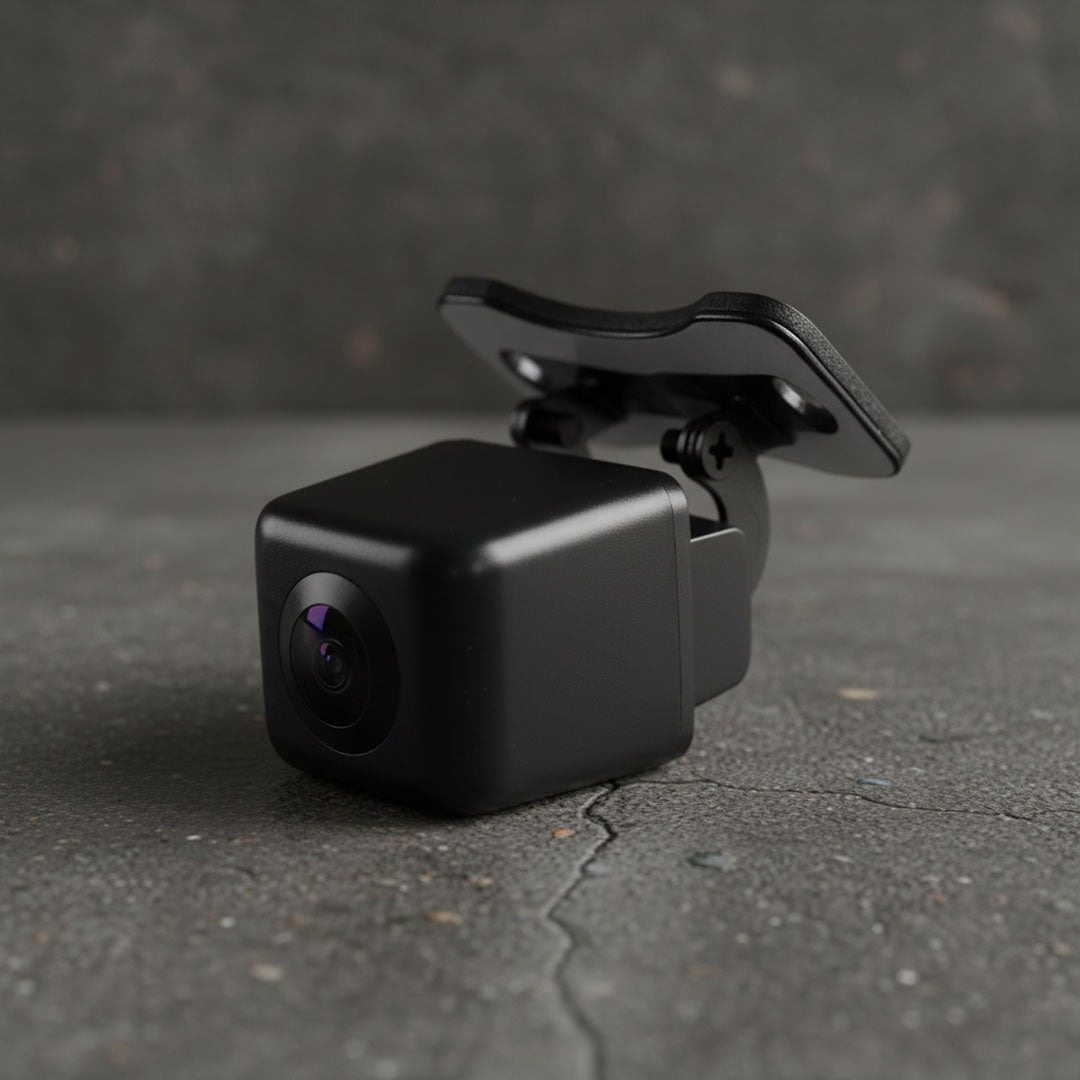

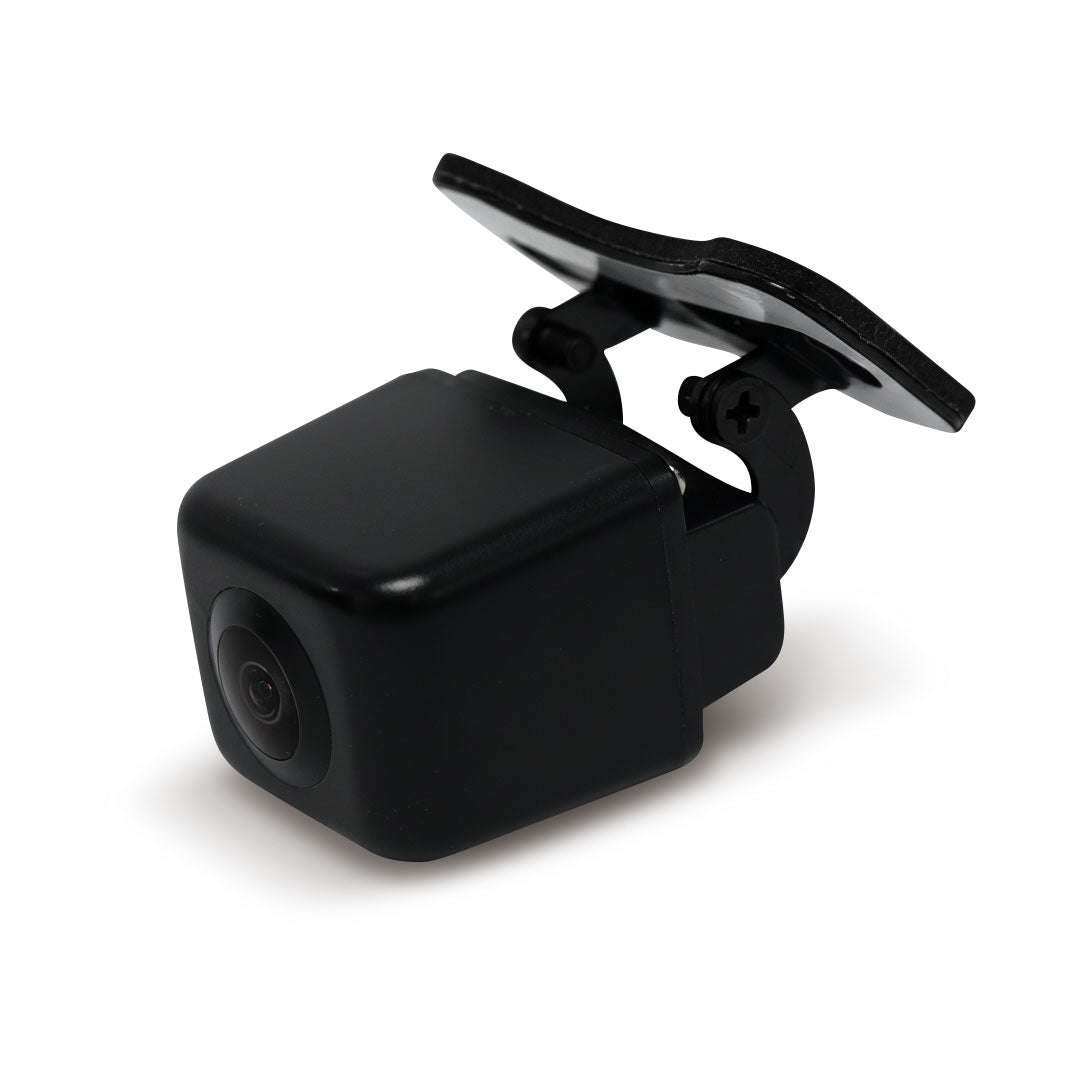

The bundled RCAMAVIC ultra-compact camera (30mm x 23.6mm x 33.6mm) with IP67 weatherproof certification and 170-degree wide-angle view ensures comprehensive rear visibility. Audio performance is unmatched with 3-Way Network Mode, 13-band graphic equalizer, Auto Time-alignment and EQ, and detailed crossover adjustments. Supporting either 4 x 50W max direct speaker outputs or 3 x 4V pre-outs for external amplifiers, this bundle provides professional-grade audio control with direct Spotify integration and dual phone connectivity for the ultimate multimedia and safety solution.

Features & Benefits

24-Bit True Colour Display with 16,777,216 Colours Advanced 24-bit True Colour panel reproduces up to 16,777,216 colours, achieving 256 times conventional display colour depth for beautifully crisp visuals with enhanced visibility and highly customizable interface superior to standard displays.

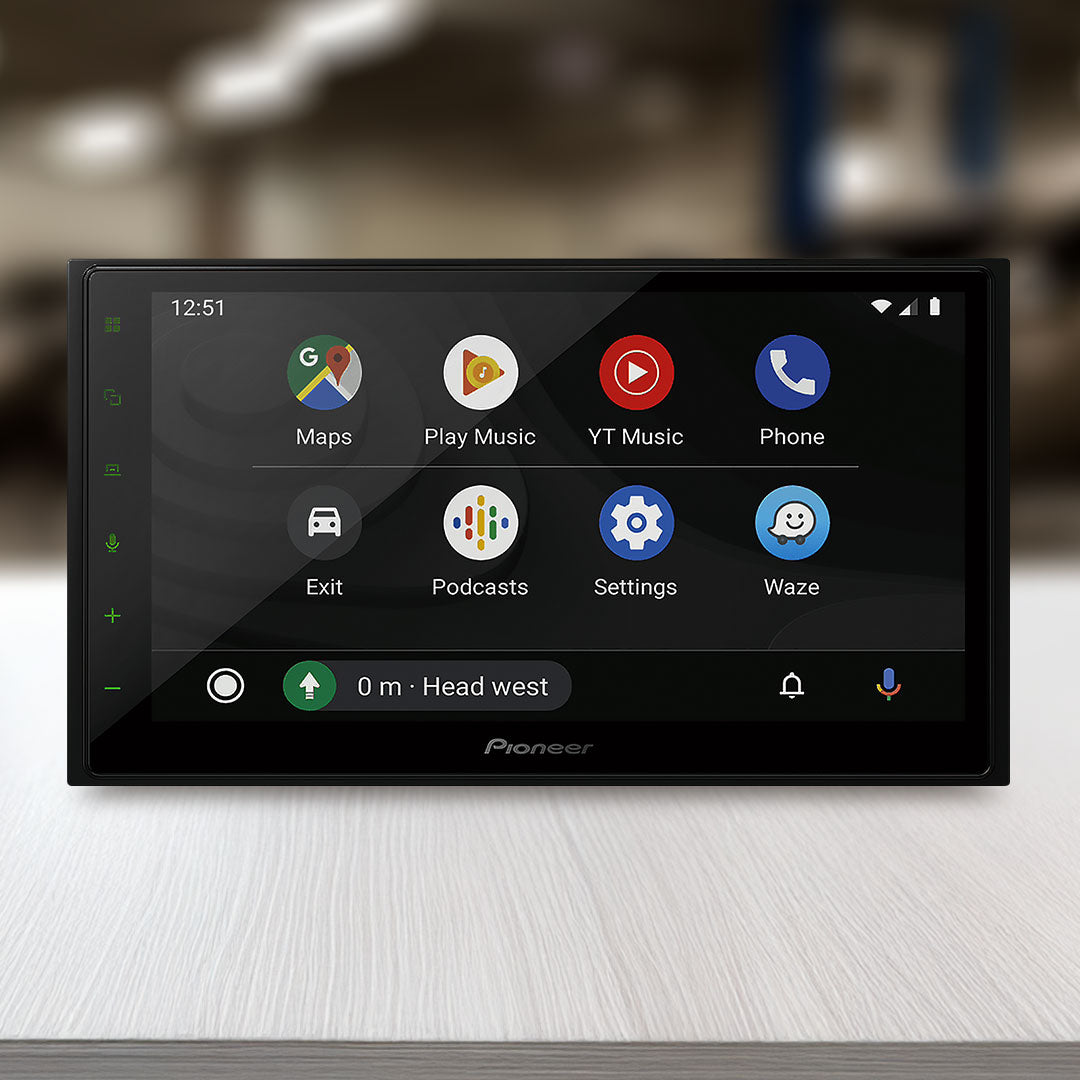

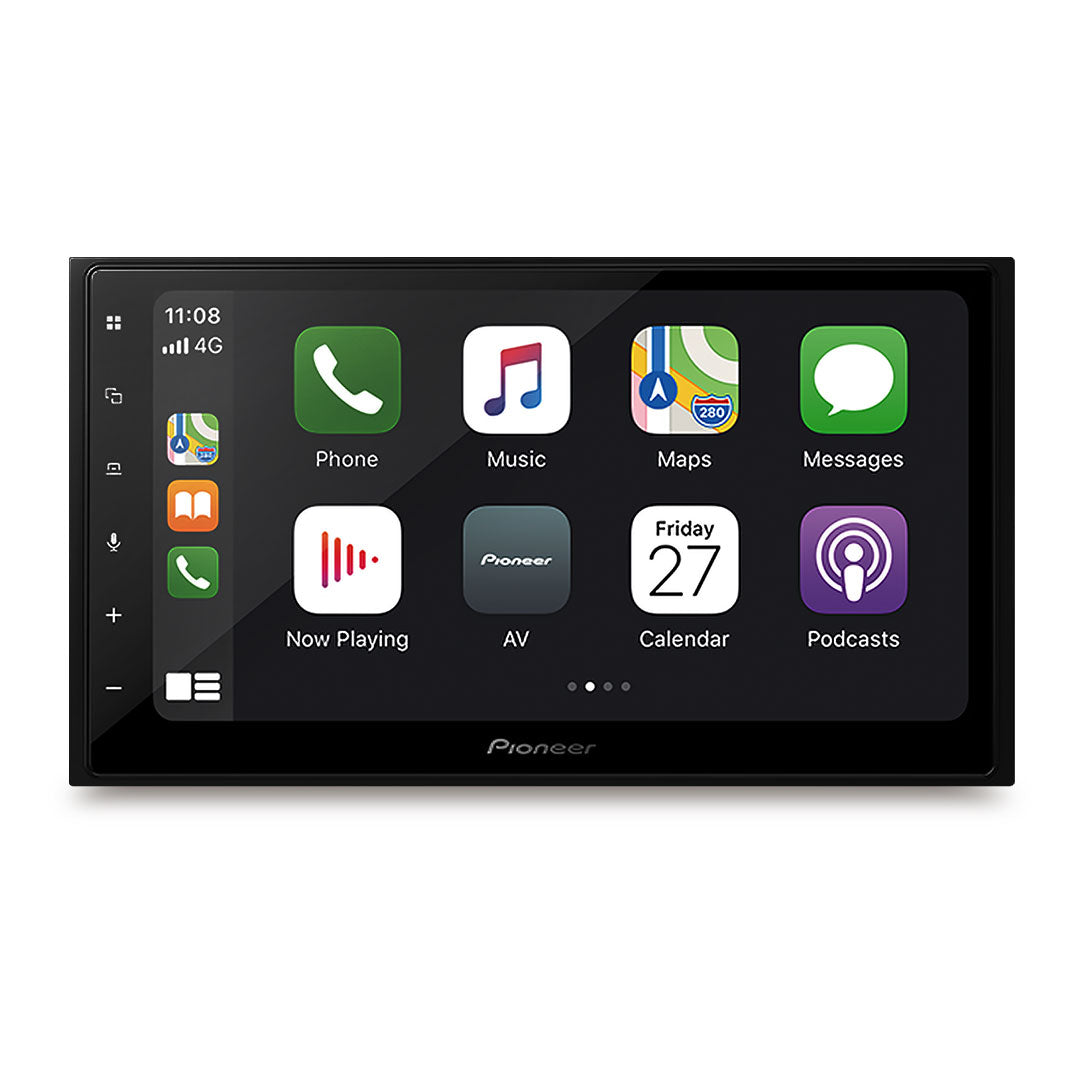

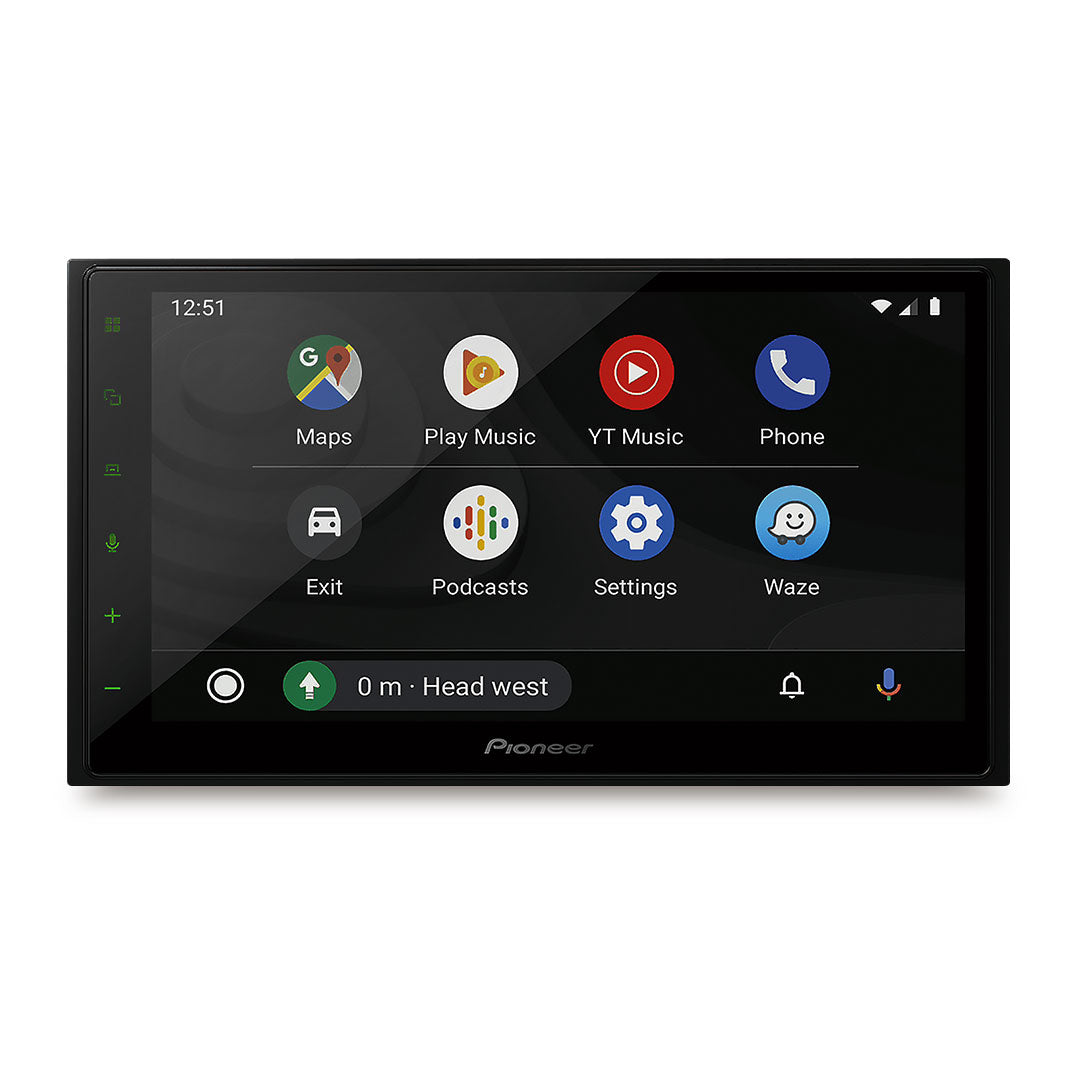

Wired Apple CarPlay and Wired Android Auto Seamless smartphone connectivity enables iPhone and Android integration via USB cable for navigation with Apple Maps, WAZE, or Google Maps, hands-free calling, music streaming, and SMS messaging through Siri or Google Assistant voice control while keeping devices charged.

Dual Bluetooth Connection with Dual Camera Inputs Connect two smartphones simultaneously with auto-connect for seamless call handling from either phone, while dual reverse camera inputs accommodate the bundled RCAMAVIC rear camera plus an optional second camera for trailer monitoring or additional visibility.

3-Way Network Mode with Auto Time-Alignment Advanced 3-Way Network Mode enables dedicated control for tweeters, midrange, and woofers with Auto Time-alignment compensating for speaker positioning, creating proper sound staging and imaging for professional-grade audio performance in any vehicle.

13-Band Graphic EQ with 3 x 4V Pre-Outs Professional 13-band graphic equalizer with detailed crossover adjustments enables precise frequency tuning, while 4-volt pre-outs provide superior signal-to-noise ratio compared to standard 2-volt outputs, reducing amplifier noise for high-performance audio systems.

Direct Spotify Control with Complete Camera System Direct Spotify integration enables track management and playlist browsing for Spotify Premium users with ad-free high-quality music, while the bundled RCAMAVIC IP67-rated camera with 170-degree wide-angle view provides reversing confidence.

USB and FM/AM Tuner with Customizable Interface USB connectivity for digital media playback and traditional FM/AM tuner ensure entertainment options for all preferences, controlled through the highly customizable 6.8-inch capacitive touchscreen interface optimized for ease of use and visibility.

Technical Specifications

Frequently Asked Questions

Q: What is 24-bit True Colour and why does it matter?

A: The 24-bit True Colour panel can reproduce 16,777,216 colours, which is 256 times more than conventional displays. This results in beautifully crisp visuals with smoother colour gradients, enhanced visibility in various lighting conditions, and more accurate representation of album art, navigation maps, and interface elements compared to standard displays with limited colour depth.

Q: Does this model support wireless CarPlay or Android Auto?

A: No, the DMH-Z5350BT requires wired connection for both Apple CarPlay and Android Auto. Connect iPhone via Lightning cable or Android smartphone via USB cable. The wired connection provides reliable performance, keeps your device charged during use, and ensures stable connectivity without wireless interference. For wireless connectivity, consider the DMH-A5650BT or DMH-Z6350BT models.

Q: What is 3-Way Network Mode?

A: 3-Way Network Mode provides dedicated control for three types of speakers: tweeters (high frequencies), midrange drivers (mid frequencies), and woofers/subwoofers (low frequencies). Each speaker type gets independent crossover settings, time alignment, and level control, enabling professional-grade audio system tuning that surpasses standard 2-way systems for superior sound staging and frequency separation.

Q: Can I connect two phones and two cameras at the same time?

A: Yes, the dual Bluetooth connection supports two phones simultaneously with auto-connect for seamless call handling from either device. The dual camera inputs accommodate the included RCAMAVIC rear camera plus an optional second camera. You can use both phones and both cameras at the same time, making this ideal for households sharing vehicles or business users with separate personal and work phones.

Q: What is the advantage of 4V pre-outs?

A: The 4V pre-outs deliver double the voltage of standard 2V outputs, providing superior signal-to-noise ratio. This means cleaner sound quality with less background noise (hiss) from your amplifiers. You can run lower gain settings on external amplifiers, which reduces noise and improves overall system performance, particularly important in high-end audio installations with multiple amplifiers.
