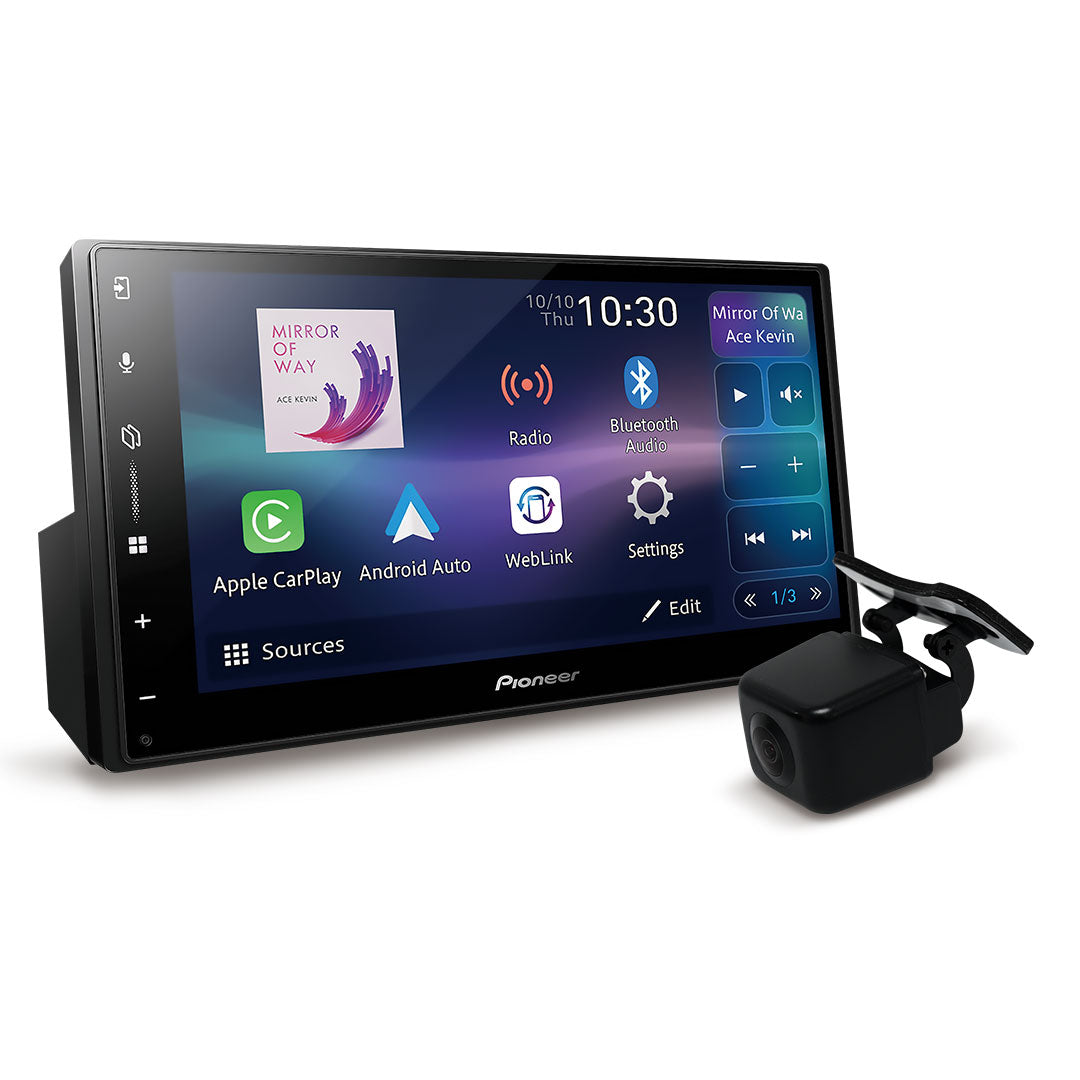

Pioneer DMH-A5650BT 6.8" Wireless Apple CarPlay & Android Auto with RCAMAVIC Camera Bundle
Product Overview
The Pioneer DMH-A5650BT with RCAMAVIC Camera Bundle delivers premium wireless smartphone connectivity and reversing safety, featuring the very best in automotive smartphone technology including wireless or wired Apple CarPlay, wireless or wired Android Auto, Bluetooth dual phone function, and a compact IP67-rated reverse camera. This flagship package enables seamless wireless connectivity allowing you to leave your iPhone or Android smartphone in your pocket while accessing navigation via Apple Maps, WAZE, or Google Maps, hands-free calling, music streaming, and SMS messaging through the 6.8-inch WVGA capacitive touchscreen with quick-access capacitive button for instant CarPlay and Android Auto activation.
The innovative 1-DIN chassis design with 125mm mid-depth provides installation flexibility with more space for wiring behind the dash compared to traditional double-DIN units, while the bundled RCAMAVIC ultra-compact camera (30mm x 23.6mm x 33.6mm) with IP67 weatherproof certification and 170-degree wide-angle view ensures comprehensive rear visibility. The DMH-A5650BT features USB with Full HD video playback support, Weblink and Weblink Cast for smartphone screen mirroring, 13-band graphic equalizer with detailed crossover adjustments, and 3 x 4V pre-outs delivering higher voltage for superior signal quality to external amplifiers compared to standard 2V outputs, making this bundle the ultimate wireless connectivity and reversing safety solution.
Features & Benefits
Wireless Apple CarPlay and Wireless Android Auto Revolutionary wireless connectivity enables iPhone and Android smartphone integration without cable connections, allowing you to leave devices in pockets or wireless charging pads while accessing navigation, hands-free calling, music streaming, and SMS messaging through Siri or Google Assistant voice control, eliminating cable clutter and providing seamless connectivity the moment you enter the vehicle.
Quick Access Capacitive Button with On-Screen Control Bar Dedicated capacitive button provides instant one-touch access to Apple CarPlay and Android Auto without navigating through menus, while the on-screen quick access bar enables rapid switching between Pioneer sources and audio controls, improving usability and reducing driver distraction during operation for safer, more convenient in-vehicle smartphone integration.
1-DIN Chassis Design with 125mm Mid-Depth Innovative 1-DIN chassis design with 125mm mid-depth provides greater installation flexibility compared to double-DIN units, offering more space for wiring behind the dash, easier integration in vehicles with limited dashboard depth, and simplified installation in modern vehicles while maintaining the large 6.8-inch display for optimal visibility and control.
Bluetooth Dual Phone Function with Complete Camera System Bluetooth connectivity supports simultaneous pairing of two phones enabling multiple drivers to maintain connected devices without re-pairing, while the bundled RCAMAVIC IP67-rated camera with 170-degree wide-angle view and 1/4-inch Color CMOS sensor provides reversing confidence with improved visibility for parking, towing, and maneuvering without sourcing compatible camera components separately.
3 x 4V Pre-Outs for Superior Amplifier Signal Quality Three pre-outs delivering 4-volt output provide superior signal-to-noise ratio compared to standard 2-volt outputs, reducing amplifier gain requirements and minimizing noise interference in external amplifier installations, enabling cleaner signal transfer for high-performance audio systems while maintaining centralized control through the advanced 13-band equalizer and crossover adjustments.
USB with Full HD Video Playback and Weblink Cast USB connectivity supports Full HD video playback for in-vehicle entertainment during stops, while Weblink and Weblink Cast enable smartphone screen mirroring via USB and Bluetooth connection, allowing access to virtually all navigation, communication, productivity, and entertainment apps on the 6.8-inch touchscreen for extended functionality beyond native CarPlay and Android Auto applications.
6.8-Inch WVGA Capacitive Touchscreen with IP67 Camera Fully flat capacitive touchscreen delivers fast, responsive touch gestures like a smartphone with highly detailed WVGA resolution images, while the ultra-compact 30mm x 23.6mm x 33.6mm RCAMAVIC camera with IP67 weatherproof certification ensures reliable operation in harsh Australian weather conditions including rain, dust, and extreme temperatures without camera failure or image degradation.
Technical Specifications
| Specification | Details |
|---|---|
| Bundle Includes | Pioneer DMH-A5650BT + RCAMAVIC Camera |
| Display Size | 6.8 inches |
| Display Type | WVGA Capacitive Touchscreen (Fully Flat) |
| Display Resolution | WVGA (Wide VGA) |
| Apple CarPlay | Yes (Wireless or Wired) |
| Android Auto | Yes (Wireless or Wired) |
| Quick Access Button | Capacitive Button for CarPlay/Android Auto |
| On-Screen Controls | Quick Access Bar for Source & Audio |
| Bluetooth | Dual Phone Function, Hands-Free, Music Streaming |
| Weblink & Weblink Cast | Yes (Smartphone Screen Mirroring) |
| USB | Yes (Full HD Video Playback Supported) |
| Radio | AM/FM Tuner |
| Equalizer | 13-Band Graphic EQ |
| Crossover Adjustments | Detailed |
| Power Output | 4 x 50W Max |
| Pre-Outs | 3 x 4V (Front, Rear, Subwoofer) |
| Chassis Design | 1-DIN with 125mm Mid-Depth |
| Reverse Camera | Included (RCAMAVIC) |
| Camera Dimensions | 30mm x 23.6mm x 33.6mm |
| Camera Sensor | 1/4" Color CMOS |
| Camera Viewing Angle | Diagonal: 170°, Horizontal: 120°, Vertical: 100° |
| Camera Protection | IP67 Certified |
| Installation | Professional Installation Recommended |
Installation & Compatibility
The Pioneer DMH-A5650BT features an innovative 1-DIN chassis design with 125mm mid-depth, providing greater installation flexibility compared to traditional double-DIN units while maintaining a large 6.8-inch display. This design offers more space for wiring behind the dash and easier integration in vehicles with limited dashboard depth. Professional installation by qualified car audio technicians is strongly recommended to ensure proper wiring, Bluetooth antenna positioning, pre-out configuration, reverse camera integration, and wireless CarPlay/Android Auto functionality.

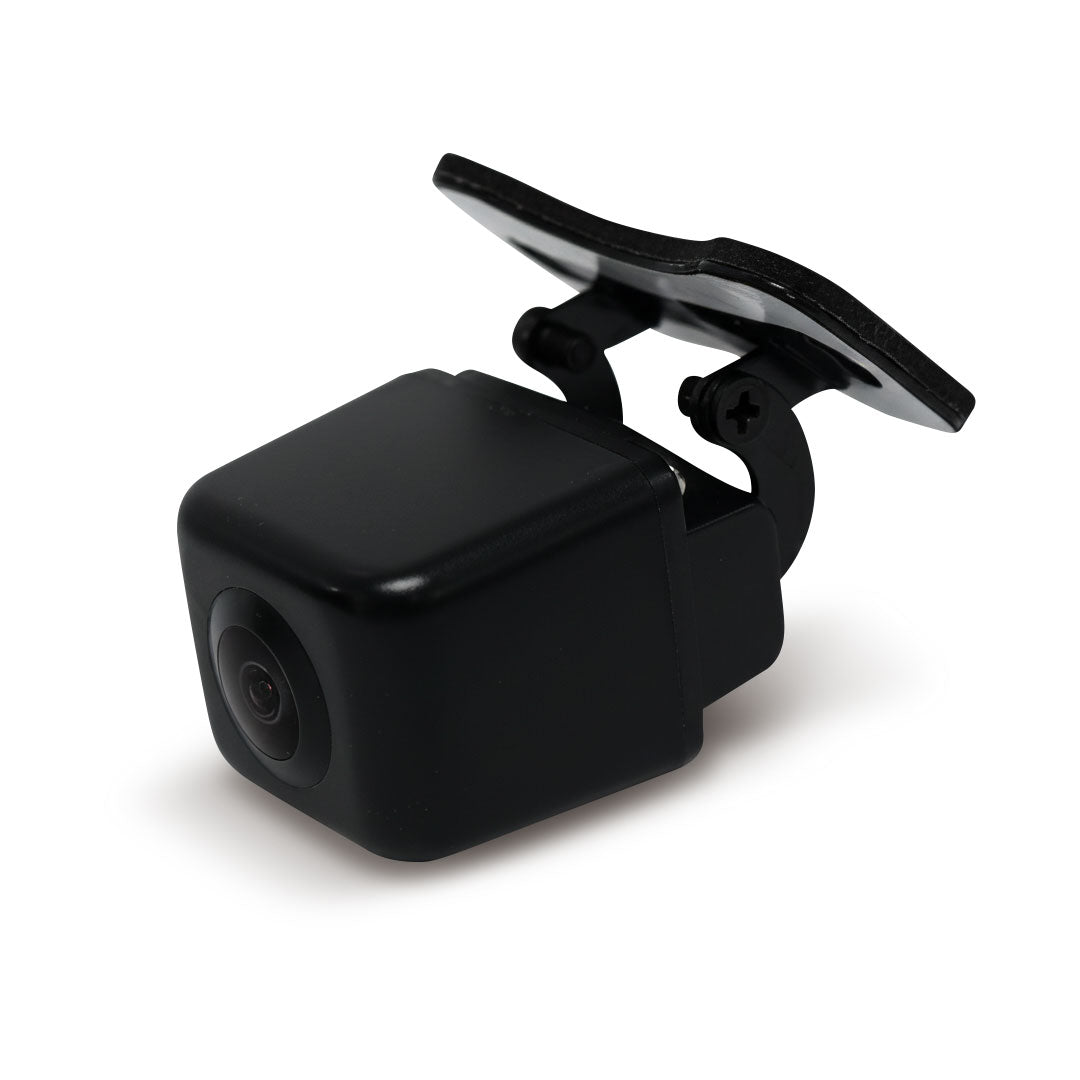

The RCAMAVIC camera mounts at the rear of the vehicle, typically above or near the license plate, with clear unobstructed view of the reversing area. Connect the camera to the DMH-A5650BT reverse camera input via standard RCA video connection. The IP67 weatherproof rating protects against water ingress and dust, but proper cable sealing through vehicle bodywork is essential. Connect camera power to the vehicle reverse light circuit for automatic activation when reverse gear is engaged.
For wireless Apple CarPlay, ensure your iPhone supports wireless CarPlay functionality (iPhone 5 and later with iOS 9 or later, though wireless capability varies by model). For wireless Android Auto, verify your Android smartphone meets compatibility requirements at g.co/androidauto/requirements. Both wireless and wired connections are supported, providing flexibility for devices without wireless capability or when charging is needed. For wired connection, use Lightning cable for iPhone or USB cable for Android (cables not included).
The 3 x 4V pre-outs deliver superior voltage compared to standard 2V outputs, reducing amplifier gain requirements and minimizing noise interference in external amplifier installations. Connect pre-outs (front, rear, subwoofer) to amplifier inputs using quality RCA cables. The 13-band graphic equalizer with detailed crossover adjustments enables precise audio system tuning for optimal sound quality. Weblink and Weblink Cast functionality requires USB and Bluetooth connection simultaneously with the Weblink Host app installed on compatible smartphones.
Frequently Asked Questions
Q: What is the main advantage of wireless CarPlay and Android Auto?
A: Wireless connectivity eliminates cable clutter and allows you to leave your iPhone or Android smartphone in your pocket, purse, or wireless charging pad while still accessing all CarPlay and Android Auto features. The receiver automatically connects when you enter the vehicle with your paired device, providing seamless access to navigation, calls, messages, and music without plugging in cables. You can still use wired connection when needed for charging.
Q: Will my iPhone or Android phone work wirelessly?
A: For wireless Apple CarPlay, you need iPhone 5 or later with iOS 9 or later, though wireless capability varies by iPhone model - newer models offer better wireless performance. For wireless Android Auto, check compatibility at g.co/androidauto/requirements. Your Android smartphone needs an active data plan for wireless functionality. If your device doesn't support wireless, both wired CarPlay and Android Auto still work via USB cable connection.
Q: What is the advantage of 4V pre-outs over 2V pre-outs?
A: The 4V pre-outs deliver double the voltage of standard 2V outputs, providing superior signal-to-noise ratio. This means you can run lower gain settings on your external amplifiers, resulting in less amplifier noise (hiss) and cleaner overall sound quality. The higher voltage also provides better performance over longer cable runs and with lower-end amplifiers that may have marginal input sensitivity.
Q: Can I use Weblink Cast and CarPlay at the same time?
A: No, you use either CarPlay/Android Auto or Weblink Cast depending on your needs. CarPlay and Android Auto provide the best integration for navigation, calls, and music. Weblink Cast is useful for accessing apps that aren't available through CarPlay or Android Auto, allowing you to mirror your phone screen and interact with virtually any app on the 6.8-inch touchscreen.
Q: Is this a double-DIN or single-DIN unit?
A: The DMH-A5650BT features a 1-DIN chassis design, meaning the chassis (body) that mounts behind the dash is single-DIN size with 125mm depth. However, the 6.8-inch display requires a double-DIN opening (178mm x 100mm) in your dashboard. This innovative design combines the installation flexibility of single-DIN depth with the large screen benefits of double-DIN, providing more room for wiring behind the dash.
