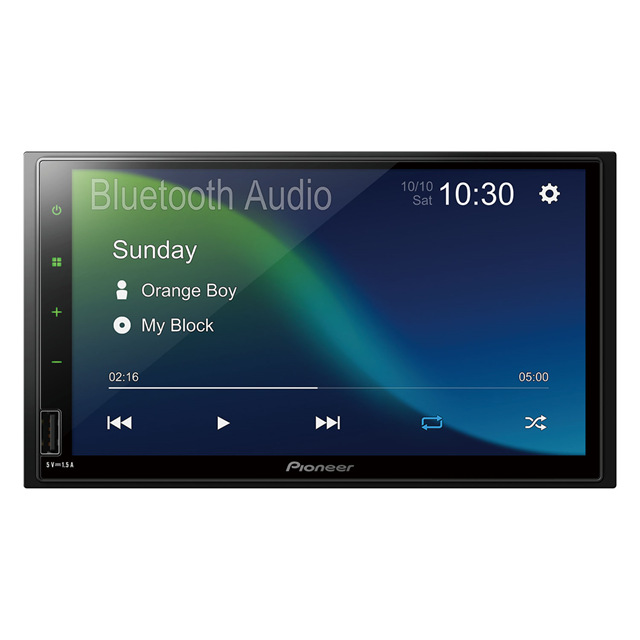

Pioneer DMH-A375BT 7" AV Receiver

Pioneer DMH-A375BT 7" AV Receiver

Upgrade your dash with a large, crisp 7" WSVGA capacitive touchscreen and enjoy Bluetooth hands-free calling, wireless music streaming, WebLink Cast smartphone mirroring, Full HD USB video playback, and dual camera inputs — all in Pioneer's shallow 110mm chassis for flexible, easy installation.

Product Overview

The Pioneer DMH-A375BT is a mechless 7" AV receiver designed for drivers who want a modern, feature-rich in-dash display without the complexity of CarPlay or Android Auto. The large 7" WSVGA capacitive touchscreen delivers a crisp, responsive interface that's easy to navigate while retaining full attention on the road.

Bluetooth 5.2 with HFP, A2DP, and AVRCP enables hands-free calling and wireless audio streaming with automatic device pairing when a registered phone is nearby. WebLink and WebLink Cast provide wired smartphone mirroring for both iOS and Android via USB and Bluetooth simultaneously, giving access to navigation apps like Waze, music services, and more on the larger in-dash screen.

Media playback is handled via USB with Full HD video playback support and a broad range of compatible formats, while the AUX input caters for additional sources. Dual camera inputs support an optional reverse camera for improved parking and towing visibility, and a 13-band graphic EQ allows precise sound tuning across the full audio spectrum.

The shallow 110mm chassis depth makes the DMH-A375BT well suited to vehicles with limited behind-dash clearance, providing flexible installation options and extra space for cable management.

Note: WebLink and WebLink Cast require the WebLink Host app to be installed on the smartphone. Certain apps may restrict video and music playback functions. Not available on all devices.

Features & Benefits

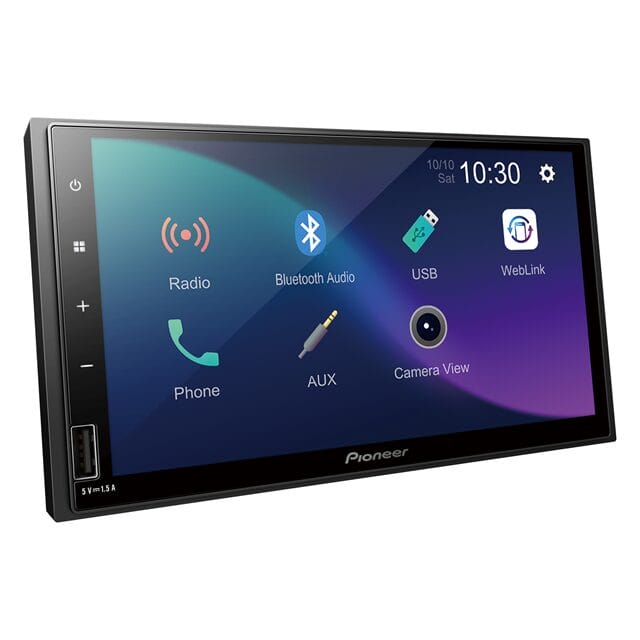

• 7" WSVGA capacitive touchscreen delivering a high-quality, crisp, and responsive in-dash display with enhanced visibility
• Bluetooth 5.2 with HFP, A2DP, and AVRCP for hands-free calling, wireless music streaming, artist and song search, and automatic device pairing
• WebLink and WebLink Cast supporting wired smartphone screen mirroring for iOS and Android, giving access to navigation, music, and productivity apps on the in-dash display

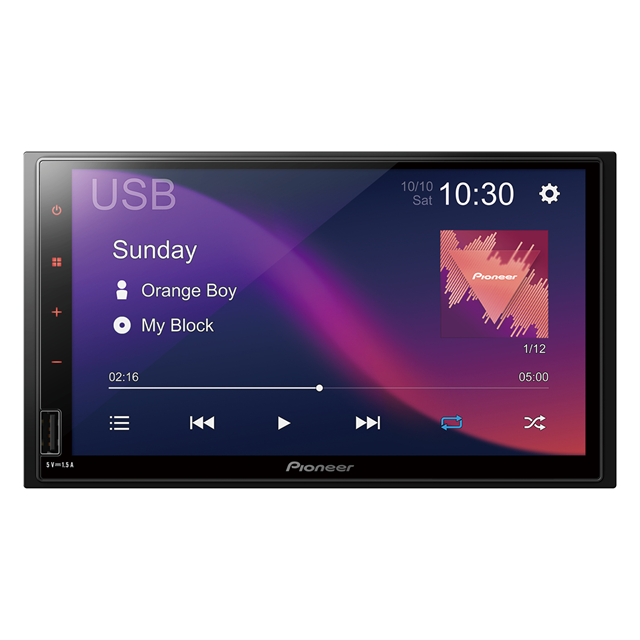

• Full HD USB video playback with a wide selection of compatible media formats for music and video on the road
• AUX input for connecting additional audio sources
• Dual camera inputs supporting an optional reverse camera for improved parking and towing visibility from both sides
• 13-band graphic EQ for precise, detailed sound tuning across the full audio spectrum
• Shallow 110mm chassis depth providing flexible installation options in vehicles with limited behind-dash space
• Auto Bluetooth pairing automatically connecting registered devices when in proximity without manual setup

Technical Specs

Compatible With / Goes Well With

The Pioneer DMH-A375BT suits a wide range of vehicle and installation types including:

• Vehicles with limited behind-dash clearance where the shallow 110mm chassis provides a significant installation advantage over standard depth units
• Drivers retaining a factory amplified system who want a modern touchscreen display and Bluetooth without a full CarPlay/Android Auto headunit
• Tow vehicle and trailer applications where dual camera inputs allow both a reverse camera and a secondary trailer camera to be connected
• Daily driver upgrades requiring Bluetooth hands-free calling, Waze navigation via WebLink, and wireless audio streaming in a simple, reliable package

Goes well with:

• Pioneer ND-BC8 or compatible reverse camera (for connection to the primary reverse camera input)
• Vehicle-specific fascia and harness kits (contact F.A.E. for the correct Aerpro installation kit for your vehicle)
• Pioneer TS series speakers (to complement the 13-band EQ tuning capability)

Frequently Asked Questions

Q: Does the Pioneer DMH-A375BT support Apple CarPlay or Android Auto?

A: No. The DMH-A375BT does not support Apple CarPlay or Android Auto. Smartphone integration is provided via WebLink and WebLink Cast, which enable compatible iOS and Android apps to be mirrored and controlled on the in-dash touchscreen via a simultaneous USB and Bluetooth connection. For full CarPlay and Android Auto support, consider the Pioneer DMH-A4650BT or DMH-AP6650BT.

Q: What is WebLink Cast and how does it differ from CarPlay or Android Auto?

A: WebLink Cast mirrors your smartphone's full screen onto the DMH-A375BT's display, giving access to virtually all apps including Waze, Spotify, and other navigation and entertainment apps. Unlike CarPlay and Android Auto which use a curated interface, WebLink Cast displays your phone's native screen directly. It requires the WebLink Host app to be installed on the smartphone and a simultaneous USB and Bluetooth connection to function. Note that certain apps may restrict video and music playback via WebLink Cast.

Q: What media formats does the DMH-A375BT support via USB?

A: The DMH-A375BT supports a broad range of audio and video formats via USB including MP3, AAC, FLAC, and Full HD video playback. Exact format compatibility may vary — refer to the Pioneer product documentation or contact F.A.E. for the confirmed full format list.

Q: How do the dual camera inputs work on the DMH-A375BT?

A: The DMH-A375BT features two camera inputs allowing connection of both a primary reverse camera and a second optional camera such as a front or cabin camera. The reverse camera input activates automatically when reverse gear is engaged. The second camera input can be triggered manually or configured for alternative use. An optional reverse camera is required as none is included with the unit.

Q: Is the 110mm shallow chassis a significant installation advantage?

A: Yes. Many modern vehicles have limited clearance behind the dashboard for aftermarket headunits, particularly those with complex HVAC ducting or structural reinforcements behind the dash. The DMH-A375BT's 110mm depth provides more clearance for cable management and reduces the risk of fitment issues compared to standard depth units, making it a practical choice for a wider range of vehicles without modification.
