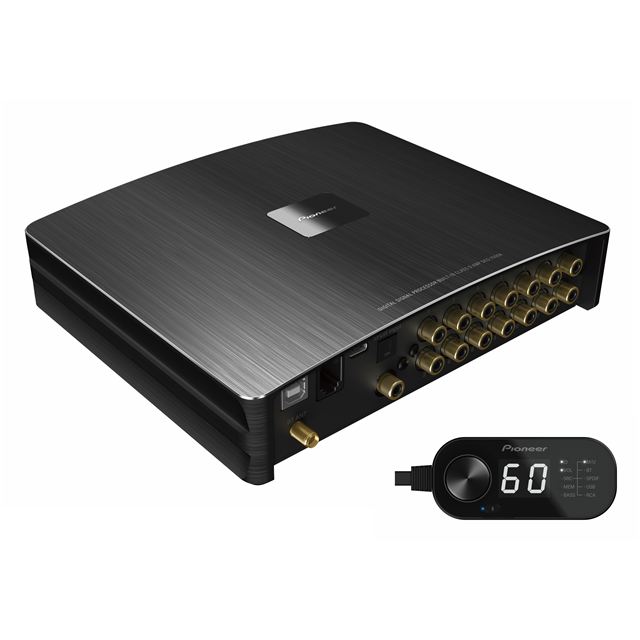

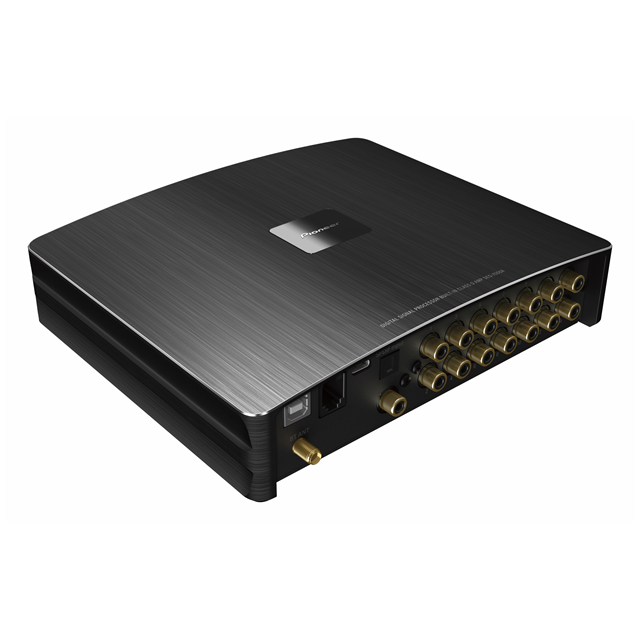

Pioneer DEQ-7000A Class-D 8-Channel DSP Amplifier

Pioneer DEQ-7000A Class-D 8-Channel DSP Amplifier

Unlock the full potential of your factory or aftermarket audio system with the Pioneer DEQ-7000A, a Hi-Res certified 8-channel Class-D DSP amplifier delivering 960W max power, 10x 4V preouts, 31-band EQ, and full smartphone and PC tuning — the ultimate solution for audiophiles who want premium sound without replacing the factory source unit.

Product Overview

The Pioneer DEQ-7000A is a professional-grade digital signal processor and amplifier built for serious car audio enthusiasts who demand precision tuning, high-resolution audio playback, and full system flexibility. Powered by a Texas Instruments Class-D amplifier circuit delivering 60W nominal per channel (8 channels) and a maximum of 960W total, the DEQ-7000A combines raw output with audiophile-grade signal processing to transform any in-car audio system.

At the core is a high-performance DSP featuring a 96kHz/24-bit sampling rate, 32-bit A/D converter, and 24-bit D/A converter, faithfully reproducing high-resolution audio sources with exceptional clarity and detail. Time alignment corrects the acoustic distance from each speaker to the listening position, while the 31-band graphic EQ and fully parametric EQ with three selectable filter modes (Butterworth, Bessel, and Linkwitz-Riley) provide surgical control over every aspect of the sound.

The DEQ-7000A accepts an extraordinary range of input sources including 8 speaker inputs, 4 RCA inputs, optical, SPDIF, USB-C (3A), and Bluetooth 5.1 with SBC, AAC, aptX, and LDAC codec support for high-resolution wireless streaming. Ten 4V RCA preouts and 8 speaker outputs enable full multi-amplifier and multi-speaker system configurations, while channel summing adds further flexibility for complex builds.

Free dedicated "DSP Controller" software (PC) and smartphone app (iOS and Android) provide intuitive visual tuning with preset EQ profiles and real-time adjustment while listening. A wired remote control with easy-to-read digital display enables direct in-cabin operation without reaching for a phone or laptop.

At just 200mm x 47mm x 169mm, the DEQ-7000A installs easily under a seat or in tight spaces across virtually any vehicle, and factory navigation audio mix-in ensures voice guidance is never interrupted during audio playback.

Features & Benefits

• 8-channel Class-D amplifier with 480W nominal and 960W maximum power using Texas Instruments amplifier circuitry for extreme efficiency and high-quality sound
• Hi-Res Audio certified with 96kHz/24-bit sampling rate, 32-bit A/D, and 24-bit D/A converter for faithful high-resolution audio reproduction
• 10 x 4V RCA preouts and 8 x speaker outputs supporting full-scale multi-amplifier and multi-speaker system builds from a single unit
• 31-band graphic EQ and parametric EQ with Butterworth, Bessel, and Linkwitz-Riley filter modes for precise, surgical sound correction
• Time alignment correcting acoustic distance from each speaker to the listening position for an optimised driver's seat soundstage
• Bluetooth 5.1 with LDAC, aptX, AAC, and SBC supporting high-resolution wireless audio streaming from smartphones and digital audio players
• 8 speaker inputs and 4 RCA inputs plus optical, SPDIF, and USB-C (3A) inputs for maximum source compatibility including factory systems
• Channel summing for flexible signal routing in complex audio configurations
• Free DSP Controller app (iOS and Android) and PC software for intuitive visual tuning with preset EQ profiles and real-time adjustment

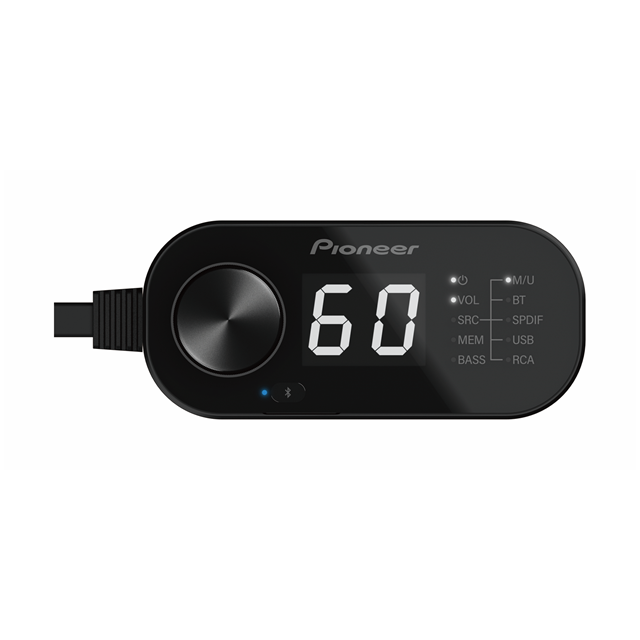

• Wired remote control with digital display for direct in-cabin operation without requiring a phone or computer
• Factory navigation audio mix-in allowing factory nav voice guidance to interrupt audio playback without disrupting the overall system
• Compact 200mm x 47mm x 169mm chassis designed for under-seat or hidden installation in tight spaces across a wide range of vehicles
• Compatible with Apple CarPlay and Android Auto source signals via speaker line or RCA input from a connected headunit

Technical Specs

Compatible With / Goes Well With

The Pioneer DEQ-7000A is suited for a wide range of audio system configurations including:

• Factory source unit retention setups where the OEM headunit is kept and the DEQ-7000A handles all amplification, DSP, and signal processing
• Aftermarket headunit systems requiring a dedicated DSP processor and amplifier for advanced tuning capability beyond the headunit's built-in EQ
• Multi-amplifier and multi-speaker builds using the 10x 4V preouts to drive additional external amplifiers for component speakers, subwoofers, and centre channels
• High-resolution audio systems requiring Hi-Res certified processing for lossless audio file playback from USB DAC or LDAC Bluetooth sources
• CarPlay and Android Auto systems where speaker line input from the headunit feeds directly into the DEQ-7000A for full DSP processing

Goes well with:

• Pioneer TS Special Edition speakers (the DEQ-7000A is Pioneer's recommended partner for their SE speaker range)
• Pioneer external subwoofer amplifiers (connected via the dedicated subwoofer RCA preouts)
• Pioneer GM series multi-channel amplifiers (for full active crossover multi-amp system builds using the 10x preouts)

Frequently Asked Questions

Q: Can the DEQ-7000A be used to upgrade a factory audio system without replacing the factory headunit?

A: Yes. This is one of the DEQ-7000A's primary use cases. The 8 speaker inputs allow the factory headunit's speaker outputs to feed directly into the DEQ-7000A, which then processes, amplifies, and distributes the signal to all speakers and preouts. Factory navigation voice guidance is also supported via the audio mix-in function, ensuring nav instructions are heard clearly during playback without system interruption.

Q: What is the difference between the 31-band graphic EQ and the parametric EQ?

A: The 31-band graphic EQ provides fast, visual adjustment of 31 fixed frequency points across the full audio spectrum, ideal for broad sound shaping using the preset profiles or manual adjustments. The parametric EQ allows precise control of centre frequency, bandwidth (Q factor), and gain at any point in the spectrum, enabling surgical correction of specific acoustic problems in the vehicle. Both are available simultaneously for maximum tuning flexibility.

Q: What does LDAC Bluetooth support mean for audio quality?

A: LDAC is Sony's high-resolution Bluetooth audio codec supporting up to 990kbps data transfer — approximately three times the bandwidth of standard SBC Bluetooth. This allows compatible smartphones and digital audio players to stream audio at near Hi-Res quality wirelessly to the DEQ-7000A, making it one of the highest-quality wireless audio inputs available in a car audio processor. LDAC requires a compatible source device to achieve maximum quality.

Q: How is the DEQ-7000A tuned and does it require a laptop on-site?

A: The DEQ-7000A can be tuned via the free DSP Controller smartphone app (iOS and Android) or the free DSP Controller PC software. The smartphone app is the most practical for in-car tuning — connect via the unit, adjust EQ, time alignment, filter modes, and presets in real time while listening. The PC software provides a comprehensive single-screen overview of all parameters for detailed setup. A laptop is not required on-site if the smartphone app is used.

Q: Can the DEQ-7000A drive 2-ohm speakers or subwoofers?

A: Yes. The DEQ-7000A supports speaker impedances from 2 ohm to 8 ohm across all 8 channels, making it compatible with 2-ohm subwoofers and component speaker sets. Note that the nominal and maximum power ratings are specified at 4 ohm — actual output will vary at different impedances. For high-power subwoofer applications, using the 4V preouts to drive a dedicated external subwoofer amplifier is recommended for optimal performance.
