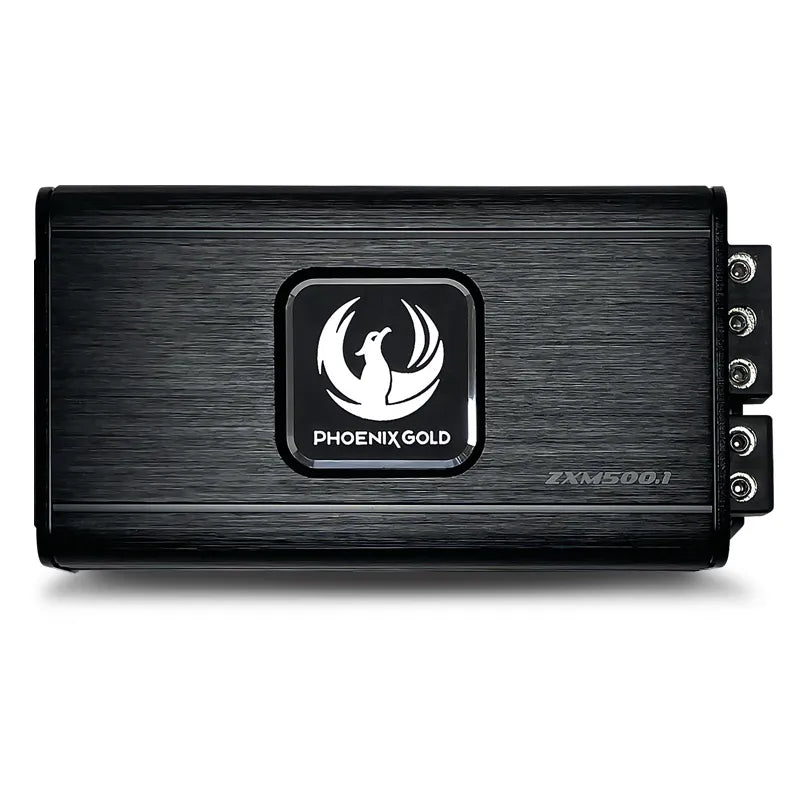

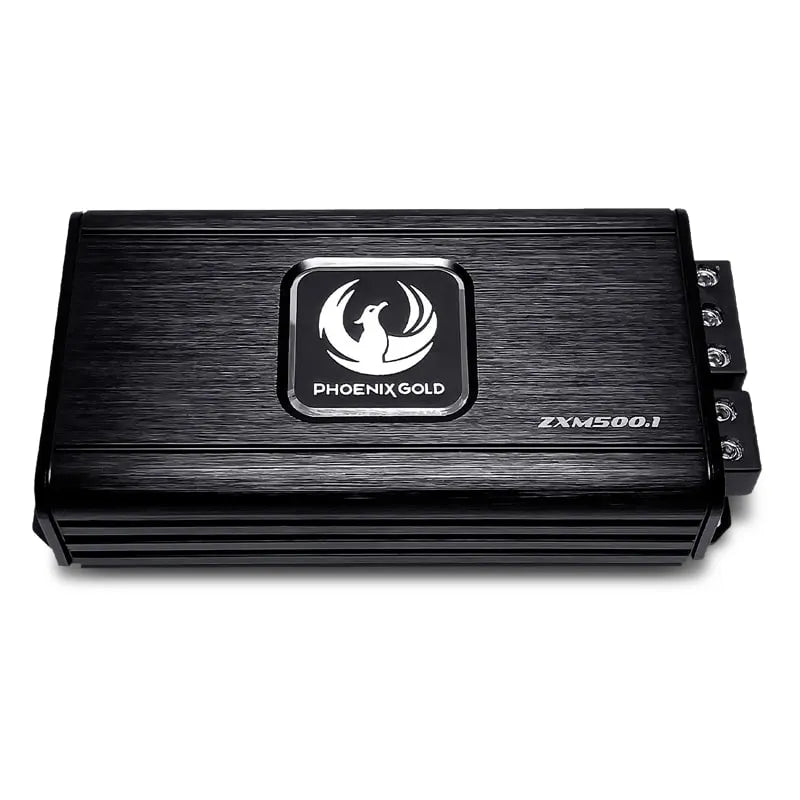

Phoenix Gold ZXM500.1 ZXM-Series 1000W 1 Channel Mini Class D Amplifier

Introducing the ZXM500.1: The Ultimate Class-D Mono Mini Amplifier

The ZXM500.1 is an impressive Class-D Mono Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.1 is a 1-channel amplifier with 500W RMS into 1 Ohm. The power output in 2 Ohm is 360W RMS and in 4 Ohm is 230W RMS. This means it can be loaded between 4-1 Ohm with lots of power.

The ZXM500.1 has 24dB Low pass filter and also an adjustable Subsonic filter. This amazing amplifier also has a bass-boost function and comes with a 5M remote gain controller to adjust the sub-level. The ZXM500.1 amp can handle both RCA and High-level input on the same terminals and the smart-made supplied connectors make it easy to connect. A high level of engineering has gone into making these amps with low EMI emissions to not interfere with the advanced electronics or FM signal.

Introducing the ZXM500.1, an outstanding Class-D Mono Mini Amplifier that redefines the boundaries of power, precision, and compact design in audio amplification.

The ZXM series has been crafted to deliver an unparalleled audio experience without compromising on size or performance.

The ZXM500.1, specifically designed as a 1-channel amplifier, boasts an impressive 500W RMS into 1 Ohm, delivering exceptional power output across varying impedance levels.

What truly sets the ZXM500.1 apart are its advanced features tailored to elevate the audio experience. Equipped with a 24dB Low Pass Filter and an adjustable Subsonic Filter, this amplifier provides users with precise control over sound frequencies, ensuring optimal performance and eliminating unwanted distortions.

Connectivity is seamless and user-friendly with the ZXM500.1. It accommodates both RCA and High-level inputs on the same terminals, simplifying the setup process. Smartly designed connectors further enhance ease of connection, making installation hassle-free.

The engineering brilliance of the ZXM500.1 extends to minimizing electromagnetic interference (EMI), safeguarding advanced electronics and FM signals, preserving the integrity of the audio signal and ensuring an optimised listening experience.

The amplifier features short circuit/thermal and high/low voltage protection, prioritizing user safety and ensuring the longevity of the equipment.

Compact yet powerful, the ZXM500.1’s ultra-small form factor facilitates effortless installation, making it an ideal choice for setups where space optimization is crucial.

Autostart functionality on high-level input simplifies operation, adding to the user-friendly design.

Equipped with a 24dB Low Pass Filter and an adjustable Subsonic Filter, this amplifier provides users with precise control over sound frequencies, ensuring optimal performance and eliminating unwanted distortions.

Additionally, the inclusion of a bass-boost function, along with a 5M remote gain controller specifically designed for adjusting the sub-level, allows for fine-tuning the audio output to match personal preferences.

With its compact design, extraordinary power output, advanced features, and engineering, it sets new standards, making it an indispensable asset for audiophiles.

The ZXM500.1 is an impressive Class-D Mono Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions.

The ZXM500.1 is a 1-channel amplifier with 500W RMS into 1 Ohm. The power output in 2 Ohm is 360W RMS and in 4 Ohm is 230W RMS. This means it can be loaded between 4-1 Ohm with lots of power.

Phoenix Gold ZXM500.1 Features:

• Massive Power & Performance
• Full Class-D technology offers efficiency & performance
• Short circuit/thermal and high/low voltage protection
• Excellent signal-to-noise ratio and FM noise rejection

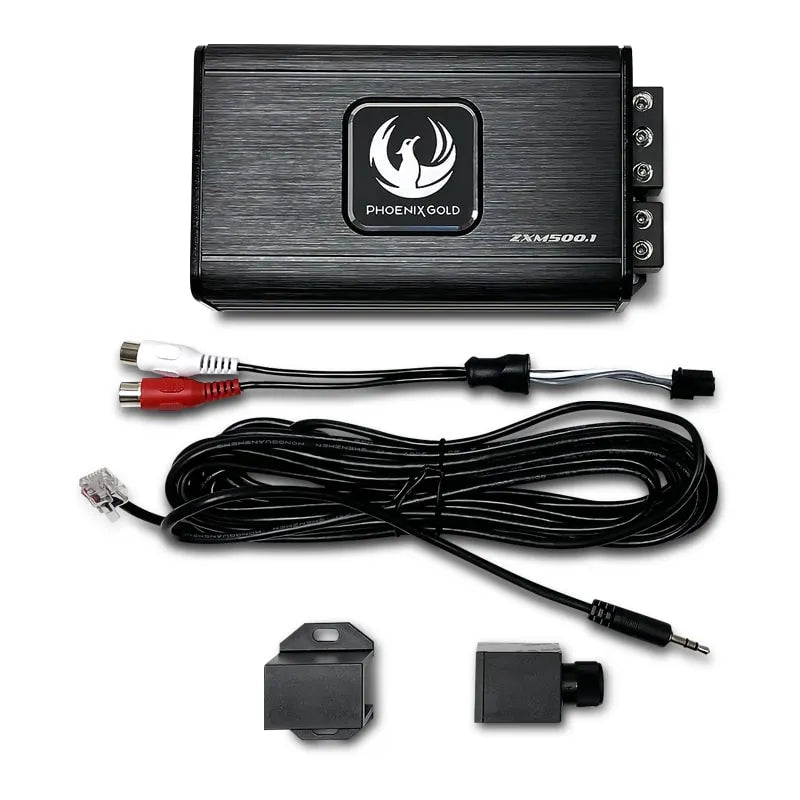

• Remote gain controller included (ZXM500.1)
• Built-in protection LED light status indicator
• Surface mount component technology
• Ultra small size for easy installation
• Autostart on high-level input

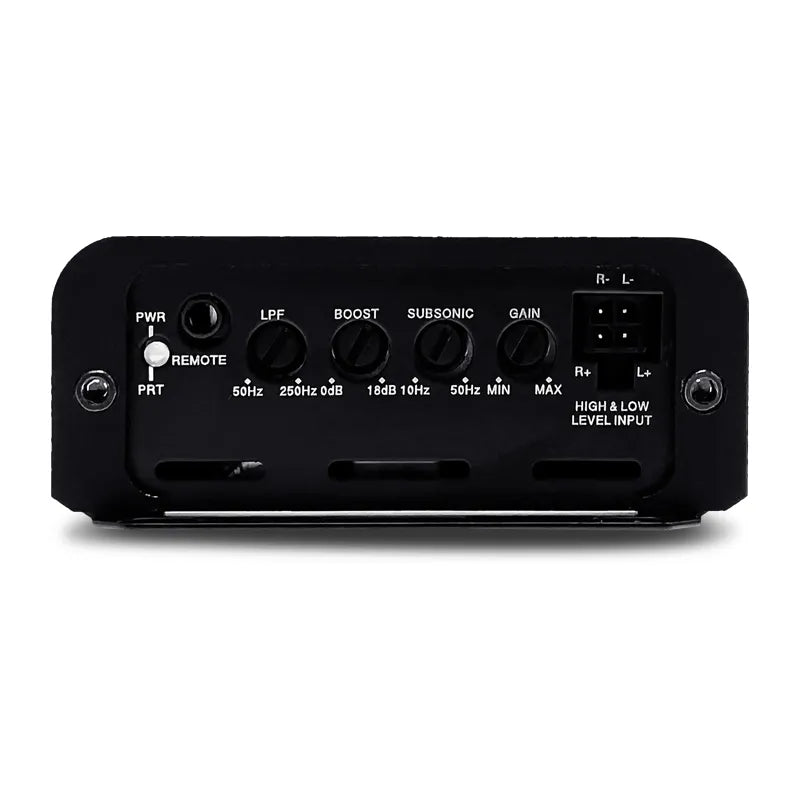

• Full adjustable HP & LP filter

Phoenix Gold ZXM500.1 Specifications:

• Class-D Mono Mini Amplifier
• Power (MAX) 1000W
• Power Ratings (RMS)
• 500W x 1 @ 1Ohm
• 360W x 1 @ 2Ohm
• 230W x 1 @ 4Ohm
• Frequency Response: 20Hz – 500Hz
• Signal to Noise Ratio: >90dB
• Total Harmonic Distortion: <0.3%
• Low Pass Filter: 40Hz – 250Hz (24dB/Oct)
• Subsonic: 10Hz – 50Hz (24dB/Oct)
• Bass Boost: 0 – 18dB @ 45Hz
• High Level Input Auto Turn-On
• Remote Control Included
• Dimensions (L x W x H) 165 x 83.1 x 34.8mm
