PAC RPK4-CH4103 RadioPRO Jeep Grand Cherokee Radio Replacement Kit

RadioPRO Integrated Installation Kit

Factory radio replacement in 2014 – 2020 JEEP Grand Cherokee with the 8.4″ radio has never been easier with the PAC RadioPRO RPK4-CH4103 JEEP kit.

Suitable For All Model Levels

Designed for vehicles fitted with the 8.4″ radio, The RPK4-CH4103 Integrated Installation Kit breaks new ground by introducing PAC’s new 5.2” ultra-wide touchscreen LCD control panel.

This flush-mounted control and display panel provides quick and easy access by touching or easily swipe between

• Climate control
• Camera selection
• Vehicle settings
• Performance gauges
• Vehicle information

Four hard buttons added to the radio dash bezel (below the 5.2” LCD screen) allow the user to set presets to control functions including: specific climate controls, forced camera activation, and LCD screen controls.

Options for hard buttons will vary based on vehicle features and which cameras are installed.

Includes Everything You Need

The RPK4-CH4103 includes everything you need to install a aftermarket radio in a 2014 – 2020 JEEP Grand Cherokee.

What's In The Box?

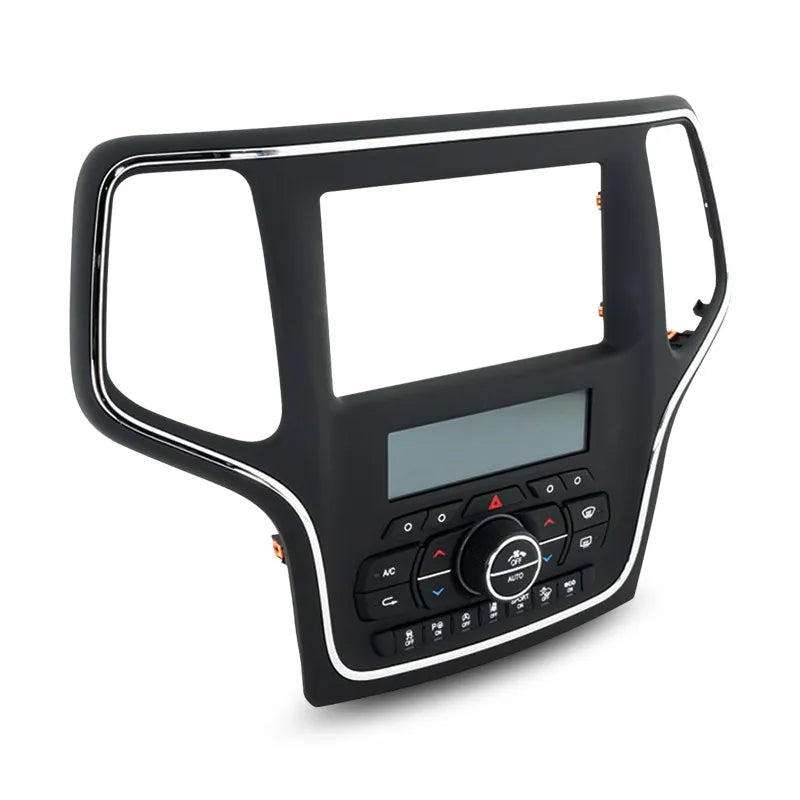

• Main kit plastic with integrated touch-screen including chrome trim
• All climate control buttons and knobs (Dual and Single Zone)
• Feature-specific button inserts (9) and (5) blank included to match OE equipment
• Radio replacement interface
• Plug-in vehicle connection harness
• Radio connection harness
• Reverse camera input harness
• Chime speaker with bracket
• Double DIN mounting hardware
• Single DIN pocket
• Antenna adapter
• Factory Matched USB Hub (2 USB, HDMI, A/V Aux)

PAC Audio Reliability

With over 40 years of experience, each PAC RadioPRO kit includes step by step instructions with clear diagrams to make sure there is no guess work.

PAC quality and engineering provides you with the perfect fit and finish for your vehicles aftermarket radio.

Features:

• Steering wheel control functions
• Reverse camera (if equipped)
• Amplified audio system (if equipped)
• Aux audio input
• Vehicle settings through 5.2” touch-screen

Compatibility Notes

For Models with 8.4″ Screen ONLY

Does not retain the following:

Cluster Display Features

• Compass
• Clock
• Phone pop-ups
• Navigation pop-ups

Factory Amplifier Features

• Speed Controlled Volume

Uconnect Features

• Uconnect Access Remote Start / Lock / Unlock
• SOS / Assist
• Vehicle Location Service
• WiFi-Hotspot

Specifications:

• Plug & Play: YES – FACTORY CONNECTOR TO BARE WIRES
• Product Color: Charcoal Finish
• Climate Control Retention: YES – Includes replacement controls & LCD screen
• Include Antenna Adaptor? YES
• Include AUX/USB retention? YES – AUX & USB
• Include Mounting Brackets? YES
• Dual Press Steering Wheel Control Function: YES – Customisable
• Manual Programming Feature: YES – SWC Button remapping via control button
• Retain Factory Steering Wheel Audio Controls? YES – Will retain Steering Wheel Audio Controls with Select Aftermarket Radios
• Retain Clock or Trip Display: YES – Retains OE Clock &/or Trip Display if this feature was controlled by the OEM radio
• Application Notes: Does not retain Clock in MFD, Does not retain Compass when eqippped with an 8" or 7" radio from factory, Does not retain Navigation and Phone pop-ups displayed on vehicle cluster, Does not retain Rear Seat Entertainment, Does not retain SRT and Trackhawk trim features, Does not retain uConnect SOS and Assist, Does not retain WiFi Hotspot, HVAC system does not automatically turn on when using remote start function., Some functions are back to front as kit was designed for left hand drive market., Suitable for vehicles with 8.4" Headunit Only
• Vehicle Note: Not Compatible with SRT or Trackhawk models.

Vehicle Compatibility:

• Jeep Grand Cherokee 2014 - 2020 (Wk2)
