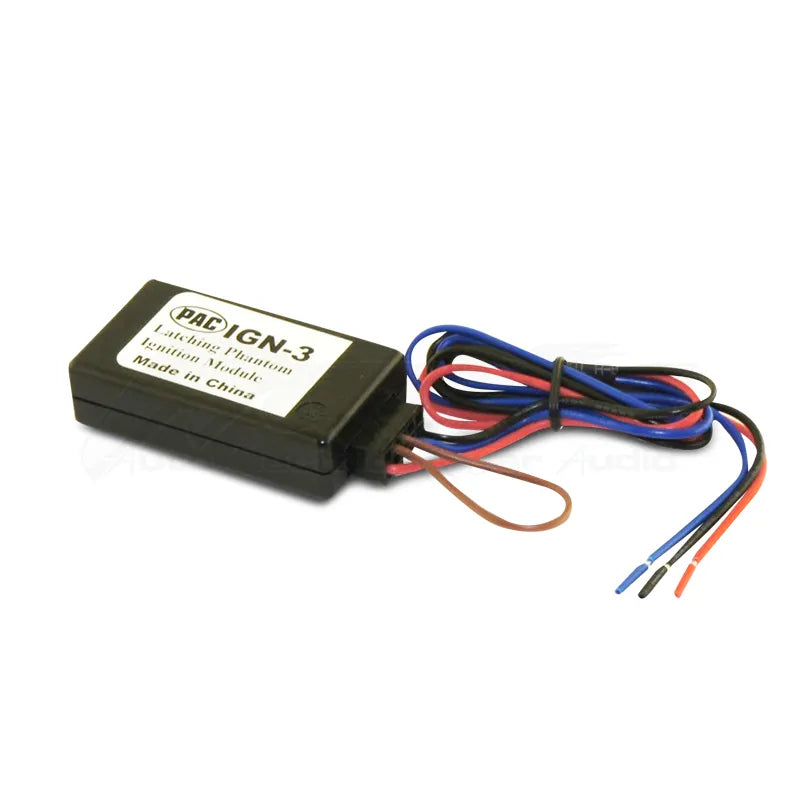

PAC PACIGN-3 Latching Phantom Power Module

Ideal Use for Vehicles that Do Not Have a Traditional Accessory Wire Available

Phantom Ignition Generator
The PAC Integrate IGN-3 phantom ignition module is ideal for use in vehicles that do not have a traditional accessory wire available.

Bring the Thunder!
The Power-off-delay feature keeps providing consistent accessory power during varying vehicle conditions, such as engine shut-down at a red light, or alternator disengagement while driving. This feature is essential for vehicles with stop-start technology!

The Power off delay function has two selectable settings: 10 seconds, for typical stop-start use, and an extended power-off mode where power is provided for 140 seconds, before it is turned off. If the 10 second “power buffer” isn’t enough for your installation, simply cut the Brown loop wire, and IGN-3 will provide accessory power for 140 seconds after the engine or alternator turns off.

Features:

• Detects when the engine is running and provides switched accessory power wire
• Selectable Power-off-delay of 10 seconds or 140 seconds
• Simple, 3-wire installation

Benefits:

• Easily provide accessory power in CAN-BUS vehicles
• Keeps electronic aftermarket accessories from shutting down at red lights in stop-start equipped vehicles

Specifications:

• Plug & Play: No

Compatibility Notes:

• Limited To 2-Amp Output (If you require higher amperage output, please use an external relay)

What's in The Box:

• Interface
• Universal Wire Harness
• Instruction Manual
