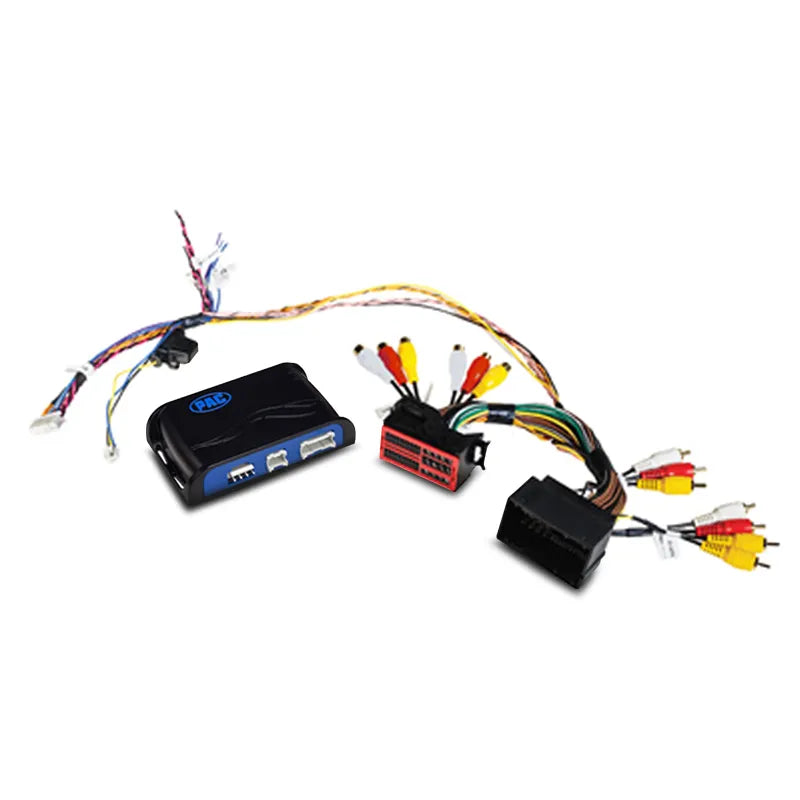

PAC BCICH41 Audio Back-Up To Suit Chrysler/Dodge/Jeep Camera Interface

Add Reverse Camera & A/V Inputs to Your Factory Vehicles with Added Features Including Extended Equalizer, Navigation Unlock & More Unlocked Vehicle Settings

Backup Camera/Navigation Unlock Interface
The PACBCI-CH41 will program the factory radio to allow the addition of a reverse camera input if the vehicle is not equipped with one from the factory (reverse camera sold separately). The interface also offers VES activation and Audio/Video input capabilities plus Navigation unlock (for off-road use only)

The PACBCI-CH41 is expandable for use with the PACVS41 4 camera switching interface (Available separately) to allow Front, Rear and Side blind spot camera integration to the OEM radio as well. Another feature is the PACBCI-CH41’s ability to customise the existing steering wheel control features in the vehicle plus offer 3x 12v outputs for powering cameras or other low power devices.

Features:

• Multiple Camera Inputs: Independent Full A/V Input (To OE Radio Option)
  • Reverse (Force Reverse Camera On Anytime)
  • Additional Camera Support With Added VS41 Video Switcher (Sold Separately):
    • Dual Blind Spots (Configurable Control Options)
    • Front (Configurable Control Options)
• Retains Last User Settings For Systems Such As: Navigation & Radio Feature Unlock IE, AP PS & BT Functions.
  • Start-Stop
  • Sport-mode
  • Eco -mode
  • Remote Start Climate Control
• 3 Programmable 12 Volt Outputs: Stores User Options (Even With Loss Of Power)
  • Output 1 – Provides Up To 10 amps
• Text-Driven Menu Seen On Instrument Cluster (Using OE Vehicle Buttons)
• OE Steering Wheel Control Functions Customizable
• Digital Audio EQ Presets X3 – (Vehicles With Digital Amp Only)
• LED & Dip Switches For Ease of Installation
• VS41 4-Input Video Switcher Support (Plug-&-Play)
• Direct USB Updateable

Additional Information:

• Plug & Play: Yes
• Vehicle Notes: Suits Models With 52PIN Chrysler Radio Plug

Vehicle Compatibility:

• Chrysler 300C 2011 - 2018
• Dodge Ram 2013 - 2018
• Jeep Cherokee 2014 - 2018
• Jeep Grand Cherokee 2013 - 2018
