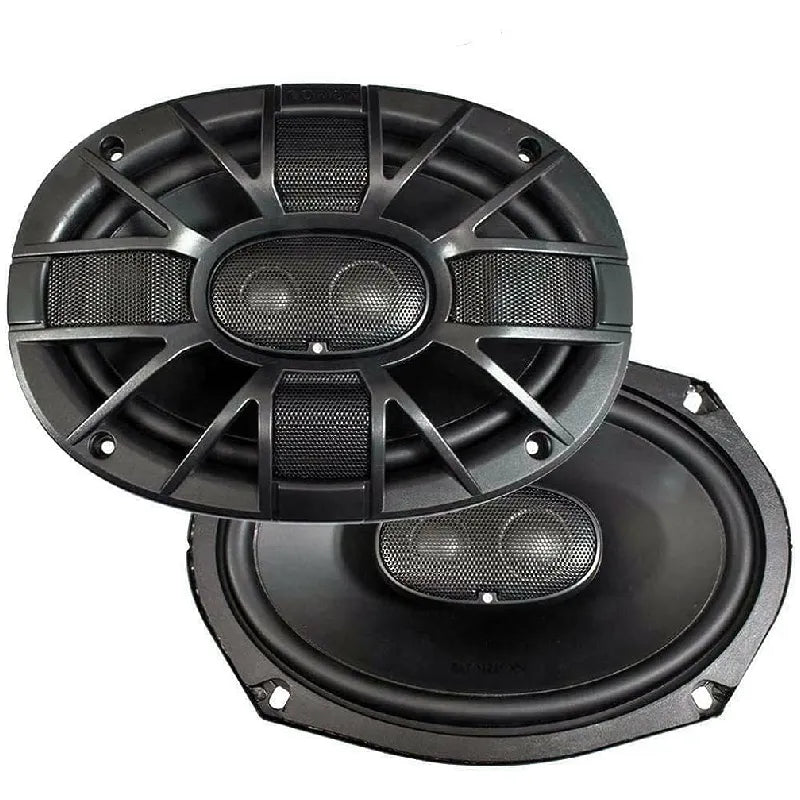

Orion XTR69.3 6x9 inch speaker pair, one with grille fitted and one showing the 3 way drivers
Orion XTR69.3 6x9 inch speaker pair, one with grille fitted and one showing the 3 way drivers

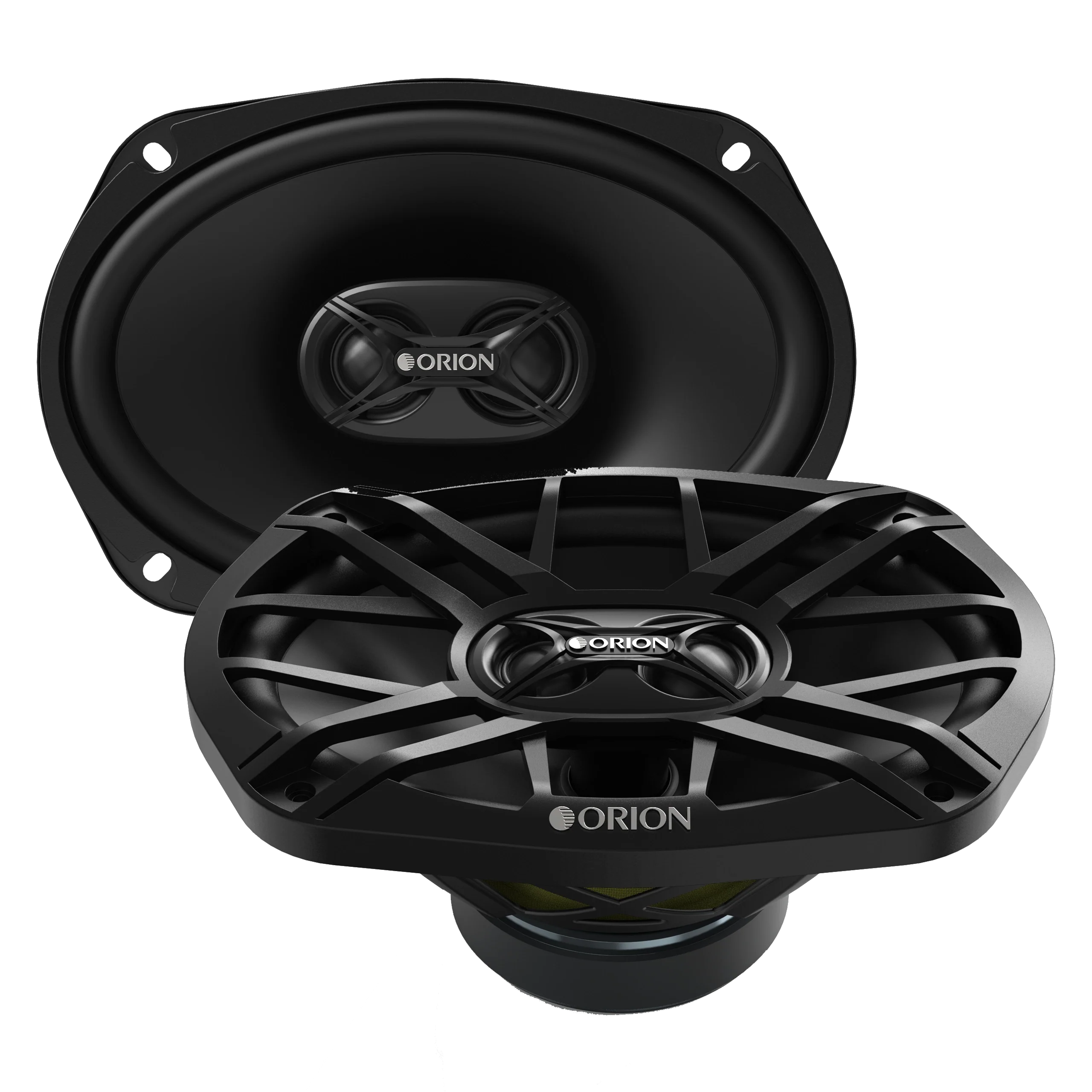

Black oval coaxial speakers with ORION badged tweeter bridges, one with its spoked grille fitted and one without
Black oval coaxial speakers with ORION badged tweeter bridges, one with its spoked grille fitted and one without

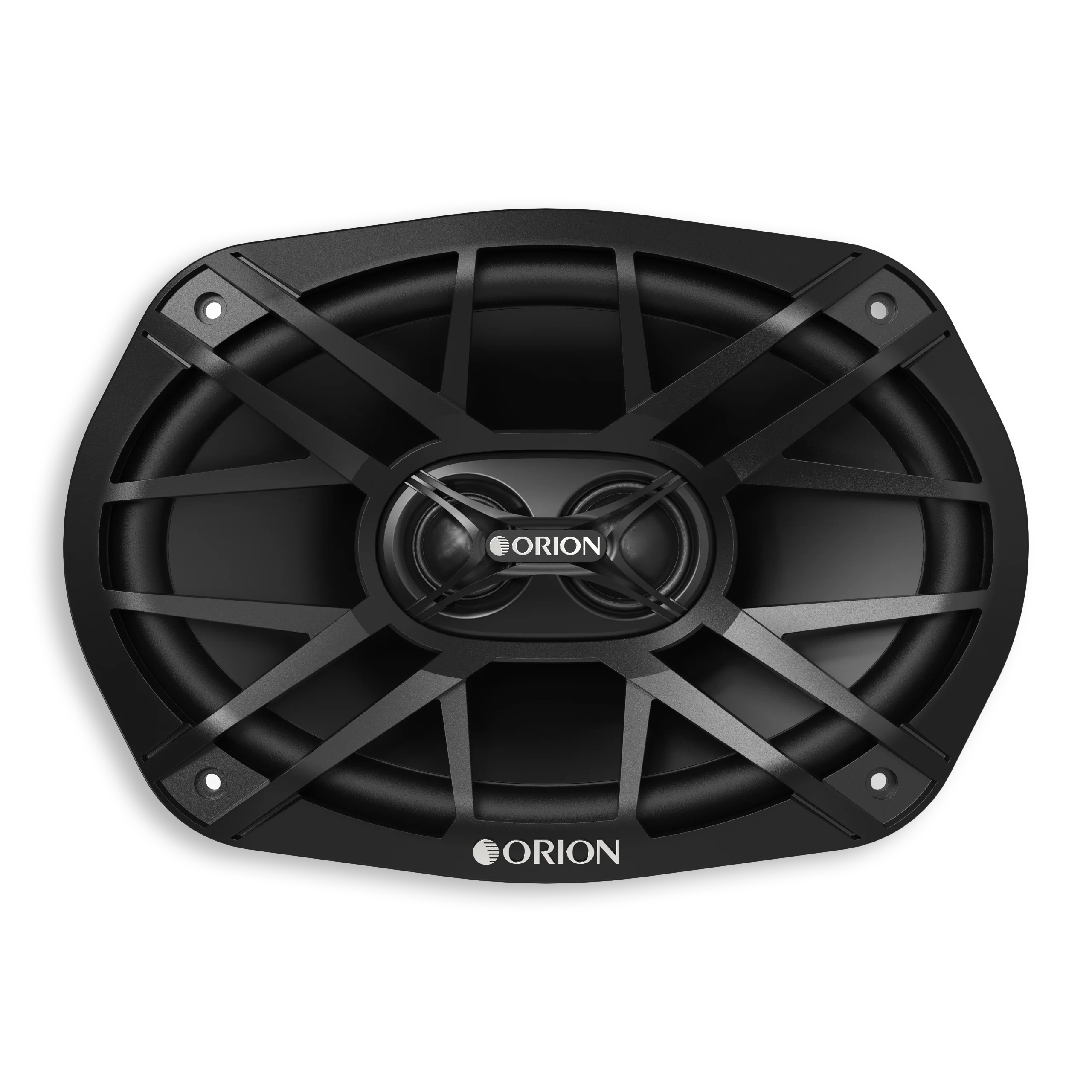

Front view of an oval speaker behind a black spoked grille with an ORION badge at the base
Front view of an oval speaker behind a black spoked grille with an ORION badge at the base

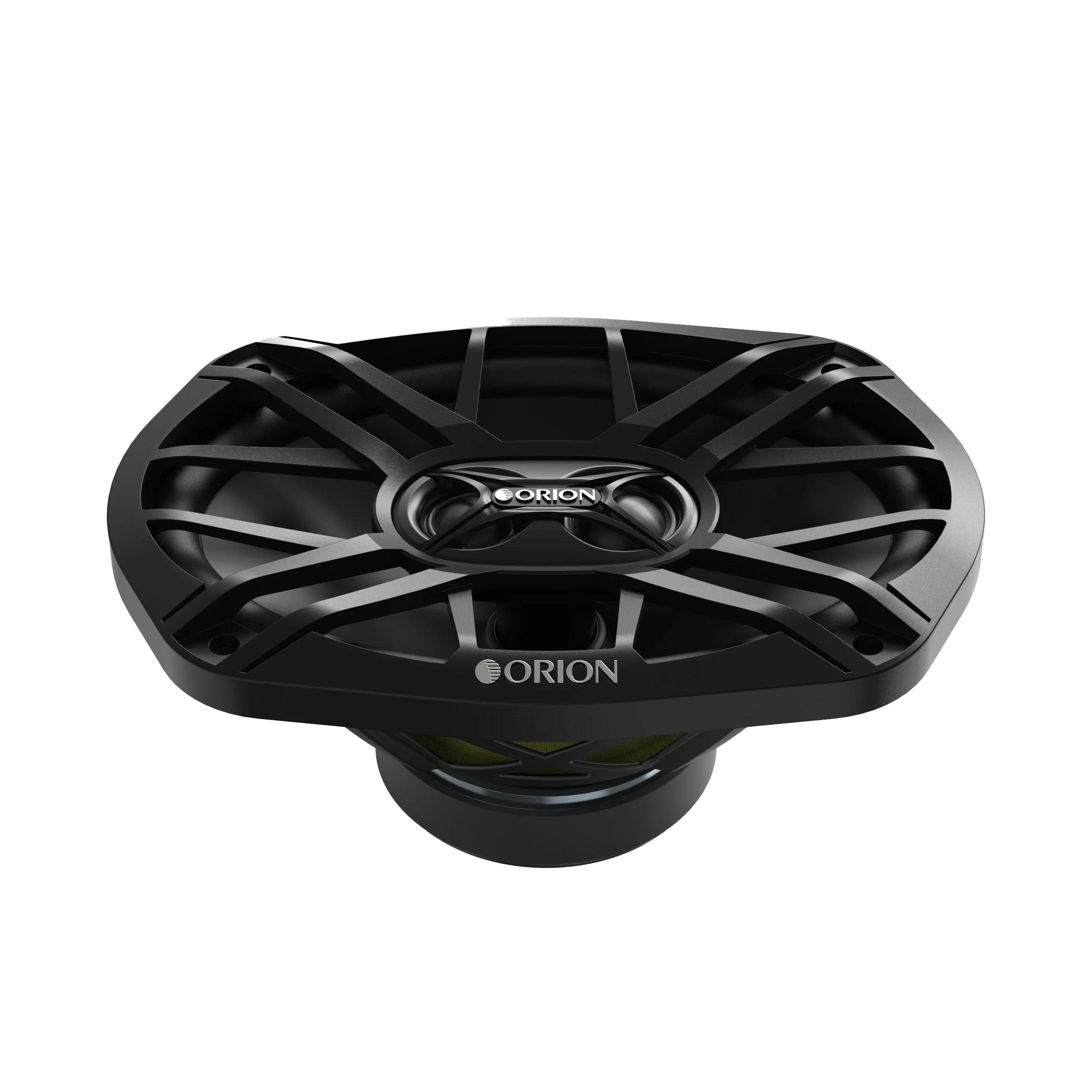

Low angle of an oval speaker with the spoked grille fitted, showing the basket depth and magnet
Low angle of an oval speaker with the spoked grille fitted, showing the basket depth and magnet

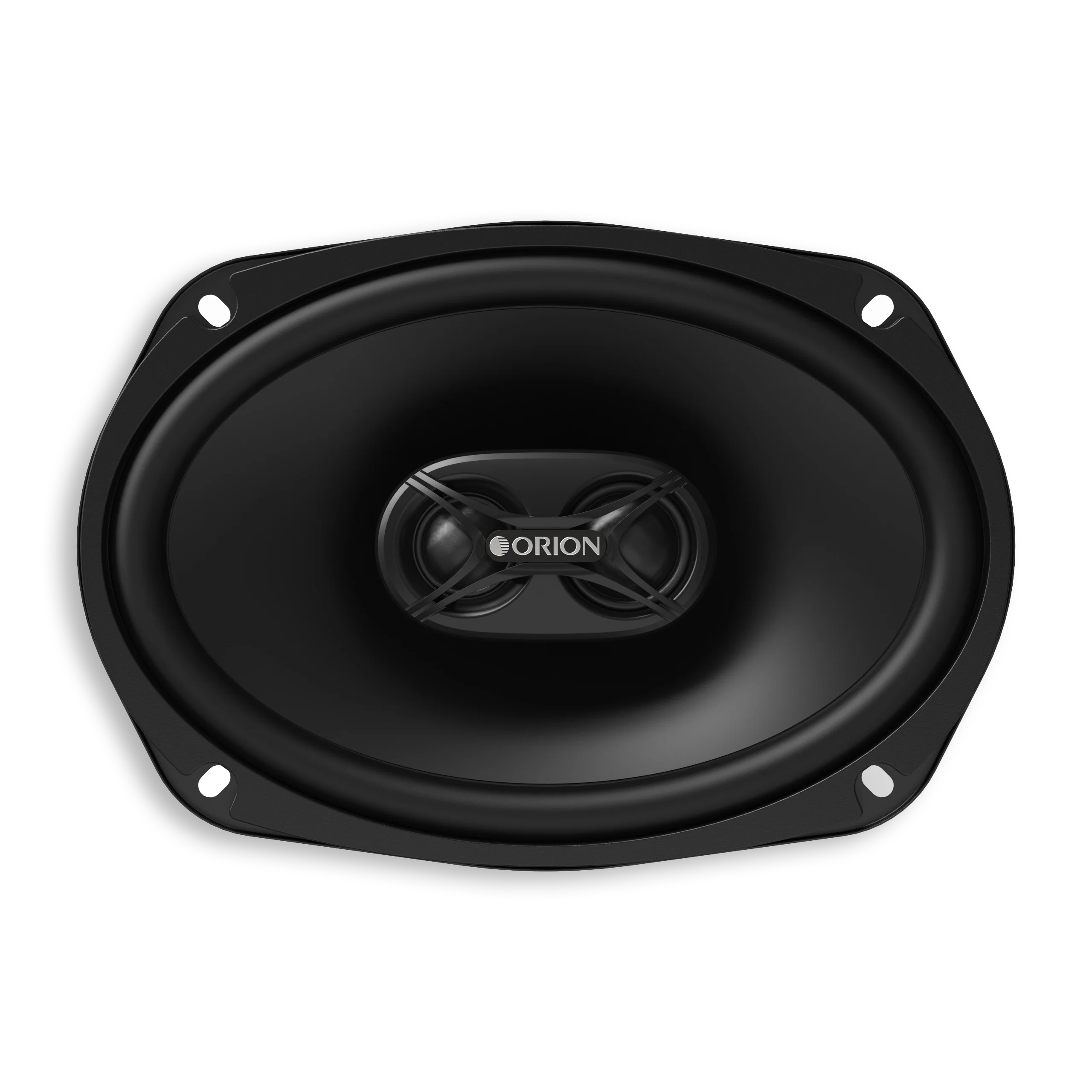

Front view of an oval speaker without a grille, showing the black cone and ORION tweeter bridge
Front view of an oval speaker without a grille, showing the black cone and ORION tweeter bridge

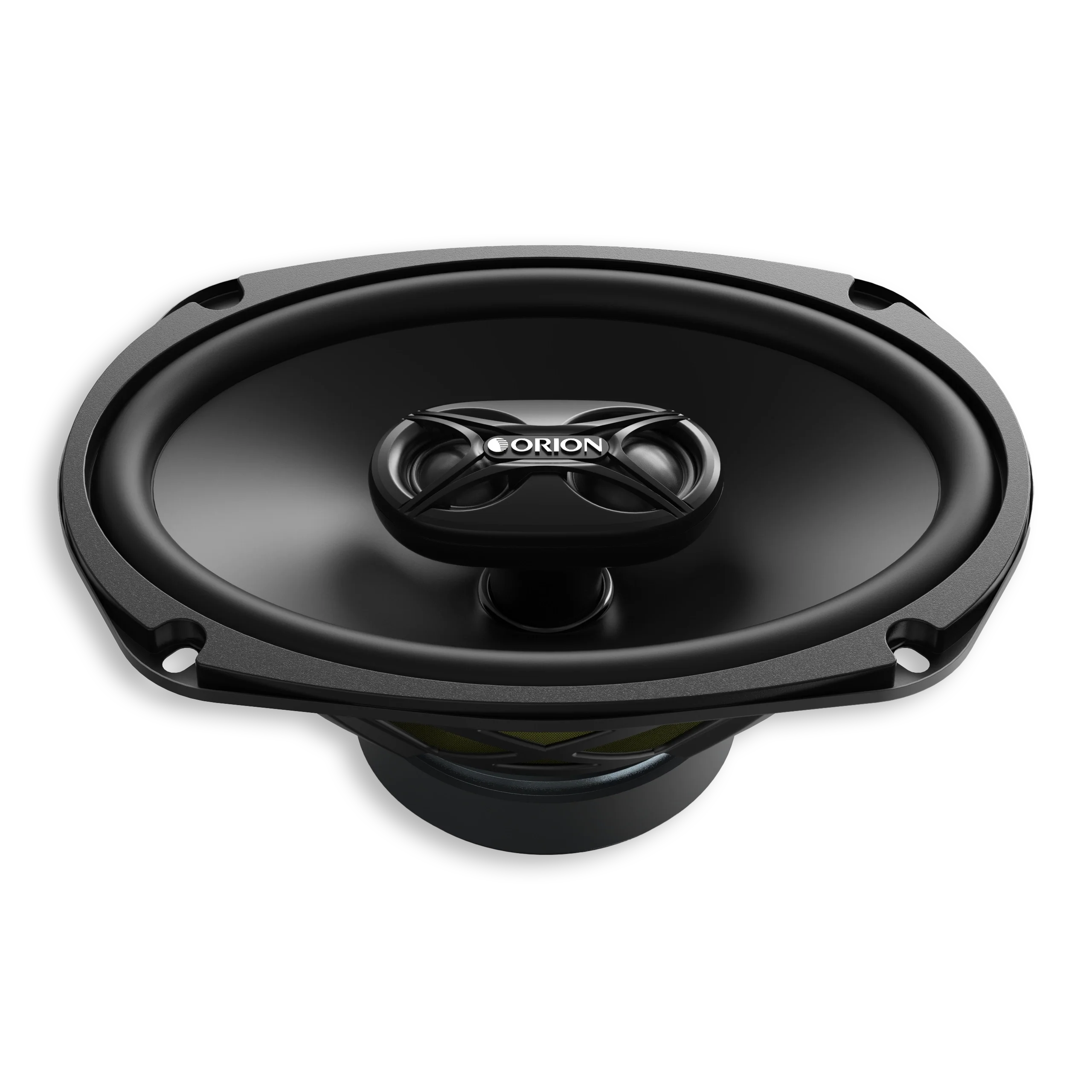

Angled view of an oval speaker without a grille, showing the raised tweeter bridge and mounting holes
Angled view of an oval speaker without a grille, showing the raised tweeter bridge and mounting holes
Click to open expanded view
ORION logo

Out of stock

Orion XTR69.3 6x9" 3 Way Coaxial Speakers (Pair)

SKU: XTR693
Price
$199
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Orion XTR69.3 6x9 inch speaker pair, one with grille fitted and one showing the 3 way drivers

Orion XTR69.3 6x9" 3 Way Coaxial Speakers (Pair)

$199

Product features

Rear deck 6x9 speakers in older sedans often rattle or have blown out cones. The Orion XTR69.3 is a 3 way 6x9 pair with silk dome midrange and tweeter, and grilles included.

Problems it solves

  • Rattly, buzzing rear speakers. A heavy gauge stamped steel frame and butyl rubber surround replace tired factory parts.
  • Missing detail from the back seat. A 25mm neodymium silk dome midrange and 20mm silk dome tweeter fill in the mids and highs.

XTR69.3 specifications

  • Size: 6x9 inch, 3 way coaxial
  • Impedance: 4 ohm
  • Sensitivity: 93dB
  • Frequency response: 55Hz to 22kHz
  • Voice coil: 1.25 inch high temperature
  • Cone: polypropylene coated paper
  • Mounting depth: 84mm
  • Cut out: 149 x 213mm
  • Overall size: 172 x 243mm

Fitment and compatibility

Suits 6x9 inch openings with 149 x 213mm of cut out and 84mm of depth. Check boot hinges and parcel shelf clearance before ordering.

What is in the box

  • 2 x XTR69.3 speakers
  • Grilles

Orion does not list screws or other hardware for the XTR69.3, so have your own ready or call Albion Park Rail on (02) 4257 2636 and we will check.

Install notes

At 93dB these are efficient enough for head unit power. On an amp, match the 4 ohm load.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

XTR69.3 FAQs

Do the XTR69.3 fit a 6x8 hole?

Orion only lists a 149 x 213mm cut out for 6x9 openings, so we would not plan on it fitting a 6x8.

What magnet does the XTR69.3 use?

Orion lists an 82oz ferrite magnet with a 1.25 inch high temperature voice coil.

How many speakers do I get?

Two. Orion lists a quantity of 2 speakers.
