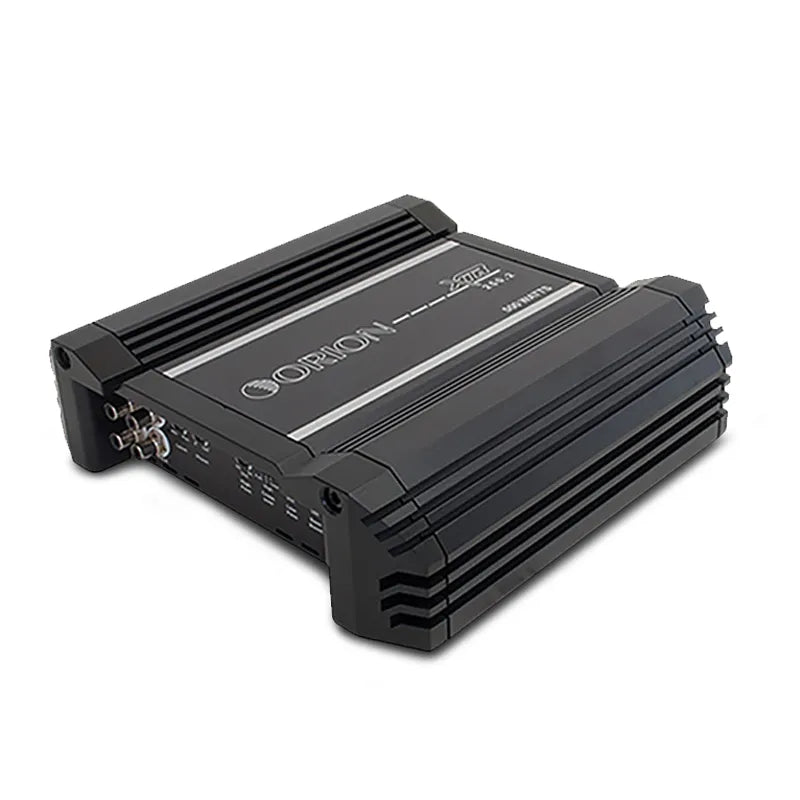

Orion XTR2502 XTR Series 500W Max 2-Channel Amplifier with Crossover

SKU: XTR2502
Price
$390
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Product features

Designed to Be a True Worldwide Product!

Orion 500W max 2-channel XTR series amplifier with crossover.

Specifications:

  • RMS Power Rating:
    • 4 ohms: 70 watts x 2 chan.
    • 2 ohms: 140 watts x 2 chan.
    • Bridged, 4 ohms: 250 watts x 1 chan.
  • Max power output: 500 watts
  • MOSFET Power supply and output stage
  • Power and protection LED Indicators
  • Low-level RCA Inputs
  • Accepts high-level speaker inputs from an OEM stereo
  • Thermal, DC offset, short protection and under-voltage protection
  • X-Over (crossover) activates the low-pass, FLAT and high-pass crossovers
  • X-Over frequency control adjusts the frequency for the high- and low-pass filters
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Variable high-pass filter (50-2,000 Hz, 12 dB/octave)
  • Variable Low-pass filter (50-2,000 Hz, 12 dB/octave)
  • Subsonic Filter (12 dB at 24 Hz)
  • Frequency response: 20-20,000 Hz
  • CEA-2006 compliant amplifier
  • Dimensions: 9-1/4"L x 8-3/4"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation
