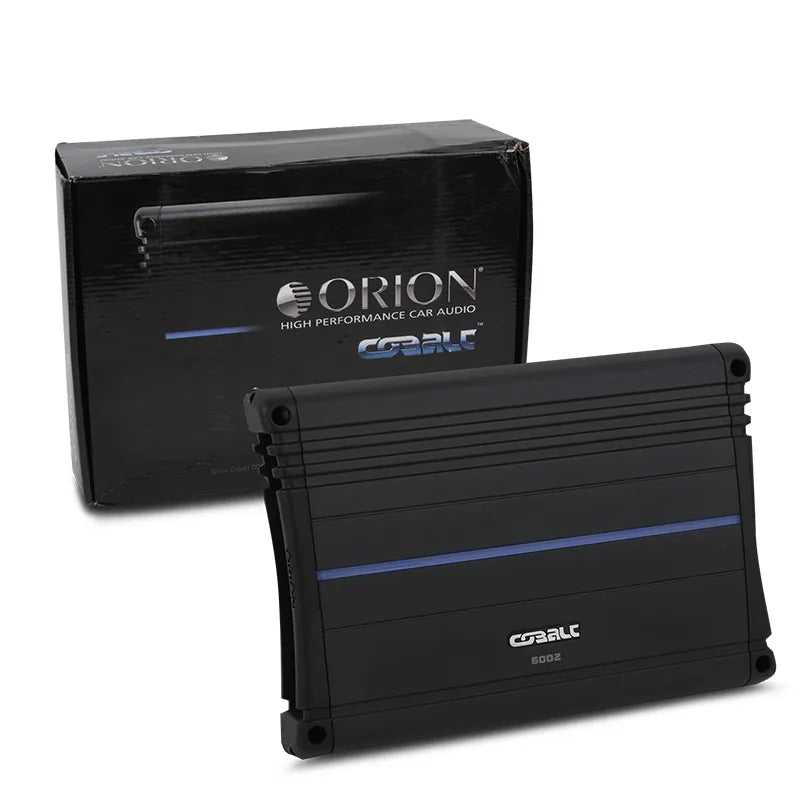

Orion CO6002 600W 2-Channel Amplifier

600W Max, 2-Channel Amplifier

Orion Cobalt 2-channel class A/B car amplifier.

Specifications:

• RMS Power Rating: 4 ohms: 100 watts x 2 chan. / 2 ohms: 155 watts x 2 chan. / Bridged, 4 ohms: 310 watts x 1 chan.
• Max power output: 600 watts
• MOSFET power supply
• Tri-mode and bridgeable operation
• LED power and protect indicators
• Illuminated blue LED stripe design
• Selectable bass boost (0, 6, 12 dB)
• 2/1 channel operation
• High-level inputs (signal sensing for automatic turn on)
• 3-Way system protection circuitry (thermal, short circuit, and overload)
• Heavy duty aluminum alloy convection heatsink
• Chrome-plated RCA level input
• Chrome-plated screw terminals
• Input sensitivity (175mV-8V)
• Damping factor (>100)
• Continuously variable high-pass filter (50-500 Hz)
• Continuously variable low-pass filter (50-500 Hz, 2nd order 12 dB/octave)
• CEA-2006 compliant amplifier
• Frequency response: 20-30,000 Hz
• Dimensions: 11-7/16"L x 8-1/8"W x 2-1/8"H
• 4-gauge power and ground wiring is required for installation
