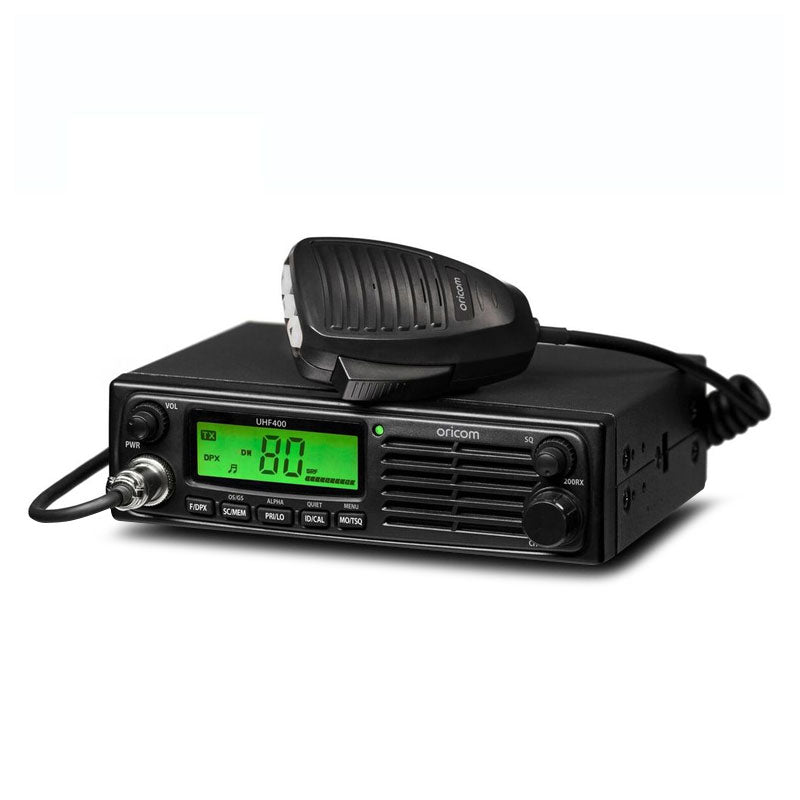

Oricom UHF400R 80 Channel 5 Watt Heavy Duty Din Size UHF CB Radio
Click to open expanded view
ORICOM logo

Out of stock

Oricom UHF400R 80 Channel 5 Watt Heavy Duty Din Size UHF CB Radio

SKU: UHF400R
Regular price
$299
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Oricom 80 Channel 5 Watt Heavy Duty Din Size UHF CB Radio: Specially Built for Australian Transport

Oricom’s UHF400 features 12v/24v auto switching which makes it quick and easy to install in any truck regardless of power supply.

The external heat sink ensures you maintain a full 5 watt power output and has tuned sensitivity to ensure optimal reception.

Oricom UHF400R Features:

  • 80 CHANNELS
  • Allows you to choose from 80 transmission frequencies (75 voice) to transmit or receive messages
  • 12v/24v Auto Switching For easy installation into any vehicle regardless of power supply
  • Automatic Level Control (ALC) For consistent audio output levels
  • 5 Watt Maximum TX Output Power Maximum transmit power for best possible range
  • 200 Receive Only Channels Allows you to program in other channels in the UHF frequency between 400MHz to 512MHz and monitor transmissions
  • Duplex (Range Extender) Capability Local repeater stations area. This extends the effective range of the radio, giving you the greater reach
  • 38 interference eliminator codes (CTCSS)
  • Block out any unwanted conversations
  • Open/Group/Priority scanning Gives you the option to scan all channels in memory and lock on any active channels or to select the channels you wish to monitor/listen to in a group, along with a priority channel (priority watch)
  • Large easy to read Colour LCD display (green/amber) The keypad and Liquid Crystal Display (LCD) is backlit for easy viewing at night or in low light situations
  • Rugged chassis construction with integrated heat sink The external heat sink cools quickly, ensuring the radio maintains the highest possible output power
  • UHF400R – with rear mic jack

5 Year Warranty – Peace of mind. Buy your Oricom product with confidence.

Oricom UHF400R Specifications:

GENERAL

  • Compliance: AS/NZS 4365:2011
  • Frequency Range: TX/RX 476.425 - 477.4125 MHz/ 400 - 512MHz
  • Number of TX/RX Channels: 80 UHF CB Channels (75 voice)
  • Channel Spacing TX/RX: 12.5KHz
  • Operating modes: Simplex, Repeater TX offset (+750kHz)
  • Scanning Speed: 130 msec per channel
  • Antenna Impedance: 50 Ohms
  • Automatic Level Control: For consistent audio output
  • Operating Volts Range: 10 to 30 VDC
  • Over Voltage Protection: voltage regulator
  • Over Current Protection: 2 AMP fuse
  • Reverse Polarity Protection: Series diode
  • Frequency stability: +/- 2.5ppm

RECEIVER

  • Circuit Type Dual conversion: superheterodyne
  • Intermediate Frequencies: 1st IF = 21.4MHz , 2nd IF = 450kHz
  • Maximum usable sensitivity: < -123dBm at 12dB SINAD
  • Audio output power: 3 Watts Maximum
  • RX Audio de-emphasis: -6dB/octave 300Hz to 3kHz
  • Spurious Immunity: > 70dB

TRANSMITTER

  • RF Output Power Nominal: 5 watts
  • Modulation: F3E(FM)
  • Maximum deviation: 2.5KHz
  • Spurious Emissions: <-30dBm
  • TX Audio pre-emphasis: +6dB/Octave from 300Hz to 3KHz
  • Current consumption during TX: 1.6AMP with 50ohm antenna termination

*This 80 channel narrowband radio has a total of 75 useable voice channels Channels 22 and 23 are used for Telemetry and Telecommand, voice communications are not allowed on these channels. Channels 61,62 and 63 are guard channels and are not available for use.
