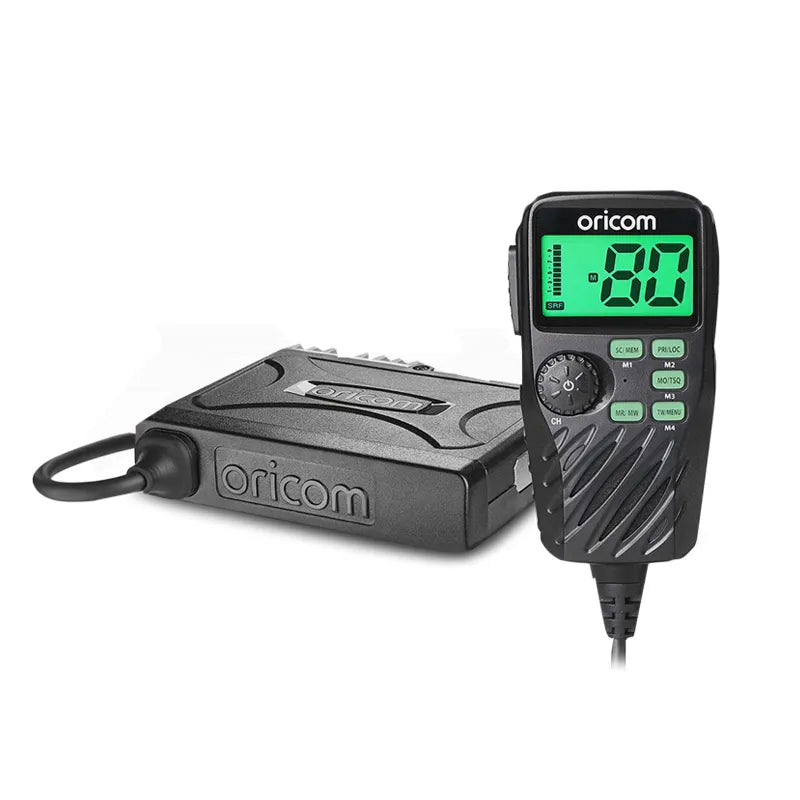

Oricom UHF390 5 Watt CB Radio With Controller Speaker Microphone

Oricom 5 Watt CB Radio With Controller Speaker Microphone: Perfect for Modern Vehicles Where Space Is Limited

The UHF390 removes the need for a head unit, with all of the radio’s controls in the microphone. The integrated speaker in the controller mic works with the transceiver speaker to deliver exceptional sound quality and volume.

Oricom UHF390 Features:

• 5 Watt (Max TX Power)
• Heavy Duty Controller Speaker Microphone
• Rugged Micro Size Transceiver
• Large Easy to Read LCD Display
• Automatic Level Control (ALC) for Consistent Audio Levels
• 38 CTCSS & 104 DCS Codes
• Duplex (Range Extender)
• Open/Priority Scan
• Priority Channel
• Tri Colour Backlit LCD Display (Amber/Red/Green)
• 3.5mm External Speaker Jack
• Designed for Australian Conditions (Made in Korea)
• Transceiver Dimensions (27mm X 102mm X 85mm)

Oricom UHF390 Specifications:

GENERAL

• Compliance: AS/NZS 4365:2011
• Frequency Range: TX/RX 476.425 - 477.4125 MHz
• Number of TX/RX Channels: 80 UHF CB (75 Voice Channels)
• Channel Spacing: TX/RX 12.5KHz
• Operating Modes: Simplex, Repeater TX Offset (+750kHz)
• Scanning Speed: 130 Msec per Channel
• Antenna Impedance: 50 Ohms
• Operating Volts Nominal: 13.8VDC
• Operating Volts Range: 10 to 15 VDC
• Over Voltage Protection: Voltage Regulator
• Over Current Protection: 2 AMP Fuse
• Reverse Polarity Protection: Shunt Diode
• Frequency Stability: +/- 2.5ppm

TRANSMITTER

• RF Output Power Nominal: 5 Watts
• Modulation: F3E(FM)
• Maximum Deviation: 2.5KHz
• Spurious EmissionsK < -70 dBc
• TX Audio Pre-Emphasis: + 6dB/octave (300Hz - 3kHz)
• Current Consumption During TX:1.5 Amps with 50 Ohm Antenna Termination

RECEIVER

• Circuit Type: Direct Conversion by Single DSP Chip
• Intermediate Frequencies: IF = 137KHz
• Maximum Useable Sensitivity: Less Than -122dBm @ 12dB SINAD
• Audio Output Power: 3 Watts Maximum
• RX Audio De-Emphasis: -6dB/Octave 300Hz to 3kHz

MECHANICAL

• Transceiver Dimensions: 27 (H) X 102 (W) X 85 (D) mm

What's in The Box:

• UHF CB Radio (UHF390)
• Heavy Duty Controller Speaker Microphone (2U0164)
• Microphone Mounting Bracket (2U0032)
• Transceiver Mounting Bracket (2U0055)
• Pack of Supplied Mounting Screws (2U0171)
• User Guide
