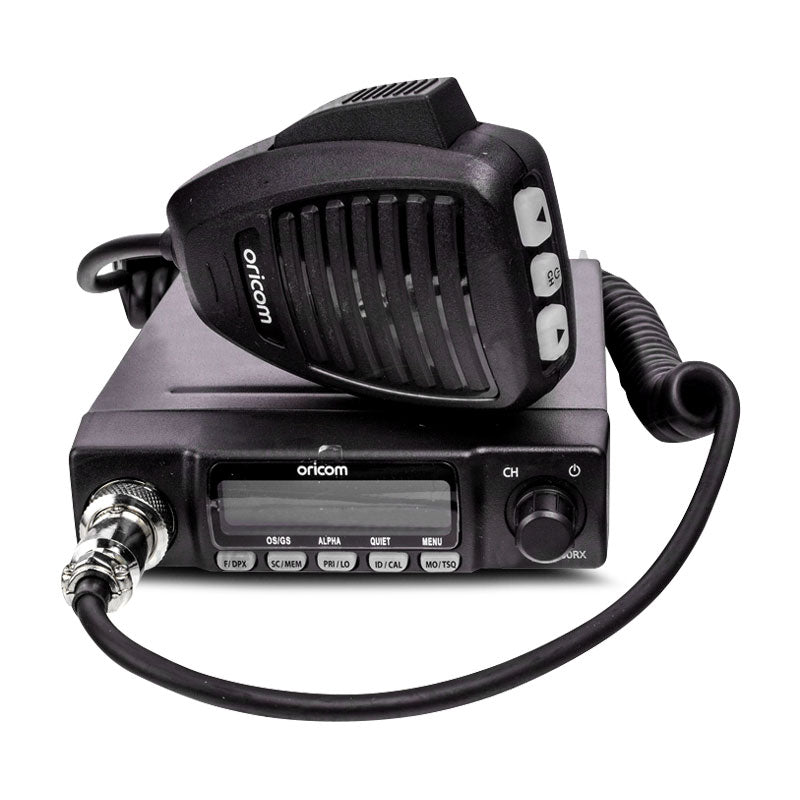

Oricom UHF180F 80 Channel 5 Watt Slimline UHF CB Radio

Oricom 80 Channel 5 Watt Slimline UHF CB Radio: The Perfect Solution for Vehicles with a Lack of Space in the Cabin

The 5-Watt operation, heavy duty microphone, tri colour backlit LCD display and typically rugged Oricom chassis construction help to make the Korean engineered masterpiece a clever solution to staying connected on and off the road.

Oricom UHF180F Features:

• Slimline transceiver
• 80 channels*
• 5 Watts (max TX power)
• Heavy duty microphone with volume and channel control
• Wideband scanner (400 – 512MHz)
• 8500+ Receive frequencies
• 200 user programmable receive only channels
• 5 digit Selcall ID with alpha display
• 38 CTCSS and 104 DCS codes
• Tri colour backlit LCD display (Amber/Red/Green)
• Duplex* (range extender)
• Priority channel
• Open/instant/priority scan
• Digital squelch control
• Rotary channel and volume control
• 3.5mm external speaker jack
• Rugged chassis construction with integrated heat sink

Requires antenna (not supplied). Designed and engineered in Korea.

*This 80 channel narrow band radio has a total of 75 usable voice channels Channels 22 and 23 are used for Telemetry and Telecommand, voice communications are not allowed on these channels.Channels 61,62 and 63 are guard channels and are not available for use.

Oricom UHF180F Specifications:

• Compliance: AS/NZS 4365:2011
• Frequency Range TX/RX: 476.425 - 477.4125 MHz
• Number of TX/RX Channels: 80 UHF CB
• Channel Spacing TX/RX: 12.5KHz
• Operating modes: Simplex, Repeater TX offset (+750kHz)
• Scanning Speed: 130 msec per channel
• Antenna Impedance: 50 Ohms
• Operating Volts nominal: 13.8VDC
• Operating Volts Range: 10 to 15 VDC
• Over Voltage Protection: Diode and voltage regulator
• Over Current Protection: 2 AMP fuse
• Reverse Polarity Protection: Shunt diode
• Frequency stability: +/- 5 ppm

TRANSMITTER

• RF Output Power Nominal: 5 watts
• Modulation: F3E(FM)
• Maximum deviation: 2.5KHz
• Spurious Emissions: <-30dBm
• TX Audio pre-emphasis: +6dB/Octave from 300Hz to 3KHz
• Current consumption during TX: 1.6AMP with 50 ohm antenna termination

RECEIVER

• Circuit Type Dual conversion: super heterodyne
• Intermediate Frequencies: 1st IF = 30.85MHz , 2nd IF = 450kHz
• Maximum usable sensitivity: > -123dBm at 12dB SINAD
• Audio output power: 3 Watts Maximum
• RX Audio de-emphasis: -6dB/octave 300Hz to 3kHz
