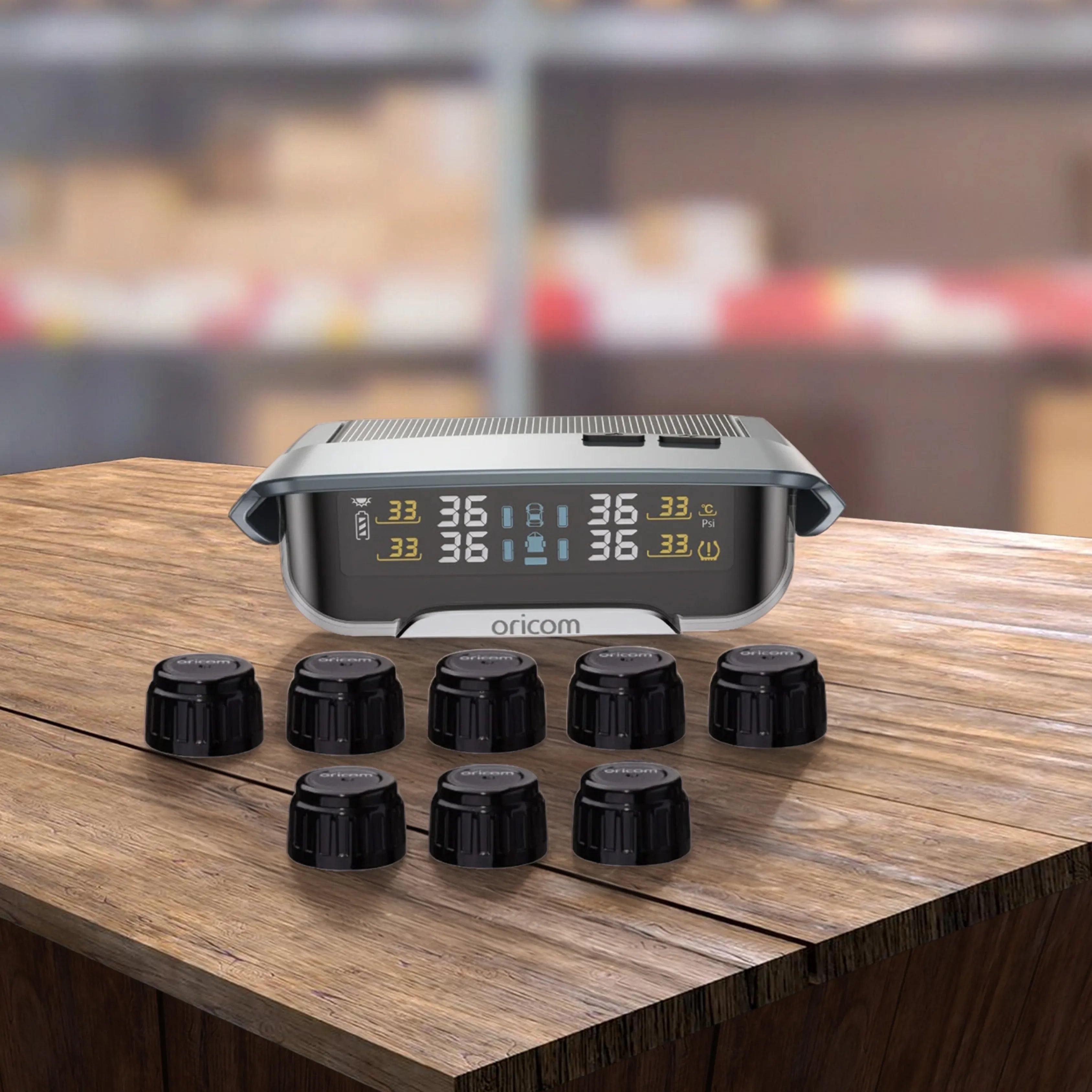

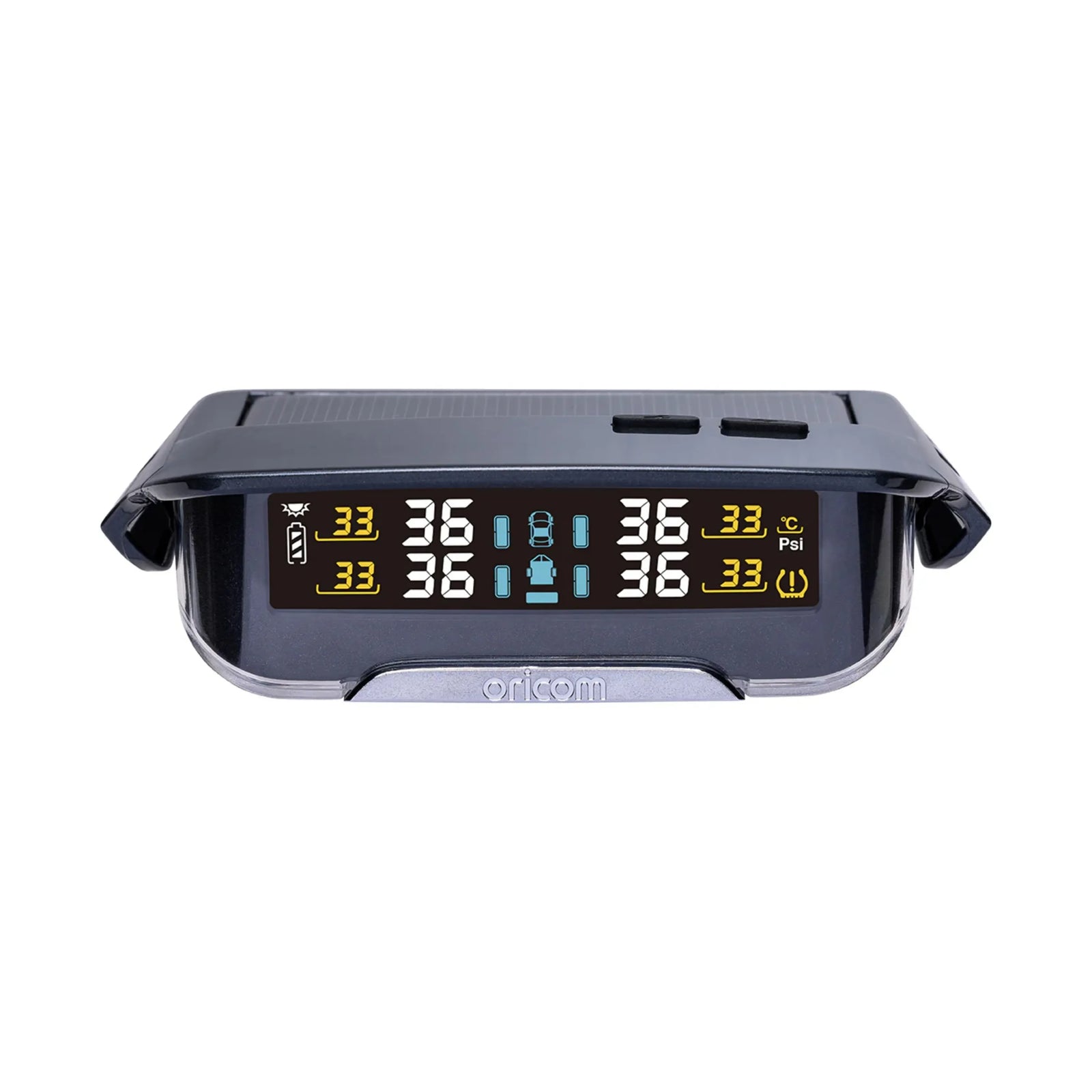

Oricom TPMS10-8E Tyre Pressure Monitoring System with 8 External Sensors and App Functionality

Complete fleet monitoring for dual-axle caravans, motorhomes, and heavy towing setups

The Oricom TPMS10-8E Tyre Pressure Monitoring System delivers comprehensive real-time monitoring across eight tyres simultaneously, making it ideal for twin-axle caravans, large motorhomes, dual-axle trailers, or tow vehicles with tag-along setups. This advanced system uses wireless external sensors transmitting pressure and temperature data to a solar-powered LCD display with app connectivity.

Setup is streamlined through the free companion app, which allows configuration and mode switching between Normal and Offroad driving profiles to save pressure settings for different terrain types. The solar-powered display features auto-brightness adjustment, intelligent power-saving sleep mode, and optional micro USB charging for extended use in low-light conditions. With adjustable alert thresholds, visual and audio alarms, and sensor failure warnings, the TPMS10-8E provides complete visibility across all monitored tyres.

Compatible with up to 10 sensors total, the system allows expansion for additional wheels or spare tyre monitoring. Whether towing across the Nullarbor, touring through remote regions, or managing a multi-axle caravan setup, this system prevents blowouts and maintains optimal tyre performance across your entire rig.

Key Specifications

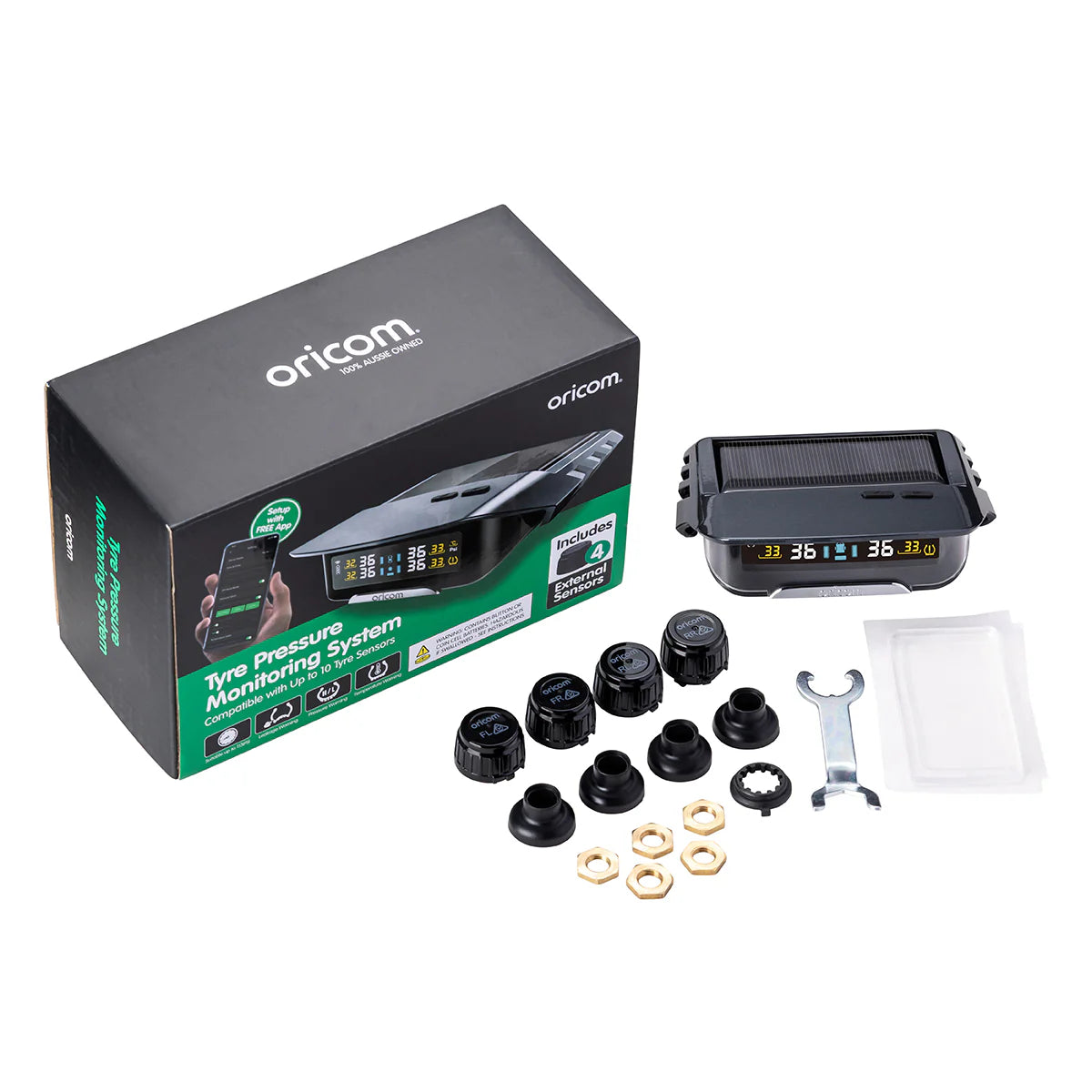

• 8× external tyre pressure sensors included (expandable to 10 sensors)
• Solar-powered LCD display with 500mAh built-in battery
• App-based setup and configuration (free app)
• Normal and Offroad driving mode profiles
• Wireless transmission: 433.92 MHz sensors to display, 2.4 GHz BLE for app
• Real-time pressure and temperature monitoring for all tyres

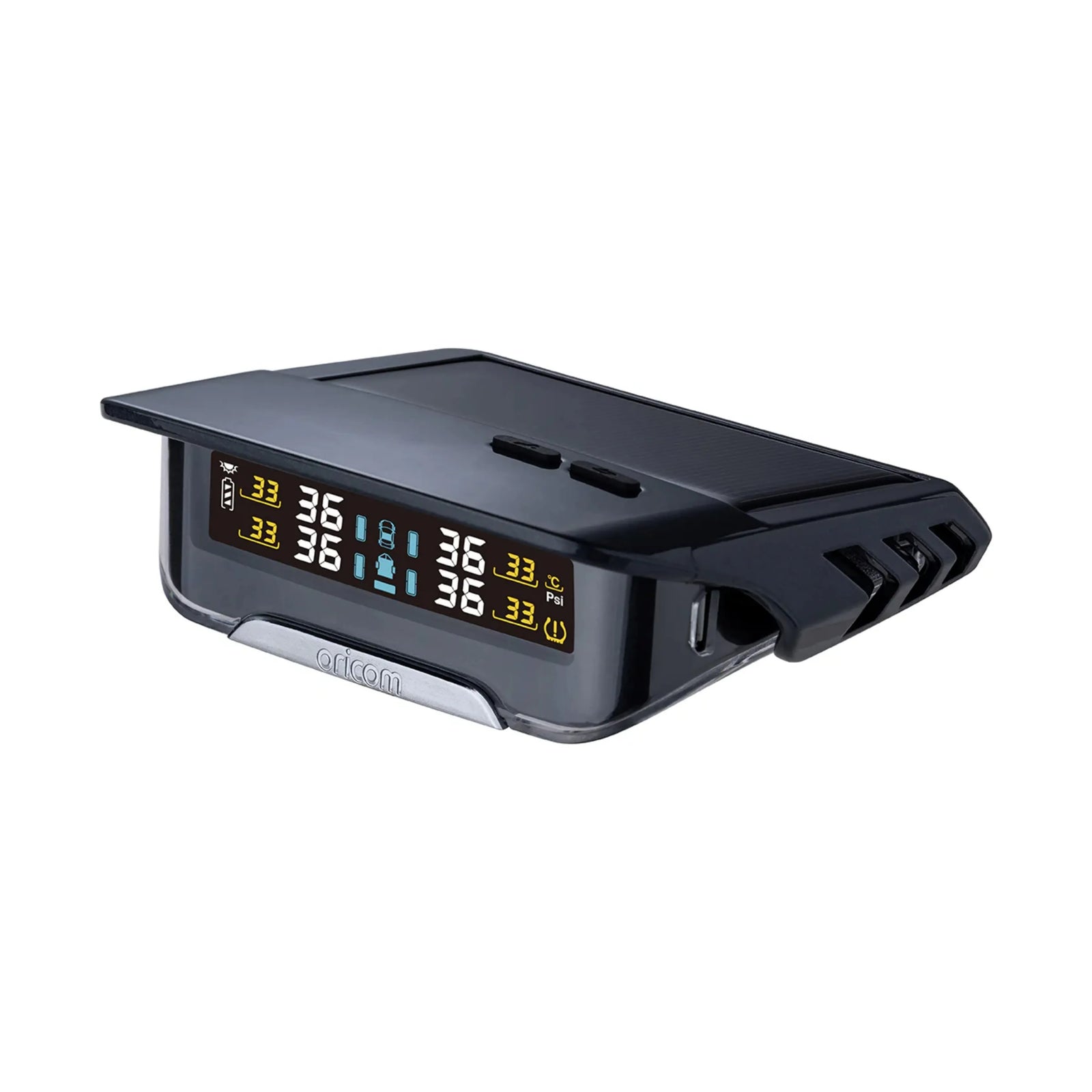

• Auto-brightness adjustment on display
• Visual and audio alarm system
• Optional micro USB charging input
• Intelligent power-saving sleep mode
• Sensor battery: CR1632 (replaceable)
• 12-month warranty

Features & Benefits

Eight-Sensor Coverage — Monitor all tyres on dual-axle caravans, motorhomes, or tow vehicle plus trailer combinations simultaneously, eliminating blind spots in your tyre management system.

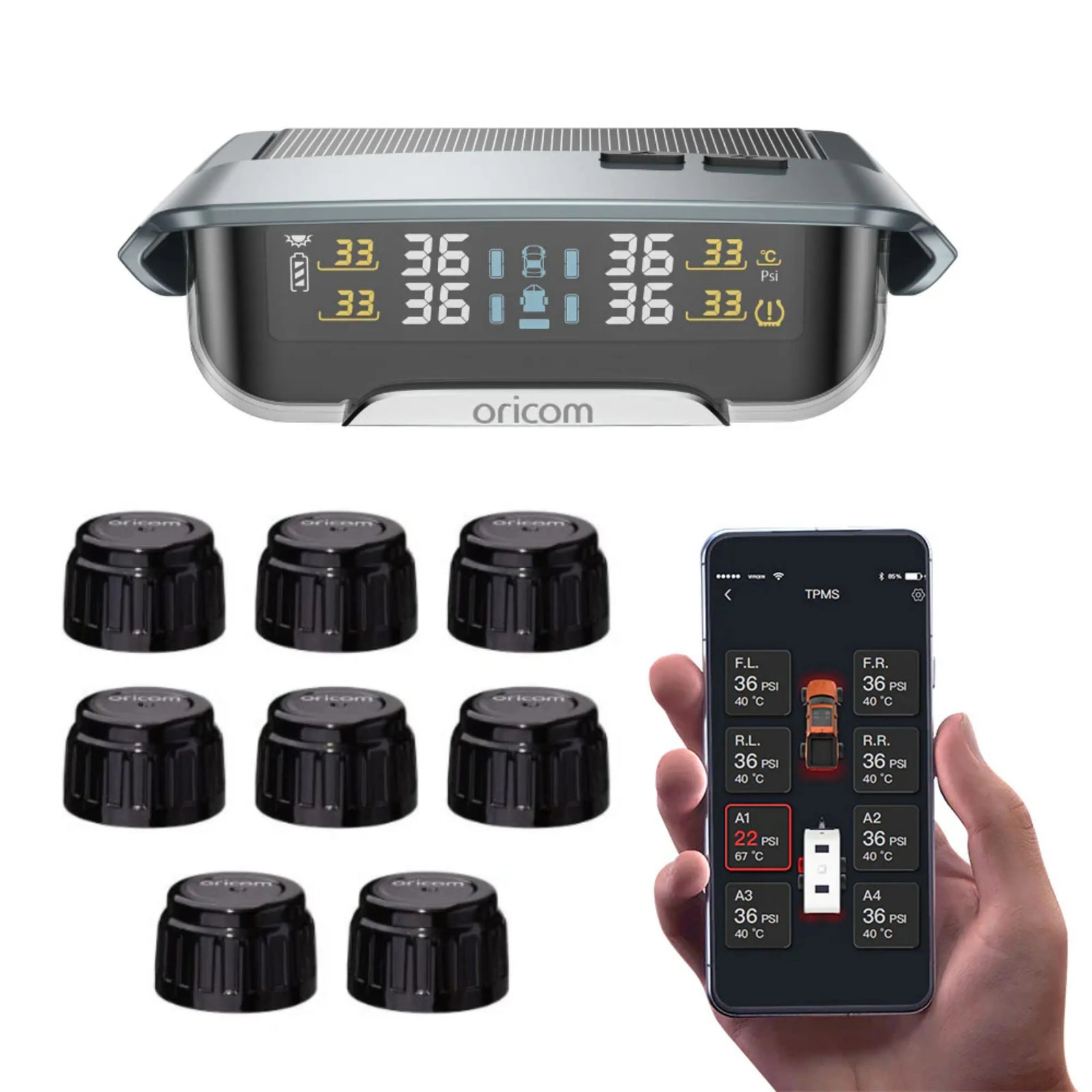

App-Based Configuration — Free companion app simplifies initial setup, sensor pairing, and threshold adjustments through your smartphone, avoiding complex button sequences on the display unit.

Normal and Offroad Mode Switching — Save separate pressure profiles for highway travel and offroad terrain, allowing quick mode changes without re-entering target pressures at each transition.

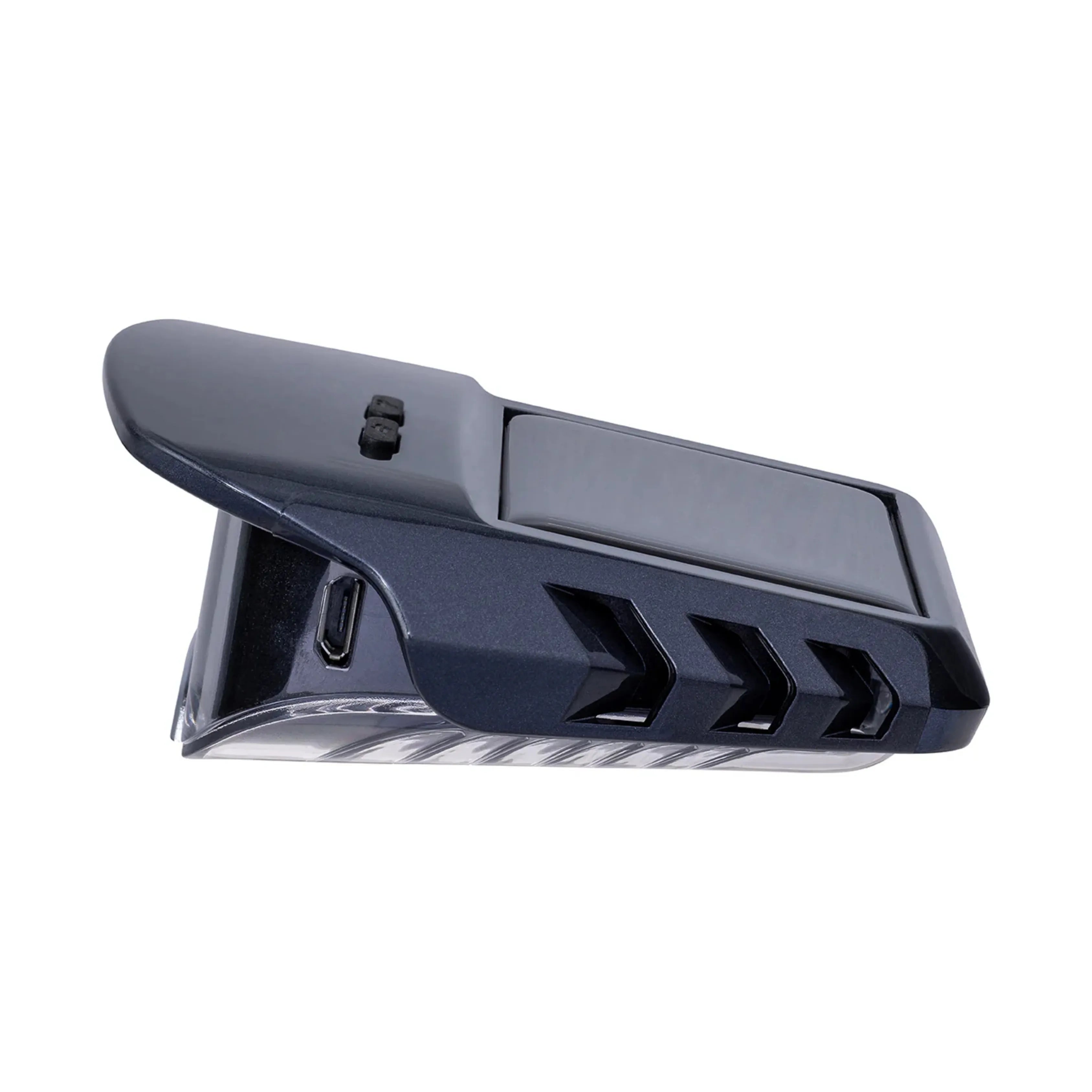

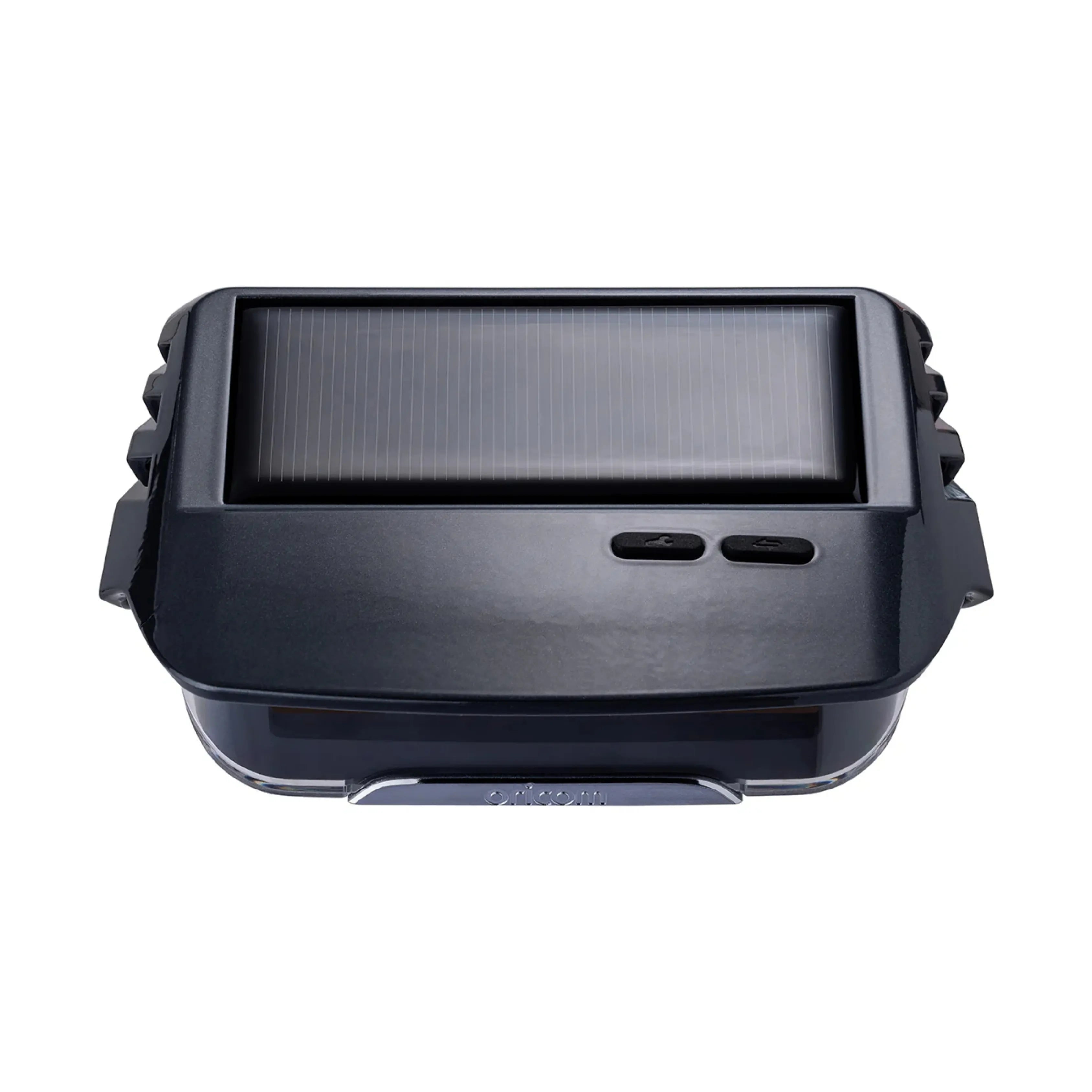

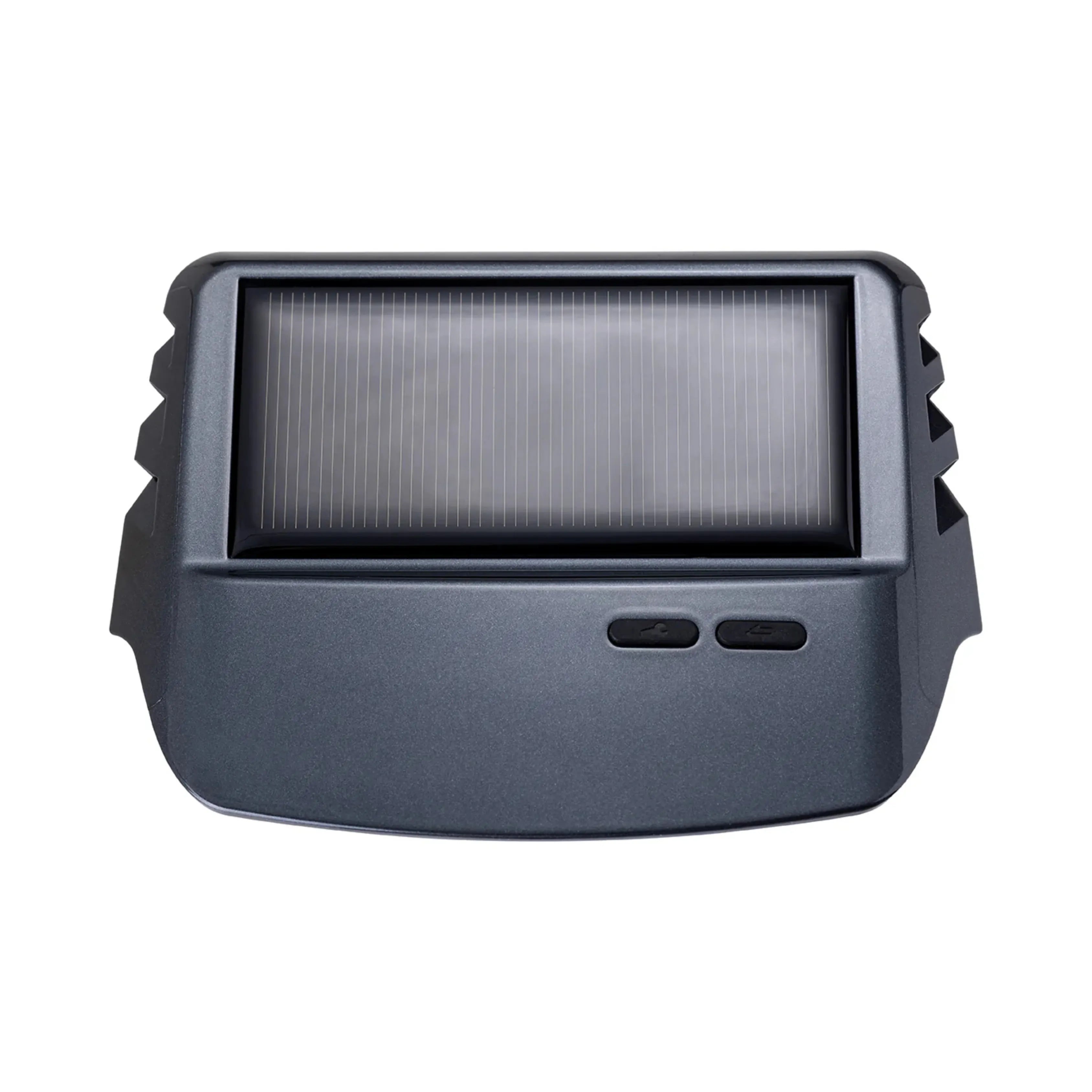

Solar-Powered Display — Self-sustaining solar charging extends battery life indefinitely under normal daylight exposure, with optional micro USB input for overnight or covered storage charging.

Auto-Brightness Display — Adaptive brightness adjustment maintains visibility in harsh Australian sun while conserving battery power in low-light conditions without manual intervention.

Expandable to 10 Sensors — System supports up to 10 total sensors, allowing monitoring of spare tyres or future expansion for triple-axle configurations without replacing the base system.

Intelligent Power Management — Automatic sleep mode activates during extended stationary periods, preserving battery life during storage while maintaining instant wake-up when vehicle movement resumes.

Dual Alert System — Combined visual and audio alarms ensure critical pressure or temperature warnings reach you even in noisy highway conditions or when focused on challenging terrain.

Sensor Failure Detection — System alerts you to non-responsive or malfunctioning sensors, preventing false confidence in incomplete monitoring coverage during travel.

Technical Specs

Sensors (8× Included):

• Model: CR1632-powered external sensors
• Operating Frequency: 433.92 MHz ± 0.05 MHz
• Operating Voltage: 2.3-3.3V
• Operating Current: ≤12 mA
• Static Current: ≤0.5 µA
• Operating Temperature: -20°C to +80°C
• Storage Temperature: -40°C to +80°C
• Battery: CR1632 (replaceable)

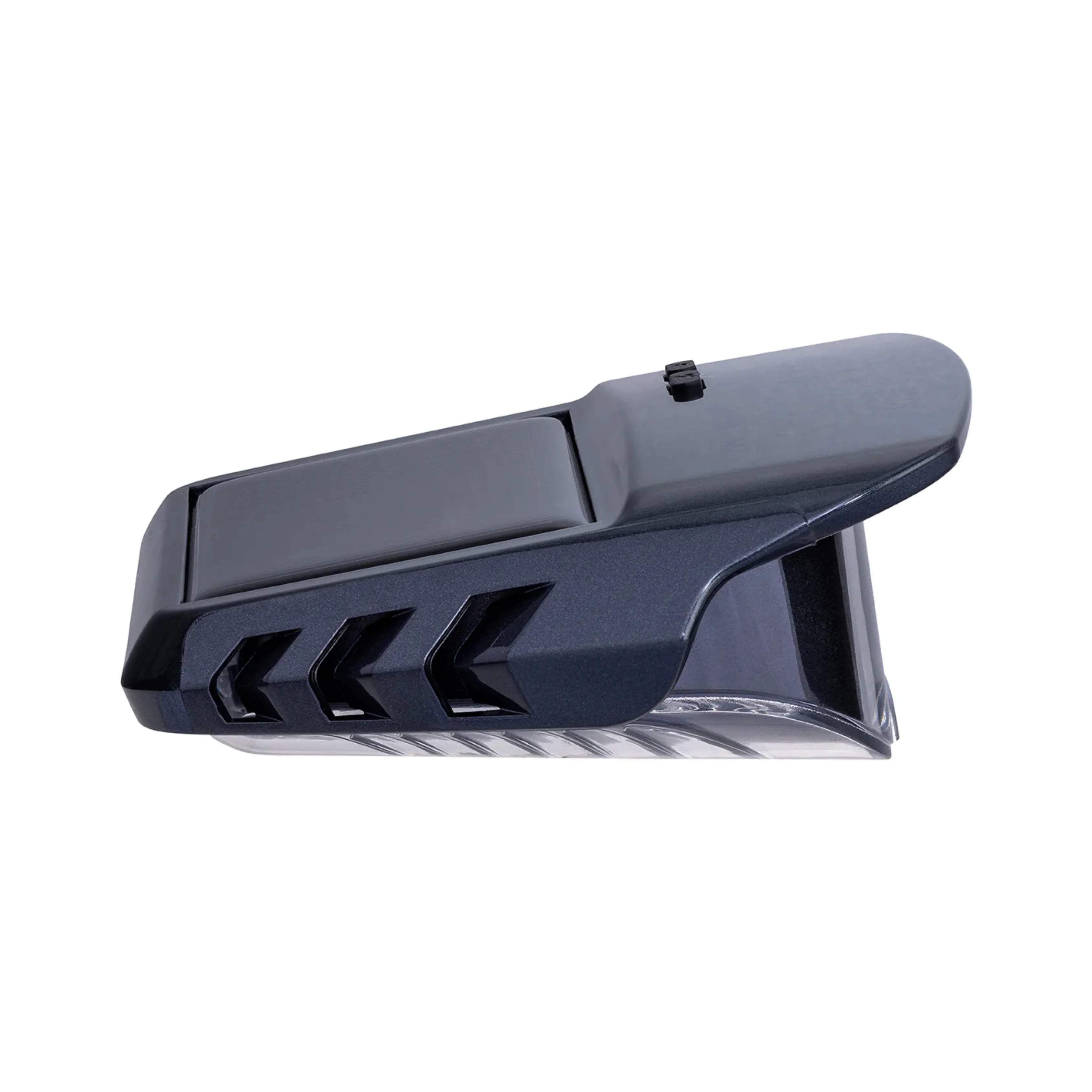

Display Unit:

• Operating Frequency: 433.92 MHz ± 0.05 MHz (sensors), 2.4 GHz BLE (app)
• Operating Current: ≤32 mA
• Static Current: ≤45 µA
• Operating Voltage: 2.6-3.6V
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +95°C
• Built-in Battery: 500 mAh
• Charging Temperature: -10°C to +65°C
• Solar Charging Current: ≥15 mA (at 5500 LX, 25°C)
• USB Charging Current: ≤70 mA
• Features: Auto-brightness, intelligent sleep mode, solar + USB charging

System:

• Maximum Sensor Capacity: 10 sensors (8 included, expandable by 2)
• Alert Types: Visual display + audio alarm
• Threshold Settings: Adjustable via app
• Driving Modes: Normal and Offroad (saves pressure profiles)
• Warranty: 12 months

Frequently Asked Questions

Can I monitor my tow vehicle and caravan tyres with one system?

Yes, the TPMS10-8E handles eight tyres simultaneously, covering most dual-axle caravans (4 tyres) plus tow vehicle (4 tyres) or single-axle trailer (2 tyres) plus six-wheel motorhome configurations.

How do I add the ninth and tenth sensors if I need them?

Additional compatible sensors can be purchased separately and paired through the app. The system supports up to 10 sensors total for spare tyre monitoring or triple-axle configurations.

Does the solar panel work through my windscreen or dashboard?

Solar charging efficiency varies based on windscreen UV coatings and dashboard placement. The system includes micro USB charging as backup for low-light conditions or covered storage.

What happens if a sensor battery dies while travelling?

The display provides sensor failure warnings when communication is lost. Carry spare CR1632 batteries and verify sensor operation before long trips to avoid monitoring gaps.

Can I use Offroad mode for beach driving with lower pressures?

Yes, the Offroad mode is designed for reduced pressure settings. Configure your beach driving pressures in Offroad mode, then switch back to Normal mode for highway travel without re-entering values.

Compatible With

• Twin-axle caravans and camper trailers
• Large motorhomes and RVs
• Dual-axle boat trailers
• Tow vehicle and trailer combinations
• Heavy-duty touring setups with spare tyre monitoring
• Tag-along trailer configurations

System expandable to 10 sensors with separate sensor purchase.
