Oricom TPMS10-6E Tyre Pressure Monitoring System with 6 External Sensors and App Functionality

Comprehensive six-tyre monitoring for single-axle caravans, motorhomes, and dual-axle towing

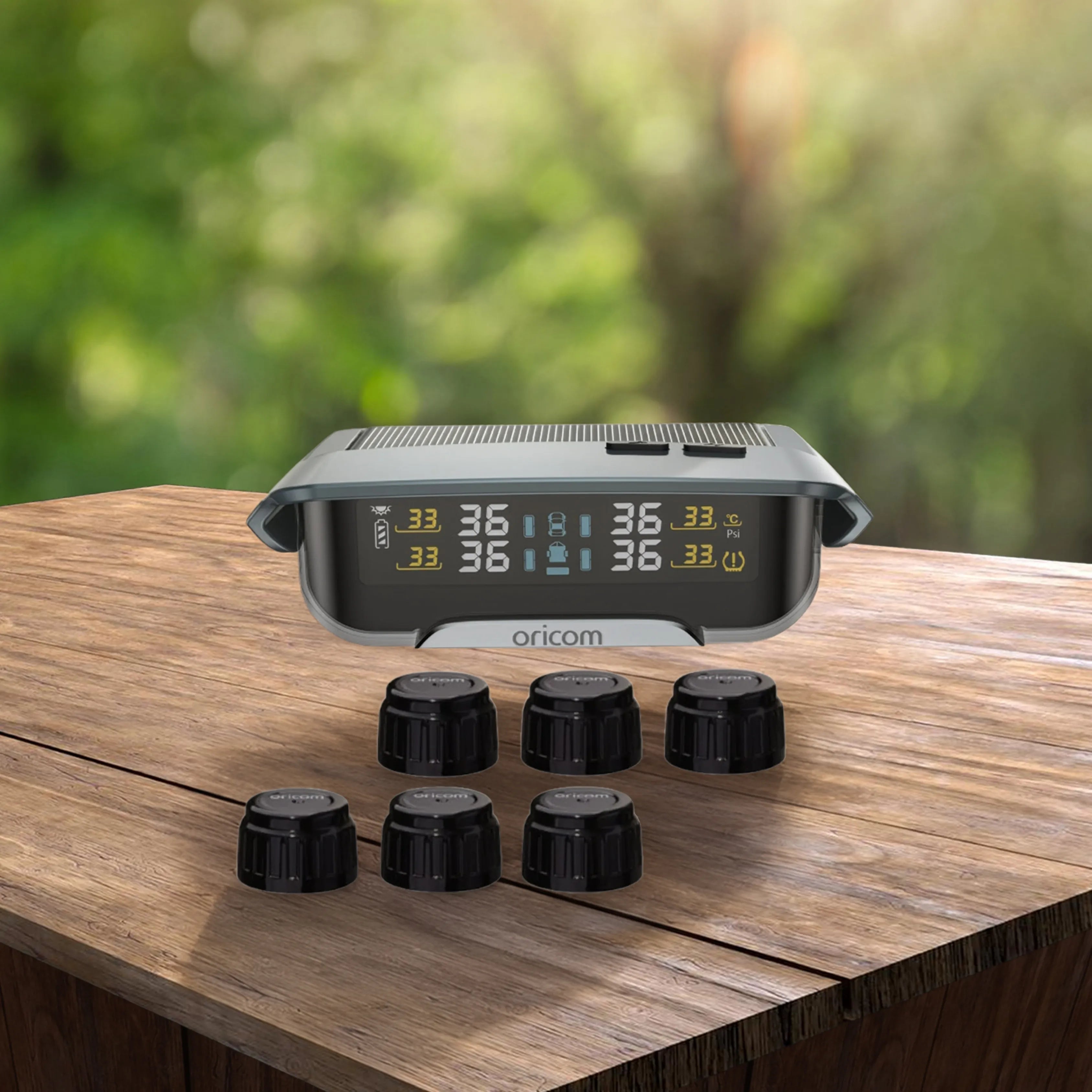

The Oricom TPMS10-6E Tyre Pressure Monitoring System provides real-time surveillance across six tyres simultaneously, making it ideal for single-axle caravans paired with four-wheel tow vehicles, dual-axle trailers, or six-wheel motorhomes. This advanced system uses wireless external sensors transmitting pressure and temperature data to a solar-powered LCD display with smartphone app connectivity.

Setup is simplified through the free companion app, which enables configuration and switching between Normal and Offroad driving profiles to store pressure settings for different terrain types. The solar-powered display features auto-brightness adjustment, intelligent power-saving sleep mode, and optional micro USB charging for operation in low-light conditions. With adjustable alert thresholds, visual and audio alarms, and sensor failure warnings, the TPMS10-6E delivers complete visibility across all monitored tyres.

The system supports expansion to 10 sensors total, allowing future upgrades for spare tyre monitoring or additional axle coverage. Whether touring coastal highways, crossing remote outback tracks, or managing a caravan setup, this system prevents blowouts and maintains optimal tyre performance across your entire rig.

Key Specifications

• 6× external tyre pressure sensors included (expandable to 10 sensors)

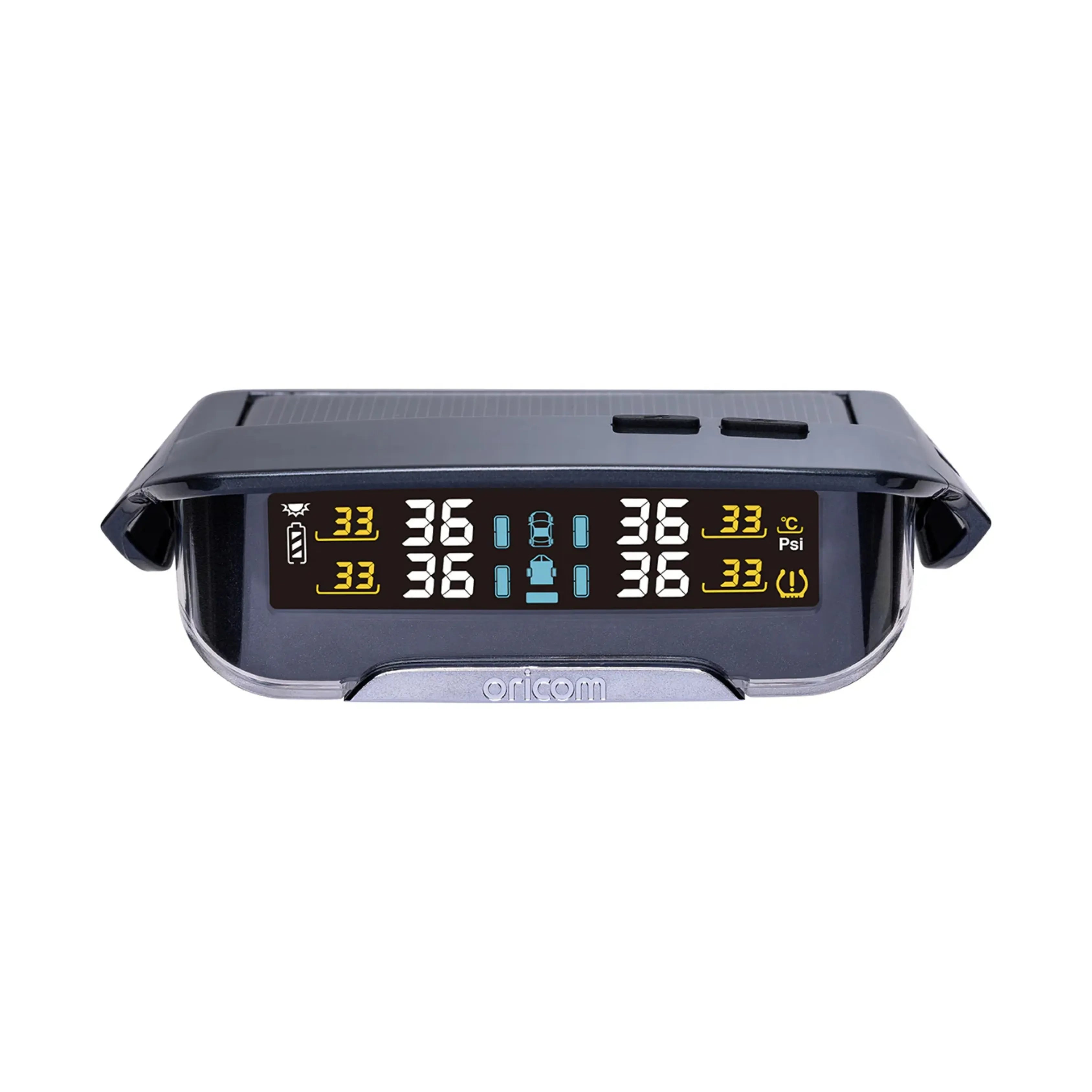

• Solar-powered LCD display with 500mAh built-in battery
• App-based setup and configuration (free app)
• Normal and Offroad driving mode profiles
• Wireless transmission: 433.92 MHz sensors to display, 2.4 GHz BLE for app
• Real-time pressure and temperature monitoring for all tyres
• Auto-brightness adjustment on display
• Visual and audio alarm system
• Optional micro USB charging input
• Intelligent power-saving sleep mode
• Sensor battery: CR1632 (replaceable)
• 12-month warranty

Features & Benefits

Six-Sensor Coverage — Monitor tow vehicle (4 tyres) plus single-axle caravan (2 tyres) or motorhome six-wheel configurations simultaneously, eliminating blind spots in your tyre management system.

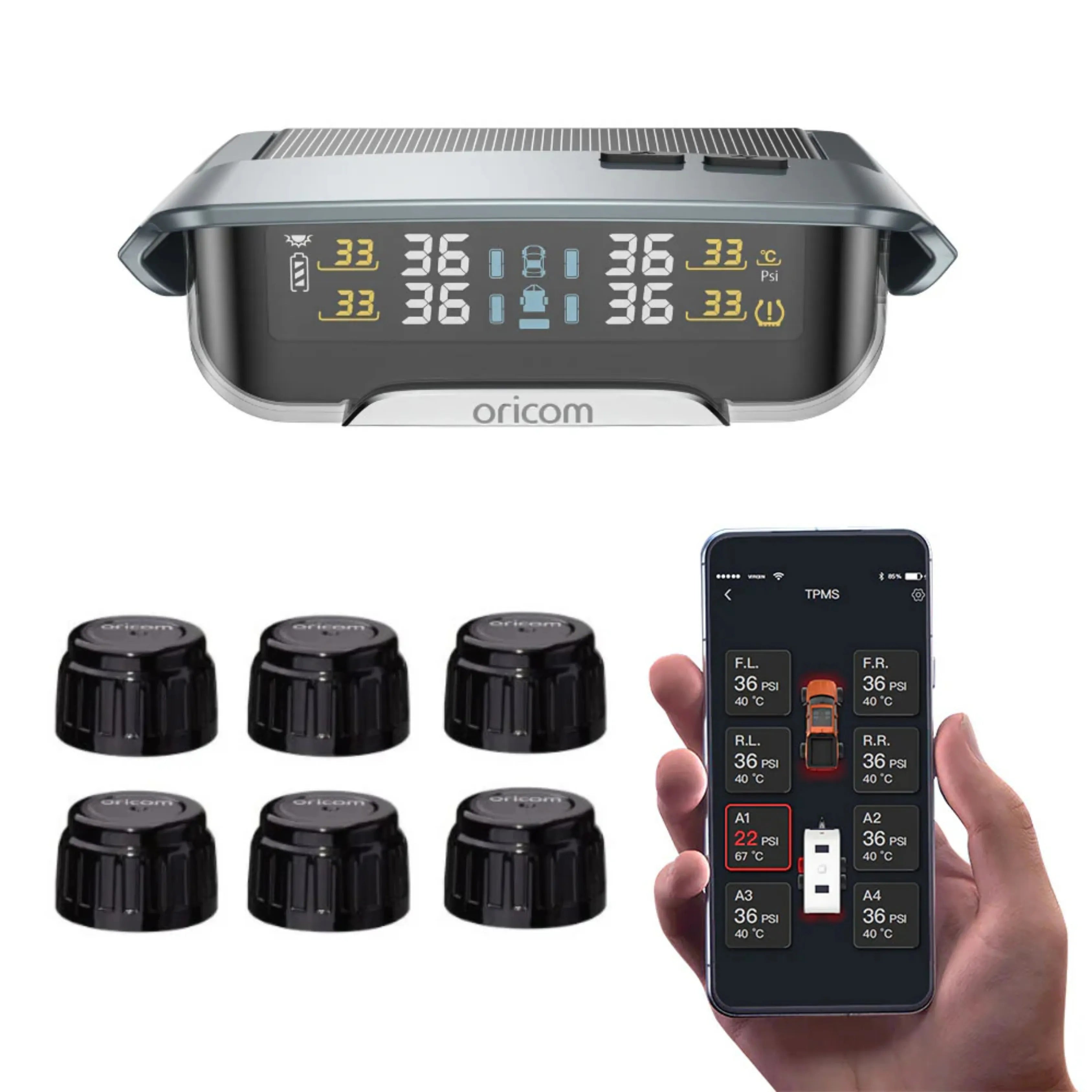

App-Based Configuration — Free companion app simplifies initial setup, sensor pairing, and threshold adjustments through your smartphone, avoiding complex manual configuration on the display unit.

Normal and Offroad Mode Switching — Save separate pressure profiles for sealed road travel and offroad terrain, enabling quick mode changes without manually re-entering target pressures at each surface transition.

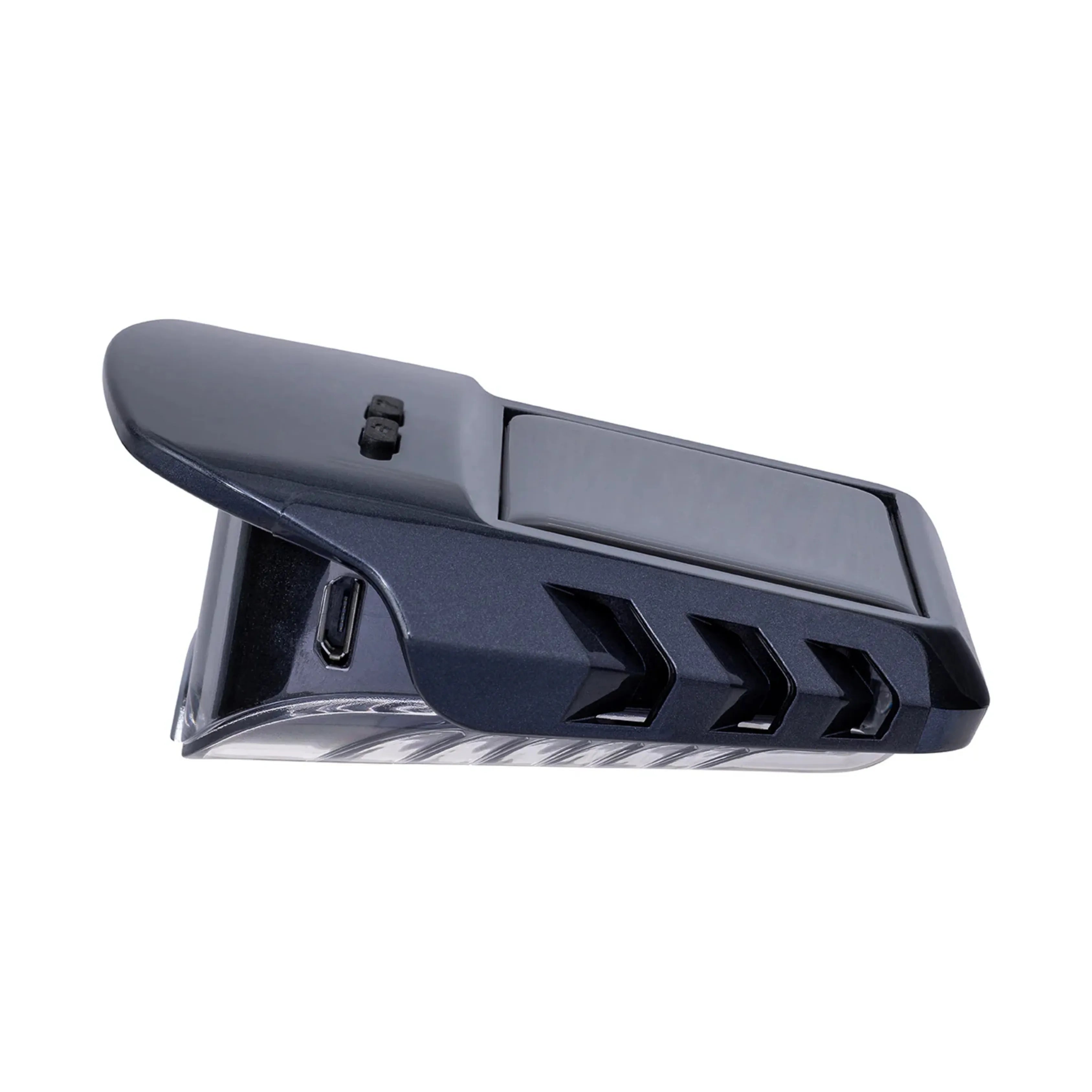

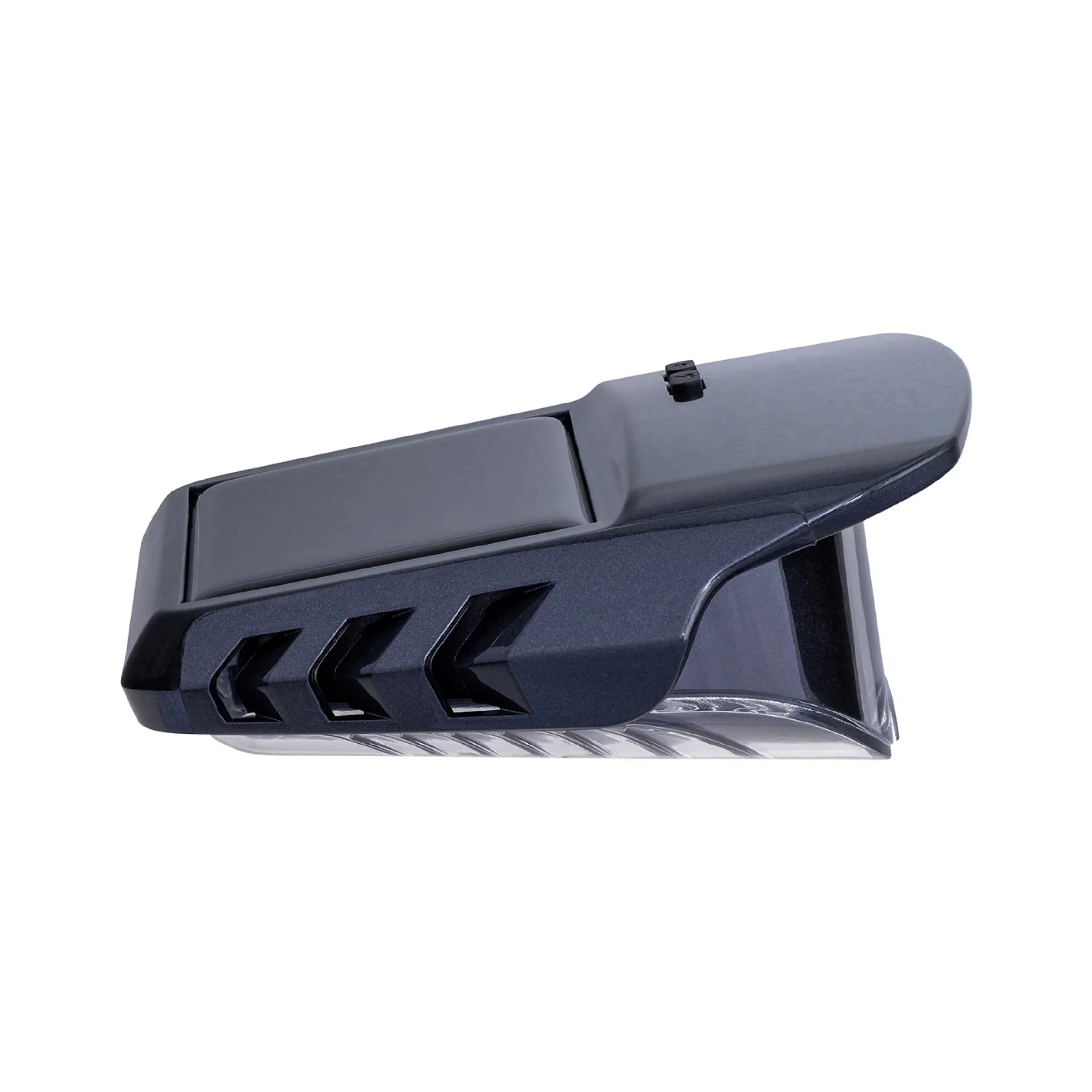

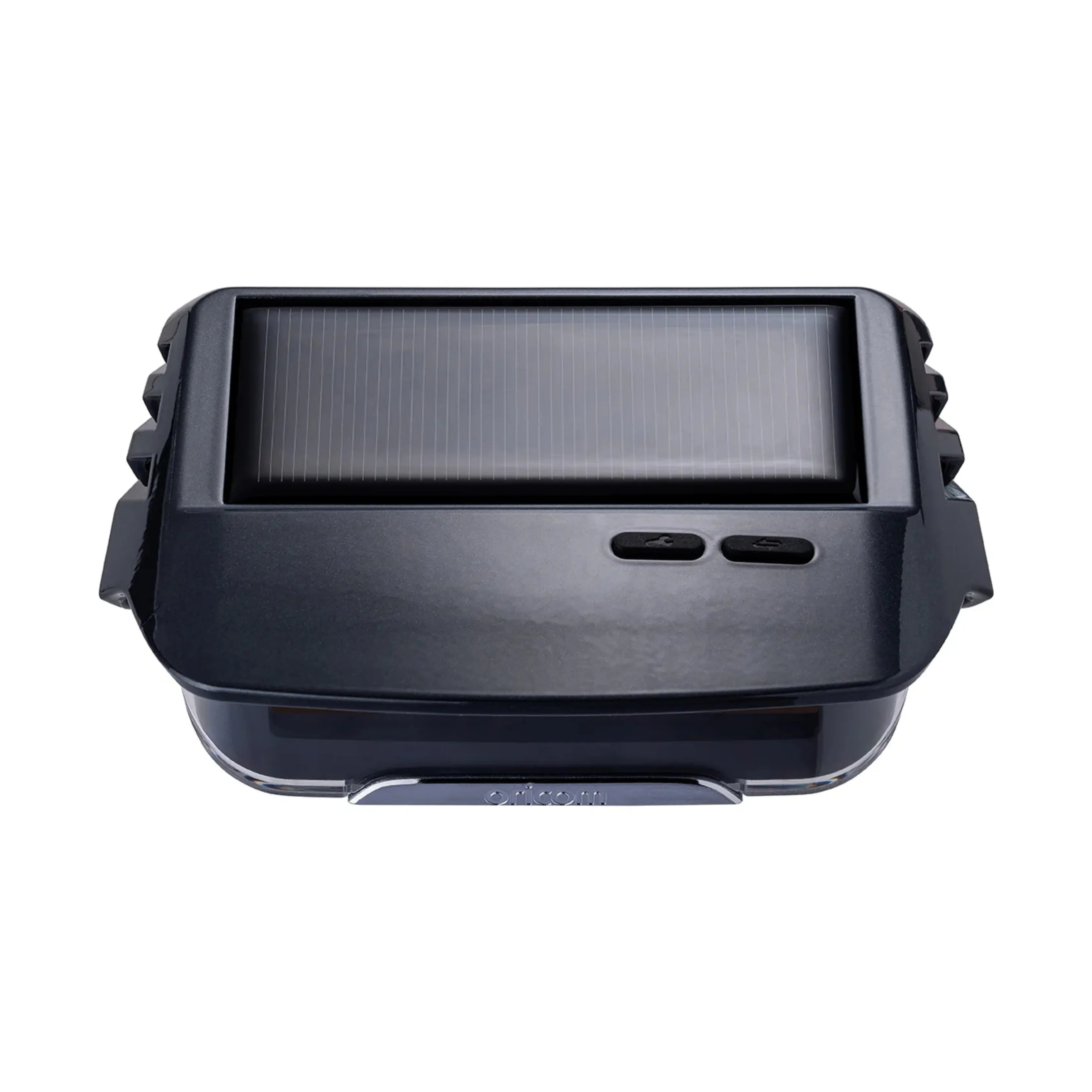

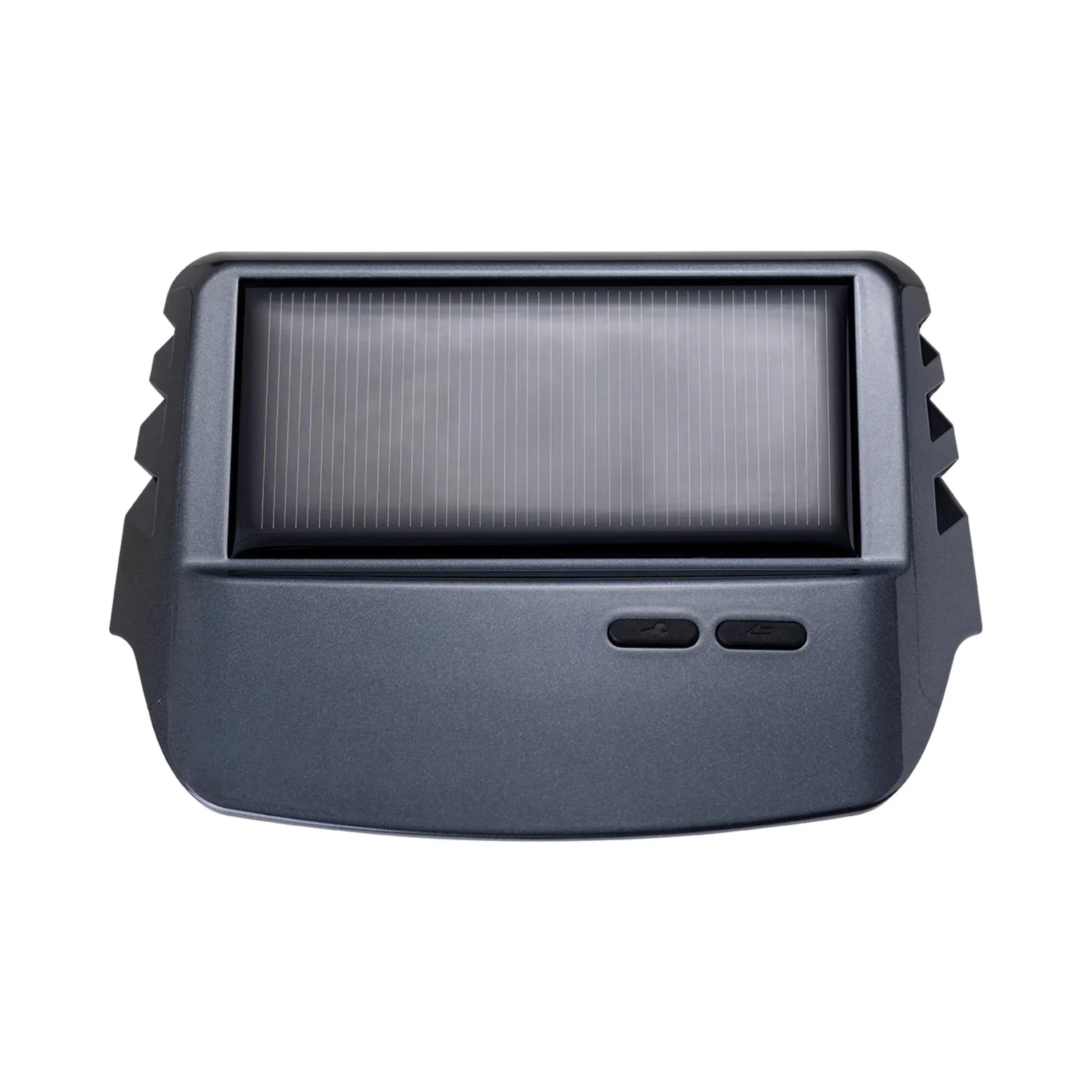

Solar-Powered Display — Self-sustaining solar charging maintains battery life indefinitely under normal daylight exposure, with optional micro USB input for overnight charging or covered storage periods.

Auto-Brightness Display — Adaptive brightness adjustment maintains visibility in harsh Australian sun while conserving battery power in low-light conditions without requiring manual intervention.

Expandable to 10 Sensors — System architecture supports up to 10 total sensors, allowing monitoring of spare tyres or future expansion for triple-axle configurations without replacing the base system.

Intelligent Power Management — Automatic sleep mode activates during extended stationary periods, preserving battery life during storage while maintaining instant wake-up capability when vehicle movement resumes.

Dual Alert System — Combined visual and audio alarms ensure critical pressure or temperature warnings reach you even in noisy highway conditions or when navigating challenging terrain.

Sensor Failure Detection — System alerts you to non-responsive or malfunctioning sensors, preventing false confidence in incomplete monitoring coverage during travel.

Technical Specs

Sensors (6× Included):

• Model: CR1632-powered external sensors
• Operating Frequency: 433.92 MHz ± 0.05 MHz
• Operating Voltage: 2.3-3.3V
• Operating Current: ≤12 mA
• Static Current: ≤0.5 µA
• Operating Temperature: -20°C to +80°C
• Storage Temperature: -40°C to +80°C
• Battery: CR1632 (replaceable)

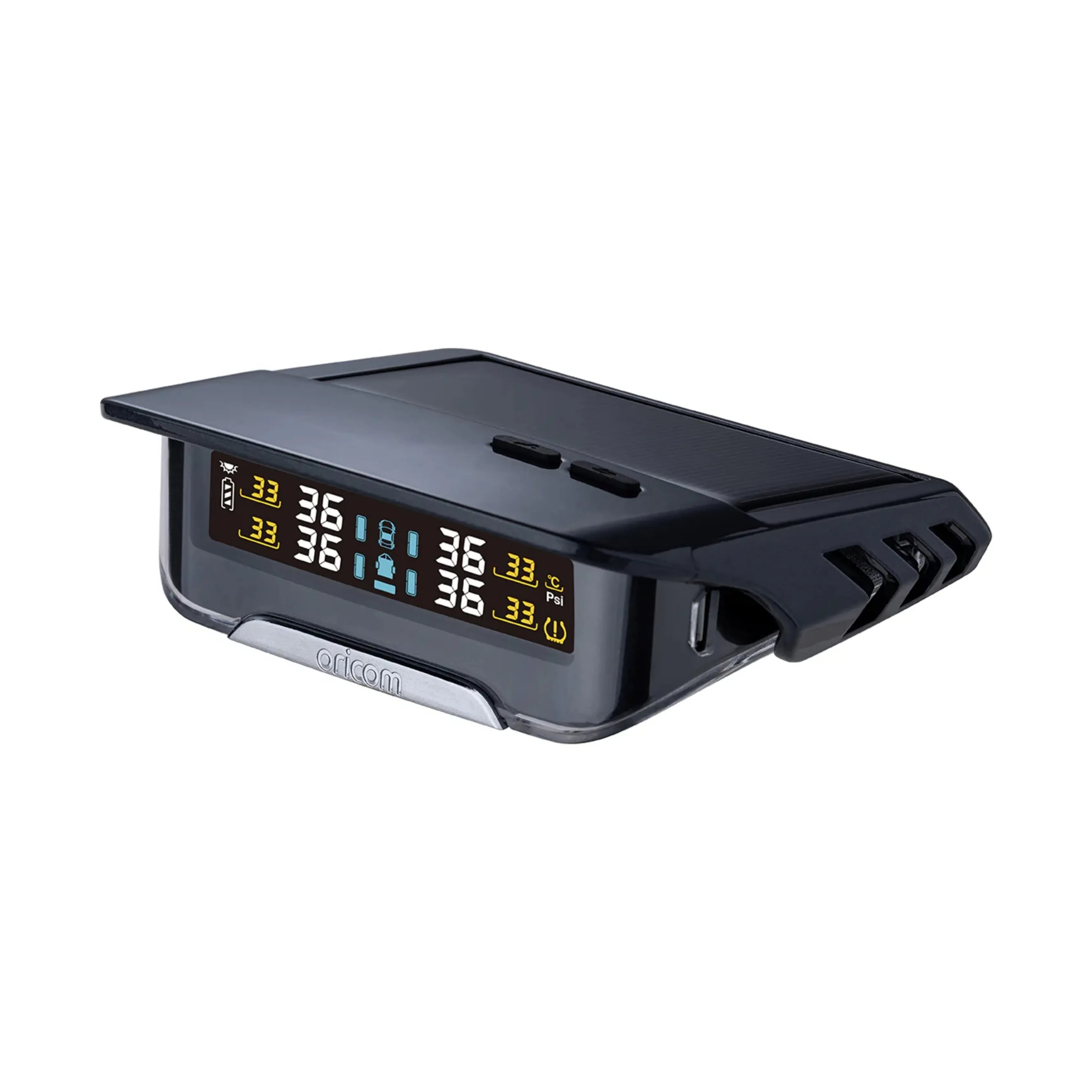

Display Unit:

• Operating Frequency: 433.92 MHz ± 0.05 MHz (sensors), 2.4 GHz BLE (app)
• Operating Current: ≤32 mA
• Static Current: ≤45 µA
• Operating Voltage: 2.6-3.6V
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +95°C
• Built-in Battery: 500 mAh
• Charging Temperature: -10°C to +65°C
• Solar Charging Current: ≥15 mA (at 5500 LX, 25°C)
• USB Charging Current: ≤70 mA
• Features: Auto-brightness, intelligent sleep mode, solar + USB charging

System:

• Maximum Sensor Capacity: 10 sensors (6 included, expandable by 4)
• Alert Types: Visual display + audio alarm
• Threshold Settings: Adjustable via app
• Driving Modes: Normal and Offroad (saves pressure profiles)
• Warranty: 12 months

Frequently Asked Questions

What vehicle combinations work best with six sensors?

The TPMS10-6E is ideal for four-wheel tow vehicles paired with single-axle caravans (2 tyres), dual-axle trailers, or six-wheel motorhomes requiring comprehensive tyre monitoring across all positions.

Can I add more sensors later if I upgrade my setup?

Yes, the system supports up to 10 sensors total. Additional compatible sensors can be purchased separately and paired through the app for spare tyre monitoring or expanded configurations.

Does the solar charging work while driving or only when parked?

Solar charging operates whenever the display receives adequate light, whether driving or parked. Windscreen placement provides continuous charging during daylight travel and stationary periods.

What happens during extended overcast weather or night driving?

The 500mAh built-in battery provides extended operation between solar charges. Optional micro USB charging ensures the display remains powered during prolonged low-light conditions or covered storage.

How accurate are the pressure readings compared to manual gauges?

Digital TPMS sensors provide reliable readings, though regular calibration checks against known-accurate reference gauges are recommended to verify ongoing accuracy for critical applications.

Compatible With

• Four-wheel tow vehicles with single-axle caravans
• Six-wheel motorhomes and RVs
• Dual-axle boat trailers
• Four-wheel drive vehicles with dual-axle off-road trailers
• Touring setups requiring comprehensive tyre monitoring

System expandable to 10 sensors with separate sensor purchase.
