Oricom TPMS10-4I Tyre Pressure Monitoring System with 4 Internal Sensors and App Functionality

Discreet internal sensor monitoring for four-wheel vehicles with professional installation

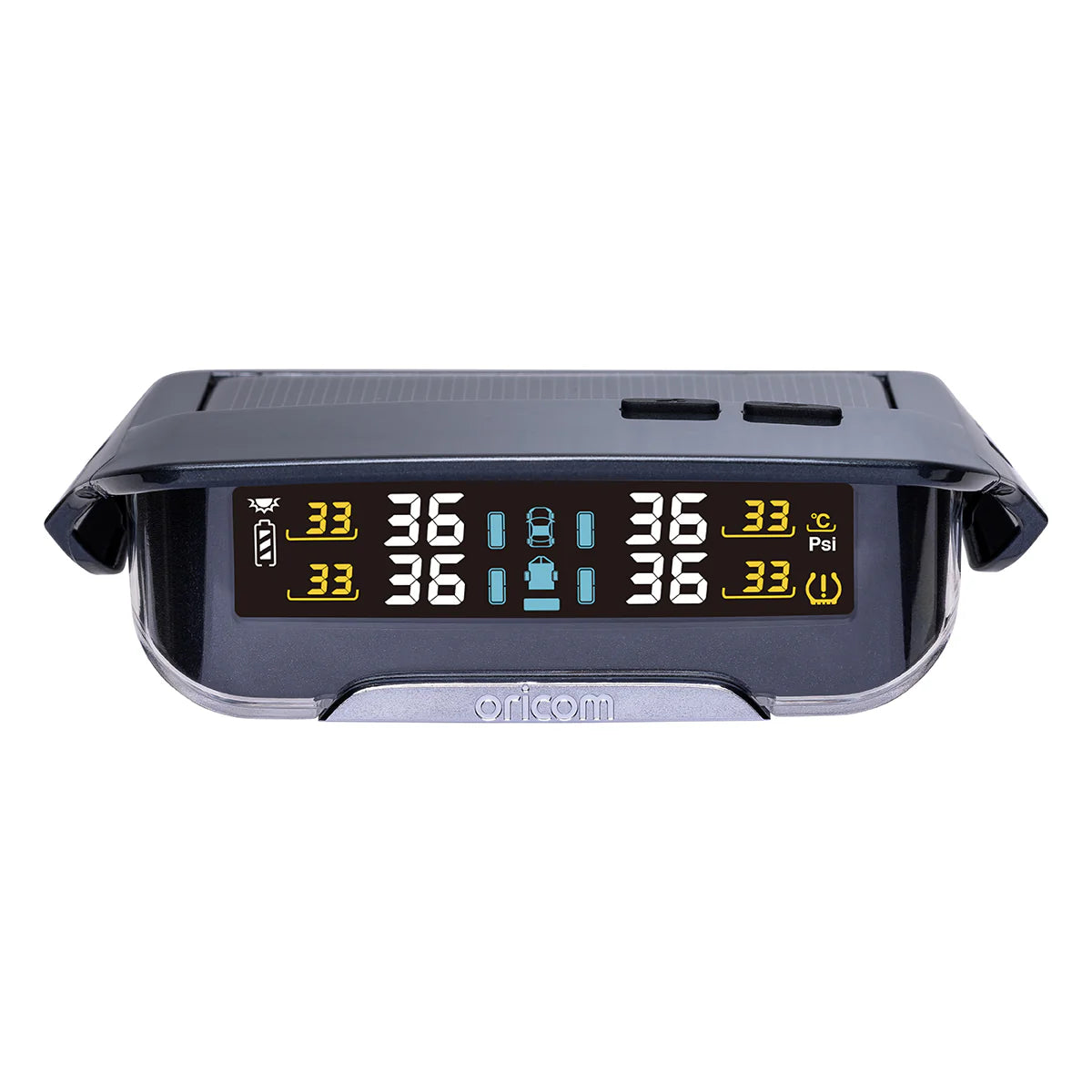

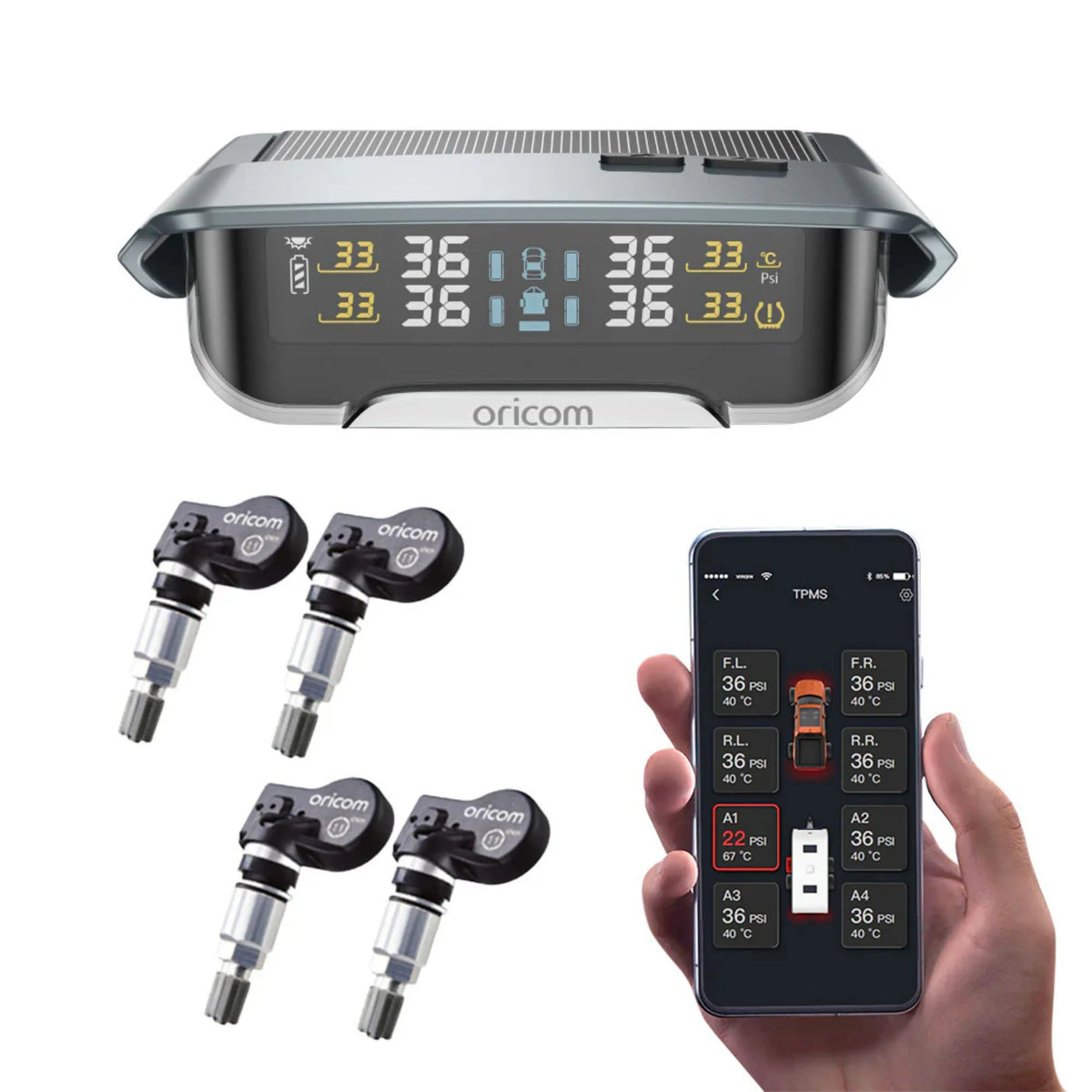

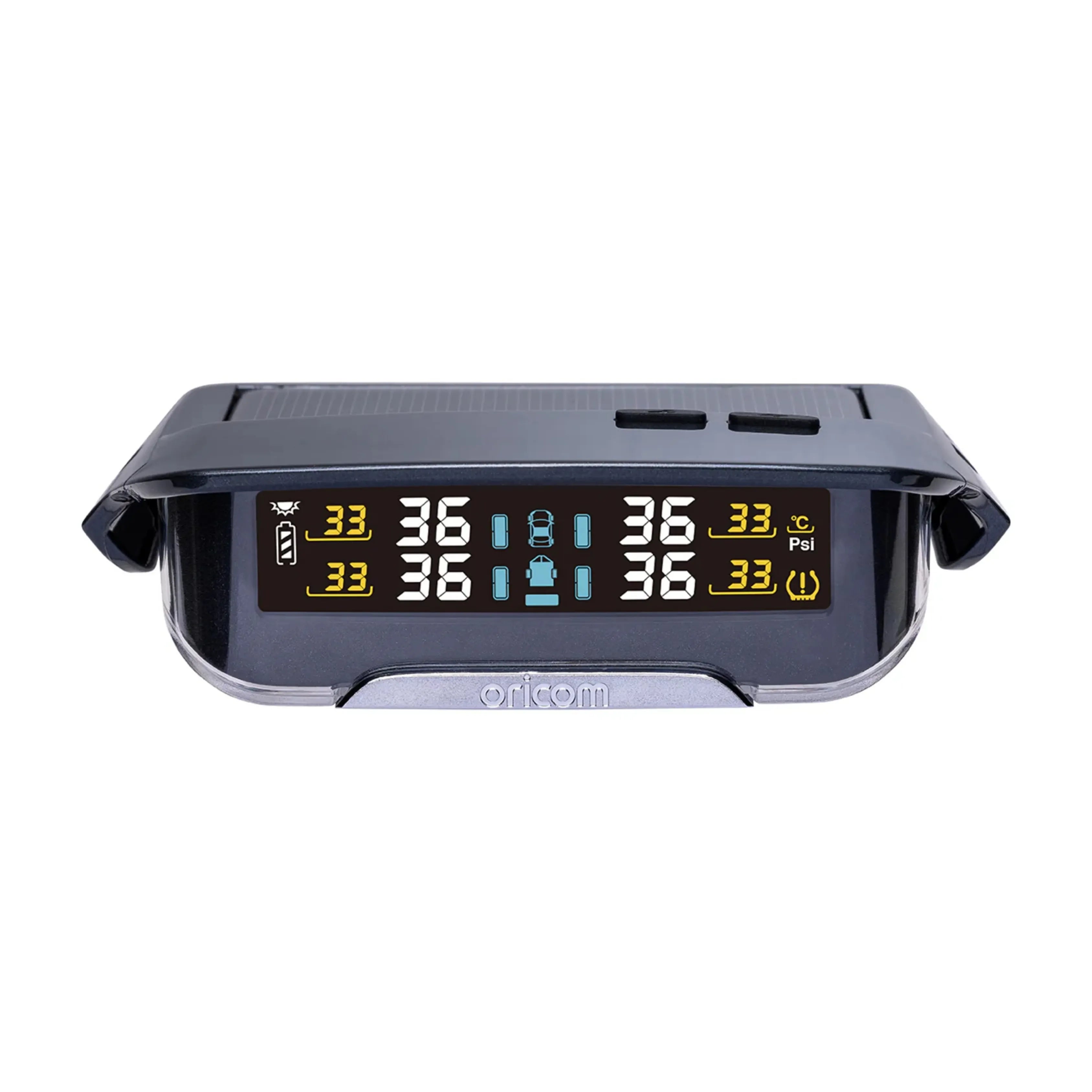

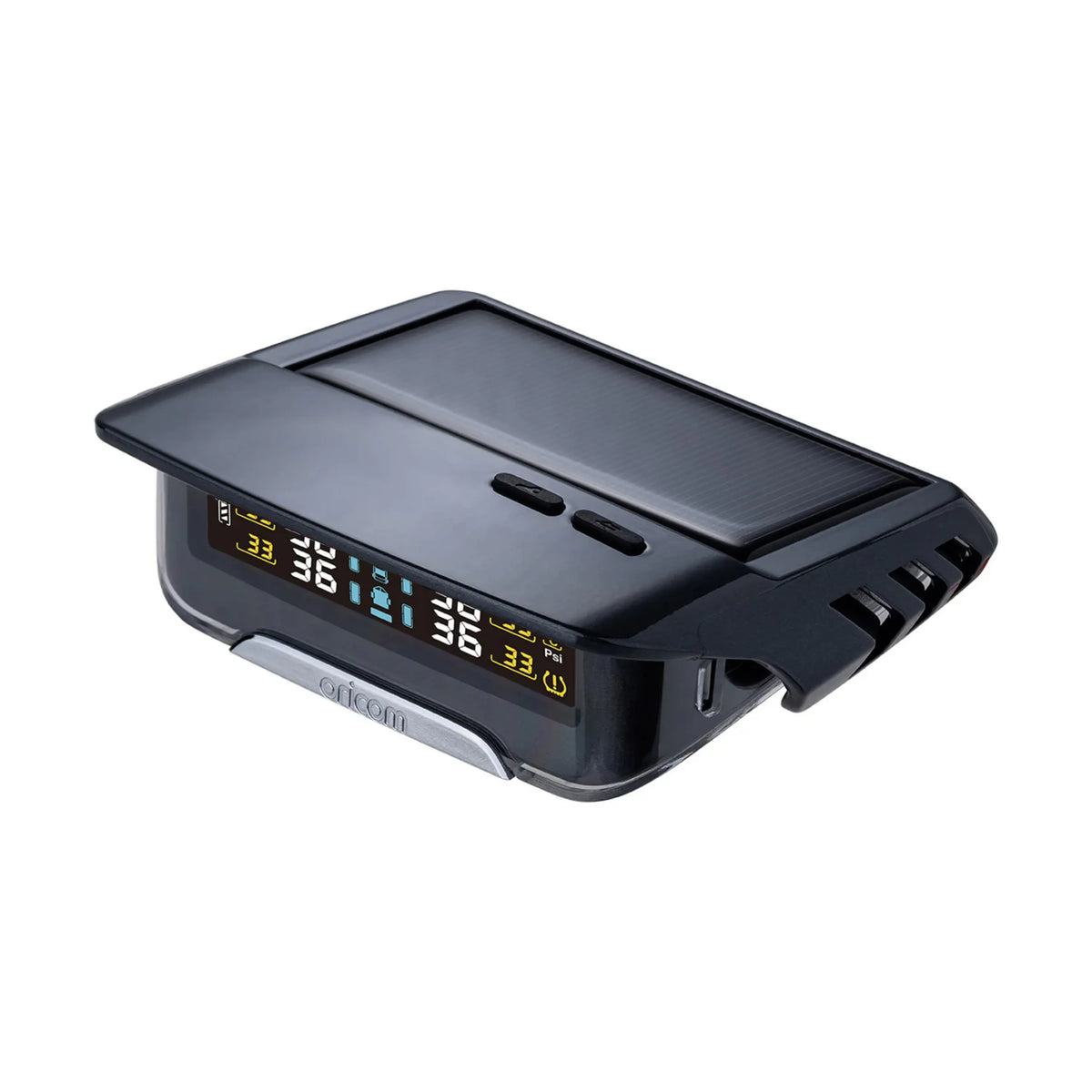

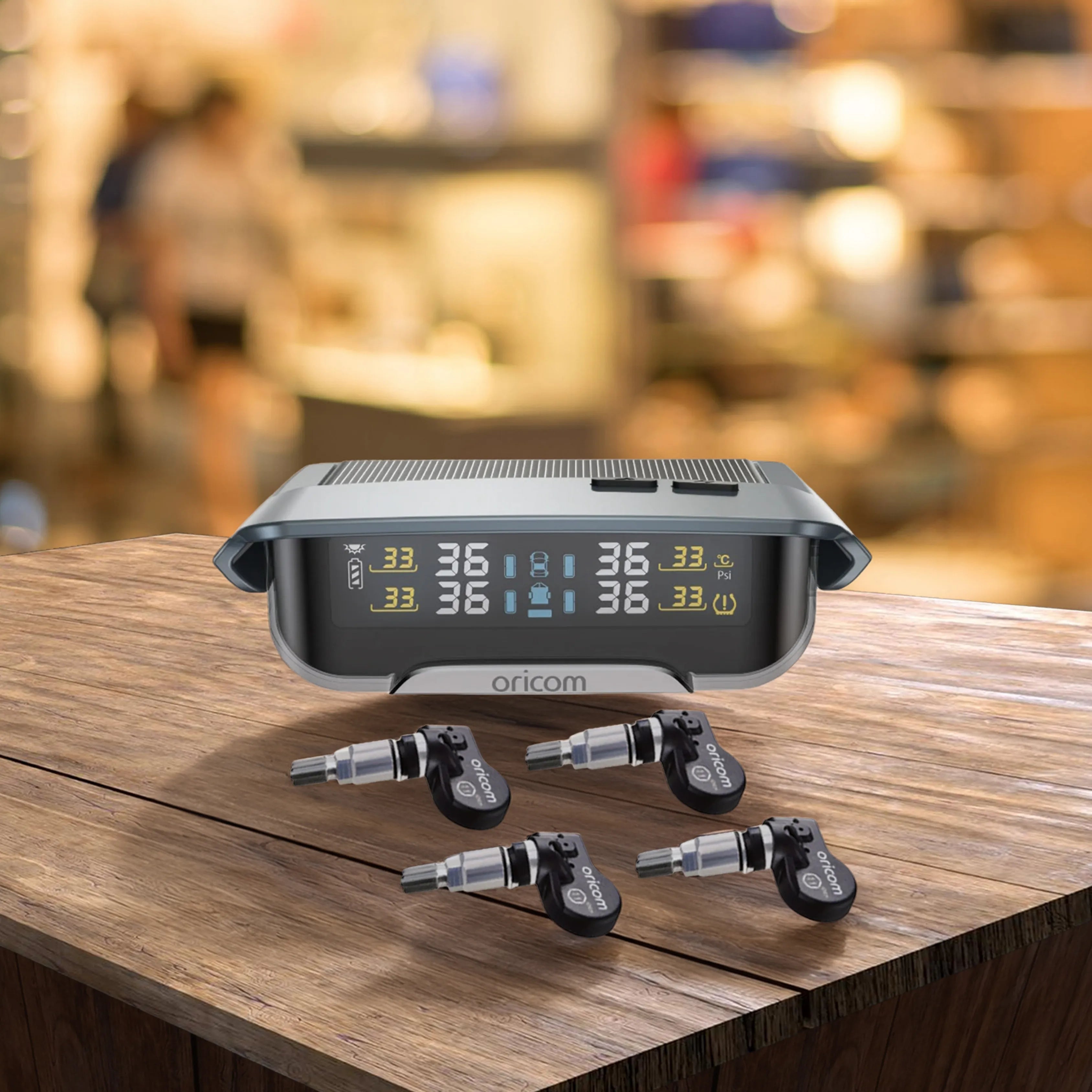

The Oricom TPMS10-4I Tyre Pressure Monitoring System provides comprehensive real-time monitoring across four tyres using internal sensors mounted inside the tyre during professional fitment. This advanced system uses wireless internal sensors transmitting pressure and temperature data to a solar-powered LCD display with smartphone app connectivity. Internal sensors offer a cleaner appearance compared to external valve-mounted alternatives, eliminating theft concerns and valve extension requirements while maintaining continuous monitoring capability.

Setup is simplified through the free companion app, which enables configuration and switching between Normal and Offroad driving profiles to store pressure settings for different terrain types. The solar-powered display features auto-brightness adjustment, intelligent power-saving sleep mode, and optional micro USB charging for operation in low-light conditions. With adjustable alert thresholds, visual and audio alarms, and sensor failure warnings, the TPMS10-4I delivers complete visibility across all monitored tyres.

The system supports expansion to 10 sensors total, allowing future upgrades for spare tyre monitoring or trailer integration. Whether touring highways, navigating offroad tracks, or managing daily driving, this system prevents blowouts and maintains optimal tyre performance across your vehicle.

Key Specifications

• 4× internal tyre pressure sensors included (expandable to 10 sensors)
• Solar-powered LCD display with 500mAh built-in battery
• App-based setup and configuration (free app)
• Normal and Offroad driving mode profiles
• Wireless transmission: 433.92 MHz sensors to display, 2.4 GHz BLE for app
• Real-time pressure and temperature monitoring for all tyres
• Auto-brightness adjustment on display
• Visual and audio alarm system
• Optional micro USB charging input
• Intelligent power-saving sleep mode
• Professional installation required for internal sensors
• 12-month warranty

Features & Benefits

Internal Sensor Design — Sensors mount inside the tyre during professional fitment, providing discreet monitoring without visible external components vulnerable to theft, damage, or valve clearance issues.

Four-Wheel Coverage — Monitor all tyres on sedans, SUVs, utes, and four-wheel drive vehicles simultaneously, eliminating blind spots in your tyre management system.

App-Based Configuration — Free companion app simplifies initial setup, sensor pairing, and threshold adjustments through your smartphone, avoiding complex manual configuration sequences.

Normal and Offroad Mode Switching — Save separate pressure profiles for sealed road travel and offroad terrain, enabling quick mode changes without manually re-entering target pressures at each surface transition.

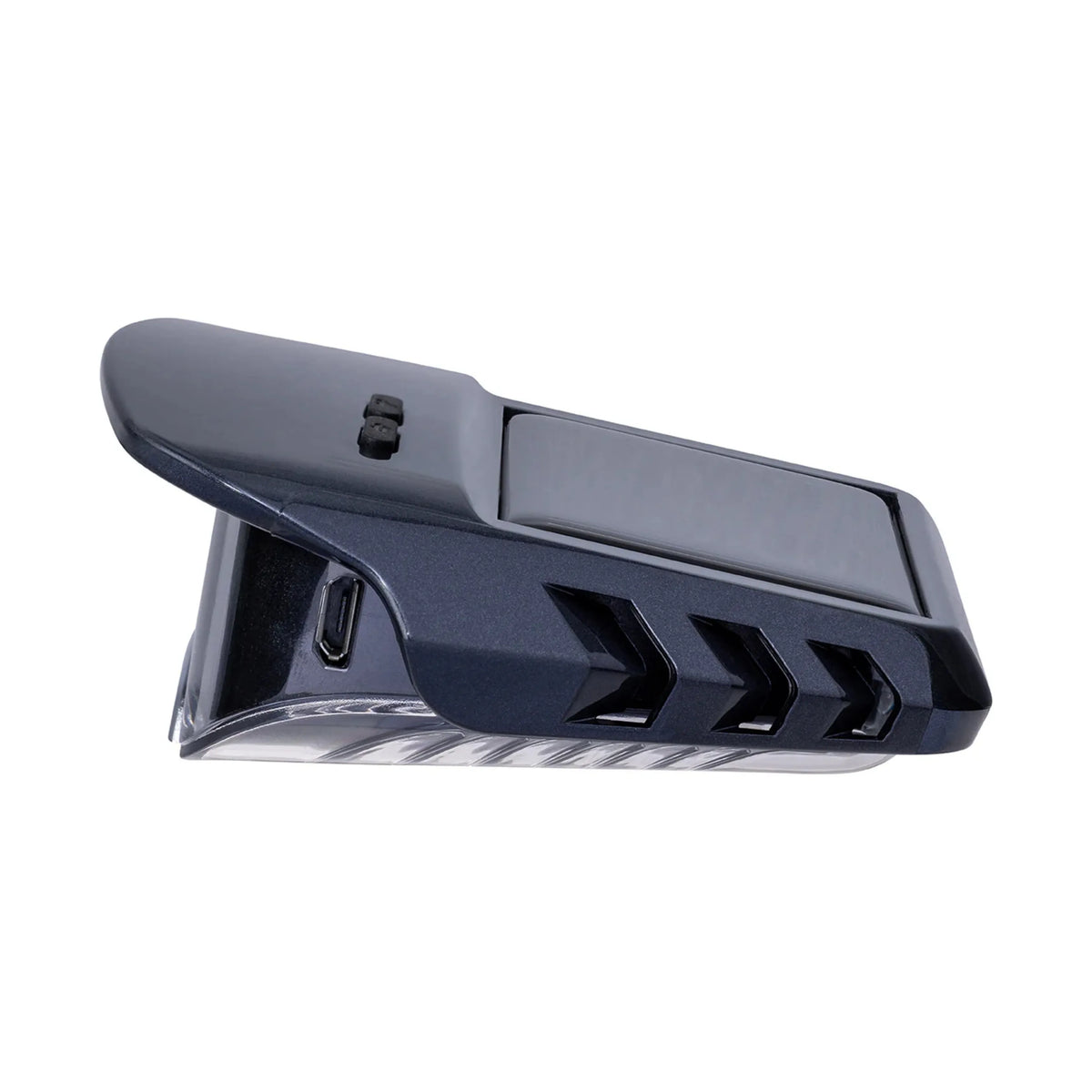

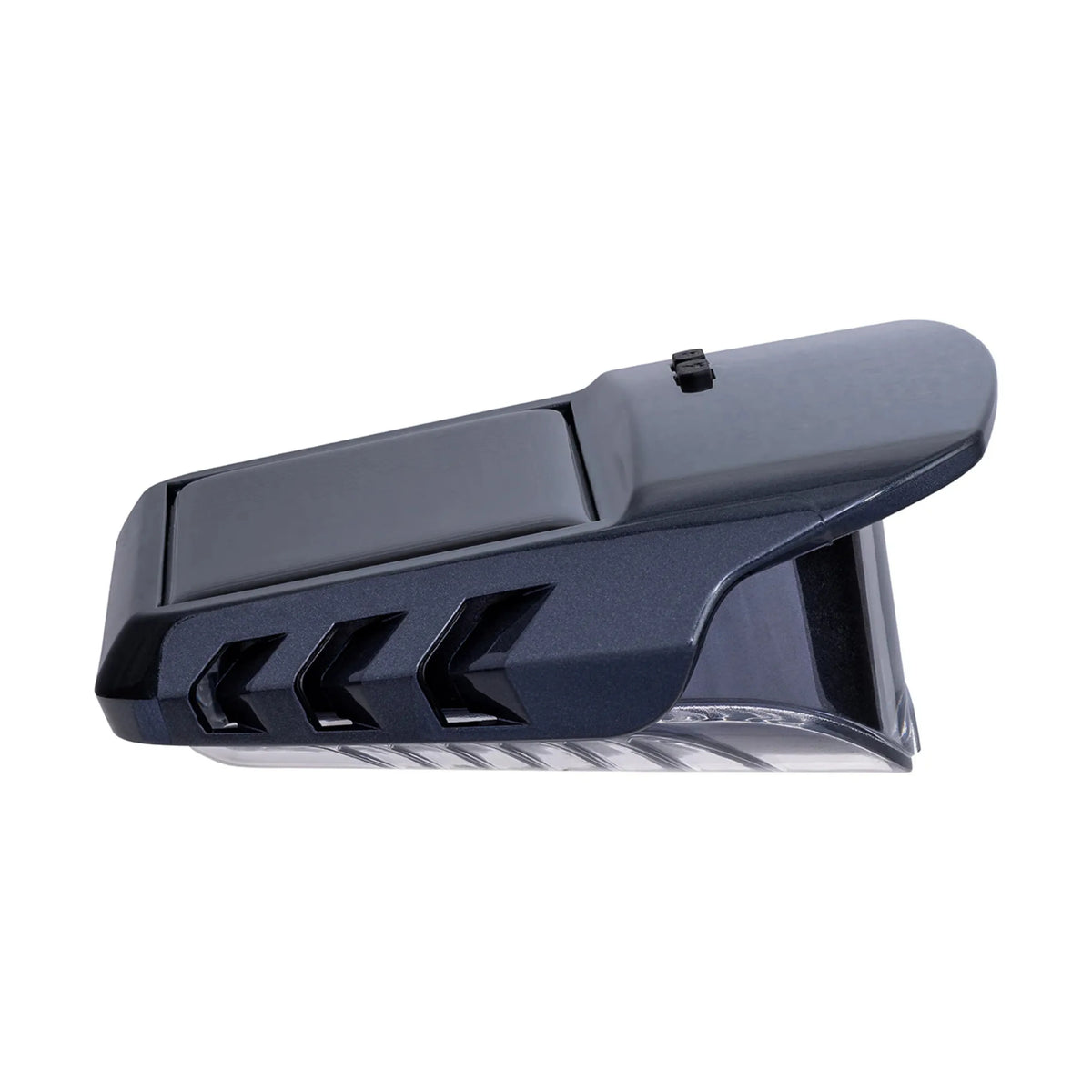

Solar-Powered Display — Self-sustaining solar charging maintains battery life indefinitely under normal daylight exposure, with optional micro USB input for overnight charging or covered parking periods.

Auto-Brightness Display — Adaptive brightness adjustment maintains visibility in harsh Australian sun while conserving battery power in low-light conditions without requiring manual intervention.

Expandable to 10 Sensors — System architecture supports up to 10 total sensors, allowing monitoring of spare tyres or future trailer integration without replacing the base system.

Intelligent Power Management — Automatic sleep mode activates during extended stationary periods, preserving battery life during storage while maintaining instant wake-up capability when vehicle movement resumes.

Dual Alert System — Combined visual and audio alarms ensure critical pressure or temperature warnings reach you even in noisy highway conditions or when navigating challenging terrain.

Sensor Failure Detection — System alerts you to non-responsive or malfunctioning sensors, preventing false confidence in incomplete monitoring coverage during travel.

Technical Specs

Sensors (4× Included):

• Type: Internal tyre pressure sensors
• Operating Frequency: 433.92 MHz ± 0.05 MHz
• Wireless transmission to display unit
• Professional installation required during tyre fitment
• Battery: Integrated (lifespan varies, replacement requires sensor replacement)

Display Unit:

• Operating Frequency: 433.92 MHz ± 0.05 MHz (sensors), 2.4 GHz BLE (app)
• Operating Current: ≤32 mA
• Static Current: ≤45 µA
• Operating Voltage: 2.6-3.6V
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +95°C
• Built-in Battery: 500 mAh
• Charging Temperature: -10°C to +65°C
• Solar Charging Current: ≥15 mA (at 5500 LX, 25°C)
• USB Charging Current: ≤70 mA
• Features: Auto-brightness, intelligent sleep mode, solar + USB charging

System:

• Maximum Sensor Capacity: 10 sensors (4 included, expandable by 6)
• Alert Types: Visual display + audio alarm
• Threshold Settings: Adjustable via app
• Driving Modes: Normal and Offroad (saves pressure profiles)
• Installation: Professional tyre fitment required for internal sensors
• Warranty: 12 months

Frequently Asked Questions

Do I need professional installation for internal sensors?

Yes, internal sensors must be installed inside the tyre during mounting, requiring professional tyre fitment services. This ensures proper sensor placement, valve integrity, and wheel balance.

What happens when I need to replace or repair a tyre?

Inform your tyre technician about the internal TPMS sensors before any tyre work. Sensors can be transferred to new tyres during replacement, though care must be taken to avoid sensor damage during dismounting.

How long do internal sensor batteries last?

Internal sensor battery lifespan varies based on usage patterns, typically ranging from 5-10 years. Unlike external sensors, internal sensor batteries cannot be replaced separately—the entire sensor requires replacement when battery depletes.

Can I add more sensors later for a caravan or trailer?

Yes, the system supports up to 10 sensors total. Additional internal sensors can be purchased and professionally installed in trailer tyres, then paired through the app for expanded monitoring.

Will internal sensors affect wheel balance or cause vibration?

Properly installed internal sensors are designed to maintain wheel balance. Professional installation includes rebalancing wheels after sensor fitment to ensure smooth operation at all speeds.

Compatible With

• Sedans, SUVs, and passenger vehicles (4 tyres)
• Four-wheel drive vehicles and utes
• Vehicles requiring discreet monitoring without external sensor visibility
• Touring setups where theft prevention is a priority
• Professional tyre service centers for installation

System expandable to 10 sensors with separate sensor purchase and professional installation.
