Oricom TPMS10-4E Tyre Pressure Monitoring System with 4 External Sensors and App Functionality

Complete four-wheel monitoring with easy DIY installation and app control

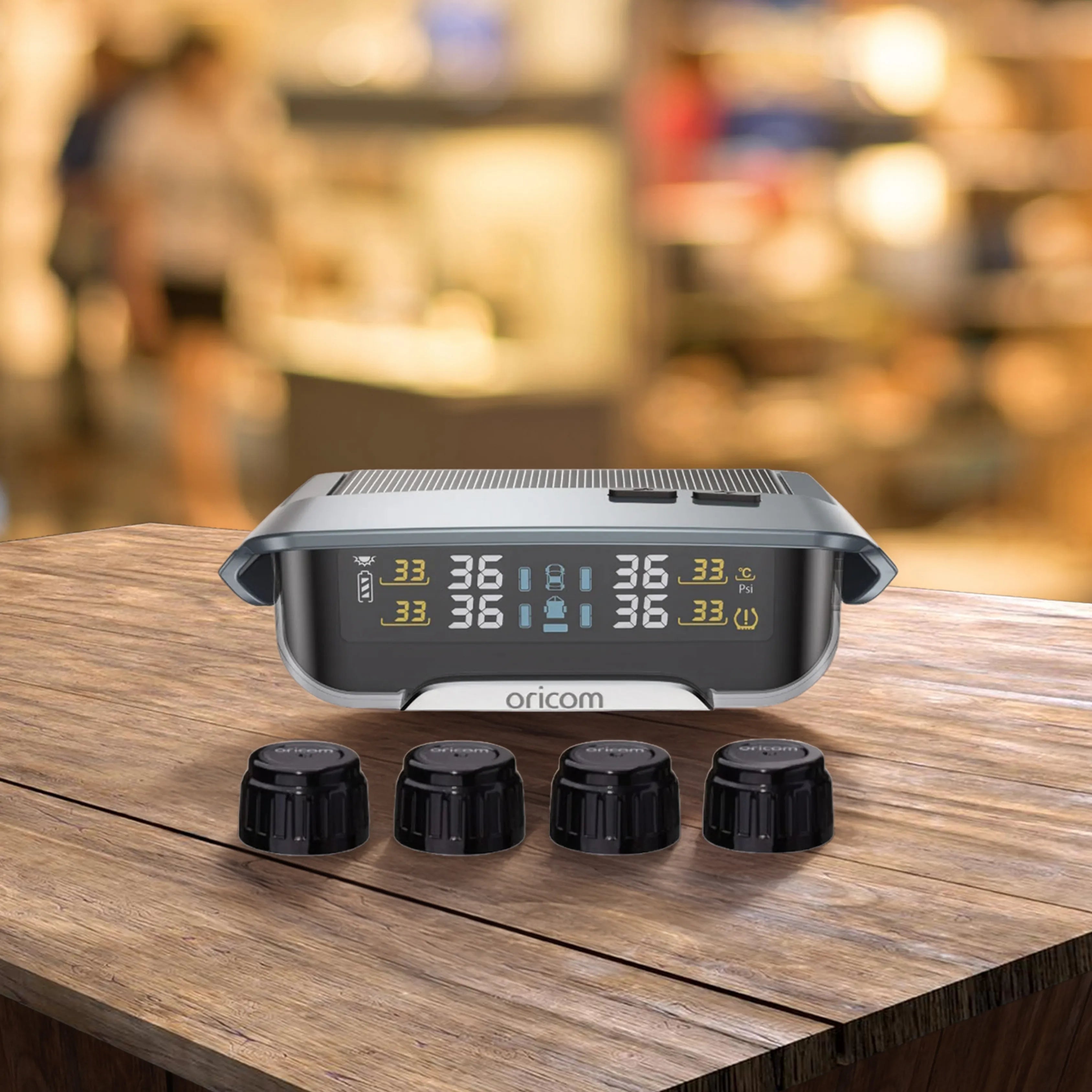

The Oricom TPMS10-4E Tyre Pressure Monitoring System delivers real-time surveillance across four tyres using external valve-mounted sensors that install without professional fitment. This advanced system uses wireless external sensors transmitting pressure and temperature data to a solar-powered LCD display with smartphone app connectivity.

External sensors provide user-friendly installation—simply thread onto existing valve stems—making this system ideal for DIY enthusiasts who want comprehensive tyre monitoring without tyre shop visits. Setup is simplified through the free companion app, which enables configuration and switching between Normal and Offroad driving profiles to store pressure settings for different terrain types. The solar-powered display features auto-brightness adjustment, intelligent power-saving sleep mode, and optional micro USB charging for operation in low-light conditions. With adjustable alert thresholds, visual and audio alarms, and sensor failure warnings, the TPMS10-4E delivers complete visibility across all monitored tyres.

The system supports expansion to 10 sensors total, allowing future upgrades for spare tyre monitoring or trailer integration. Whether managing daily commutes, weekend touring, or offroad adventures, this system prevents blowouts and maintains optimal tyre performance across your vehicle.

Key Specifications

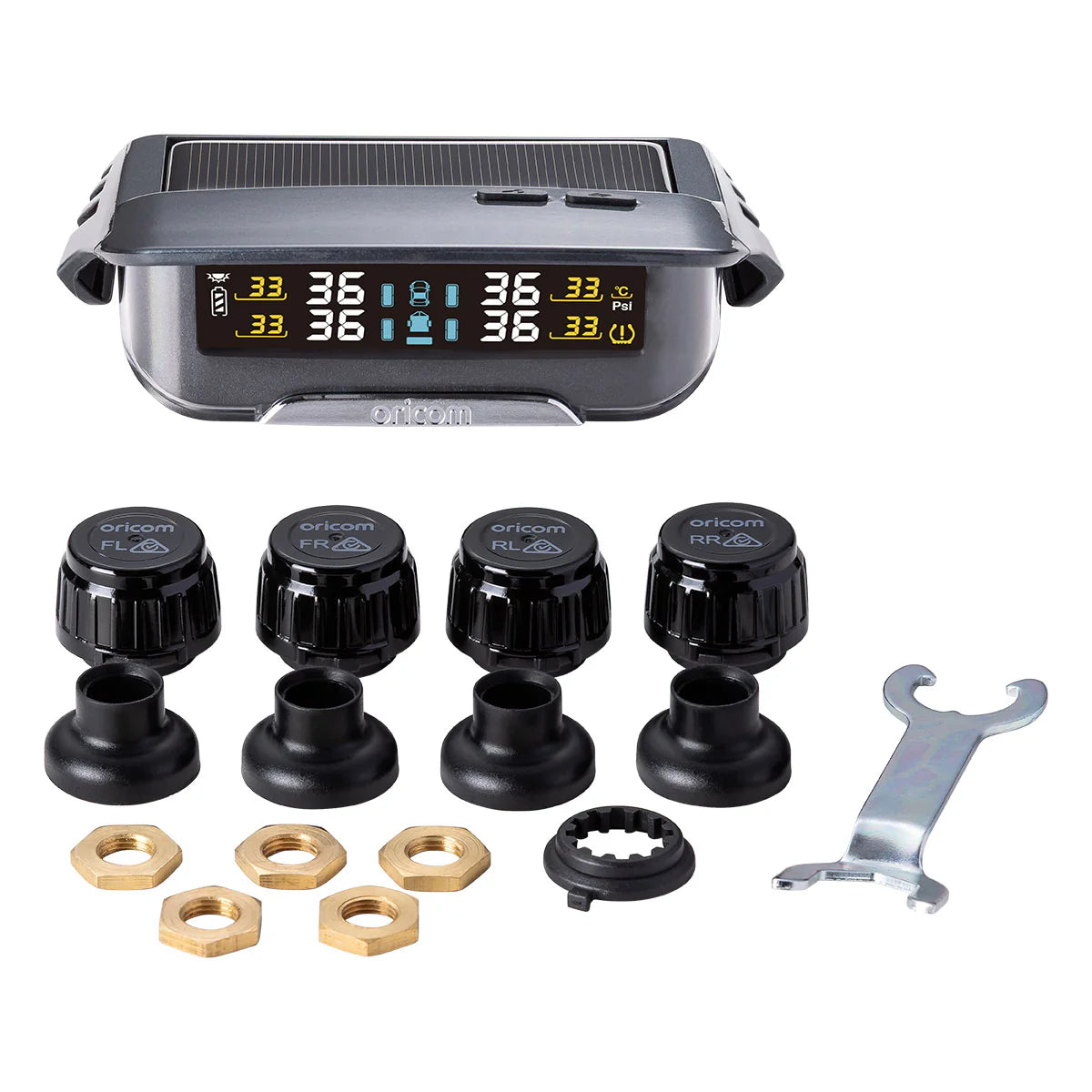

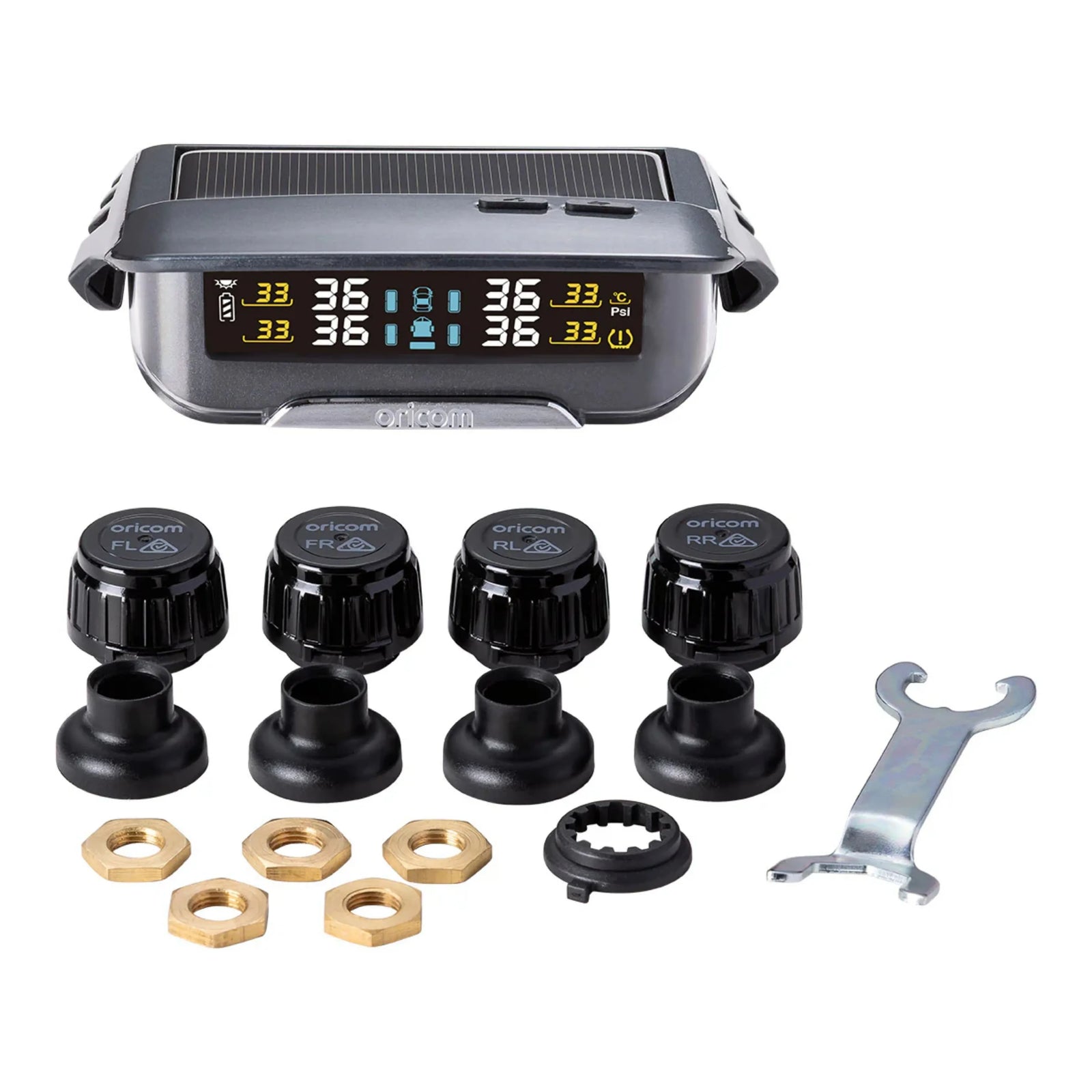

• 4× external tyre pressure sensors included (expandable to 10 sensors)
• Solar-powered LCD display with 500mAh built-in battery
• App-based setup and configuration (free app)
• Normal and Offroad driving mode profiles
• Wireless transmission: 433.92 MHz sensors to display, 2.4 GHz BLE for app
• Real-time pressure and temperature monitoring for all tyres
• Auto-brightness adjustment on display
• Visual and audio alarm system

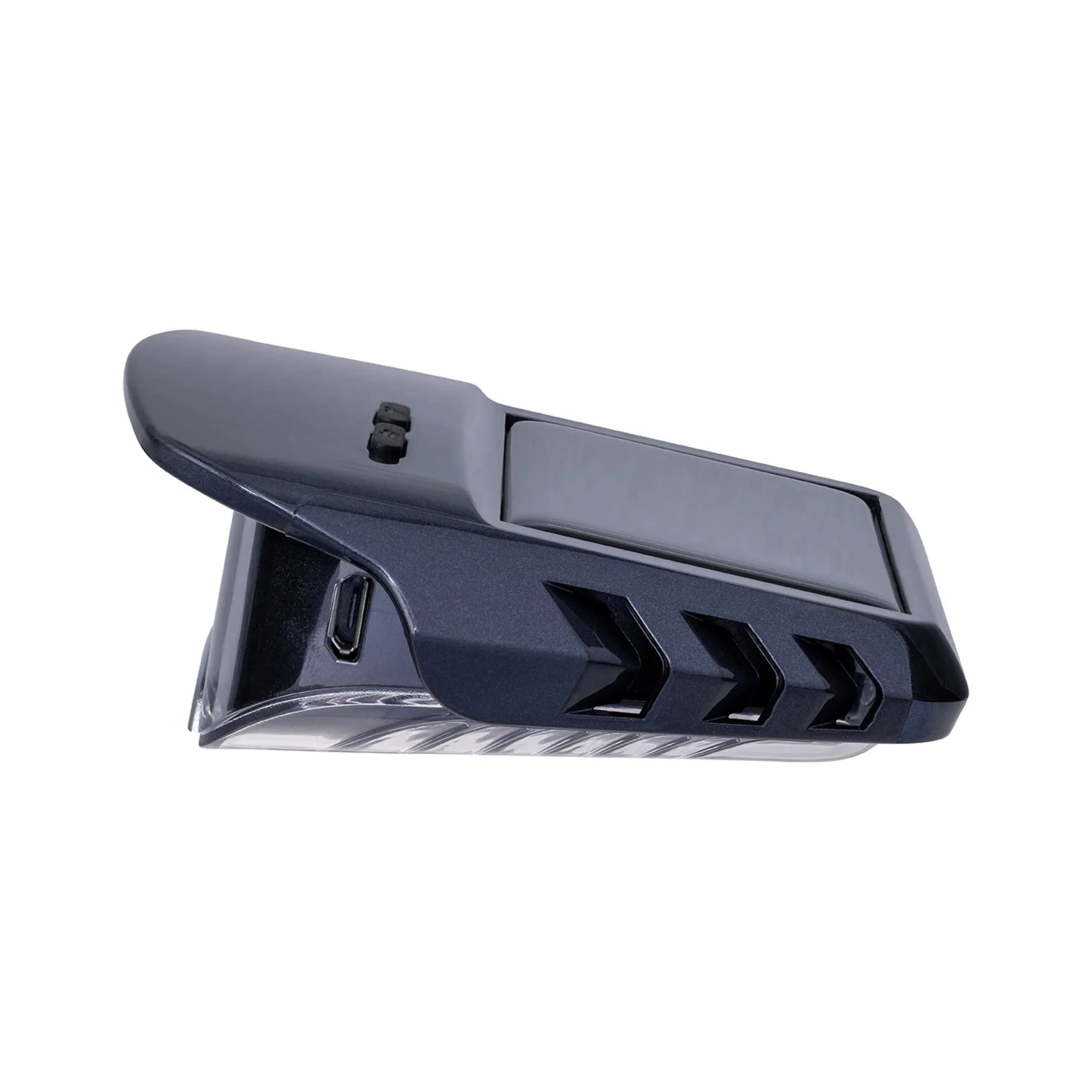

• Optional micro USB charging input
• Intelligent power-saving sleep mode
• Sensor battery: CR1632 (replaceable)
• DIY installation—no professional fitment required
• 12-month warranty

Features & Benefits

DIY External Sensor Installation — Valve-mounted sensors install in minutes without professional fitment, threading directly onto standard valve stems for immediate monitoring capability.

Four-Wheel Coverage — Monitor all tyres on sedans, SUVs, utes, and four-wheel drive vehicles simultaneously, eliminating blind spots in your tyre management system.

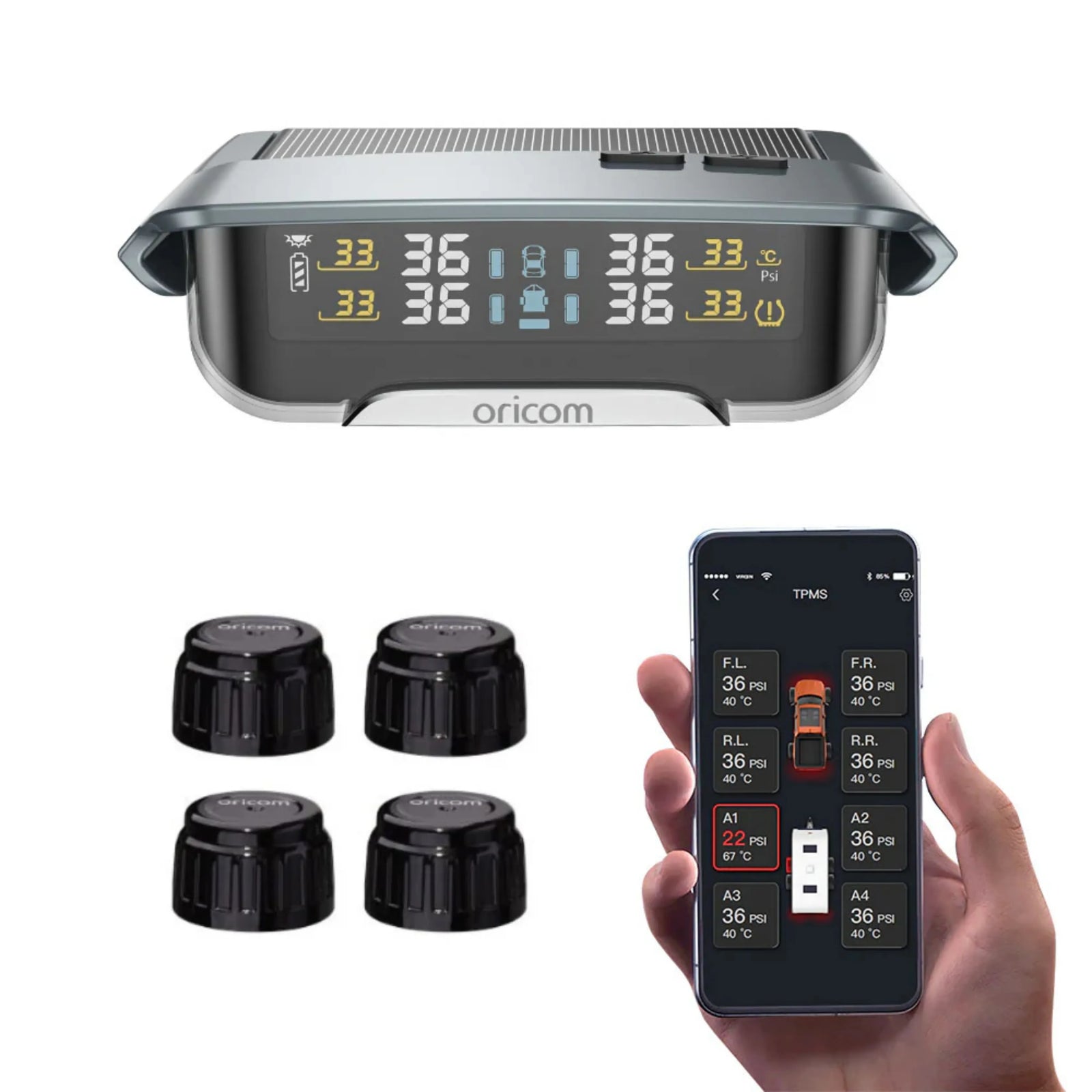

App-Based Configuration — Free companion app simplifies initial setup, sensor pairing, and threshold adjustments through your smartphone, avoiding complex manual configuration sequences.

Normal and Offroad Mode Switching — Save separate pressure profiles for sealed road travel and offroad terrain, enabling quick mode changes without manually re-entering target pressures at each surface transition.

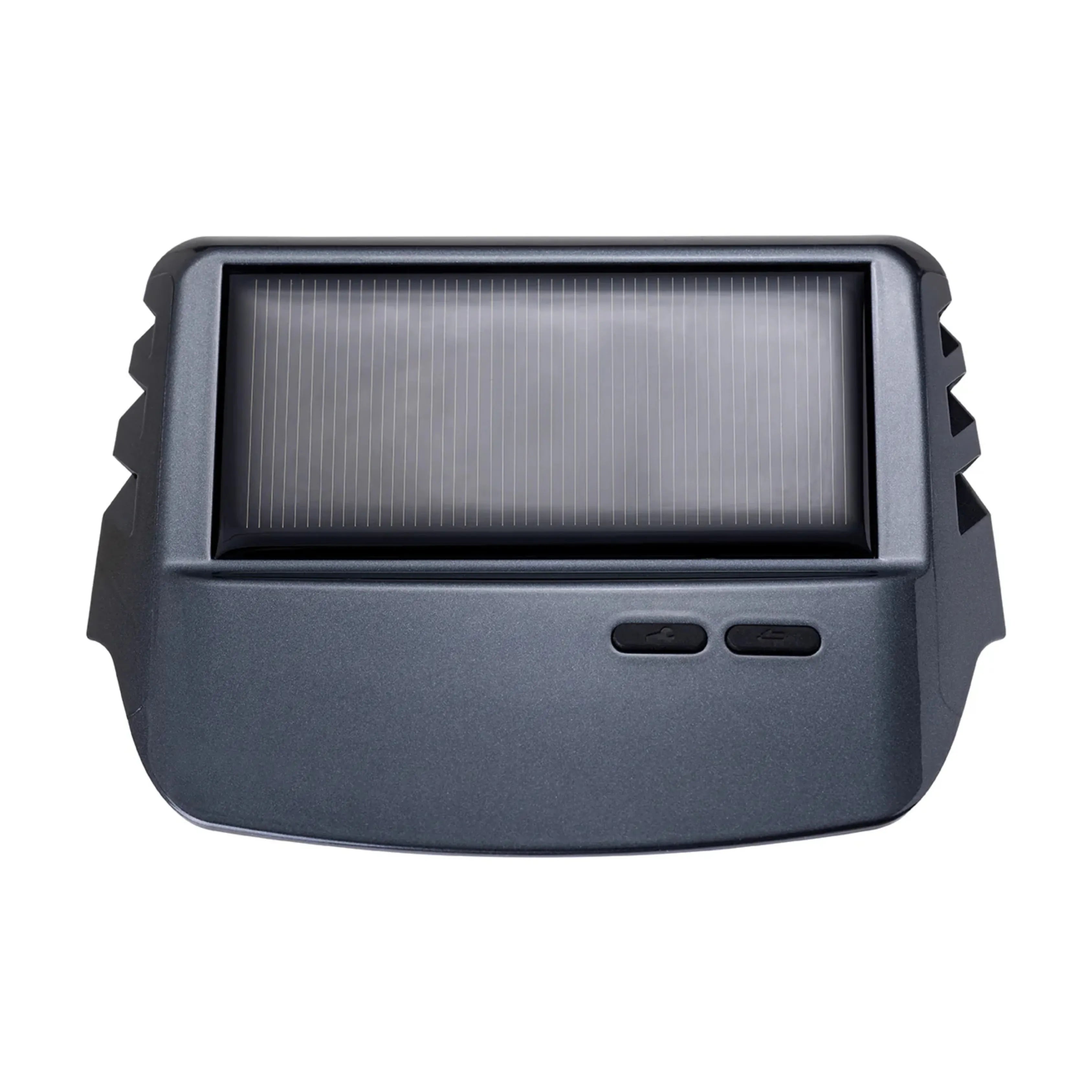

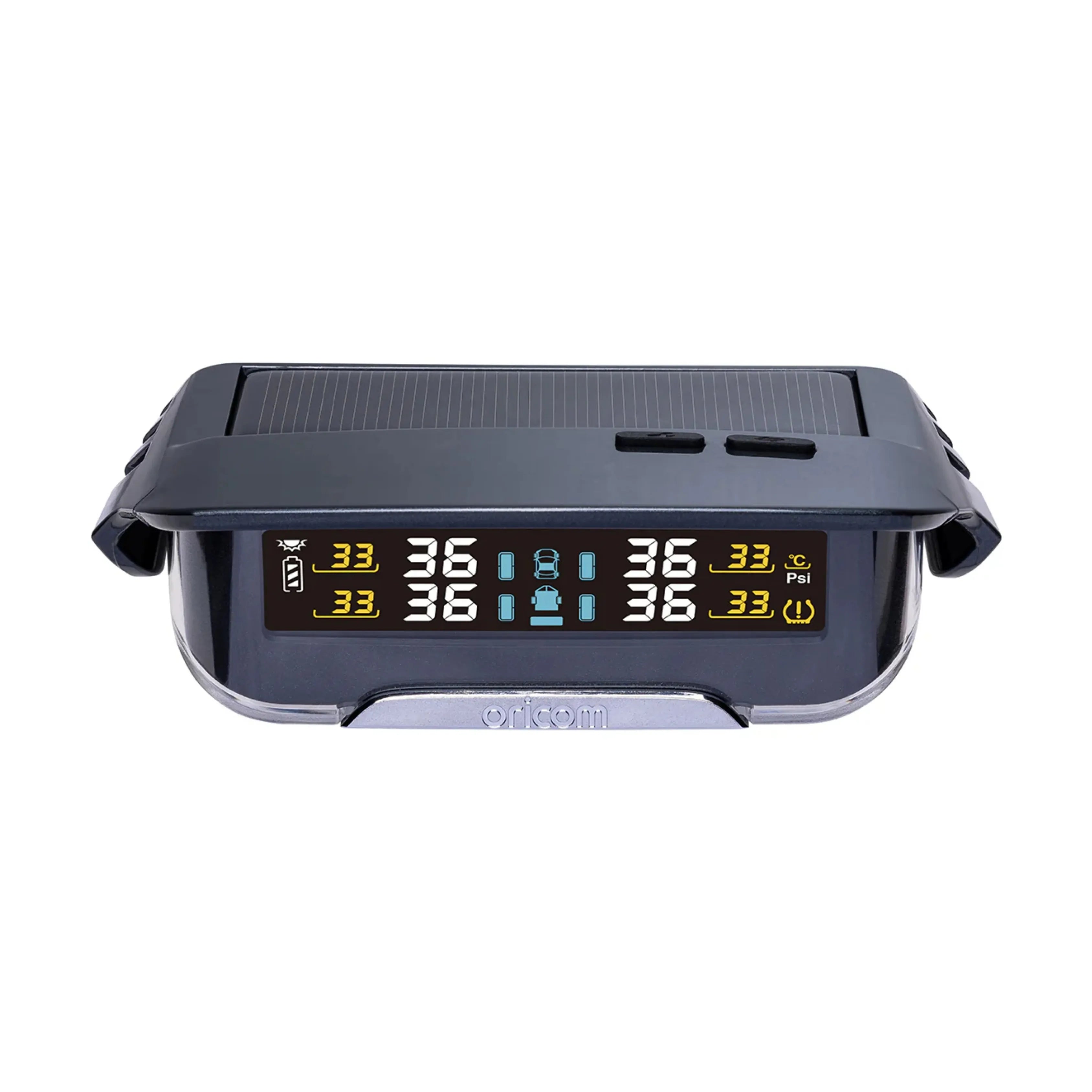

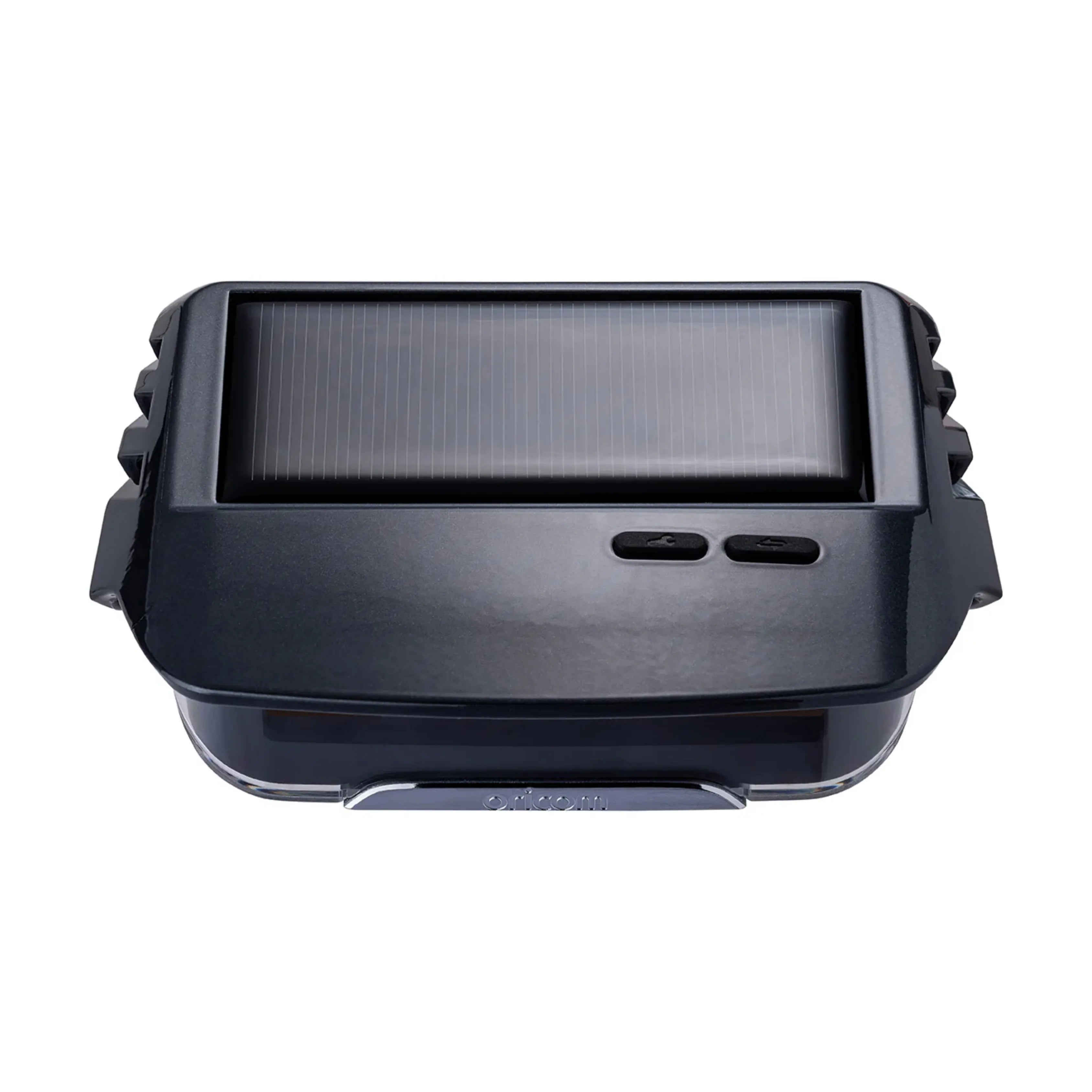

Solar-Powered Display — Self-sustaining solar charging maintains battery life indefinitely under normal daylight exposure, with optional micro USB input for overnight charging or covered parking periods.

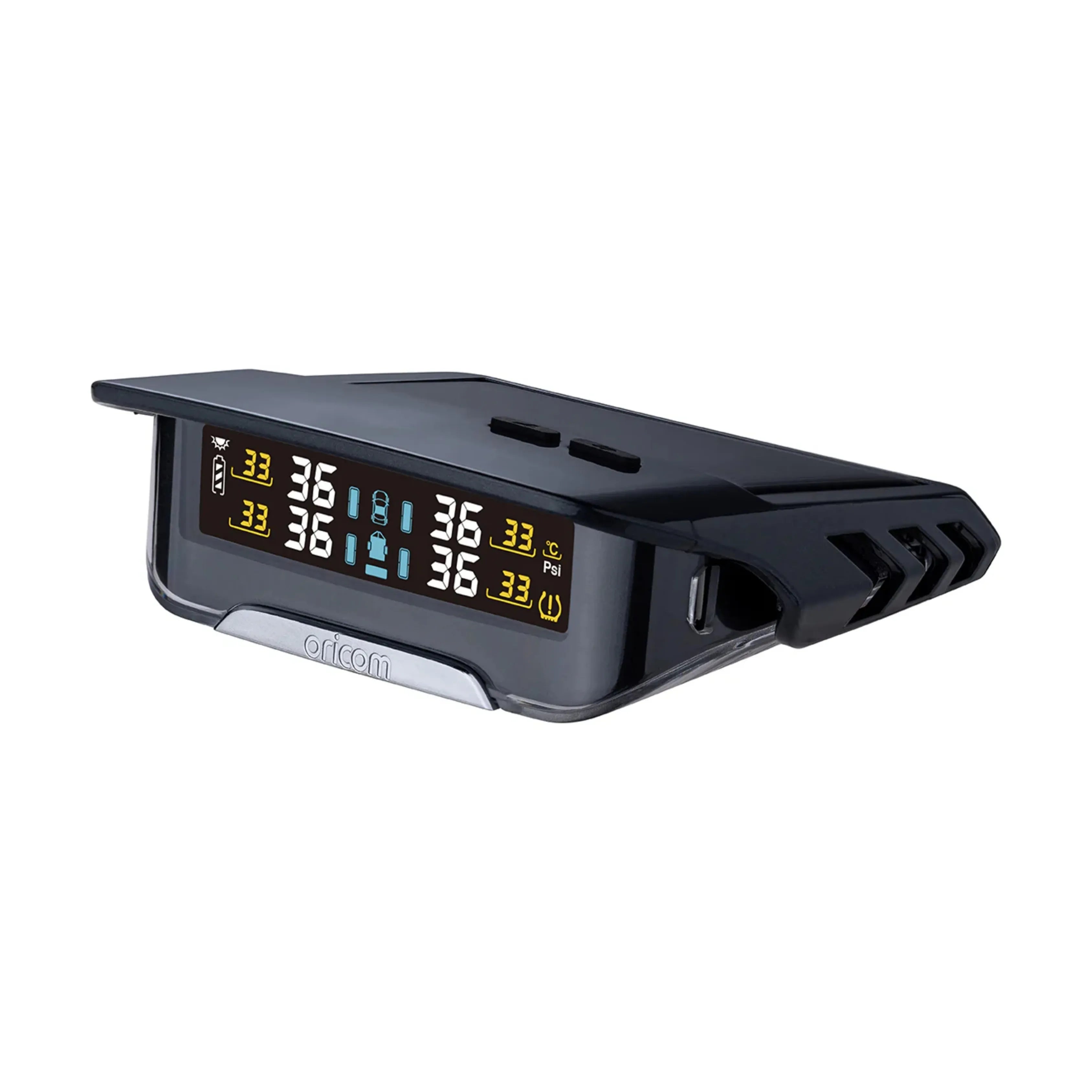

Auto-Brightness Display — Adaptive brightness adjustment maintains visibility in harsh Australian sun while conserving battery power in low-light conditions without requiring manual intervention.

Replaceable Sensor Batteries — CR1632 batteries provide approximately two years of operation and can be user-replaced without sensor replacement, minimizing ongoing costs.

Expandable to 10 Sensors — System architecture supports up to 10 total sensors, allowing monitoring of spare tyres or future trailer integration without replacing the base system.

Intelligent Power Management — Automatic sleep mode activates during extended stationary periods, preserving battery life during storage while maintaining instant wake-up capability when vehicle movement resumes.

Dual Alert System — Combined visual and audio alarms ensure critical pressure or temperature warnings reach you even in noisy highway conditions or when navigating challenging terrain.

Technical Specs

Sensors (4× Included):

• Model: CR1632-powered external sensors
• Operating Frequency: 433.92 MHz ± 0.05 MHz
• Operating Voltage: 2.3-3.3V
• Operating Current: ≤12 mA
• Static Current: ≤0.5 µA
• Operating Temperature: -20°C to +80°C
• Storage Temperature: -40°C to +80°C
• Battery: CR1632 (replaceable, approximately 2-year lifespan)
• Installation: User-installable, valve-mounted

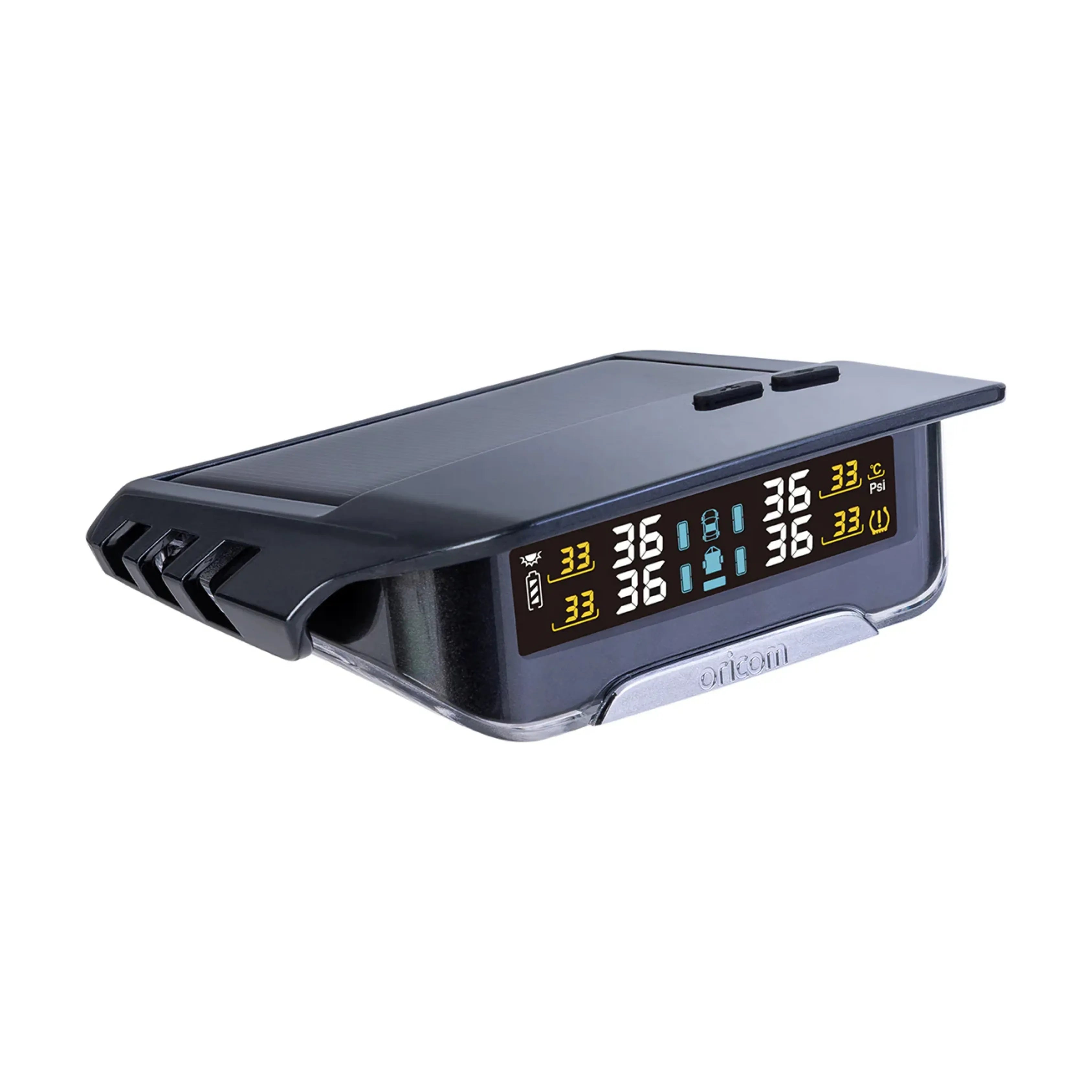

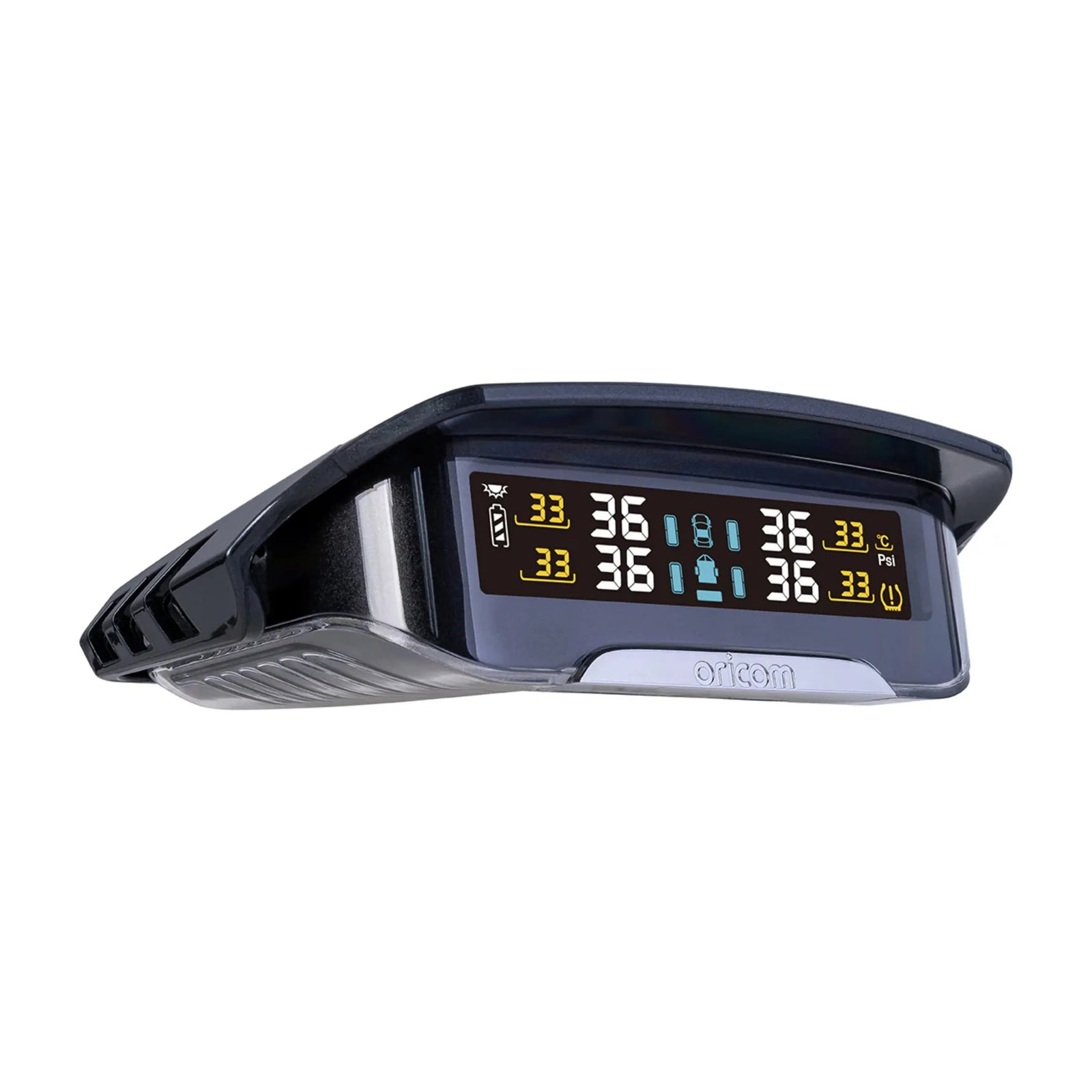

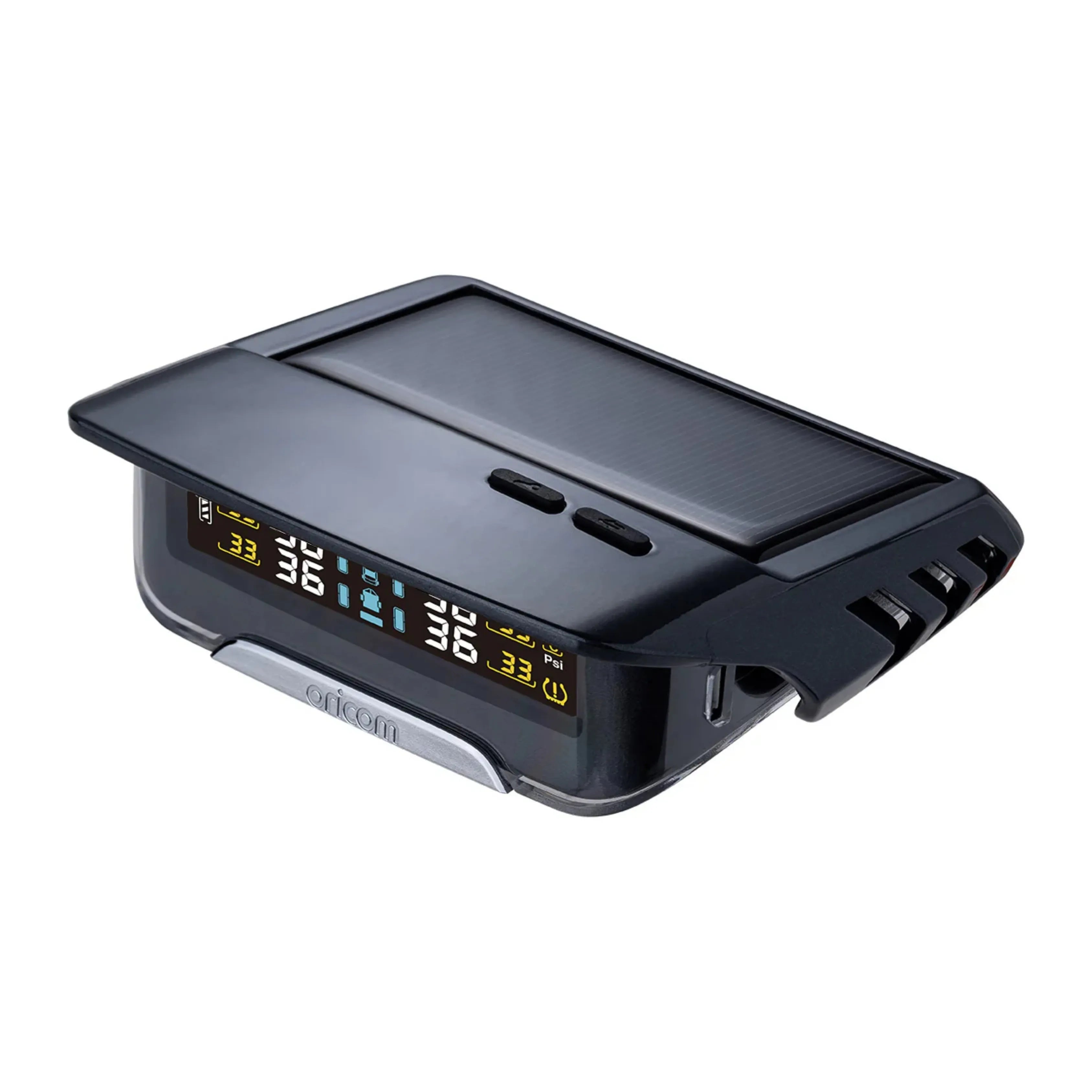

Display Unit:

• Operating Frequency: 433.92 MHz ± 0.05 MHz (sensors), 2.4 GHz BLE (app)
• Operating Current: ≤32 mA
• Static Current: ≤45 µA
• Operating Voltage: 2.6-3.6V
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +95°C
• Built-in Battery: 500 mAh
• Charging Temperature: -10°C to +65°C
• Solar Charging Current: ≥15 mA (at 5500 LX, 25°C)
• USB Charging Current: ≤70 mA
• Features: Auto-brightness, intelligent sleep mode, solar + USB charging

System:

• Maximum Sensor Capacity: 10 sensors (4 included, expandable by 6)
• Alert Types: Visual display + audio alarm
• Threshold Settings: Adjustable via app
• Driving Modes: Normal and Offroad (saves pressure profiles)
• Installation: DIY-friendly external sensors
• Warranty: 12 months

Frequently Asked Questions

Can I install these sensors myself without professional help?

Yes, external sensors thread directly onto standard valve stems and require no professional fitment. Installation typically takes minutes per wheel, making this a DIY-friendly monitoring solution.

Will the external sensors fit my valve stems?

The TPMS10-4E sensors are designed for standard Schrader valve stems common on most vehicles. Verify sensor clearance with brake calipers, suspension components, and wheel wells before use.

How do I replace sensor batteries when they run low?

CR1632 batteries are user-replaceable. Unscrew the sensor cap, replace the battery, and reseal. The system typically provides low battery warnings before sensor failure occurs.

Can I add sensors later for a caravan or spare tyre?

Yes, the system supports up to 10 sensors total. Additional external sensors can be purchased separately and paired through the app for expanded monitoring coverage.

What happens if a sensor gets stolen or damaged?

External sensors are visible and removable, making them vulnerable to theft or impact damage. Replacement sensors can be purchased individually and paired to your existing display unit.

Compatible With

• Sedans, SUVs, and passenger vehicles (4 tyres)
• Four-wheel drive vehicles and utes
• DIY enthusiasts seeking easy installation
• Vehicles with standard Schrader valve stems
• Touring setups requiring expandable monitoring

System expandable to 10 sensors with separate sensor purchase.
