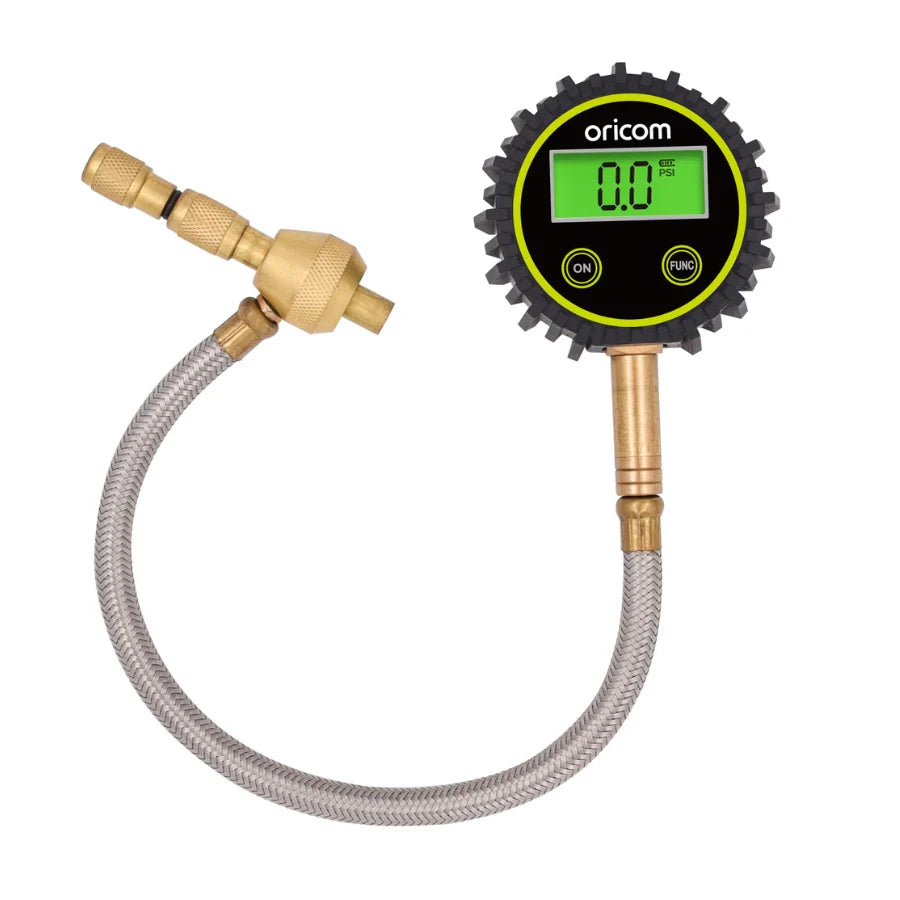

Oricom TDD01 Digital Tyre Deflator with Multi-Unit Display

Precision digital deflation for controlled pressure reduction on any terrain

The Oricom TDD01 Digital Tyre Deflator delivers accurate, controlled air-down capability for 4WD enthusiasts who need precise pressure adjustment when transitioning from sealed roads to sand, gravel, or rocky terrain. This single-valve deflator combines a digital gauge with a flexible braided hose and heavy-duty brass components, allowing you to monitor pressure in real-time as you release air.

The digital display shows readings in PSI, Bar, kPa, and kg/cm², eliminating guesswork during deflation. Compact and ergonomic, the TDD01 fits comfortably in hand during use and stores easily in the included pouch. Whether setting up for beach driving, airing down for corrugated tracks, or fine-tuning pressure for rocky climbs, this deflator provides the control and accuracy needed for optimal tyre performance across varying surfaces.

Key Specifications

• Pressure range: 0-250 PSI (0-17 Bar, 0-1700 kPa, 0-17 kg/cm²)
• Digital gauge with multi-unit display (PSI, Bar, kPa, kg/cm²)
• Operating temperature: -10°C to 50°C
• Flexible braided hose for easy valve connection
• Heavy-duty brass components for durability
• Ergonomic and compact design
• Powered by 2× AAA batteries (not included)
• Includes storage pouch

Features & Benefits

Accurate Digital Gauge — Real-time pressure monitoring during deflation allows precise adjustment to target pressures, critical for maintaining traction and avoiding over-deflation on challenging terrain.

Multi-Unit Display — Shows pressure in PSI, Bar, kPa, and kg/cm², accommodating different measurement preferences and eliminating manual conversion errors in the field.

Flexible Braided Hose — Purpose-designed hose provides comfortable reach to valve stems without awkward angles, particularly useful on vehicles with recessed or angled valves.

Heavy-Duty Brass Construction — Durable brass components resist corrosion from salt, dust, and moisture while maintaining reliable sealing across repeated deflation cycles in harsh environments.

Ergonomic Compact Design — Fits comfortably in hand during operation and packs down small with included pouch, making it easy to carry in glove boxes or recovery gear bags.

Quick Deflation Operation — Simple one-handed operation speeds up the air-down process per tyre, getting you from highway to offroad setup faster at each transition point.

Wide Temperature Range — Functions reliably from -10°C to 50°C, handling alpine snow runs through to outback summer heat without performance degradation.

Technical Specs

• Model: TDD01
• Gauge Type: Digital (multi-unit display)
• Pressure Range: 0-250 PSI / 0-17 Bar / 0-1700 kPa / 0-17 kg/cm²
• Operating Temperature: -10°C to 50°C
• Hose Type: Flexible braided construction
• Component Material: Heavy-duty brass
• Power Source: 2× AAA batteries (not included)
• Design: Ergonomic, compact
• Storage: Included storage pouch
• Pack Contents: 1× digital tyre deflator, 1× storage pouch

Frequently Asked Questions

How long does it take to deflate a tyre from 36 PSI to 18 PSI?

Deflation time varies based on tyre size and initial pressure, but typically ranges from 30 seconds to 2 minutes per tyre for standard 4WD tyres using controlled deflation.

Can I use this in freezing conditions during alpine trips?

Yes, the TDD01 operates in temperatures from -10°C to 50°C, making it suitable for snow and alpine conditions as well as desert heat.

Does the digital gauge require calibration?

Digital gauges can drift over time. Regular comparison against a known-accurate reference gauge is recommended to ensure ongoing accuracy, particularly for critical applications.

Will this work with valve extenders on my 4WD?

The flexible braided hose should accommodate most standard valve extenders, though clearance may vary depending on extender design and wheel well configuration.

Can I inflate tyres with this device?

No, the TDD01 is a deflator only. It releases air from tyres but does not provide inflation capability. A separate air compressor is required for reinflation.

Compatible With

• 4WD vehicles requiring frequent pressure adjustment
• Beach and sand driving setups
• Offroad touring and remote area travel
• Rocky terrain and technical track driving
• Pairs well with portable air compressors for complete pressure management

Note: This is a deflation tool only. Compressor required for reinflation.
