Oricom DTXTP600 Trade Pack 5 Watt UHF CB Radios

Oricom Trade Pack 5 Watt UHF CB Radios: Featuring One Of The Largest Backlit Lcd Displays In The Australian Handheld Radio Market

The DTX600 is super compact and fits comfortably in the palm of your hand.

Oricom DTXTP600 Features:

• Compact Radio With Large Backlit LCD Display
• Switchable Rf Power (High: 5 Watt, Low: 1 Watt)
• 3 Programmable Instant Channel Buttons
• 80 Channels
• High Capacity Lithium-ion Battery
• With Up To 30hrs Operating Time^
• Fast Charge Technology Supplied With
• 240v And 12v Adaptors
• Open/instant/priority Scan
• Die Cast Metal Chassis
• Duplex (Range Extender)
• Signal Monitoring
• Triple Watch
• Audio Scrambler
• Squelch Tail On/off
• 38 CTCSS And 104 DCS Codes
• Rotary Volume Control
• 2.5mm Jack Socket With Locking
• Screw For Optional Accessories
• Designed, Engineered & Made In Korea
• 3 Year Warranty Excludes Battery*

Oricom DTXTP600 Specifications:

General

• Compliance AS/NZS 4365:2011 And Nzs2772.1
• Frequency Range TX/RX 476.425 - 477.4125 MHZ
• Number Of Channels 80 UHF CB (75 Usable)†
• Channel Spacing TX/RX 12.5khz
• Channel Spacing RX 12.5khz
• Operating Modes Simplex, Duplex
• Scanning Speed 150msec/per Channel
• Antenna Impedance 50 Ohm
• Battery Capacity 7.4v,2600mahli-ion Battery
• Operating Time Up To 20hrs On High
• Tx Power, 30hrs On Low Tx Power
• With Antenna.
• Frequency Stability +/- 2.5ppm

TRANSMITTER

• RF Output Power 5 Watts Max.
• Modulation Fm
• Maximum Deviation +/- 2.5khz
• Spurious Emissions Less Than-30dbm
• TX Frequency Response +1 To -3db Of 6db/octave From 300hz
• To 3000hz
• Audio Signal To Noise Ratio More Than 35db

RECEIVER

• Circuit Type Direct Conversion By Single DSP Chip
• Intermediate Frequencies If = 137khz
• Sensitivity Less Than -122dbm At 12db Sinad
• Selectivity More Than 70db
• Intermodulation Immunity More Than 70db
• Spurious Response Immunity More Than 60db
• Audio Signal To Noise Ratio More Than 50db
• Receive Frequency Response +1 To -3db Of 6db/octave
• From 300hz To 3000hz
• Conducted Spurious Emissions Less Than -57dbm At 9khz

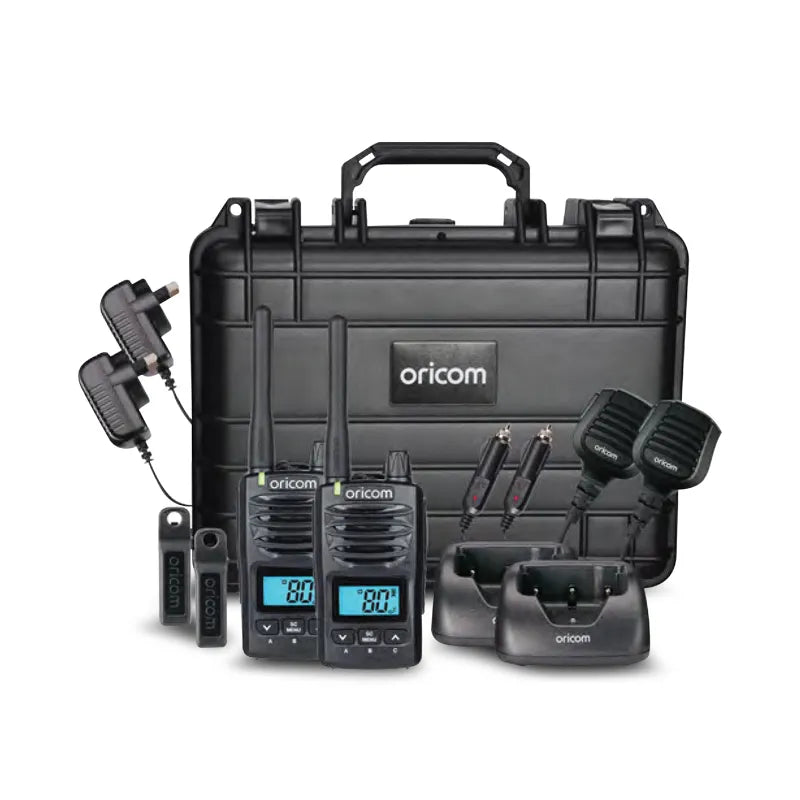

What's in the Box:

• 2 X UHF CB Radios
• 2 X Antennas
• 2 X Speaker Mics
• 2 X Charging Pods (With Mains Adaptor And 12v Adaptor)
• 2 X Belt Clips
• 2 X Lithium-ion Batteries
• 1 X Ip67 Waterproof Heavy Duty Carry Case

Optional Accessories:

• Speaker Mic (Spkmic5000)
• Throat Mic (Thmic5000)
• Compact Speaker With In-line Mic (EBVOX5000)
