Oricom DTX4300 Micro Size 5 watt UHF CB Radio

Oricom Micro Size 5 watt UHF CB Radio: The First and Best of Their Breed and Have Become an Essential Communication Tool for On and Off the Road

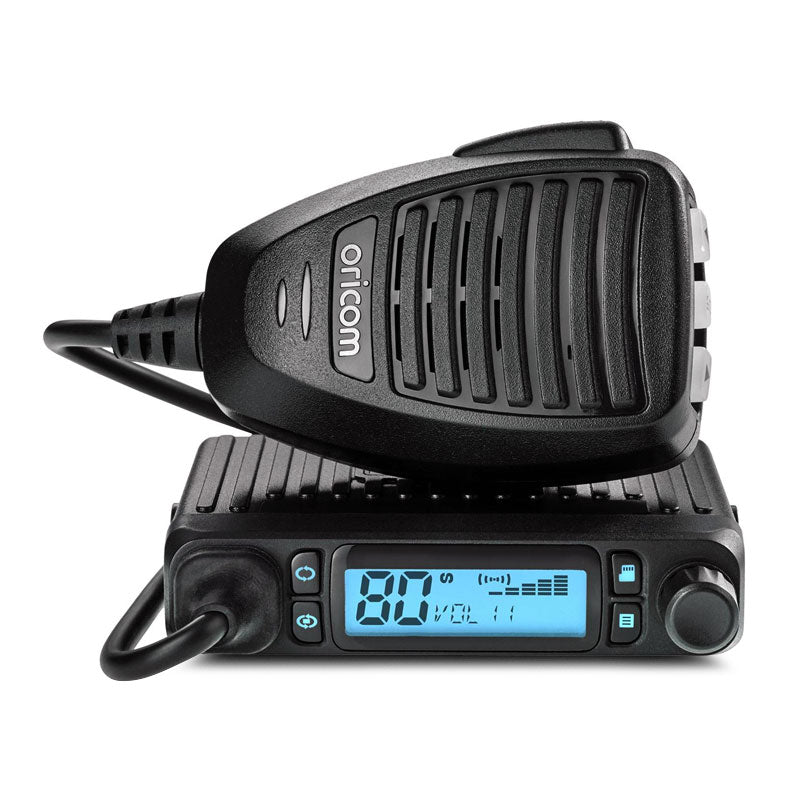

The Oricom DTX4300 Micro Size 5-Watt UHF CB radio is a well-crafted unit, packing a real punch for its ultra-compact size, and is one of the smallest fixed mount UHF CB radios on the Australian market.

The unit has a powerful 5-Watt operation, 80 channels with 38 CTCSS and DCS Codes, 3 memory groups and smart fast scanning, ensuring you’re always connected.

Oricom DTX4300 Features:

• Ultra compact micro size
• 96 colour LCD backlit display
• Flip LCD function
• Over voltage alert function
• Heavy duty microphone
• 3 memory groups
• Smart fast scanning (priority/
• group memory/ group tone scan)
• Back light brightness (4 pre-set levels plus auto)
• Rotary volume/channel and squelch control
• Duplex
• 38 CTCSS & DCS codes
• Diecast metal chassis
• Auto power off (off/1h/2h/4h)
• 3.5mm external jack (for optional external speaker)
• Designed and engineered in Korea
• Requires antenna (not supplied)

Oricom DTX4300 Specifications:

GENERAL

• Compliance: AS/NZS 4365:2011
• Frequency Range: TX/RX 476.425 - 477.4125 MHz
• Number of TX/RX Channels: 80 UHF CB Channels (75 voice)
• Channel Spacing: TX/RX 12.5KHz
• Operating modes: Simplex, Repeater TX offset (+750KHz)
• Scanning Speed: 50 msec per channel
• Antenna Impedance: 50 Ohms
• Operating Volts nominal: 13.8VDC
• Operating Volts Range: 10 to 16VDC
• Over Voltage Protection: Diode and Voltage regulator system
• Over Current Protection: 2 AMP fuse
• Reverse Polarity Protection: Shunt diode
• Frequency stability: +/- 5 ppm

TRANSMITTER

• RF Output Power: 5 watts max
• Modulation: F3E(FM)
• Maximum deviation: 2.5KHz
• Spurious Emissions: < -30dBm
• TX Audio pre-emphasis: +6dB/Octave from 300Hz to 3KHz
• Current consumption: 1.7 AMP with 50 ohm during TX antenna termination

RECEIVER

• Circuit Type: Dual conversion super heterodyne
• Intermediate Frequencies: 1st IF : 21.4MHz, 2nd IF : 450KHz for Main RX
• Maximum usable sensitivity -123dBm for 12dB SINAD un-weighted
• Audio output power: > 2 Watts at 8 ohm load
• RX Audio de-emphasis:+6dB/Octave from 300Hz to 3KHz
• Signal to Noise Ratio: > 40dB
• Conducted Spurious Emission: > -57dBm

MECHANICAL

• Dimensions (H) X (W) X (D): 22.5 X 100 X 76mm
• Weight: 210g transceiver only
