Oricom AIR30 Portable Air Compressor with Heavy Duty Case

Portable single-cylinder performance with digital pressure control for efficient 4WD inflation

The Oricom AIR30 Portable Air Compressor delivers 75 litres per minute airflow through a 44mm bore single-cylinder design, providing reliable inflation capability for standard 4WD tyres, offroad adventures, and touring applications. This portable 12V compressor handles beach recovery, sand track transitions, and campsite tyre management with a compact design that stores easily in the included heavy-duty carry case.

Maximum pressure reaches 150 PSI with 120 PSI working pressure, suitable for passenger vehicle and light 4WD applications. The system includes a digital pressure gauge with automatic shut-off functionality, eliminating manual monitoring during inflation and preventing over-pressure situations. An automatic pressure cut-out switch activates between 90-120 PSI, while thermal protection shuts down at 115°C to prevent motor damage during extended use.

The 6-metre hose with NPT quarter-inch quick-connect provides reach across vehicle widths, and the 2.5-metre power cable with battery clamps connects directly to your battery for reliable 32-amp current delivery. The 20-minute duty cycle with 40-minute rest period suits sequential tyre inflation during typical offroad pressure adjustments. Compatible with Oricom's tyre inflator and deflator kits, this compressor meets Australian safety standards and carries a three-year warranty.

Key Specifications

• Single cylinder with 44mm bore diameter
• Maximum airflow: 75 L/min at 0 PSI, 50 L/min at 29 PSI, 42 L/min at 40 PSI
• Maximum pressure: 150 PSI
• Maximum working pressure: 120 PSI
• Voltage: 12-13.8V DC
• Current draw: 32A under load, 17A no load
• Duty cycle: 20 minutes continuous operation, 40 minutes rest
• Automatic pressure cut-out: 90 PSI on, 120 PSI off
• Thermal protection: Auto shut-off at 115°C
• Air filter included
• Digital pressure gauge with auto shut-off
• 6-metre hose with NPT ¼" quick-connect
• 2.5-metre power cable with battery clamps
• Dimensions: 35 × 29.5 × 16 cm
• Weight: 7.3 kg
• Heavy-duty carry case included
• 40A inline fuse supplied
• 3-year warranty
• Meets AS/NZS 60335.1:2020+A1:2021 and EN/IEC 55014-1:2021 EMC standards

Features & Benefits

Digital Gauge with Auto Shut-Off — Set target pressure and walk away—the digital gauge automatically stops inflation when reached, preventing over-inflation and allowing unattended operation during multi-tyre setups.

75 L/min Maximum Airflow — Single-cylinder design delivers sufficient volume for standard 4WD tyres, inflating 33-inch tyres from 18 PSI to 32 PSI in approximately 4-6 minutes per tyre.

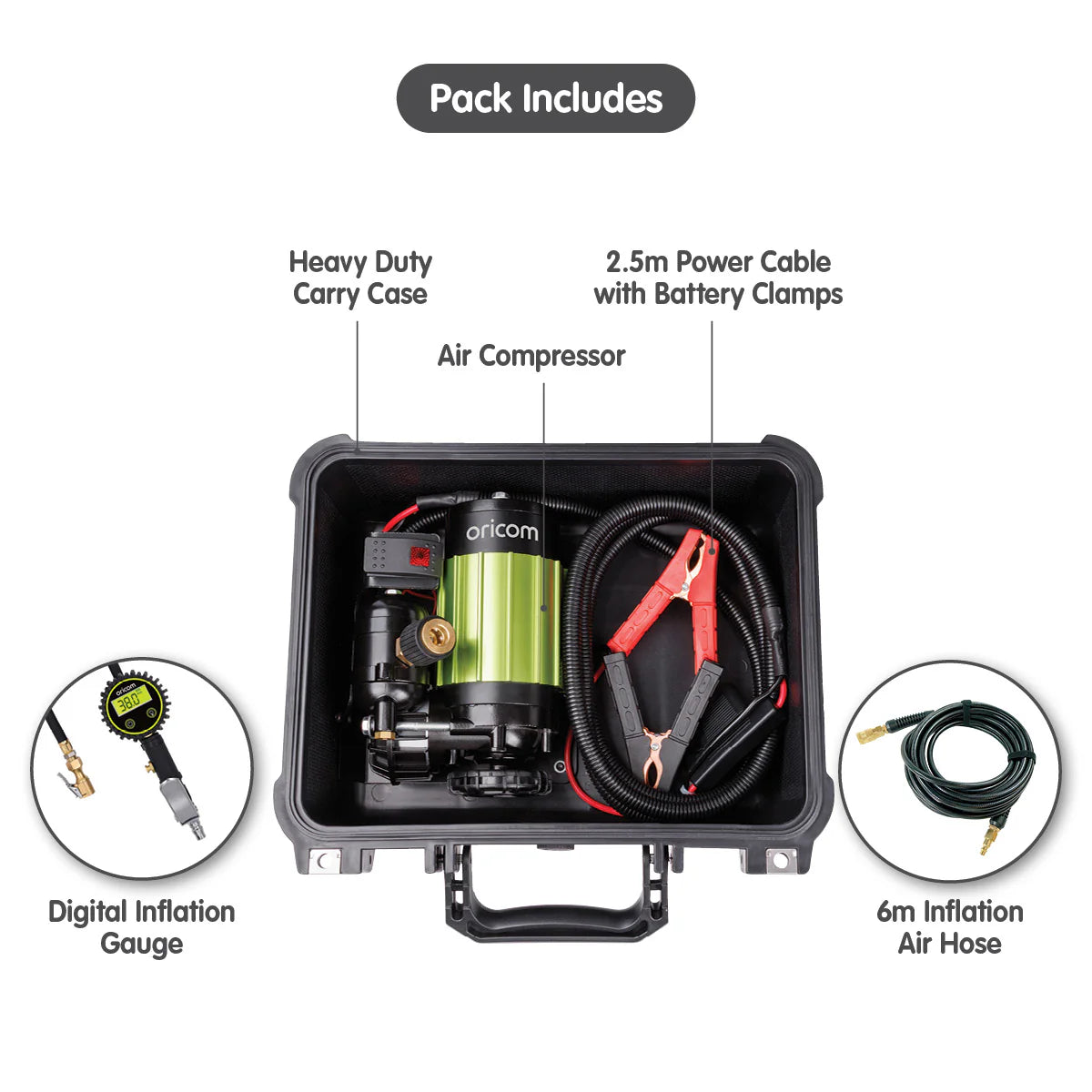

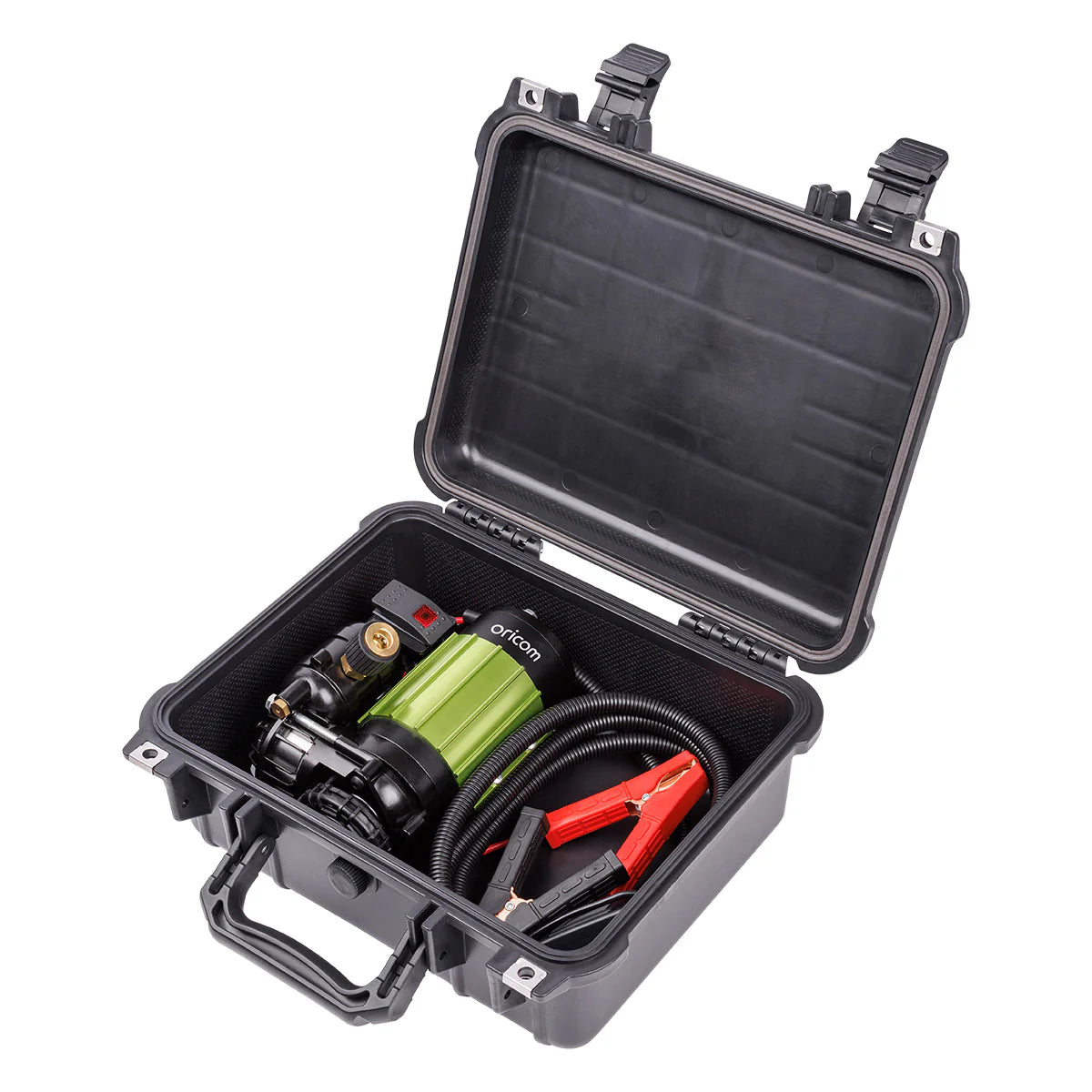

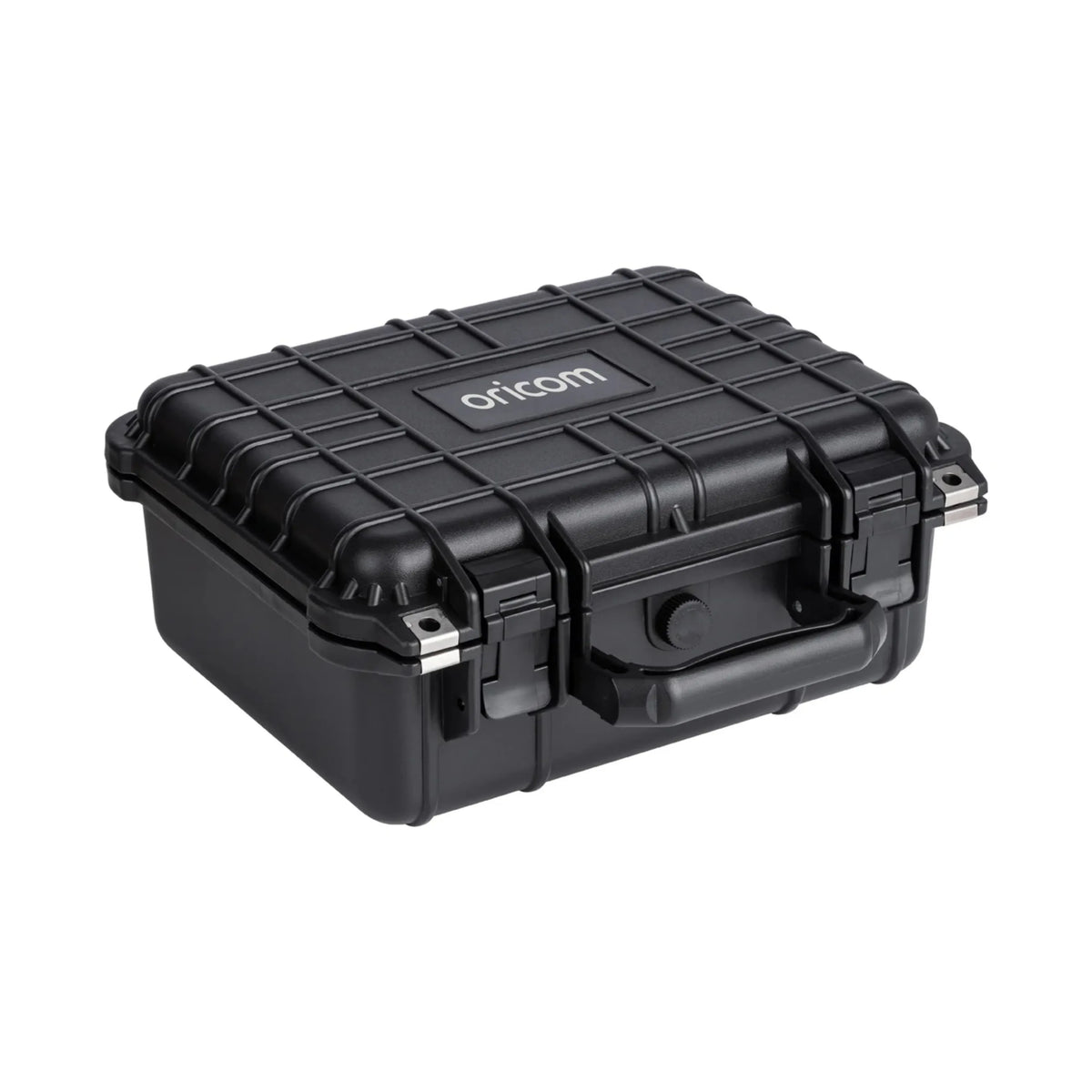

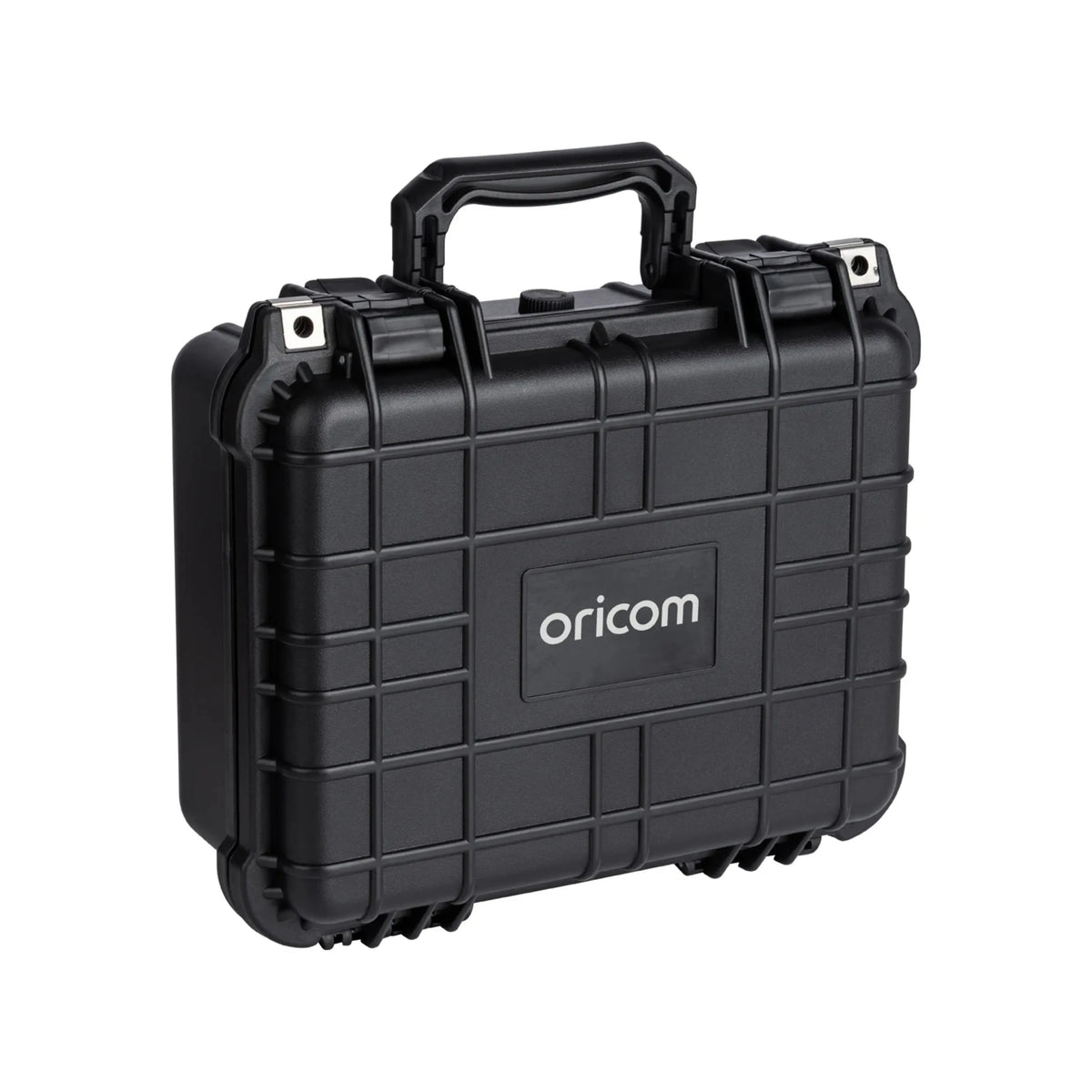

Portable Heavy-Duty Case — Complete system stores in rugged carry case with organized compartments, protecting components during transport and keeping inflation gear accessible in vehicle storage areas.

20-Minute Duty Cycle — Continuous operation for 20 minutes handles typical four-tyre sequential inflation from beach or sand track pressures back to highway specifications before requiring rest.

150 PSI Maximum Pressure — Handles standard passenger and light 4WD tyre inflation requirements, suitable for most touring and recreational offroad applications without exceeding typical pressure needs.

Thermal Protection at 115°C — Automatic overheat shutdown protects motor during high ambient temperatures or extended use, preventing permanent damage and ensuring longevity in Australian conditions.

6-Metre Hose Reach — Extended hose length reaches all four tyres on most vehicles without repositioning, streamlining the inflation process during roadside or campsite pressure adjustments.

Direct Battery Connection — 2.5-metre cable with battery clamps provides reliable power delivery for the 32-amp current draw, bypassing cigarette lighter socket limitations inadequate for compressor loads.

NPT Quick-Connect Fitting — Standard quarter-inch NPT connection ensures compatibility with Oricom inflator/deflator kits, tyre gauges, and aftermarket inflation accessories without adapter requirements.

Compact 7.3kg Package — Lighter than twin-cylinder alternatives while maintaining capability for typical 4WD inflation tasks, balancing performance with storage convenience and portability.

Technical Specs

• Model: AIR30
• Configuration: Single cylinder
• Cylinder Bore Diameter: 44 mm
• Operating Voltage: 12-13.8V DC
• Current Draw (Under Load): 32A
• Current Draw (No Load): 17A
• Inline Fuse Rating: 40A (supplied)
• Maximum Pressure: 150 PSI
• Maximum Working Pressure: 120 PSI
• Airflow Rate (0 PSI): 75 L/min
• Airflow Rate (29 PSI): 50 L/min
• Airflow Rate (40 PSI): 42 L/min
• Duty Cycle: 20 minutes on, 40 minutes rest
• Pressure Cut-Out: 90 PSI on, 120 PSI off
• Thermal Protection: Auto shut-off at 115°C
• Air Filter: Included
• Digital Gauge: With automatic shut-off function
• Hose Length: 6 m
• Hose Connector: NPT ¼" quick-connect
• Power Cable Length: 2.5 m with battery clamps
• Carry Case: Heavy-duty case included
• Dimensions: 35 × 29.5 × 16 cm
• Weight: 7.3 kg
• Safety Standards: AS/NZS 60335.1:2020+A1:2021, EN/IEC 55014-1:2021 EMC compliant
• Warranty: 3 years

Frequently Asked Questions

Can I use this compressor to inflate all four tyres without stopping?

The 20-minute duty cycle allows sequential inflation of four standard tyres from typical beach pressures (18-20 PSI) to highway pressures (32-36 PSI), though you may approach the duty limit. Monitor compressor temperature and allow rest if needed.

How does the digital gauge auto shut-off work?

Set your target pressure on the digital gauge before starting inflation. The gauge monitors pressure and automatically stops the compressor when the target is reached, preventing over-inflation without manual monitoring.

Will this work with my Oricom MTDI2 twin inflator kit?

Yes, the AIR30 is specifically noted as compatible with Oricom's tyre inflator and deflator systems via the NPT quarter-inch quick-connect fitting standard across their product range.

Can I connect this to my cigarette lighter socket?

No, the AIR30 draws 32 amps under load, exceeding typical 10-15 amp cigarette lighter circuit ratings. The included 2.5m cable with battery clamps is designed for direct battery connection.

What's the difference between this and the AIR40 twin cylinder?

The AIR30 offers 75 L/min single-cylinder performance suitable for standard 4WD use, while the AIR40 provides 130 L/min twin-cylinder output for faster inflation, longer duty cycles (45 minutes), and heavier-duty applications.

Compatible With

• Oricom MTDI2 twin tyre inflator/deflator kit
• Oricom MTDI4 quad tyre inflator/deflator kit
• Oricom TDD01 digital tyre deflator
• 4WD vehicles and touring setups
• Beach driving and sand track applications
• Standard passenger vehicles requiring portable inflation
• NPT quarter-inch inflation accessories
