OEX VXS919 Starter Motor 12V 9Th CW Valeo Style
Click to open expanded view
OEX logo

OEX VXS919 Starter Motor 12V 9Th CW Valeo Style

SKU: VXS919
Price
$515
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

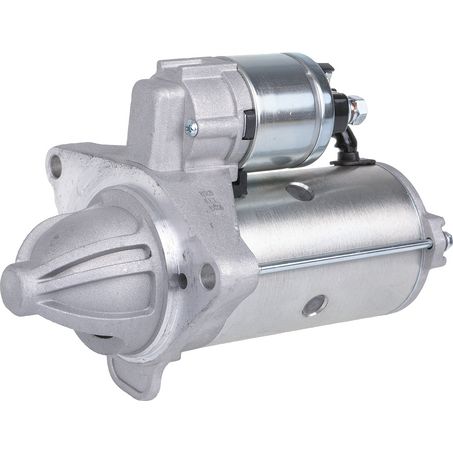

OEX VXS919 Starter Motor 12V 9 Tooth CW Valeo Style

The OEX VXS919 is a new 12V starter motor with a 9 tooth clockwise rotation pinion, Valeo style, delivering 2.2kW power output with a 2 hole dry clutch mount.

Product Overview

The VXS919 is a new 12V Valeo style starter motor from OEX, featuring a 9 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 2.2kW of power, the VXS919 is built to a 76mm flange diameter with 124mm mounting centres and an overall length of 216mm.

Correct fitment on a starter motor is critical, so always confirm by OE number where possible. If the OE number isn't available, confirm the number of teeth on the pinion and the pinion at rest measurement before ordering. This 9 tooth unit is not interchangeable with 11 tooth units such as the VXS946.

Features & Benefits

2.2kW Power Rating: The 2.2kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

9 Tooth Pinion, Clockwise Rotation: The 9 tooth pinion with clockwise rotation must match the application exactly; it is not interchangeable with 11 tooth units such as the VXS946.

Valeo Style Design: Built to Valeo style specifications for compatible fitment across applications originally equipped with a matching Valeo unit.

2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. VXS919
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 2.2kW
Number of Teeth 9
Rotation CW (Clockwise)
Suits Unit Make Valeo
Flange Diameter 76mm
Mount Centres A 124mm
Mount Hole Diameter 10mm
Overall Length 216mm
Pinion at Rest 20mm
Pinion Diameter 28mm
Starter Mount Type 2 Hole
Wet / Dry Clutch Dry
New / Reman. New
Weight 3.74kg

Compatible With

The VXS919 is a Valeo style 9 tooth starter motor. Please confirm fitment by OE number where possible. If the OE number is not available, confirm the number of teeth on the pinion and the pinion at rest measurement before ordering. This unit is not interchangeable with 11 tooth units such as the VXS946.

Frequently Asked Questions

How do I confirm the VXS919 will fit my vehicle?

Confirm fitment by OE number where possible. If the OE number isn't available, confirm the number of teeth on the pinion (9 for this unit) and the pinion at rest measurement (20mm) against your original starter.

Can the VXS919 be used in place of an 11 tooth starter?

No. The VXS919 is a 9 tooth unit and is not interchangeable with 11 tooth units such as the VXS946.

Is the VXS919 new or reconditioned?

The VXS919 is supplied new.

What is the power rating of the VXS919?

The VXS919 has a 2.2kW power rating.

What mounting type does the VXS919 use?

The VXS919 uses a 2 hole mounting arrangement with a dry clutch design.
