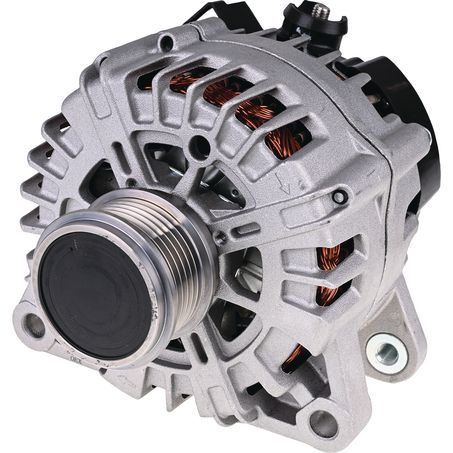

OEX VXA036 Alternator 12V 225A Valeo Style

OEX VXA036 Alternator 12V 225A Valeo Style High Output Unit

High-output power when your vehicle demands it most.

Product Overview

The OEX VXA036 is a heavy-duty 12V alternator engineered to deliver 225 amps of reliable charging power for vehicles originally equipped with Valeo-style alternators. Built with a quad leg mounting configuration and internal voltage regulation, this alternator suits passenger vehicles and commercial applications requiring dependable electrical performance under load. The clockwise rotation design features a 6-groove pulley (54mm diameter) and quad leg mount with 139mm centre-to-centre spacing. Confirmation by original equipment (OE) number is essential to ensure correct fitment for your specific vehicle application.

Key Specifications

• Output rating: 225 amps at 12 volts
• Valeo-style alternator with quad leg mounting system
• Mount centre-to-centre spacing: 139mm
• Pivot and adjusting hole diameter: M10x1.5 with 11.5mm spacing
• Internal voltage regulator with IR89 pin code configuration
• 6-groove pulley with 54mm outside diameter
• Clockwise (CW) rotation direction
• New unit construction (not remanufactured)
• Inside mounting leg dimension: 47mm
• Total unit weight: 7.12kg

Features & Benefits

225-Amp High Output Capacity: Powers demanding electrical systems in modern vehicles with multiple accessories, auxiliary lighting, sound systems, or commercial equipment without voltage drop under load.

Valeo-Compatible Design: Direct replacement for Valeo-style alternators, ensuring proper integration with existing mounting brackets, belt systems, and electrical connections when confirmed by OE number.

Internal Voltage Regulation: Self-contained regulator eliminates external components and simplifies installation while maintaining stable charging voltage across varying engine speeds and electrical loads.

Quad Leg Mounting System: Robust four-point mounting configuration (139mm centre spacing) provides secure installation and reduces vibration transfer, critical for Australian road conditions and heavy-duty applications.

6-Groove Pulley Configuration: Matches modern serpentine belt systems for reliable power transmission, reduced belt slip, and extended belt life in workshop, fleet, and touring applications.

New Unit Construction: Factory-fresh components deliver maximum service life compared to remanufactured units, backed by comprehensive warranty coverage for passenger and commercial use.

Technical Specs

• Part Number: VXA036
• Brand: OEX
• Type: Alternator
• Voltage: 12V
• Power Rating: 225A
• Rotation: Clockwise (CW)
• Regulator Type: Internal
• Pin Code: IR89
• Pulley Type: 6 Groove
• Pulley Outside Diameter: 54mm
• Alternator Mount: Quad Leg
• Mount Centre to Centre: 139mm
• Inside Mounting Legs: 47mm
• Pivot Hole Diameter: M10x1.5 / 11.5mm
• Adjusting Hole Diameter: M10x1.5 / 11.5mm
• Suits Unit Make: Valeo
• Condition: New (not remanufactured)
• Insulated Return: No
• Weight: 7.12kg
• Warranty: 3 years passenger vehicles / 1 year commercial vehicles

Frequently Asked Questions

How do I confirm this alternator fits my vehicle?

Match your original alternator's OE number with OEX specifications or verify mounting dimensions and electrical specifications against your factory Valeo unit before ordering.

What's the difference between passenger and commercial warranty?

Passenger vehicles receive 3-year coverage while commercial applications (taxis, delivery vehicles, heavy-duty use) are covered for 1 year due to higher operational demands.

Can this alternator handle aftermarket accessories?

Yes, the 225A output handles multiple accessories including upgraded sound systems, auxiliary lighting, winches, and refrigeration units common in Australian touring and commercial setups.

Is this a remanufactured or new alternator?

This is a new-construction alternator with factory-fresh components, providing maximum service life and reliability compared to rebuilt units.

What tools are needed for installation?

Standard metric socket set for M10 bolts, serpentine belt tool, torque wrench, and multimeter for post-installation charging system verification recommended.

Compatible With / Goes Well With

Vehicle Compatibility:
Suitable for vehicles originally equipped with Valeo-style alternators requiring 225A 12V output. Confirmation by OE number is essential before purchase.

Application Types:

• Passenger vehicles with high electrical demands
• Commercial vehicles requiring robust charging systems
• 4WD touring setups with auxiliary equipment
• Vehicles with upgraded audio or lighting systems
• Fleet vehicles requiring reliable power generation

Caution: Verify all mounting dimensions, pulley groove count, and electrical specifications match your original Valeo alternator. Incorrect fitment may result in installation failure or electrical system damage.

Weight

7.12kg
