Product features

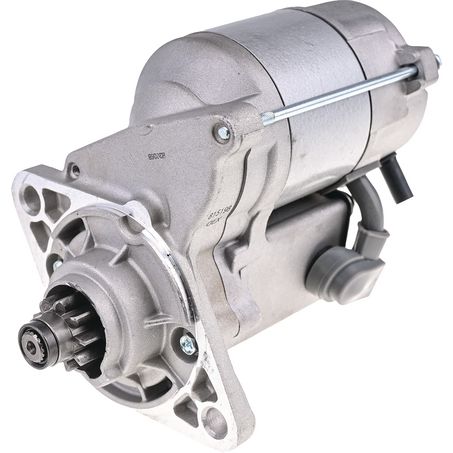

OEX DXS547 Starter Motor 12V 9 Tooth CCW Denso Style

The OEX DXS547 is a new 12V starter motor with a 9 tooth counter-clockwise rotation pinion, Denso style, designed for automatic transmission applications, delivering 1.4kW power output with a 2 hole dry clutch mount.

Product Overview

The DXS547 is a new 12V Denso style starter motor from OEX, featuring a 9 tooth counter-clockwise (CCW) rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.4kW of power, the DXS547 is built to an 82mm flange diameter with 120mm mounting centres and an overall length of 186mm.

This unit is designed for automatic transmission applications. The 8 and 9 tooth units are interchangeable, giving added flexibility when sourcing a replacement.

Features & Benefits

1.4kW Power Rating: The 1.4kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

9 Tooth Pinion, Counter-Clockwise Rotation: The 9 tooth pinion with CCW rotation must match the application exactly; confirm rotation direction carefully before ordering.

Denso Style Design: Built to Denso style specifications for compatible fitment across applications originally equipped with a matching Denso unit.

Designed for Automatic Transmission: This unit is specified for automatic transmission applications.

8 and 9 Tooth Interchangeable: The 8 and 9 tooth versions of this unit are interchangeable, giving flexibility when sourcing a replacement.

2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. DXS547
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 1.4kW
Number of Teeth 9
Rotation CCW (Counter-Clockwise)
Suits Unit Make Denso
Transmission Automatic
Flange Diameter 82mm
Mount Centres A 120mm
Mount Hole Diameter 11mm
Overall Length 186mm
Pinion at Rest 32mm
Pinion Diameter 29mm
Starter Mount Type 2 Hole
Wet / Dry Clutch Dry
New / Reman. New
Weight 3.6kg

Compatible With

The DXS547 is a Denso style 9 tooth starter motor with counter-clockwise (CCW) rotation, designed for automatic transmission applications. The 8 and 9 tooth versions are interchangeable. Confirm your original starter's rotation direction matches before ordering.

Frequently Asked Questions

Can I use an 8 tooth starter instead of the DXS547?

Yes. The 8 and 9 tooth versions of this unit are interchangeable.

What rotation direction does the DXS547 have?

The DXS547 has counter-clockwise (CCW) rotation, an important fitment factor to confirm against your original starter.

Is the DXS547 for automatic or manual transmission?

The DXS547 is designed for automatic transmission applications.

What is the power rating of the DXS547?

The DXS547 has a 1.4kW power rating.

Is the DXS547 new or reconditioned?

The DXS547 is supplied new.
