OEX MXS246 12V 8Th Starter Motor CW Mitsubishi Style

SKU: MXS246
Price
$309
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

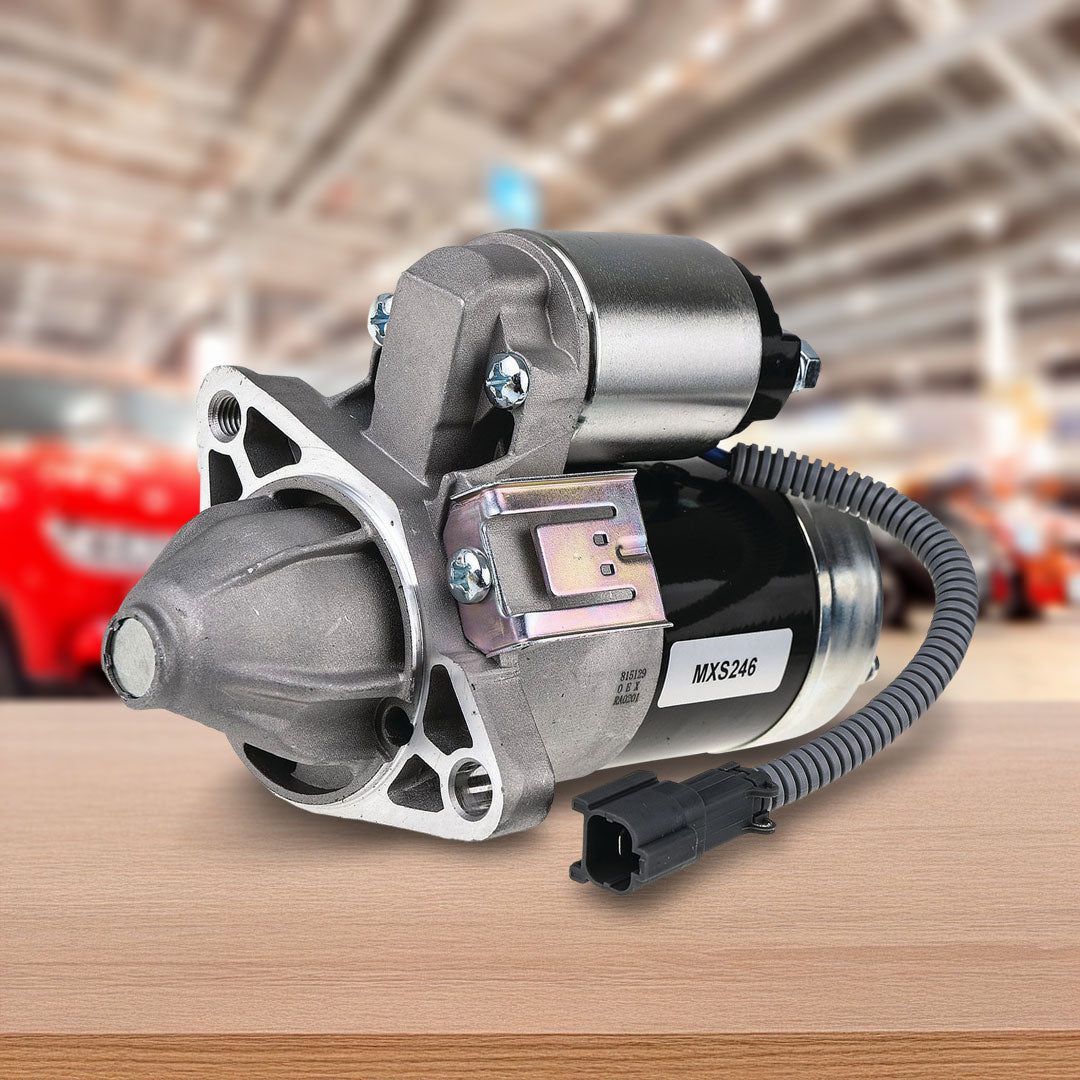

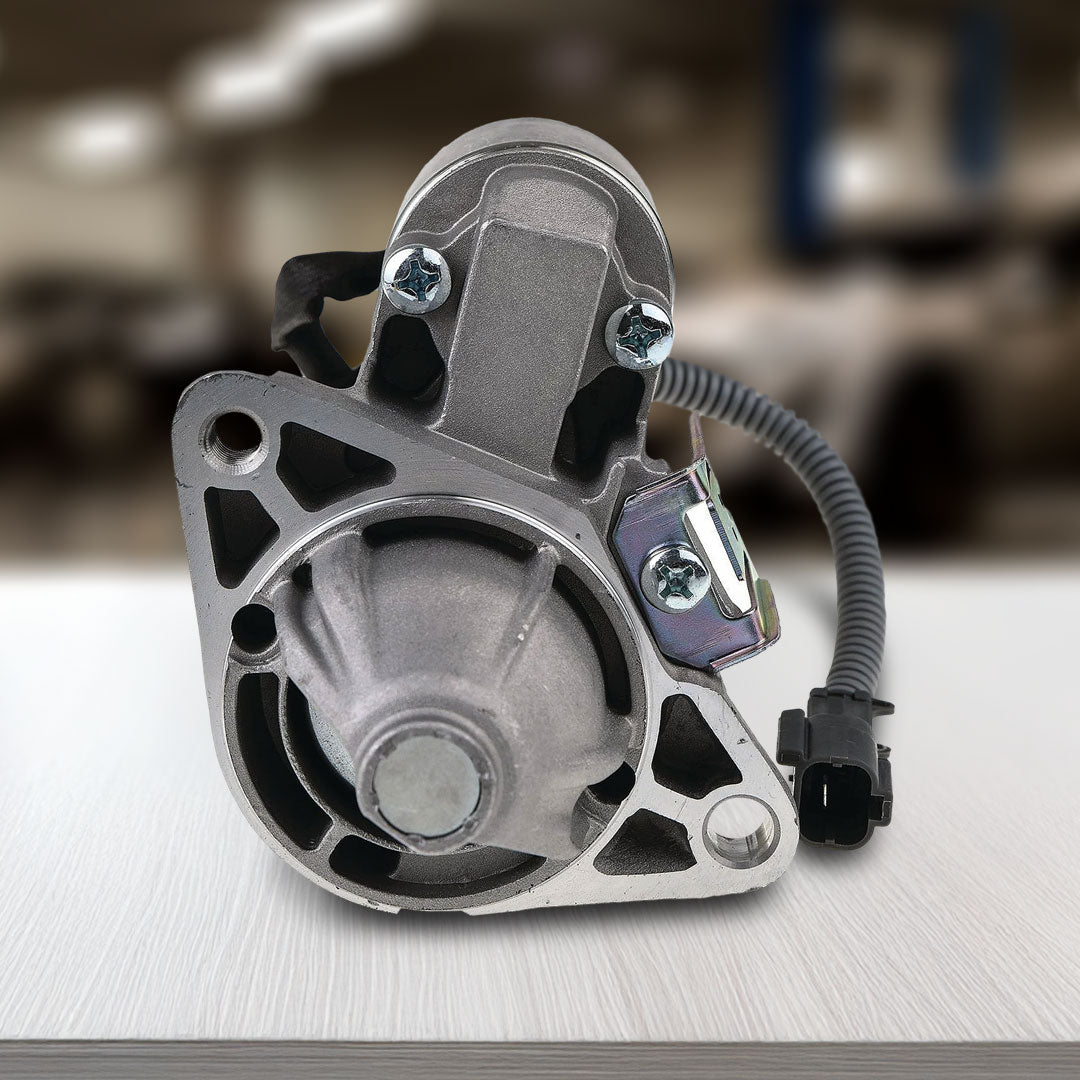

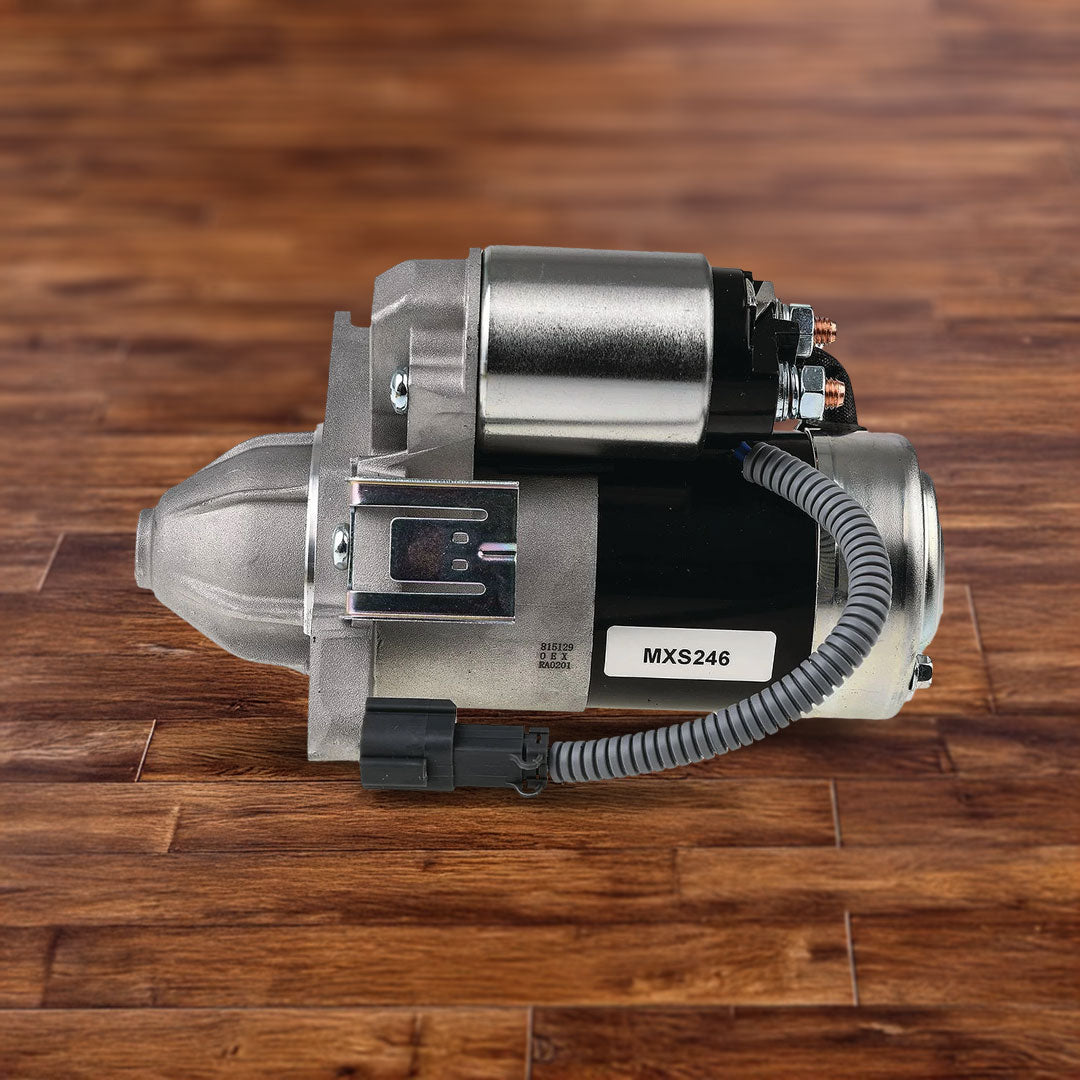

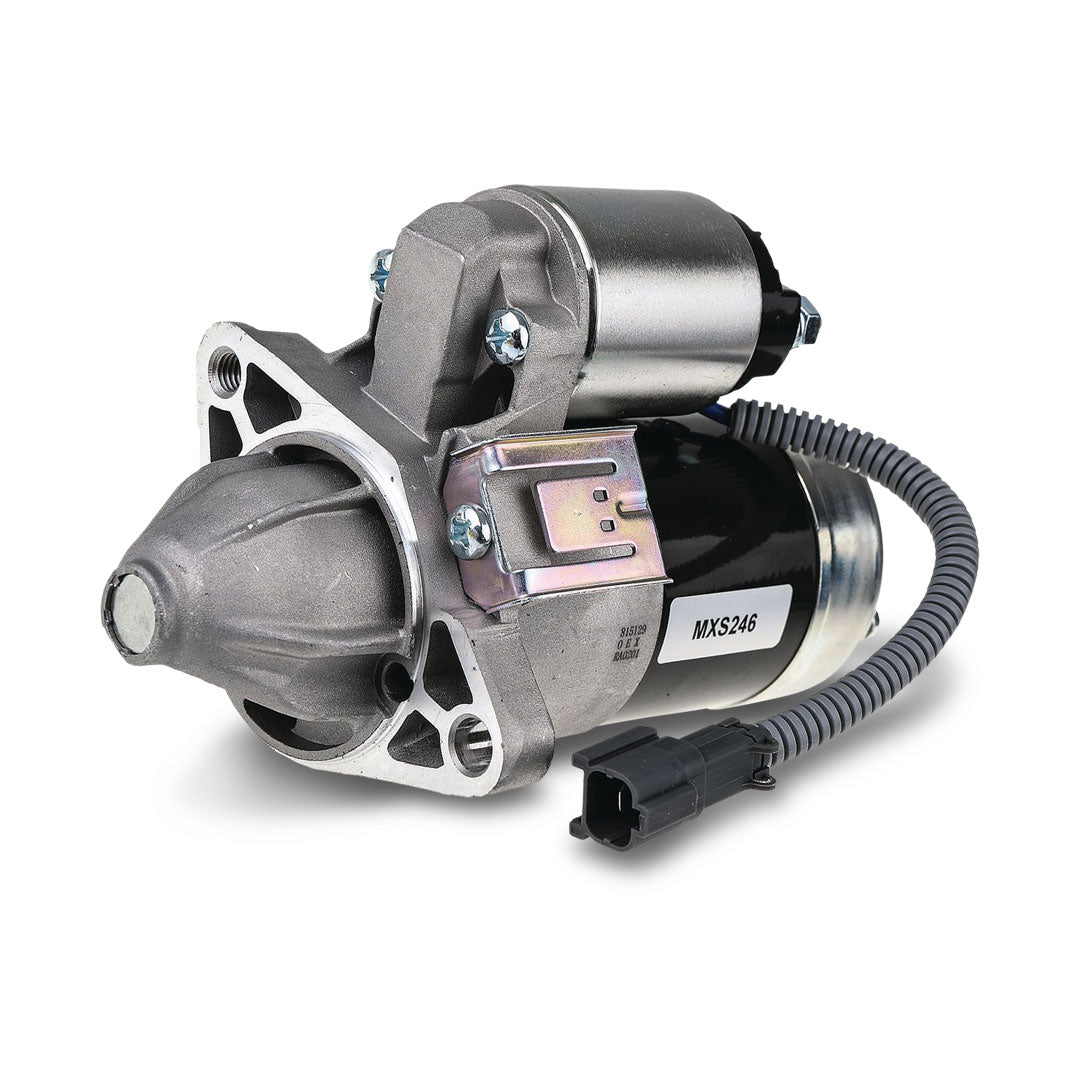

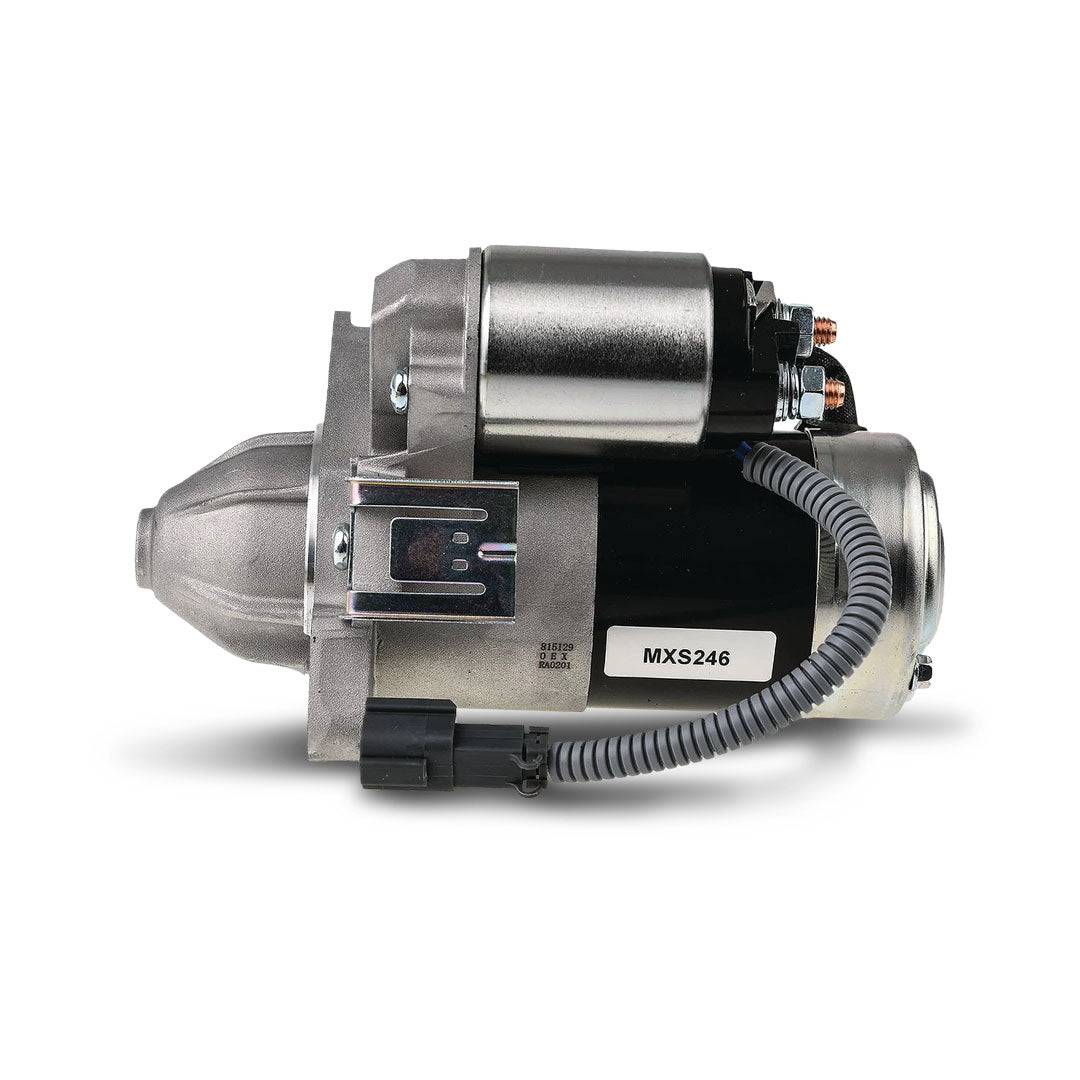

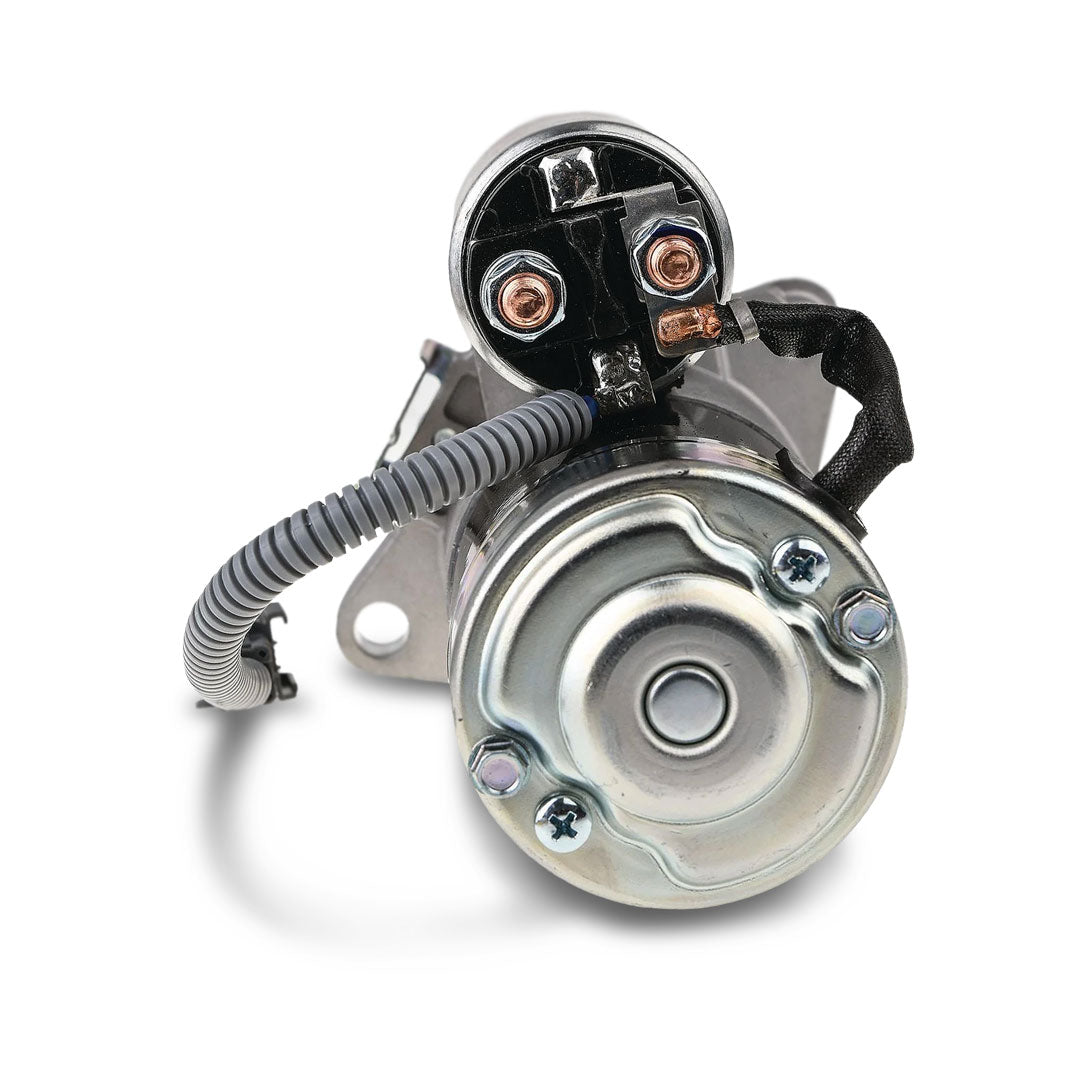

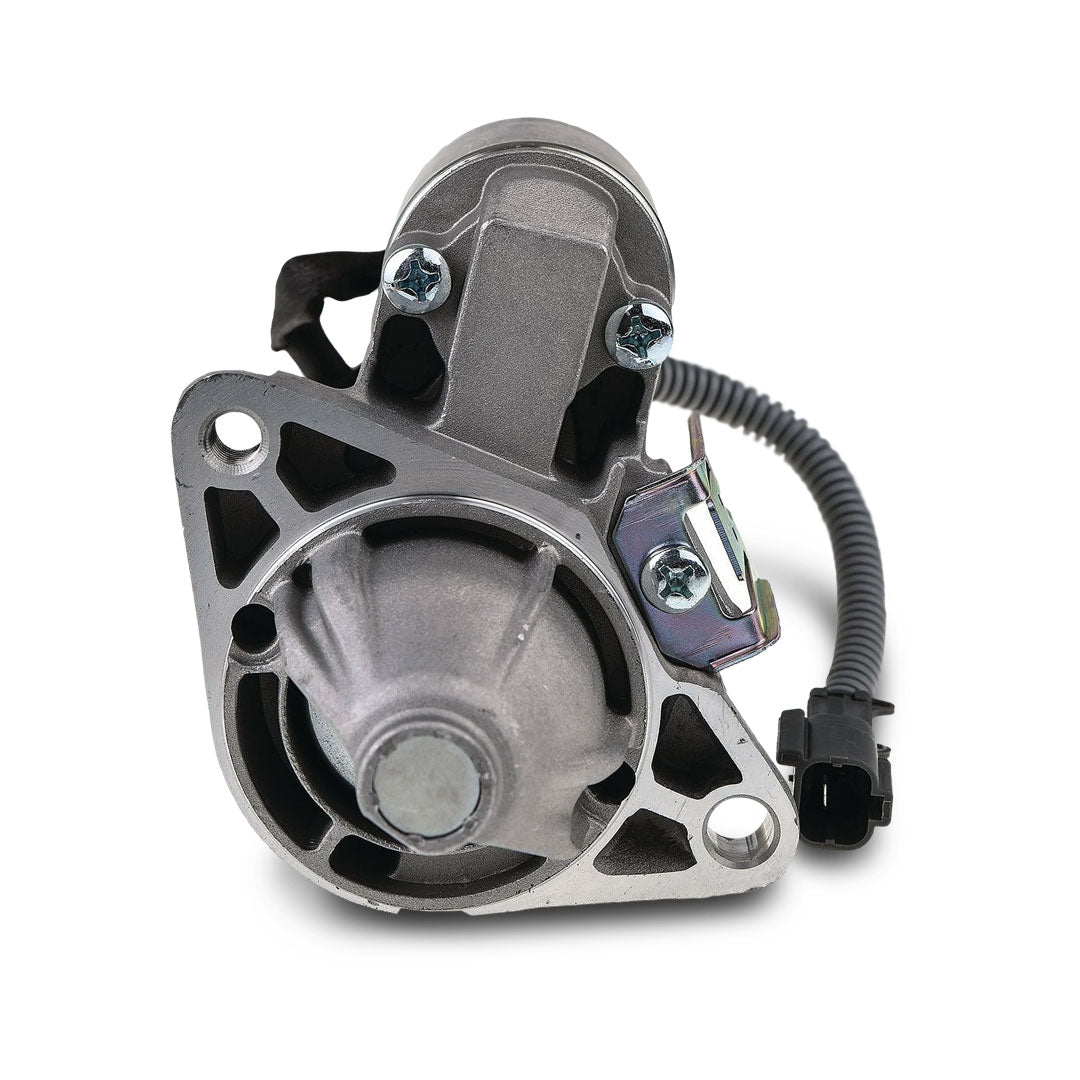

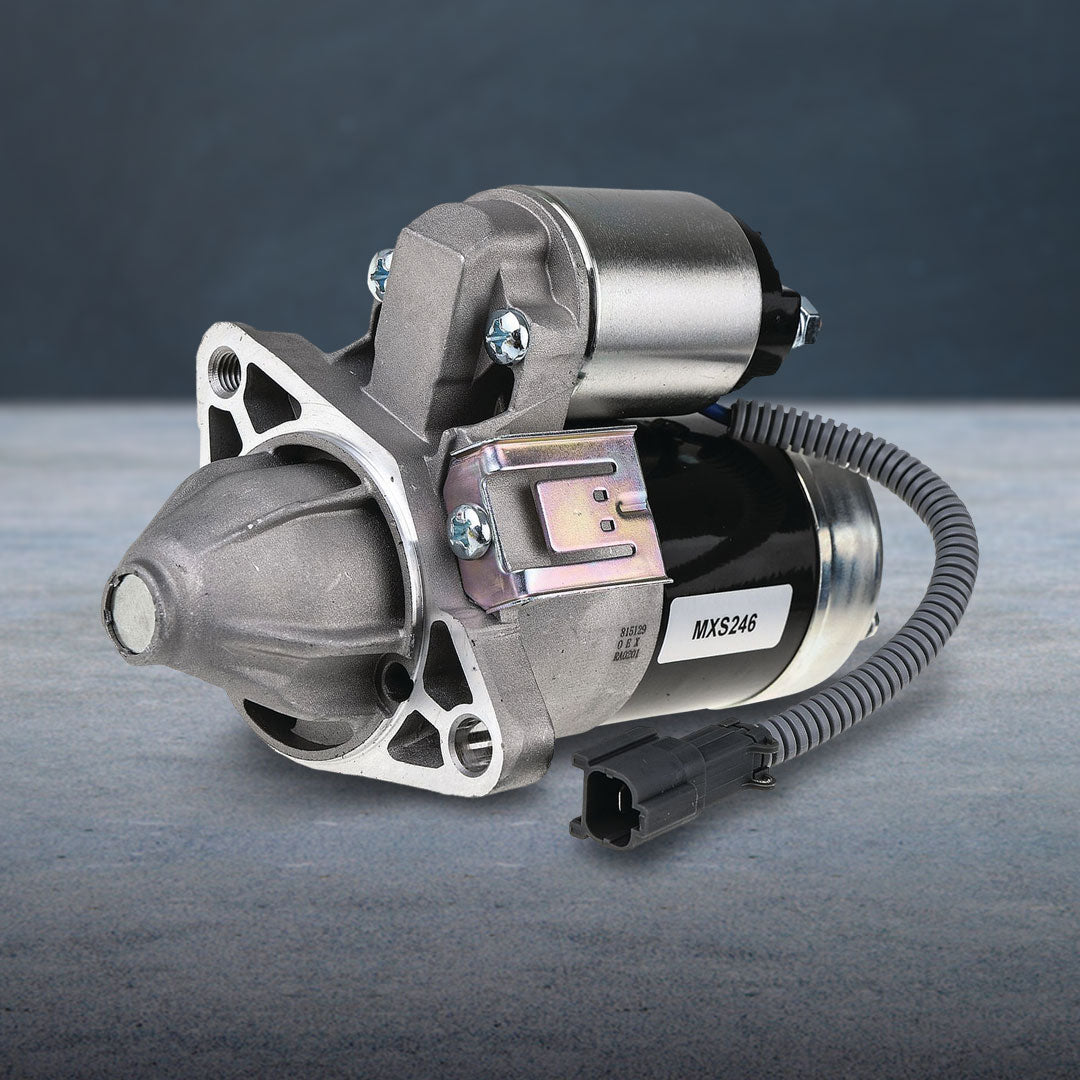

OEX MXS246 Starter Motor 12V 8 Tooth CW Mitsubishi Style

The OEX MXS246 is a new 12V starter motor with an 8 tooth clockwise rotation pinion, Mitsubishi style, delivering 1.2kW power output with a 2 hole dry clutch mount.

Product Overview

The MXS246 is a new 12V Mitsubishi style starter motor from OEX, featuring an 8 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.2kW of power, the MXS246 is built to a 70mm flange diameter with 107mm mounting centres and an overall length of 208mm.

The OEX brand is sourced from market leading original equipment manufacturers and aftermarket suppliers. OEX products are sourced from ISO certified factories, and each product is backed by a comprehensive nationwide warranty.

Features & Benefits

1.2kW Power Rating: The 1.2kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

8 Tooth Pinion, Clockwise Rotation: The 8 tooth pinion with clockwise rotation must match the application exactly for correct fitment.

Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.

70mm Flange Diameter: The 70mm flange diameter distinguishes this unit from similar 8 tooth Mitsubishi style starters with a 77mm flange, so confirm this dimension carefully against your original starter.

2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.

ISO Certified Manufacturing: Sourced from ISO certified factories, supporting consistent quality and reliability.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. MXS246
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 1.2kW
Number of Teeth 8
Rotation CW (Clockwise)
Suits Unit Make Mitsubishi
Flange Diameter 70mm
Mount Centres A 107mm
Mount Hole Diameter M10x1.5 / 10mm
Overall Length 208mm
Pinion at Rest 11mm
Pinion Diameter 28mm
Starter Mount Type 2 Hole
Wet / Dry Clutch Dry
New / Reman. New
Weight 3.52kg

Compatible With

The MXS246 is a Mitsubishi style 8 tooth starter motor with a 70mm flange diameter. Confirm your original starter's flange diameter, mounting centres, and overall length match before ordering, as similar 8 tooth units in the range use a 77mm flange instead.

Frequently Asked Questions

What is the power rating of the MXS246?

The MXS246 has a 1.2kW power rating.

What is the flange diameter of the MXS246?

The MXS246 has a 70mm flange diameter, smaller than the 77mm flange used on similar 8 tooth units such as the MXS324, MXS325, and MXS333.

How many teeth does the MXS246 pinion have?

The MXS246 has an 8 tooth pinion with clockwise rotation.

What mounting type does the MXS246 use?

The MXS246 uses a 2 hole mounting arrangement with a dry clutch design.

Is the MXS246 new or reconditioned?

The MXS246 is supplied new.
