OEX OEX40A 40A Fuse Kit Suit Redarc BCDC Battery Chargers
Click to open expanded view
OEX logo

Discontinued

OEX OEX40A 40A Fuse Kit Suit Redarc BCDC Battery Chargers

SKU: OEX40A

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX OEX40A 40A Fuse Kit for REDARC BCDC Battery Chargers

The OEX OEX40A is a 40A fuse kit designed to suit REDARC BCDC battery chargers, featuring heavy duty midi fuse holders with a 125 amp maximum rating, M5 threaded studs, and a protective fuse cover.

Product Overview

Damage to the fuse holder is one of the most common issues REDARC tech support hear about, where the actual fuse holder melts, causing the connection to be lost and interrupting charging of the auxiliary battery. Often diagnosed as a blown fuse, these issues are often attributed to a poor quality fuse holder.

The easiest way to prevent this, as recommended by REDARC themselves to protect a BCDC Series DC to DC charger, is to install an upgraded fuse holder like this high quality kit from OEX. This kit features all the same components as the more expensive REDARC kit, providing users with the same added protection and peace of mind.

Features & Benefits

Heavy Duty Fuse Holder - 125 Amp Maximum: The included fuse holders are rated to a 125 amp maximum, giving a robust upgrade over standard fuse holders prone to melting.

M5 Threaded Studs: M5 threaded studs allow a secure connection using the included lock nuts and cable lugs.

40A Midi Fuses Included: Four 40A midi fuses are included, matched to the charger's protection requirements.

Protective Fuse Cover: A protective fuse cover shields the fuse and holder from damage and accidental contact.

Same Components as the REDARC Kit: The kit features the same components as the more expensive REDARC branded kit, providing equivalent protection at OEX pricing.

Technical Specs

Specification Detail
Part No. OEX40A
Brand OEX
Description 40A Fuse Kit to Suit REDARC BCDC Battery Chargers
Fuse Holder Max Amp 125 Amps
Fuse Rating 40A
Studs M5 Threaded
Fuse Cover Protective Cover Included

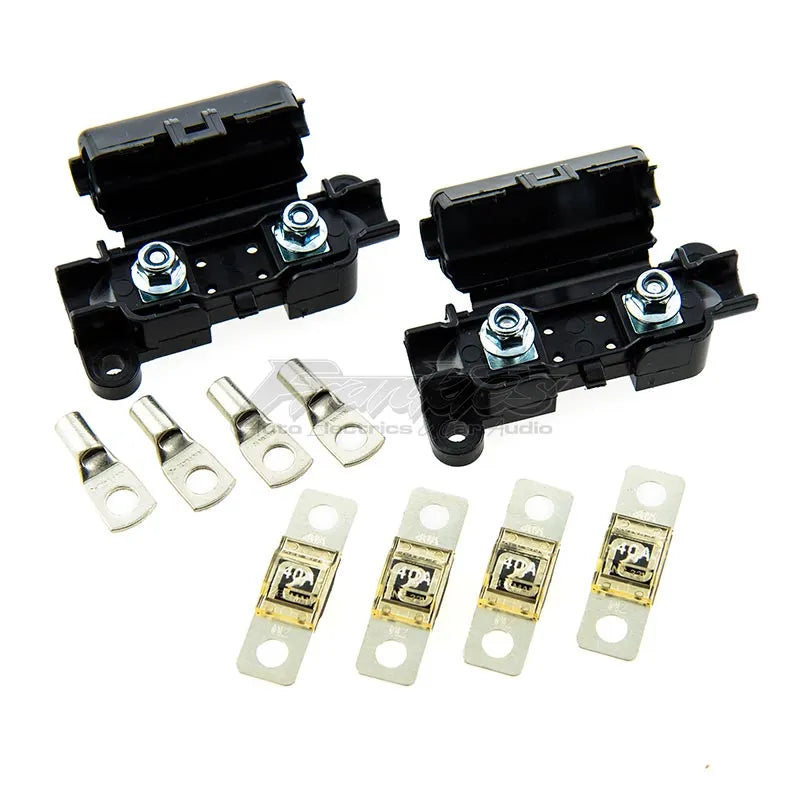

In the Box 4 x 40A Midi Fuses, 2 x Heavy Duty Midi Fuse Holders, 4 x M5 Lock Nuts, 4 x 10-6 Cable Lugs

Compatible With

The OEX40A is compatible with REDARC BCDC1220, BCDC1225, BCDC1225LV, BCDC1225D, and other BCDC Series DC to DC chargers. Confirm your specific charger model before purchase.

Frequently Asked Questions

What is the OEX40A used for?

The OEX40A is a fuse holder upgrade kit designed to protect REDARC BCDC Series DC to DC battery chargers from the common issue of fuse holder failure and melting.

Why does the fuse holder need upgrading?

Damage to the fuse holder is one of the most common issues REDARC tech support hear about, where the fuse holder melts and interrupts charging. This is often mistaken for a blown fuse but is usually caused by a poor quality fuse holder.

Which chargers does the OEX40A fit?

The OEX40A is compatible with the REDARC BCDC1220, BCDC1225, BCDC1225LV, BCDC1225D, and other BCDC Series chargers.

What is the difference between the OEX40A and OEX60A?

Both use the same 125 amp maximum fuse holders, but the OEX40A includes 40A fuses suiting a different range of BCDC chargers, while the OEX60A includes 60A fuses for the BCDC1240 series.

What's included in the OEX40A kit?

The kit includes four 40A midi fuses, two heavy duty midi fuse holders, four M5 lock nuts, and four 10-6 cable lugs.
