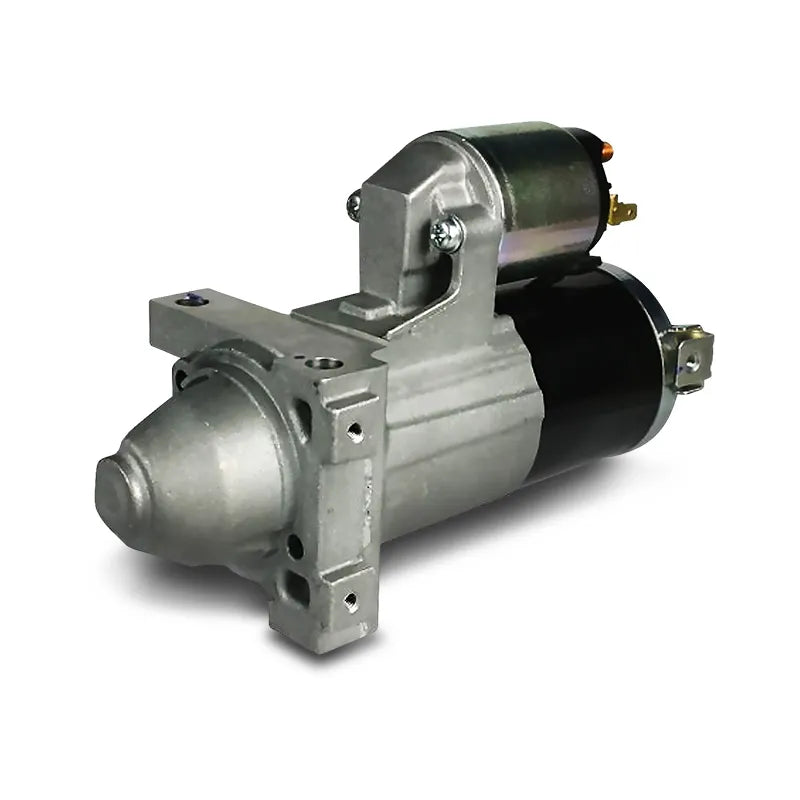

OEX MXS340 Starter Motor 12V 10Th CW Mitsubishi Style
Click to open expanded view
OEX logo

OEX MXS340 Starter Motor 12V 10Th CW Mitsubishi Style

SKU: MXS340
Price
$247
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX MXS340 Starter Motor 12V 10 Tooth CW Mitsubishi Style

The OEX MXS340 is a new 12V starter motor with a 10 tooth clockwise rotation pinion, Mitsubishi style, delivering 1.4kW power output with a pad mount and standard blade terminal solenoid.

Product Overview

The MXS340 is a new 12V Mitsubishi style starter motor from OEX, featuring a 10 tooth clockwise rotation pinion and a pad mounting arrangement. Delivering 1.4kW of power, the MXS340 is built to a 58mm flange diameter with 73mm mounting centres and an overall length of 216mm.

The solenoid on this unit has a standard blade terminal for the start terminal. If your application requires a moulded plug instead, use the MXS2058.

Features & Benefits

1.4kW Power Rating: The 1.4kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

10 Tooth Pinion, Clockwise Rotation: The 10 tooth pinion with clockwise rotation must match the application exactly for correct fitment.

Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.

Pad Mount: The pad mounting arrangement with a dry clutch design suits the specified fitment applications.

Standard Blade Terminal Solenoid: The solenoid uses a standard blade terminal for the start terminal; for applications requiring a moulded plug, use the MXS2058 instead.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. MXS340
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 1.4kW
Number of Teeth 10
Rotation CW (Clockwise)
Suits Unit Make Mitsubishi
Flange Diameter 58mm
Mount Centres A 73mm
Mount Hole Diameter 10mm
Overall Length 216mm
Pinion at Rest 10mm
Pinion Diameter 28mm
Starter Mount Type Pad
Wet / Dry Clutch Dry
Solenoid Terminal Standard Blade
New / Reman. New
Weight 3.18kg

Compatible With

The MXS340 is a Mitsubishi style 10 tooth starter motor with a standard blade terminal solenoid. If your application uses a moulded plug rather than a blade terminal, use the MXS2058 instead. Confirm your original starter's specifications match before ordering.

Frequently Asked Questions

What terminal type does the MXS340 use?

The MXS340 solenoid has a standard blade terminal for the start terminal. For a moulded plug instead, use the MXS2058.

What is the power rating of the MXS340?

The MXS340 has a 1.4kW power rating.

How many teeth does the MXS340 pinion have?

The MXS340 has a 10 tooth pinion with clockwise rotation.

What mounting type does the MXS340 use?

The MXS340 uses a pad mounting arrangement with a dry clutch design.

Is the MXS340 new or reconditioned?

The MXS340 is supplied new.
