Product features

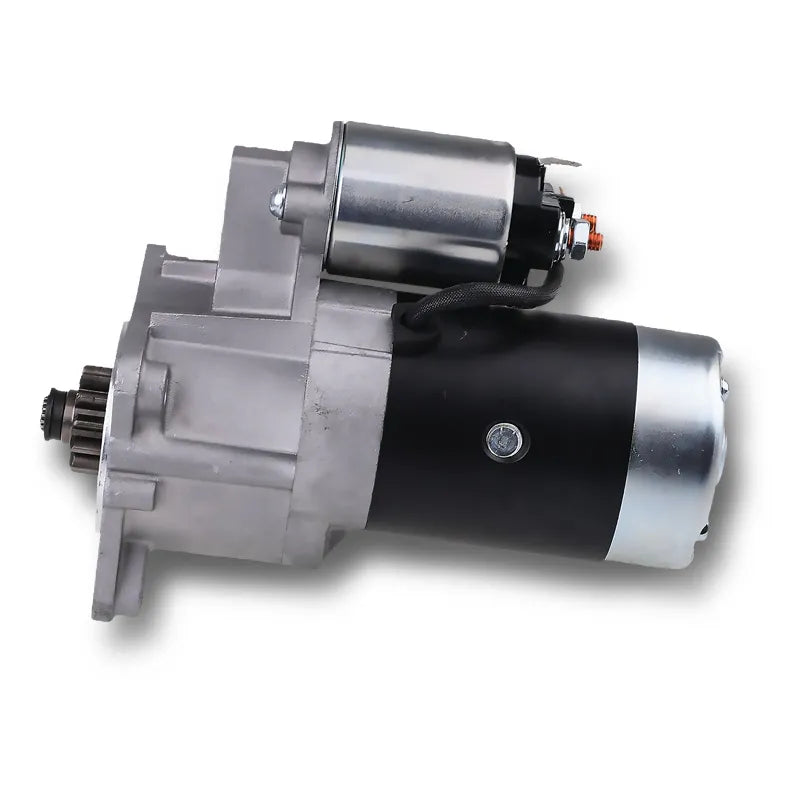

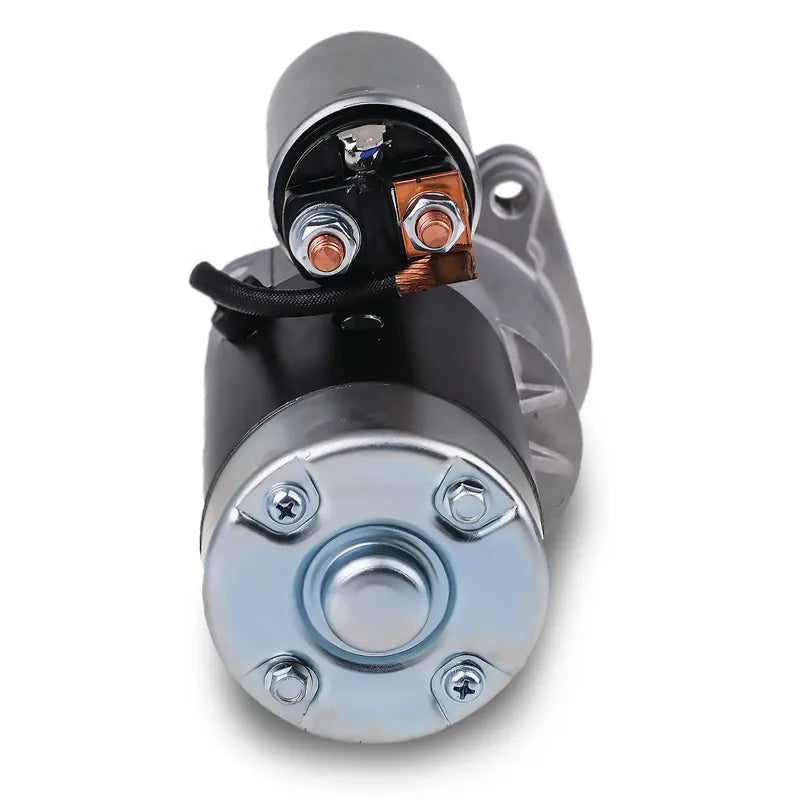

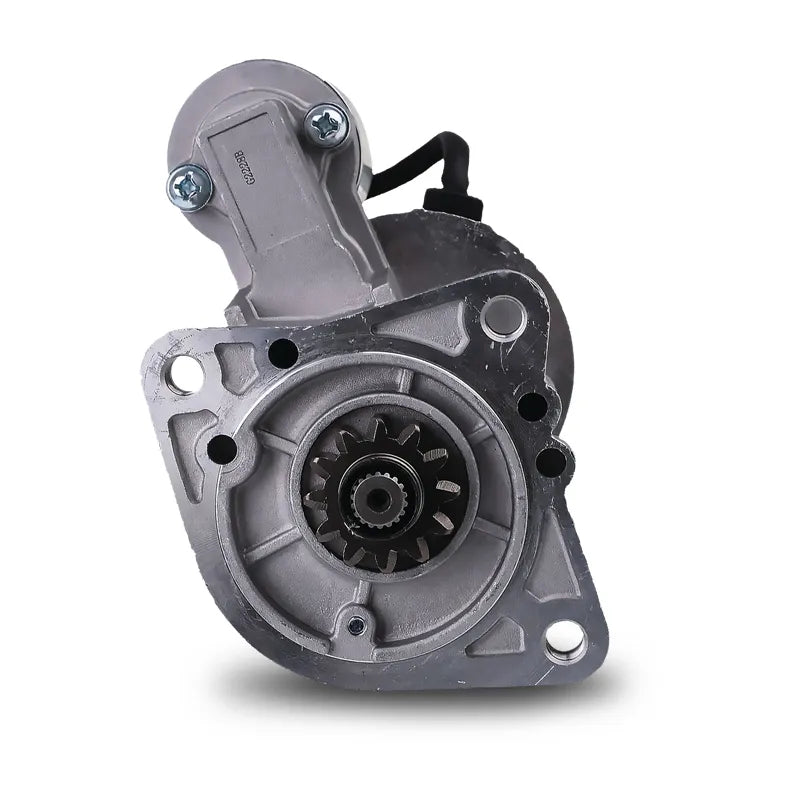

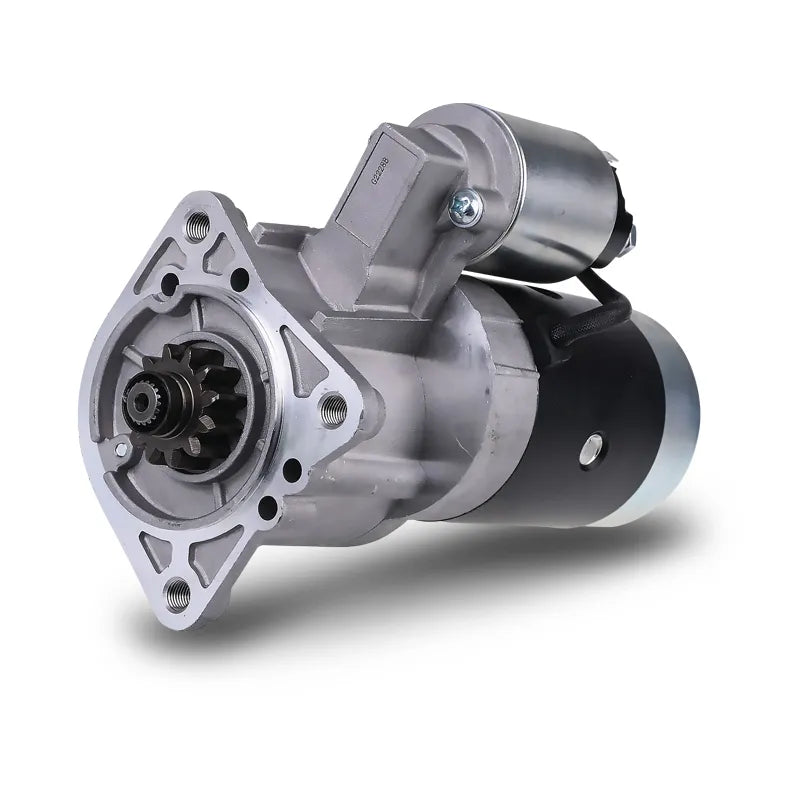

OEX MXS272 Starter Motor 12V 12 Tooth CW Mitsubishi Style

The OEX MXS272 is a new 12V starter motor with a 12 tooth clockwise rotation pinion, Mitsubishi style, delivering 1.4kW power output with a 3 hole dry clutch mount.

Product Overview

The MXS272 is a new 12V Mitsubishi style starter motor from OEX, featuring a 12 tooth clockwise rotation pinion and a 3 hole dry clutch mounting arrangement. Delivering 1.4kW of power, the MXS272 is built to a 74mm flange diameter with an overall length of 220mm.

The 9 tooth and 12 tooth versions of this unit are interchangeable, giving added flexibility when sourcing a replacement.

Features & Benefits

1.4kW Power Rating: The 1.4kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

12 Tooth Pinion, Clockwise Rotation: The 12 tooth pinion with clockwise rotation suits applications originally fitted with either a 9 or 12 tooth unit, as the two are interchangeable.

Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.

3 Hole Dry Clutch Mount: The 3 hole mounting arrangement with a dry clutch design suits the specified fitment applications.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. MXS272
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 1.4kW
Number of Teeth 12
Rotation CW (Clockwise)
Suits Unit Make Mitsubishi
Flange Diameter 74mm
Mount Centres A 112mm
Mount Centres B 78mm
Mount Centres C 78mm
Mount Hole Diameter M10x1.25
Overall Length 220mm
Pinion at Rest 15mm
Pinion Diameter 37mm
Starter Mount Type 3 Hole
Wet / Dry Clutch Dry
New / Reman. New
Weight 4.62kg

Compatible With

The MXS272 is a Mitsubishi style 12 tooth starter motor with a 3 hole mount. The 9 tooth and 12 tooth versions of this unit are interchangeable. Confirm your original starter's specifications match before ordering.

Frequently Asked Questions

What is the power rating of the MXS272?

The MXS272 has a 1.4kW power rating.

Can I use a 9 tooth unit instead of the 12 tooth MXS272?

Yes. The 9 tooth and 12 tooth versions of this unit are interchangeable.

How is the MXS272 mounted?

The MXS272 uses a 3 hole mounting arrangement with a dry clutch design.

What is the pinion diameter of the MXS272?

The MXS272 has a 37mm pinion diameter.

Is the MXS272 new or reconditioned?

The MXS272 is supplied new.
