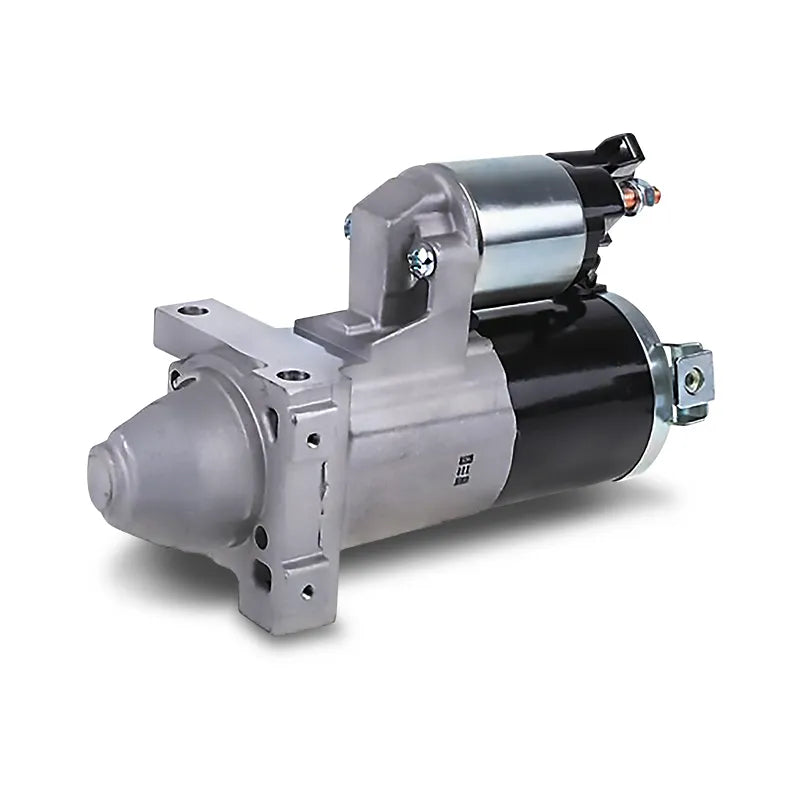

OEX MXS2058 Starter Motor 12V 10Th CW Mitsubishi Style
Click to open expanded view
OEX logo

OEX MXS2058 Starter Motor 12V 10Th CW Mitsubishi Style

SKU: MXS2058
Price
$393
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX MXS2058 Starter Motor 12V 10 Tooth CW Mitsubishi Style

The OEX MXS2058 is a new 12V starter motor with a 10 tooth clockwise rotation pinion, Mitsubishi style, delivering 1.4kW power output with a pad mount and moulded plug solenoid.

Product Overview

The MXS2058 is a new 12V Mitsubishi style starter motor from OEX, featuring a 10 tooth clockwise rotation pinion and a pad mounting arrangement with an 82mm mount thickness. Delivering 1.4kW of power, the MXS2058 is built to a 58mm flange diameter with 73mm mounting centres and an overall length of 224mm.

The solenoid on this unit has a moulded plug for the start terminal. If your application requires a standard blade terminal instead, use the MXS340.

Features & Benefits

1.4kW Power Rating: The 1.4kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

10 Tooth Pinion, Clockwise Rotation: The 10 tooth pinion with clockwise rotation must match the application exactly for correct fitment.

Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.

Pad Mount, 82mm Thickness: The pad mounting arrangement with 82mm mount thickness suits the specified fitment applications.

Moulded Plug Solenoid: The solenoid uses a moulded plug for the start terminal; for applications requiring a standard blade terminal, use the MXS340 instead.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. MXS2058
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 1.4kW
Number of Teeth 10
Rotation CW (Clockwise)
Suits Unit Make Mitsubishi
Flange Diameter 58mm
Mount Centres A 73mm
Mount Hole Diameter 10mm
Mount Thickness 82mm
Overall Length 224mm
Pinion at Rest 9mm
Pinion Diameter 28mm
Starter Mount Type Pad
Wet / Dry Clutch Dry
Solenoid Terminal Moulded Plug
New / Reman. New
Weight 3.12kg

Compatible With

The MXS2058 is a Mitsubishi style 10 tooth starter motor with a moulded plug solenoid. If your application uses a standard blade terminal rather than a moulded plug, use the MXS340 instead. Confirm your original starter's specifications match before ordering.

Frequently Asked Questions

What terminal type does the MXS2058 use?

The MXS2058 solenoid has a moulded plug for the start terminal. For a standard blade terminal instead, use the MXS340.

What is the power rating of the MXS2058?

The MXS2058 has a 1.4kW power rating.

How many teeth does the MXS2058 pinion have?

The MXS2058 has a 10 tooth pinion with clockwise rotation.

What mounting type does the MXS2058 use?

The MXS2058 uses a pad mounting arrangement with an 82mm mount thickness and a dry clutch design.

Is the MXS2058 new or reconditioned?

The MXS2058 is supplied new.
