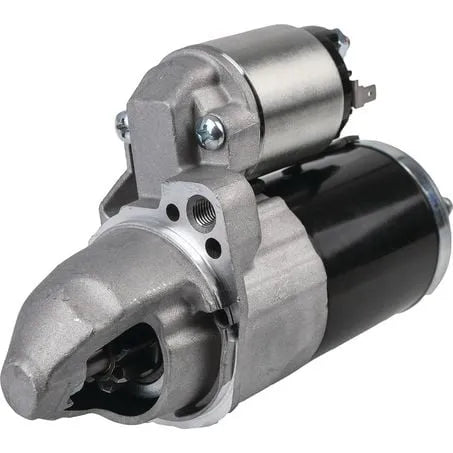

OEX MXS2035 Starter Motor 12V 8Th CW Mitsubishi Style
Click to open expanded view
OEX logo

OEX MXS2035 Starter Motor 12V 8Th CW Mitsubishi Style

SKU: MXS2035
Price
$365
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX MXS2035 Starter Motor 12V 8 Tooth CW Mitsubishi Style

The OEX MXS2035 is a new 12V starter motor with an 8 tooth clockwise rotation pinion, Mitsubishi style, delivering 1.4kW power output with a 2 hole dry clutch mount.

Product Overview

The MXS2035 is a new 12V Mitsubishi style starter motor from OEX, featuring an 8 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.4kW of power, the MXS2035 is built to a 70mm flange diameter with 94mm mounting centres and an overall length of 198mm.

Please confirm compatibility by OE number and physical dimensions before installation, as several similar 8 tooth Mitsubishi style units exist in the range with different flange diameters, mounting centres, and pinion at rest measurements.

Features & Benefits

1.4kW Power Rating: The 1.4kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

8 Tooth Pinion, Clockwise Rotation: The 8 tooth pinion with clockwise rotation must match the application exactly for correct fitment.

Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.

94mm Mounting Centres: The 94mm mounting centres distinguish this unit from other 8 tooth Mitsubishi style starters in the range, so confirm this dimension carefully.

2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. MXS2035
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 1.4kW
Number of Teeth 8
Rotation CW (Clockwise)
Suits Unit Make Mitsubishi
Flange Diameter 70mm
Mount Centres A 94mm
Mount Hole Diameter M10x1.25
Overall Length 198mm
Pinion at Rest 28mm
Pinion Diameter 28mm
Starter Mount Type 2 Hole
Wet / Dry Clutch Dry
New / Reman. New
Weight 2.88kg

Compatible With

The MXS2035 is a Mitsubishi style 8 tooth starter motor. Please confirm compatibility by OE number and physical dimensions before installation, as several similar 8 tooth Mitsubishi style units exist with different flange diameters, mounting centres, and pinion at rest measurements.

Frequently Asked Questions

How do I confirm the MXS2035 will fit my vehicle?

Please confirm compatibility by OE number and physical dimensions before installation, given the number of similar 8 tooth Mitsubishi style units in the range.

What is the power rating of the MXS2035?

The MXS2035 has a 1.4kW power rating.

How many teeth does the MXS2035 pinion have?

The MXS2035 has an 8 tooth pinion with clockwise rotation.

What mounting type does the MXS2035 use?

The MXS2035 uses a 2 hole mounting arrangement with a dry clutch design.

Is the MXS2035 new or reconditioned?

The MXS2035 is supplied new.
