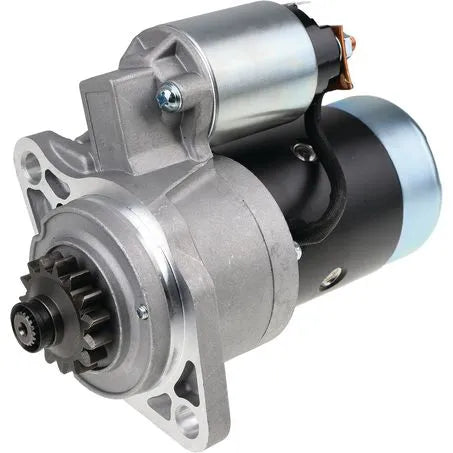

OEX MXS2018 Starter Motor 12V 15 Tooth CW Mitsubishi Style

The OEX MXS2018 is a new 12V starter motor with a 15 tooth clockwise rotation pinion, Mitsubishi style, delivering 1.6kW power output with a 2 hole dry clutch mount and a shorter body length.

Product Overview

The MXS2018 is a new 12V Mitsubishi style starter motor from OEX, featuring a 15 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.6kW of power, the MXS2018 is built to a 77mm flange diameter with an overall length of 227mm.

13 tooth and 15 tooth units are interchangeable, giving added flexibility when sourcing a replacement. The MXS2018 features a shorter body compared to other units in this range.

Features & Benefits

1.6kW Power Rating: The 1.6kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

15 Tooth Pinion, Clockwise Rotation: The 15 tooth pinion with clockwise rotation suits applications originally fitted with either a 13 or 15 tooth unit, as the two are interchangeable.

Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.

Shorter Body Length: The MXS2018 has a shorter body compared to other units in this tooth count and flange range, so confirm overall length matches your original starter.

2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. MXS2018
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 1.6kW
Number of Teeth 15
Rotation CW (Clockwise)
Suits Unit Make Mitsubishi
Flange Diameter 77mm
Mount Hole Diameter 10.5mm
Overall Length 227mm
Pinion at Rest 28mm
Pinion Diameter 45mm
Starter Mount Type 2 Hole
Wet / Dry Clutch Dry
New / Reman. New
Weight 4.56kg

Compatible With

The MXS2018 is a Mitsubishi style 15 tooth starter motor with a shorter body. 13 tooth and 15 tooth versions of this unit are interchangeable. Confirm your original starter's overall length matches before ordering.

Frequently Asked Questions

Can I use a 13 tooth unit instead of the 15 tooth MXS2018?

Yes. The 13 tooth and 15 tooth versions of this unit are interchangeable.

What makes the MXS2018 different from other similar units?

The MXS2018 has a shorter body compared to other units in this tooth count and flange range, so it's important to confirm overall length matches your original starter.

What is the power rating of the MXS2018?

The MXS2018 has a 1.6kW power rating.

How is the MXS2018 mounted?

The MXS2018 uses a 2 hole mounting arrangement with a dry clutch design.

Is the MXS2018 new or reconditioned?

The MXS2018 is supplied new.
