Product features

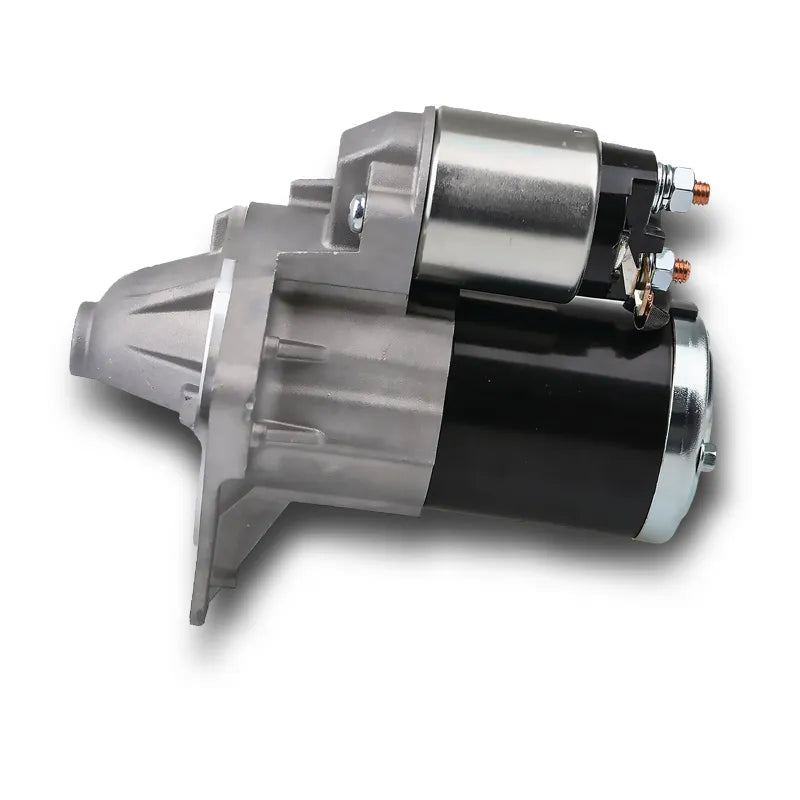

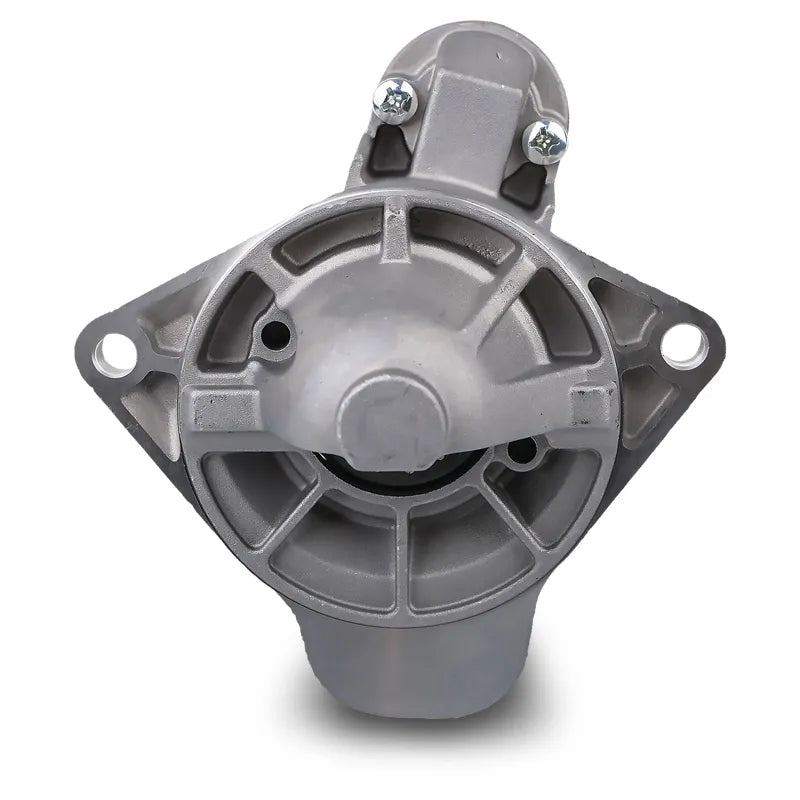

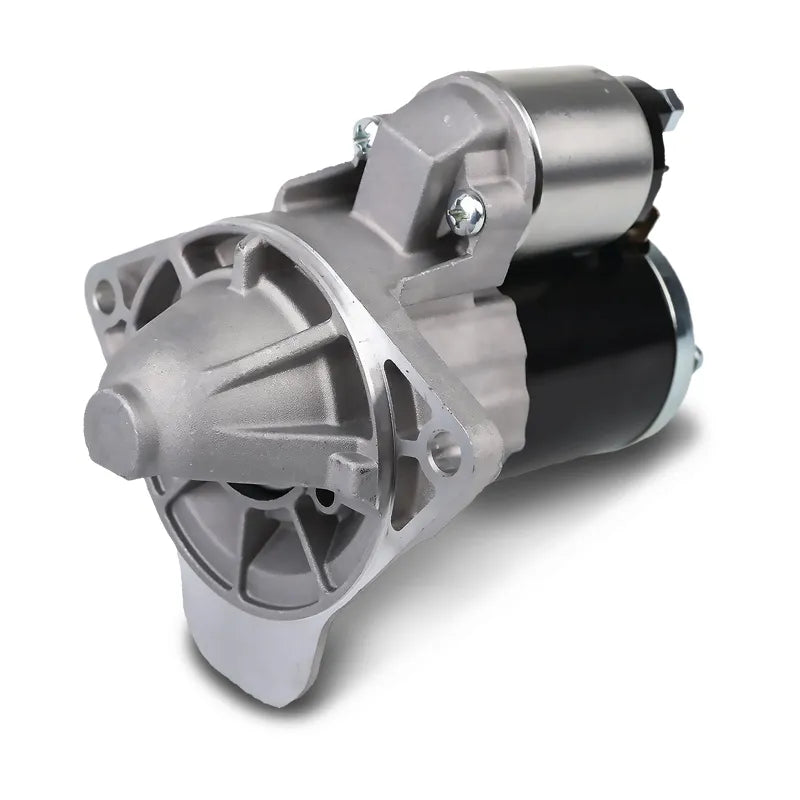

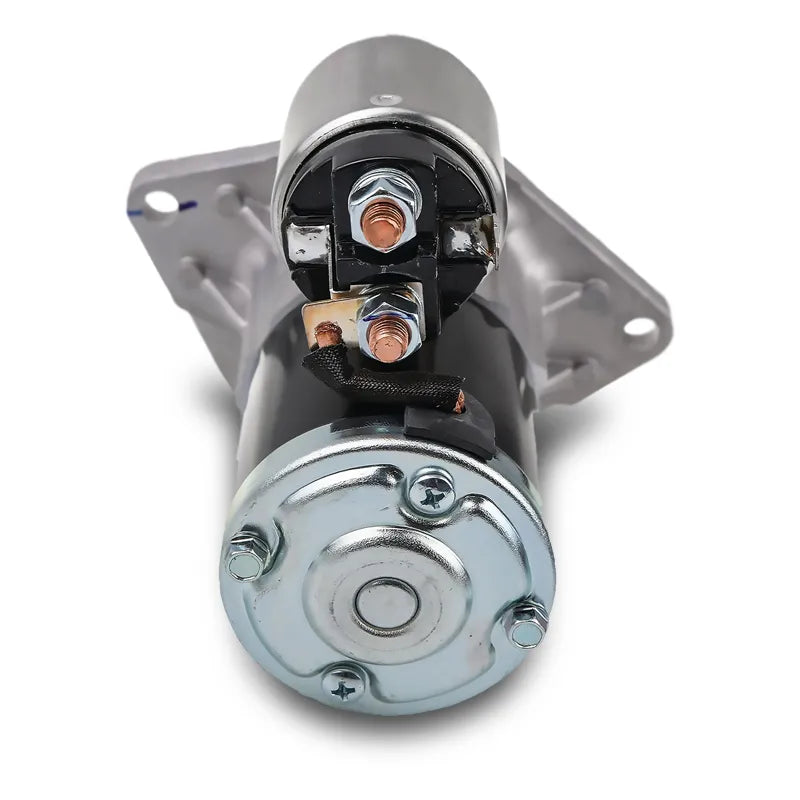

OEX MXS2004 Starter Motor 12V 13 Tooth CW Mitsubishi Style

The OEX MXS2004 is a new 12V starter motor with a 13 tooth clockwise rotation pinion, Mitsubishi style, delivering 1.4kW power output with a 2 hole dry clutch mount.

Product Overview

The MXS2004 is a new 12V Mitsubishi style starter motor from OEX, featuring a 13 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.4kW of power, the MXS2004 is built to a 103mm flange diameter with 134mm mounting centres and an overall length of 192mm.

The OEX brand is sourced from market leading original equipment manufacturers and aftermarket suppliers. OEX products are sourced from ISO certified factories, and each product is backed by a comprehensive nationwide warranty.

Features & Benefits

1.4kW Power Rating: The 1.4kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

13 Tooth Pinion, Clockwise Rotation: The 13 tooth pinion with clockwise rotation must match the application exactly for correct fitment.

Mitsubishi Style Design: Built to Mitsubishi style specifications for compatible fitment across applications originally equipped with a matching Mitsubishi unit.

Large 103mm Flange Diameter: The 103mm flange diameter is the largest among OEX's comparable Mitsubishi style starters, so confirm this dimension carefully against your original unit.

2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.

ISO Certified Manufacturing: Sourced from ISO certified factories, supporting consistent quality and reliability.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. MXS2004
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 1.4kW
Number of Teeth 13
Rotation CW (Clockwise)
Suits Unit Make Mitsubishi
Flange Diameter 103mm
Mount Centres A 134mm
Mount Hole Diameter 9mm
Overall Length 192mm
Pinion at Rest 14mm
Pinion Diameter 34mm
Starter Mount Type 2 Hole
Wet / Dry Clutch Dry
New / Reman. New
Weight 2.94kg

Compatible With

The MXS2004 is a Mitsubishi style 13 tooth starter motor with a large 103mm flange diameter. Confirm your original starter's mounting dimensions match before ordering.

Frequently Asked Questions

What is the power rating of the MXS2004?

The MXS2004 has a 1.4kW power rating.

How many teeth does the MXS2004 pinion have?

The MXS2004 has a 13 tooth pinion with clockwise rotation.

What is the flange diameter of the MXS2004?

The MXS2004 has a 103mm flange diameter, notably larger than most other units in OEX's Mitsubishi style starter range.

What mounting type does the MXS2004 use?

The MXS2004 uses a 2 hole mounting arrangement with a dry clutch design.

Is the MXS2004 new or reconditioned?

The MXS2004 is supplied new.
