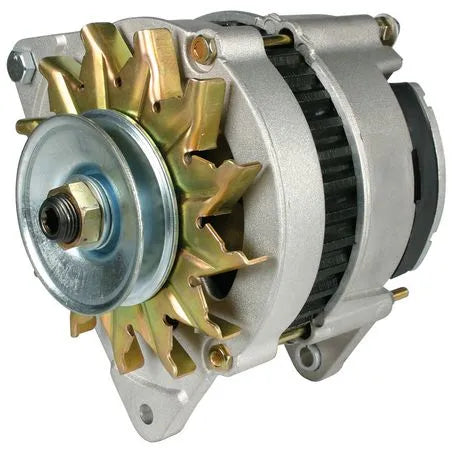

OEX LXA119 Alternator 12V 65A Lucas Style
Click to open expanded view
OEX logo

OEX LXA119 Alternator 12V 65A Lucas Style

SKU: LXA119
Price
$289
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX LXA119 Alternator 12V 65A Lucas Style

The OEX LXA119 is a new 12V 65A alternator, Lucas style, featuring an internal regulator, twin leg mount, an A section pulley, and a W terminal for tacho output.

Product Overview

The LXA119 is a new 12V Lucas style alternator from OEX, delivering 65A of output through an internal regulator. Built with a twin leg mount and a mount centre to centre distance of 148mm, the LXA119 features an A section pulley with a 64mm outside diameter.

This unit has a W terminal for tacho output, providing a signal for vehicles that rely on the alternator for tachometer function.

Features & Benefits

65A Output at 12V: Delivers 65A of charging output on a standard 12V electrical system.

W Terminal for Tacho Output: The W terminal provides a signal output for vehicles that rely on the alternator for tachometer function.

Internal Regulator: An internal regulator keeps the charging system compact without needing a separate external regulator unit.

Twin Leg Mount: The twin leg mounting arrangement matches the original Lucas style fitment for straightforward installation.

A Section Pulley: The A section pulley at 64mm outside diameter suits the specified fitment applications.

Lucas Style Design: Built to Lucas style specifications for compatible fitment across applications originally equipped with a matching Lucas unit.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. LXA119
Brand OEX
Type Alternator
Voltage 12V
Power Rating 65A
Regulator Type Internal
Suits Unit Make Lucas
Alternator Mount Twin Leg
Mount Cnt to Cnt 148mm
Inside Mounting Legs 83mm
Adjusting Hole Diameter M8x1.25
Pivot Hole Diameter 8mm
Pulley Outside Diameter 64mm
Pulley Section A
Pin Code IR165
New / Reman. New

Compatible With

The LXA119 is a Lucas style 12V 65A alternator with a twin leg mount and W terminal for tacho output. Confirm fitment against your original alternator's mounting dimensions and pin code (IR165) before ordering, especially if your application relies on the tacho signal.

Frequently Asked Questions

What is the W terminal used for?

The W terminal provides a tacho output signal, used by vehicles that rely on the alternator for tachometer function.

What voltage and output does the LXA119 provide?

The LXA119 is a 12V alternator delivering 65A of output.

What is the difference between the LXA119 and LXA837?

Both deliver 65A at 12V with a twin leg mount, but the LXA119 has a W terminal for tacho output and a smaller 64mm pulley, while the LXA837 has a 10mm sliding foot spacer and a larger 95mm pulley.

What pulley does the LXA119 use?

The LXA119 uses an A section pulley with a 64mm outside diameter.

Is the LXA119 new or reconditioned?

The LXA119 is supplied new.
