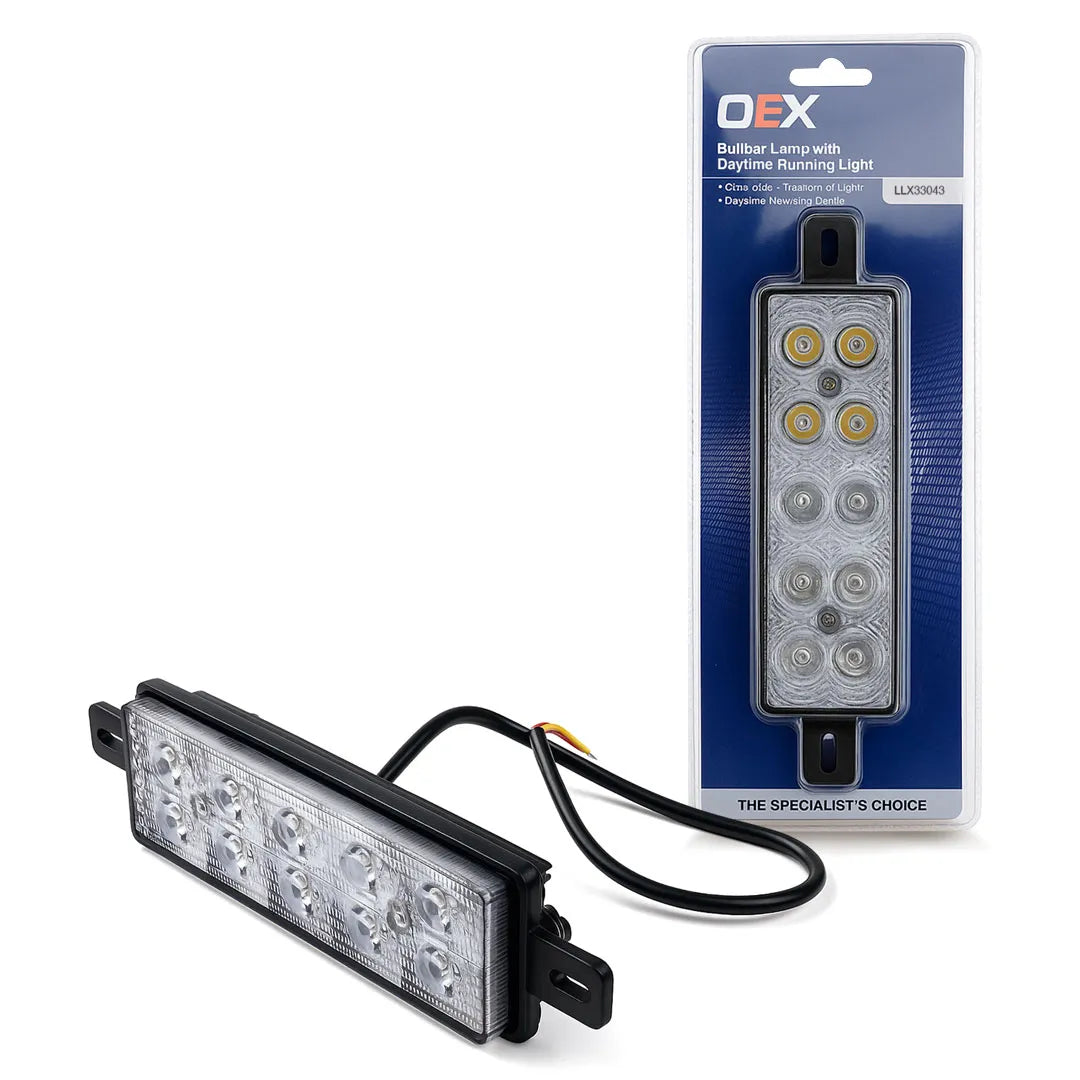

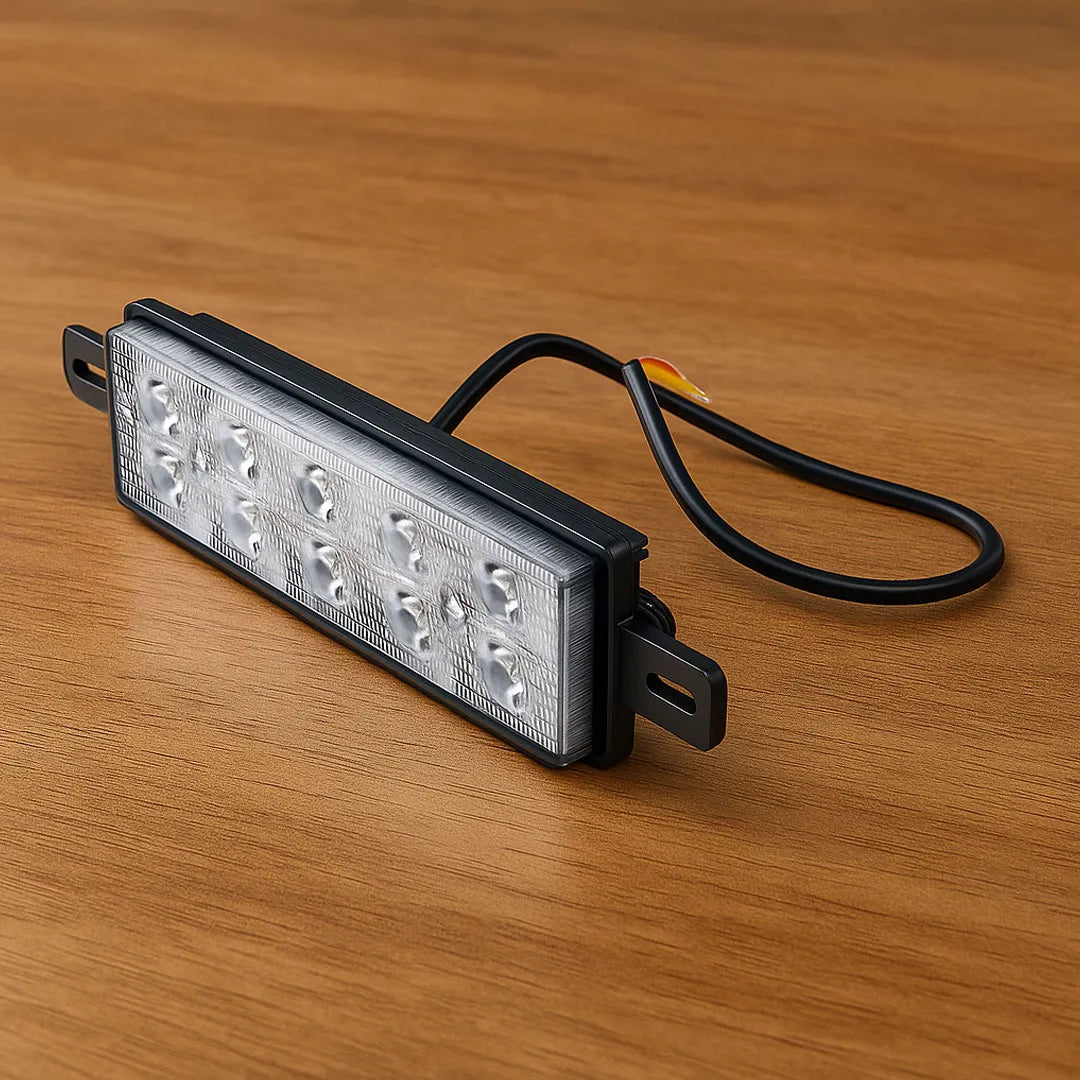

OEX LLX33043 LED Bull Bar Combination Lamp 12V/24V

The OEX LLX33043 is a 12V/24V LED bull bar combination lamp with front indicator, park light, and daytime running light (DRL), featuring a polycarbonate lens and ear or flush mounting.

Product Overview

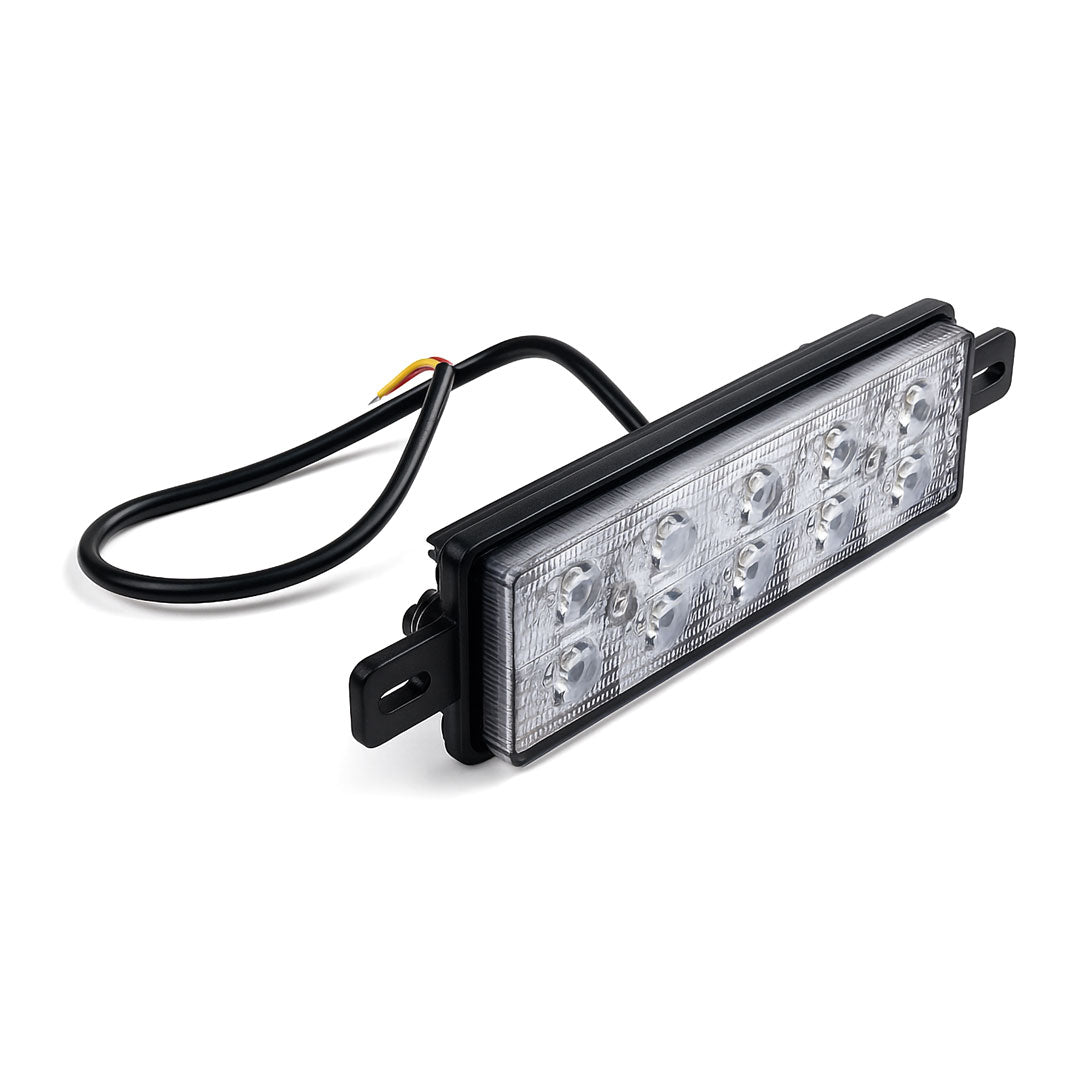

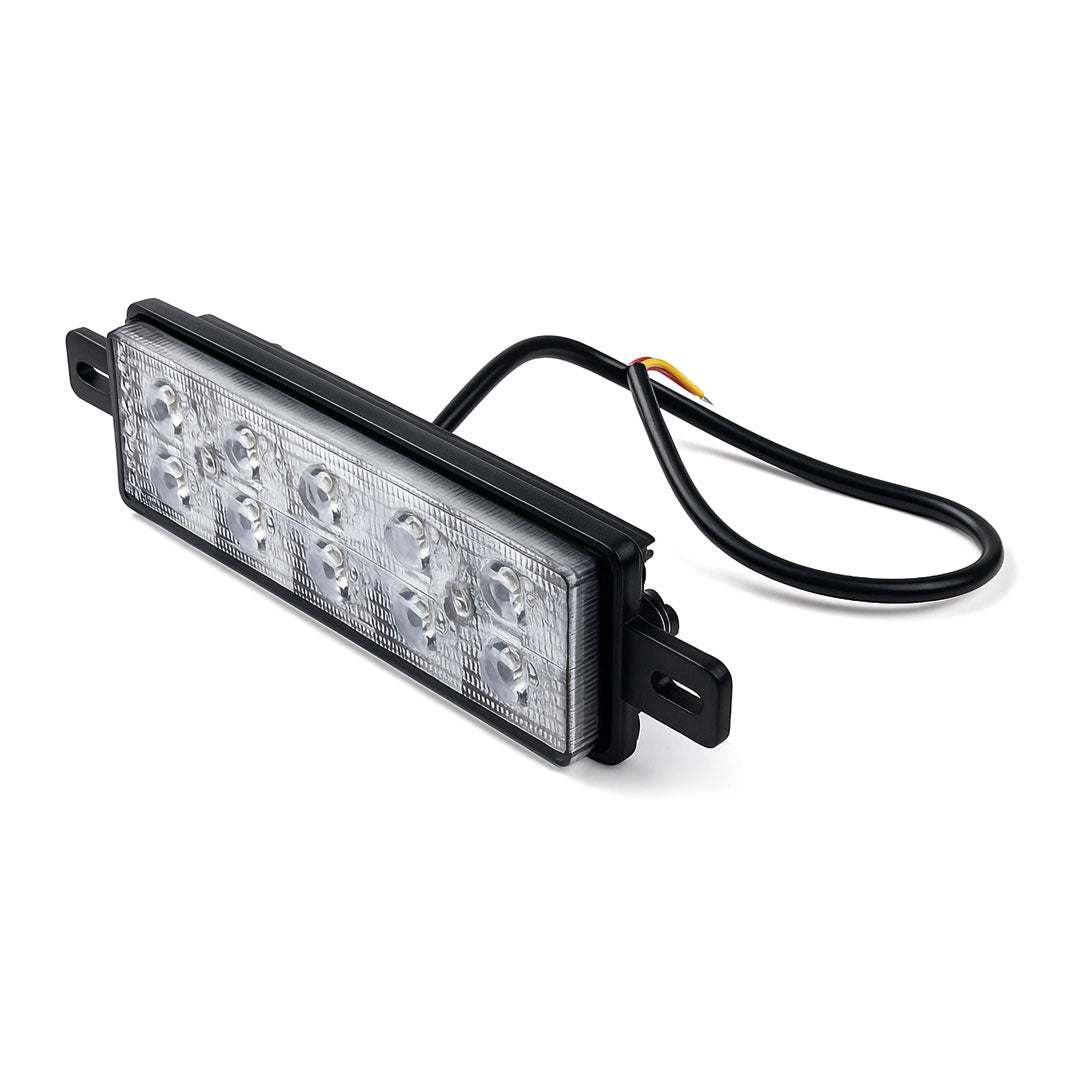

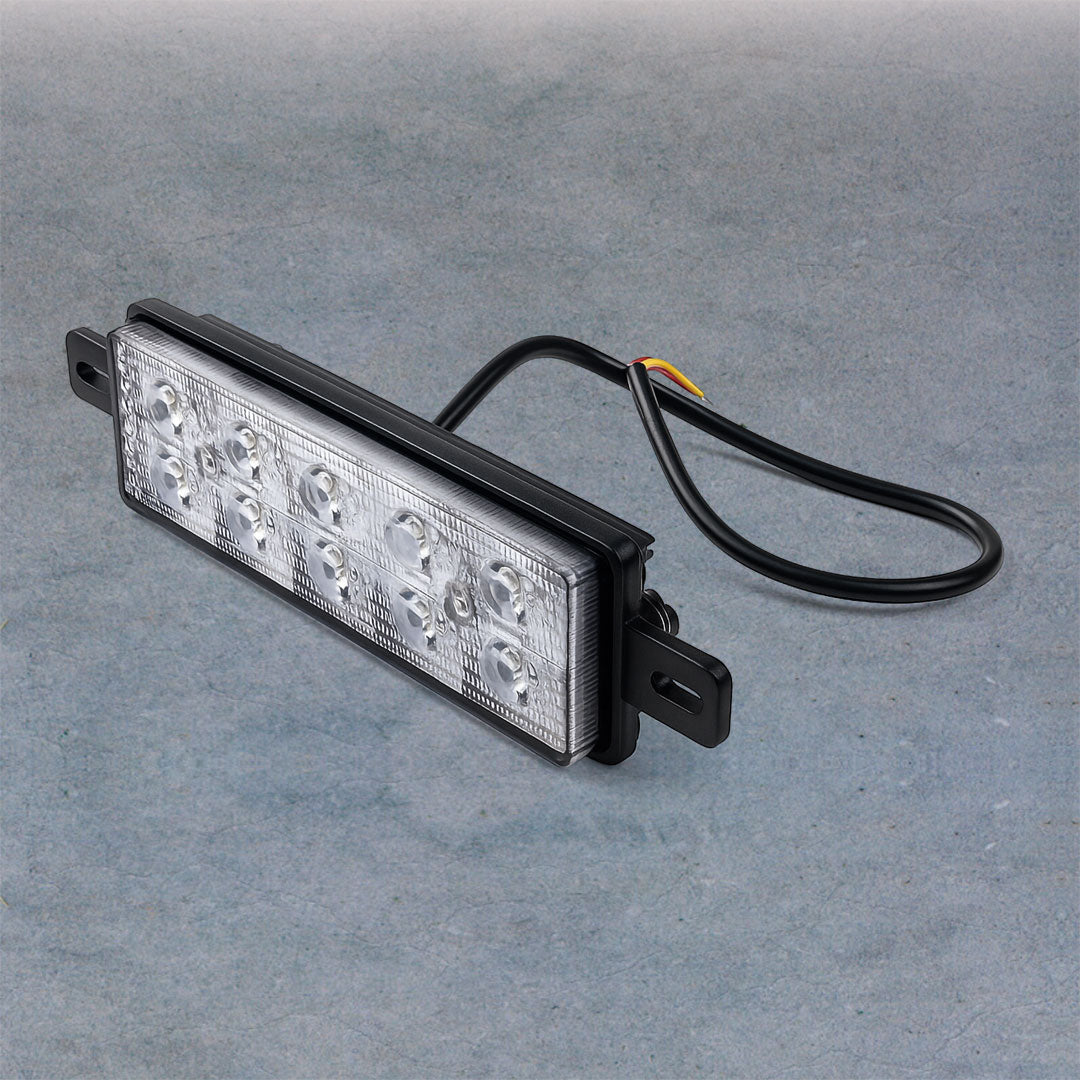

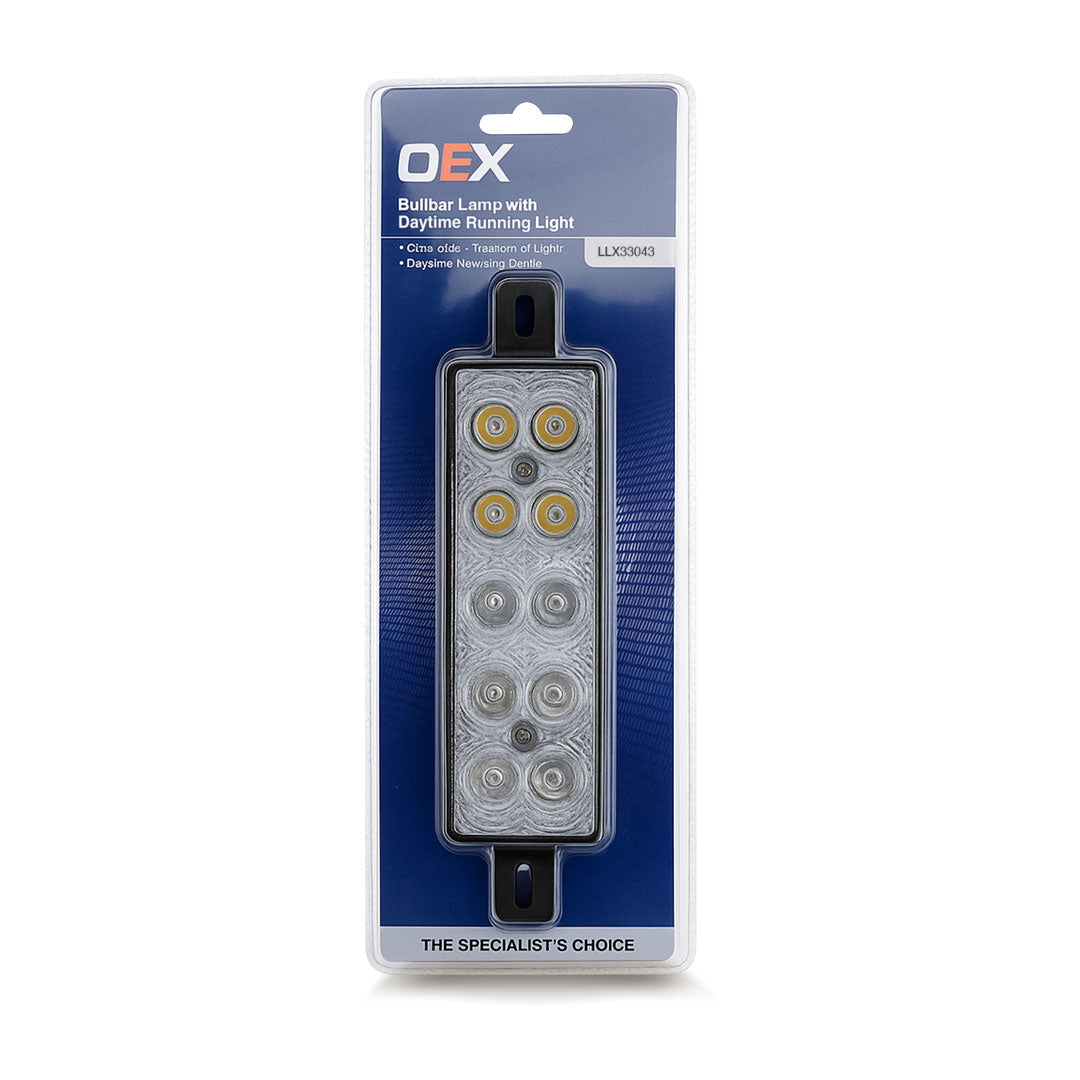

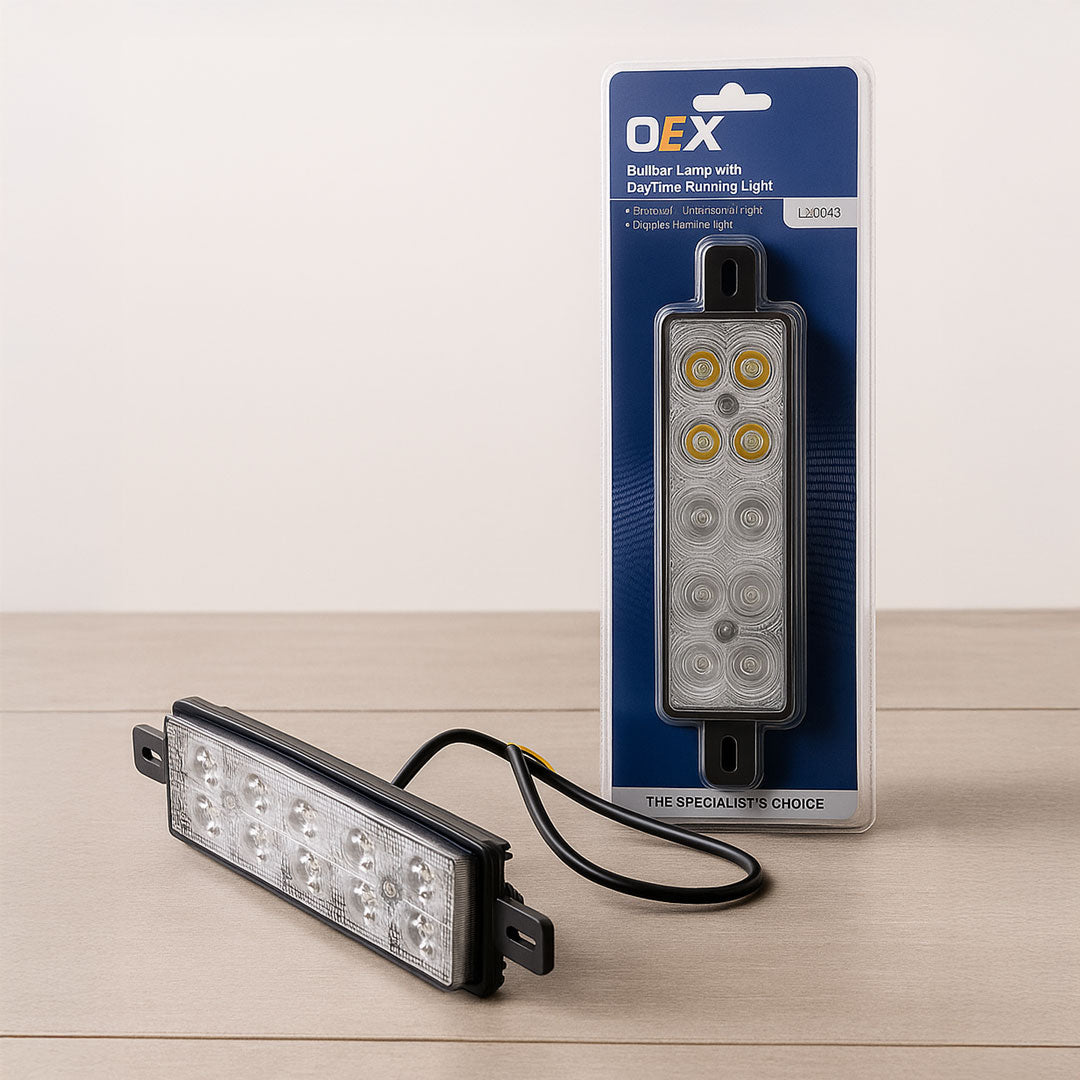

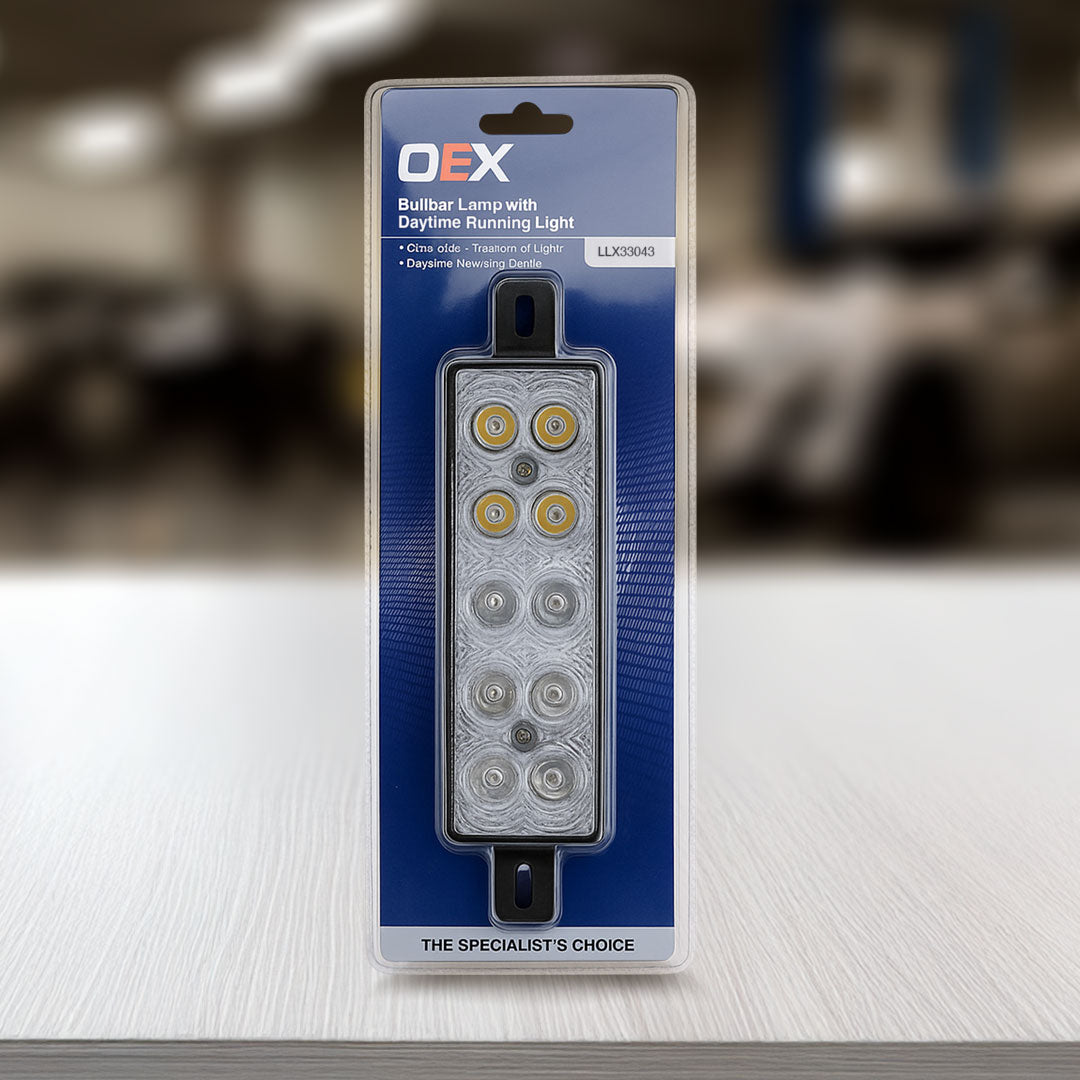

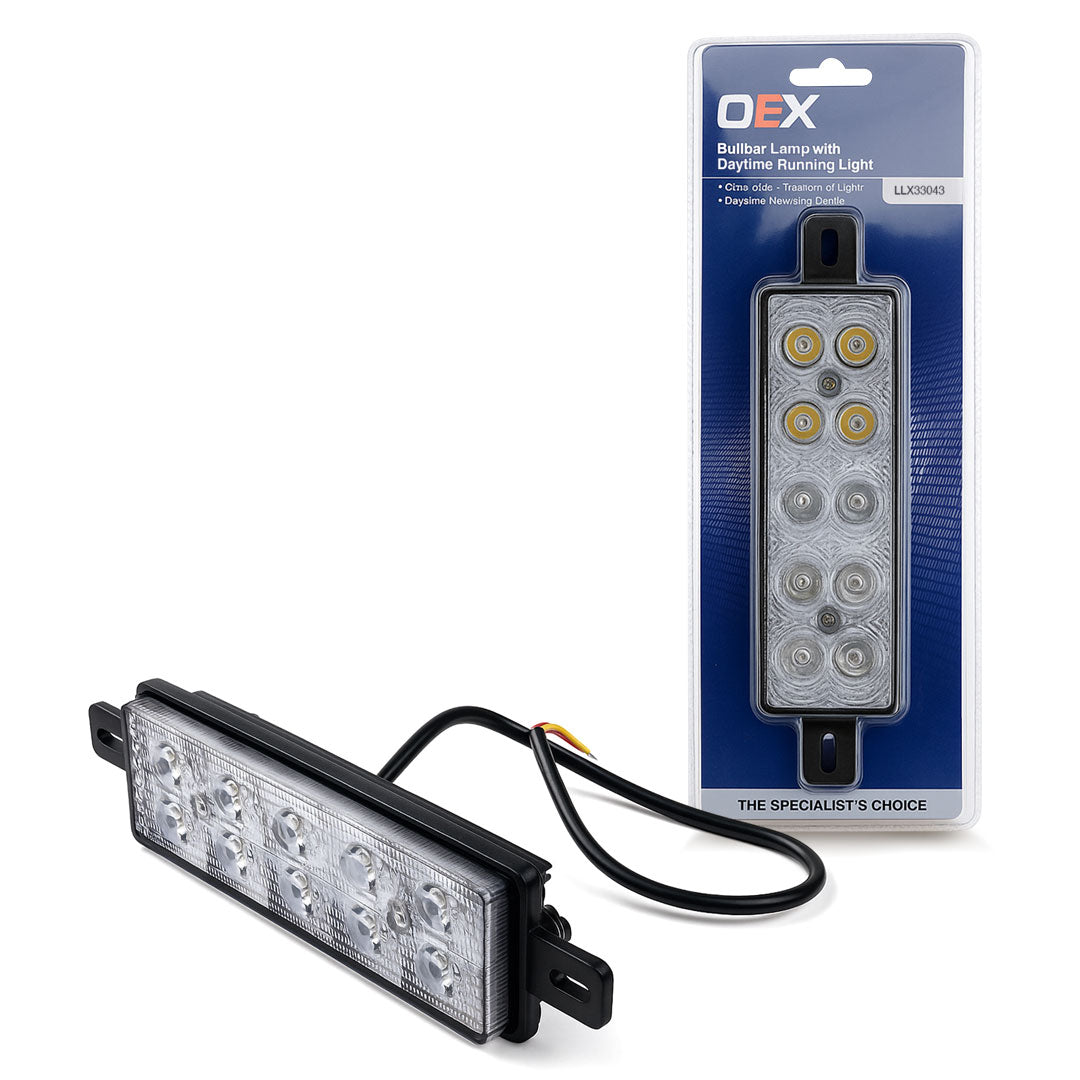

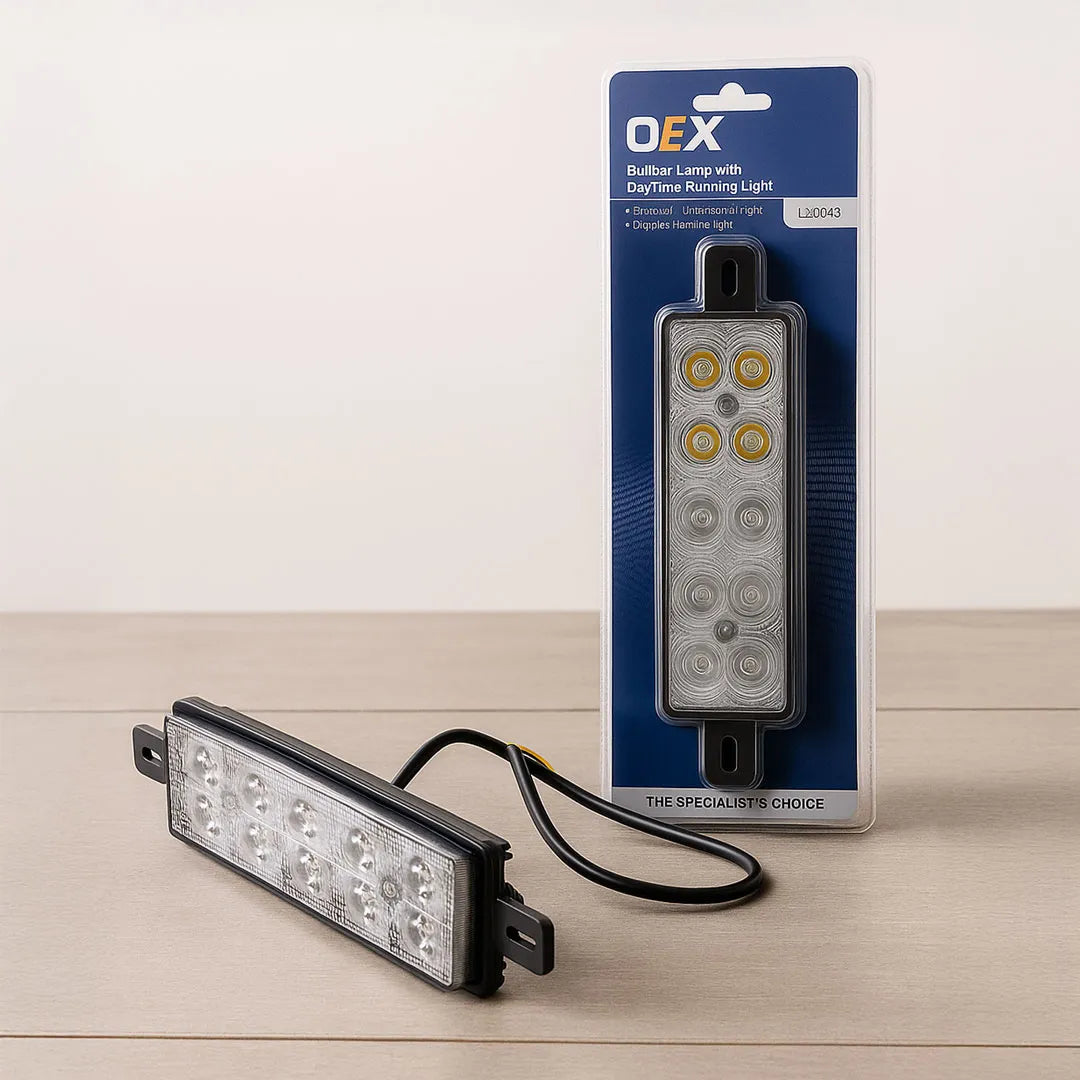

The LLX33043 is an OEX front bull bar LED combination lamp operating from 10 to 30V, combining a front indicator, park light, and daytime running light (DRL) in a single amber/clear fitting. Built with a polycarbonate lens and measuring 226 x 57 x 32mm, the LLX33043 is pre-wired for straightforward installation.

Wiring is colour coded: white for earth, yellow for indicator, brown for park light, and red for daytime running light (DRL). The lamp can be mounted with the ear bracket in place, or converted to a flush mount by removing the ear mount.

Features & Benefits

All-In-One Front Lamp: Combines a front indicator, park light, and daytime running light in a single fitting, simplifying bull bar wiring.

Wide 10-30V Voltage Range: Operating from 10 to 30V, the lamp suits both 12V and 24V vehicle electrical systems.

Clear Wiring Colour Code: Colour coded wiring (white-earth, yellow-indicator, brown-park light, red-DRL) simplifies correct installation.

Ear or Flush Mount: The lamp can be mounted with the ear bracket, or converted to a flush mount by removing the ear mount, suiting different bull bar designs.

Polycarbonate Lens: The polycarbonate lens provides impact resistance suited to the front of a vehicle.

Pre-Wired Connector: The pre-wired connector simplifies installation without additional wiring work.

ADR Compliant: Compliant with ADR 6/00 for the indicator, ADR 49/00 for the park light, and ADR 76/00 for the DRL.

Technical Specs

Specification Detail
Part No. LLX33043
Brand OEX
Description Front Bull Bar LED Combination Lamp, Front Indicator, Park Light, DRL
Voltage 10 to 30V
Colour Amber/Clear
Light Type LED
Size 226 x 57 x 32mm
Mount Centre to Centre 210mm
Lens Material Polycarbonate
Current Draw Indicator: 0.2A, Front: 0.01A @ 12V
Mounting Ear or Flush
Connector Pre-Wired
Compliance Indicator: ADR 6/00, Park: ADR 49/00, DRL: ADR 76/00
Weight 0.32kg

Compatible With

The LLX33043 suits 10 to 30V vehicle electrical systems, compatible with both 12V and 24V setups, and is designed for front bull bar mounting with either an ear or flush mount configuration.

Frequently Asked Questions

What functions does the LLX33043 combine?

The LLX33043 combines a front indicator, park light, and daytime running light (DRL) in a single fitting.

What does the wiring colour code mean?

White is earth, yellow is the indicator, brown is the park light, and red is the daytime running light (DRL).

How do I convert the lamp to a flush mount?

Simply remove the ear mount bracket to convert the lamp from ear mount to flush mount.

Does the LLX33043 suit both 12V and 24V vehicles?

Yes. The LLX33043 operates from 10 to 30V, suiting both 12V and 24V electrical systems.

Is the LLX33043 ADR compliant?

Yes. It's compliant with ADR 6/00 for the indicator, ADR 49/00 for the park light, and ADR 76/00 for the DRL.
