Product features

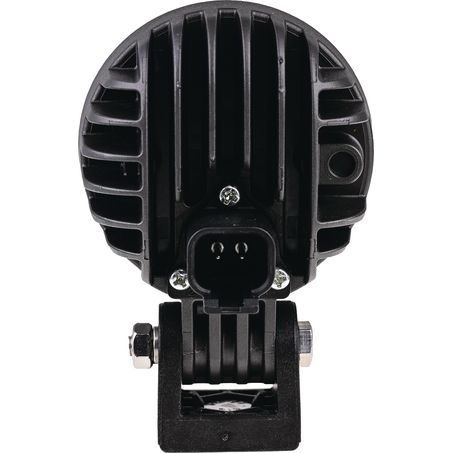

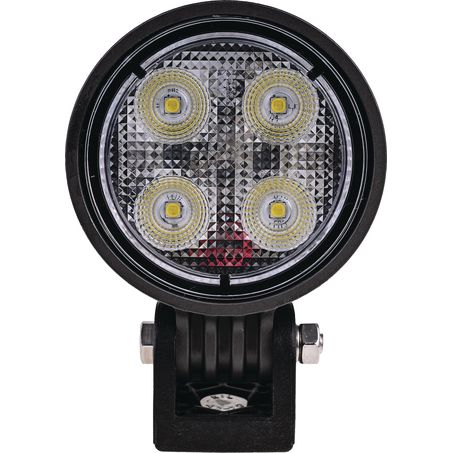

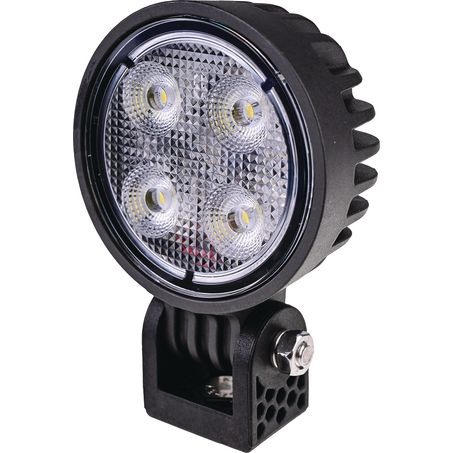

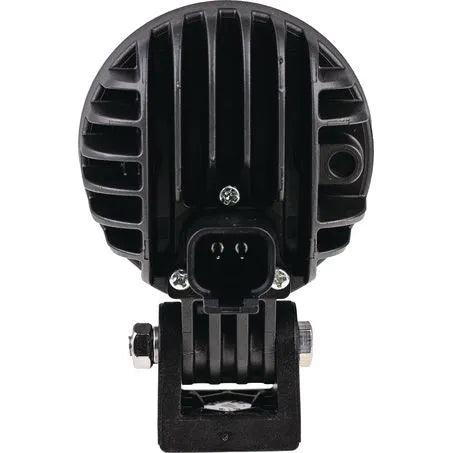

OEX LLX08309 4 LED Work Light Round Nylon Housing

The OEX LLX08309 is a 12W round LED work light with a flood beam pattern, delivering 1300 effective lumens with IP67/IP69K rating and 10-30V compatibility.

Product Overview

The LLX08309 is a 12W round LED work light from OEX, built with a thermal plastic body and polycarbonate lens. Featuring 4 x 3W LEDs in a flood beam pattern, the light delivers 1300 effective lumens, suited to a wide range of vehicle and equipment work light applications.

Rated IP67 and IP69K and compliant with ECE R148, the LLX08309 is built to withstand harsh conditions including dust, water immersion, and high-pressure washing. The light mounts via a single bolt and connects via a DT04-2P connector. Please note no wiring harness is supplied with this light.

Features & Benefits

1300 Effective Lumens: The 4 x 3W LED array delivers 1300 effective lumens through a flood beam pattern, suited to broad area illumination.

IP67 / IP69K Rated: Rated to both IP67 and IP69K, the light withstands dust, water immersion, and high-pressure, high-temperature washing.

ECE R148 Compliant: Compliant with the ECE R148 standard for signalling lamps.

Wide 10-30V Voltage Rating: Operating across a 10-30V range, the light suits both 12V and 24V vehicle electrical systems.

Thermal Plastic Body, Polycarbonate Lens: The thermal plastic body and polycarbonate lens provide a durable, impact-resistant build.

Single Bolt Mount: The single bolt mounting arrangement simplifies installation.

20G Vibration Rating: Rated to withstand 20G of vibration, suited to demanding vehicle and equipment applications.

Compact and Lightweight: At 97 x 71 x 49mm and just 0.22kg, the light is compact and easy to mount in tight spaces.

Technical Specs

Specification Detail
Part No. LLX08309
Brand OEX
Description 4 LED Work Light, Nylon Housing, Round
Shape Round
Wattage 12W
LEDs 4 x 3W
Light Output 1300 Effective Lumen
Beam Pattern Flood
Voltage 12V or 24V (10-30V Range)
Current Draw 0.9A @ 13V
Body Material Thermal Plastic
Lens Material Polycarbonate
Mounting Single Bolt
Connector DT04-2P (No Harness Supplied)
Environmental Rating IP67 / IP69K
Vibration Rating 20G
Compliance ECE R148
Size 97 x 71 x 49mm
Weight 0.22kg

Compatible With

The LLX08309 suits 10-30V vehicle and equipment electrical systems, connecting via a DT04-2P connector. No wiring harness is supplied with this light, so a compatible harness will need to be sourced separately for installation.

Frequently Asked Questions

Does the LLX08309 include a wiring harness?

No. No wiring harness is supplied with the LLX08309, so a compatible harness will need to be sourced separately.

Is the LLX08309 waterproof?

Yes. The LLX08309 is rated IP67 and IP69K, withstanding dust, water immersion, and high-pressure, high-temperature washing.

What is the light output of the LLX08309?

The LLX08309 delivers 1300 effective lumens through a flood beam pattern.

Does the LLX08309 suit both 12V and 24V systems?

Yes. The LLX08309 operates across a 10-30V range, suiting both 12V and 24V vehicle electrical systems.

How is the LLX08309 mounted?

The LLX08309 mounts via a single bolt.
