Product features

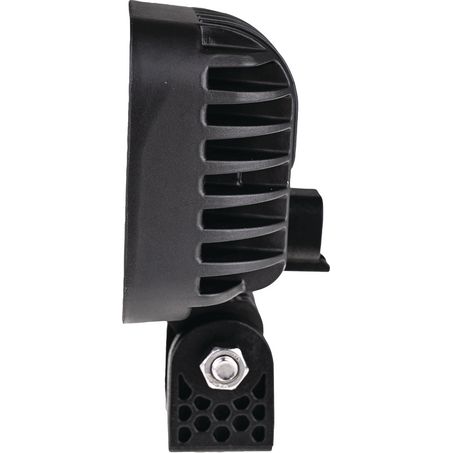

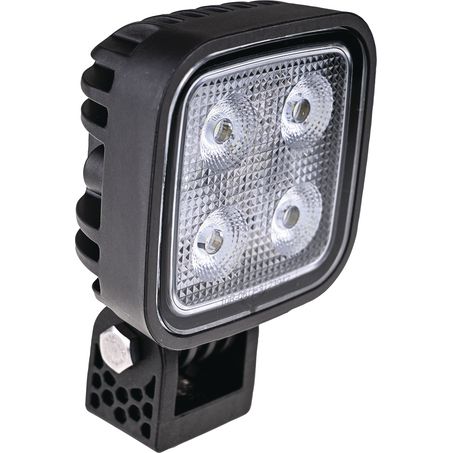

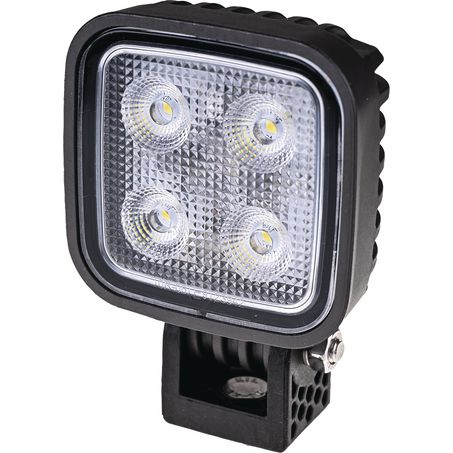

OEX LLX08308 4 LED Work Light Square Nylon Housing

The OEX LLX08308 is a 12W square LED work light with a flood beam pattern, delivering 1300 effective lumens with IP67/IP69K rating, CISPR 25 Class 3 compliance, and 10-30V compatibility.

Product Overview

The LLX08308 is a 12W square LED work light from OEX, built with a thermal plastic body and polycarbonate lens. Featuring 4 x 3W LEDs in a flood beam pattern, the light delivers 1300 effective lumens, suited to a wide range of vehicle and equipment work light applications.

Rated IP67 and IP69K and compliant with ECE R148 and CISPR 25 Class 3, the LLX08308 is built to withstand harsh conditions including dust, water immersion, and high-pressure washing, while meeting electromagnetic compatibility standards. The light mounts via a single bolt and connects via a DT04-2P connector.

Features & Benefits

1300 Effective Lumens: The 4 x 3W LED array delivers 1300 effective lumens through a flood beam pattern, suited to broad area illumination.

IP67 / IP69K Rated: Rated to both IP67 and IP69K, the light withstands dust, water immersion, and high-pressure, high-temperature washing.

ECE R148 and CISPR 25 Class 3 Compliant: Compliant with the ECE R148 signalling lamp standard and CISPR 25 Class 3 electromagnetic compatibility standard.

Wide 10-30V Voltage Rating: Operating across a 10-30V range, the light suits both 12V and 24V vehicle electrical systems.

Thermal Plastic Body, Polycarbonate Lens: The thermal plastic body and polycarbonate lens provide a durable, impact-resistant build.

Single Bolt Mount: The single bolt mounting arrangement simplifies installation.

20G Vibration Rating: Rated to withstand 20G of vibration, suited to demanding vehicle and equipment applications.

Compact and Lightweight: At 97 x 71 x 49mm and just 220g, the light is compact and easy to mount in tight spaces.

Technical Specs

Specification Detail
Part No. LLX08308
Brand OEX
Description 4 LED Work Light, Nylon Housing, Square
Shape Square
Wattage 12W
LEDs 4 x 3W
Light Output 1300 Effective Lumen
Beam Pattern Flood
Voltage 12V or 24V (10-30V Range)
Current Draw 0.9A @ 13V
Body Material Thermal Plastic
Lens Material Polycarbonate
Mounting Single Bolt

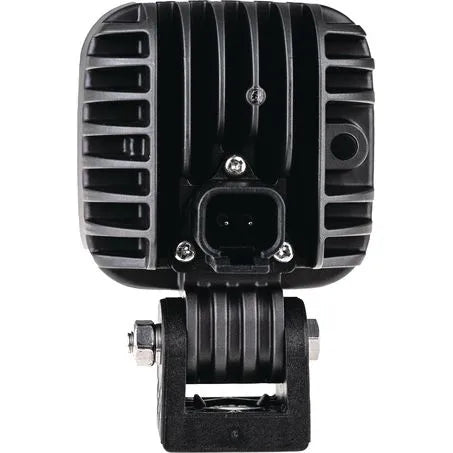

Connector DT04-2P
Environmental Rating IP67 / IP69K
Vibration Rating 20G
Compliance ECE R148, CISPR 25 Class 3
Size 97 x 71 x 49mm
Weight 0.22kg

Compatible With

The LLX08308 suits 10-30V vehicle and equipment electrical systems, connecting via a DT04-2P connector.

Frequently Asked Questions

What is the difference between the LLX08308 and LLX08309?

Both share identical specifications, but the LLX08308 has a square housing and CISPR 25 Class 3 compliance, while the LLX08309 has a round housing and no wiring harness is noted as supplied.

Is the LLX08308 waterproof?

Yes. The LLX08308 is rated IP67 and IP69K, withstanding dust, water immersion, and high-pressure, high-temperature washing.

What is the light output of the LLX08308?

The LLX08308 delivers 1300 effective lumens through a flood beam pattern.

Does the LLX08308 suit both 12V and 24V systems?

Yes. The LLX08308 operates across a 10-30V range, suiting both 12V and 24V vehicle electrical systems.

How is the LLX08308 mounted?

The LLX08308 mounts via a single bolt.
