OEX LLX08305 9LED Work Light Nylon Housing Square
OEX LLX08305 9LED Work Light Nylon Housing Square
OEX LLX08305 9LED Work Light Nylon Housing Square
OEX LLX08305 9LED Work Light Nylon Housing Square
Click to open expanded view
OEX logo

OEX LLX08305 9LED Work Light Nylon Housing Square

SKU: LLX08305
Price
$134
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

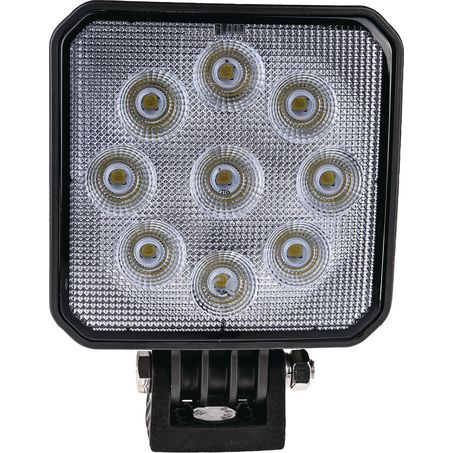

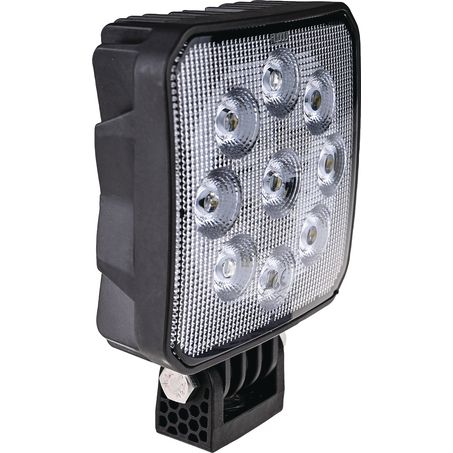

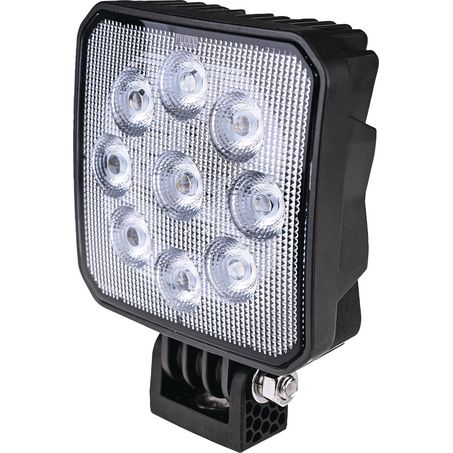

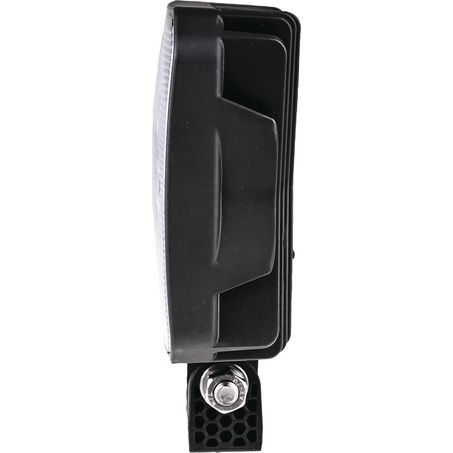

OEX LLX08305 9 LED Work Light Square Nylon Housing

The OEX LLX08305 is a 36W square LED work light with a flood beam pattern, delivering 3650 effective lumens with IP67/IP69K rating, CISPR 25 Class 3 compliance, and 10-30V compatibility.

Product Overview

The LLX08305 is a 36W square LED work light from OEX, built with a thermal plastic body and polycarbonate lens. Featuring 9 x 4W LEDs in a flood beam pattern, the light delivers a strong 3650 effective lumens, suited to applications needing maximum output from a bolt-on work light.

Rated IP67 and IP69K and compliant with CISPR 25 Class 3, the LLX08305 is built to withstand harsh conditions including dust, water immersion, and high-pressure washing, while meeting electromagnetic compatibility standards. The light mounts via a single bolt and connects via a DT04-2P connector.

Features & Benefits

3650 Effective Lumens: The 9 x 4W LED array delivers a strong 3650 effective lumens through a flood beam pattern, the highest output in OEX's comparable work light range.

IP67 / IP69K Rated: Rated to both IP67 and IP69K, the light withstands dust, water immersion, and high-pressure, high-temperature washing.

CISPR 25 Class 3 Compliant: Compliant with the CISPR 25 Class 3 electromagnetic compatibility standard.

Wide 10-30V Voltage Rating: Operating across a 10-30V range, the light suits both 12V and 24V vehicle electrical systems.

Thermal Plastic Body, Polycarbonate Lens: The thermal plastic body and polycarbonate lens provide a durable, impact-resistant build.

Single Bolt Mount: The single bolt mounting arrangement simplifies installation.

20G Vibration Rating: Rated to withstand 20G of vibration, suited to demanding vehicle and equipment applications.

Technical Specs

Specification Detail
Part No. LLX08305
Brand OEX
Description 9 LED Work Light, Nylon Housing, Square
Shape Square
Wattage 36W
LEDs 9 x 4W
Light Output 3650 Effective Lumen
Beam Pattern Flood
Voltage 12V or 24V (10-30V Range)
Current Draw 2.6A @ 13V
Body Material Thermal Plastic
Lens Material Polycarbonate
Mounting Single Bolt
Connector DT04-2P
Environmental Rating IP67 / IP69K
Vibration Rating 20G
Compliance CISPR 25 Class 3
Size 146 x 110 x 47mm
Weight 0.38kg

Compatible With

The LLX08305 suits 10-30V vehicle and equipment electrical systems, connecting via a DT04-2P connector.

Frequently Asked Questions

What is the light output of the LLX08305?

The LLX08305 delivers 3650 effective lumens through a flood beam pattern, the highest output among OEX's comparable work lights.

Is the LLX08305 waterproof?

Yes. The LLX08305 is rated IP67 and IP69K, withstanding dust, water immersion, and high-pressure, high-temperature washing.

Does the LLX08305 suit both 12V and 24V systems?

Yes. The LLX08305 operates across a 10-30V range, suiting both 12V and 24V vehicle electrical systems.

How is the LLX08305 mounted?

The LLX08305 mounts via a single bolt.

What connector does the LLX08305 use?

The LLX08305 uses a DT04-2P connector.
