OEX LLX08208 12/24V 4 CREE LED Square Flood Work Light
Click to open expanded view
OEX logo

OEX LLX08208 12/24V 4 CREE LED Square Flood Work Light

SKU: LLX08208
Price
$78
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

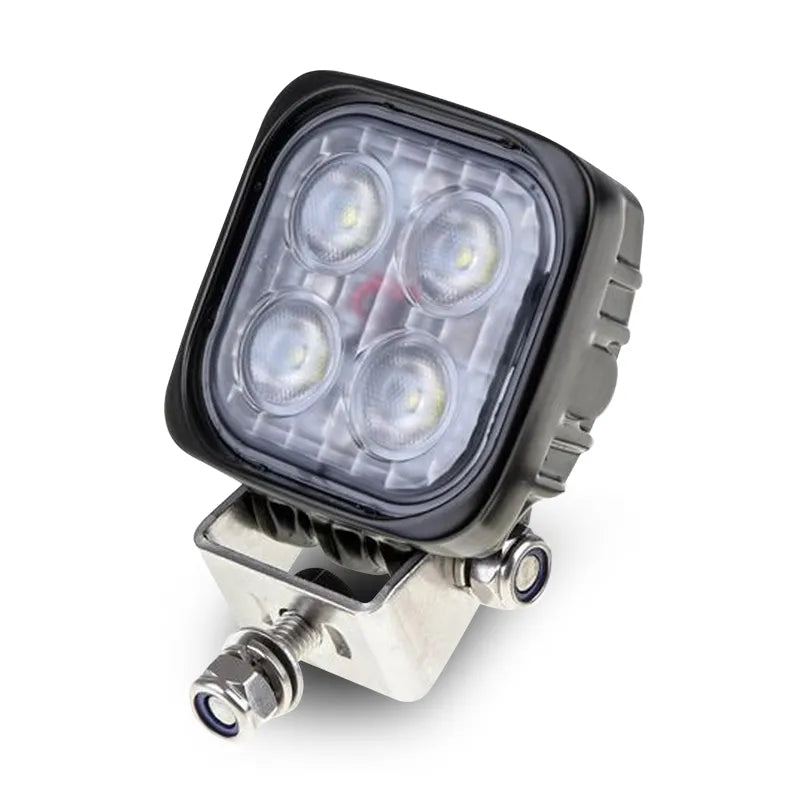

OEX LLX08208 4 Cree LED Square Flood Work Light

The OEX LLX08208 is a 12V/24V square LED flood work light with 4 Cree LEDs, delivering 1081 lumens with an aluminium body, pedestal mount, and IP67 rating.

Product Overview

The LLX08208 is a 12V/24V LED flood work light from OEX, built with an aluminium body and polycarbonate lens. Featuring 4 x 3 watt Cree LEDs in a flood beam pattern, the light delivers 1081 lumens, suited to vehicle and equipment work light applications.

Rated IP67 and CISPR25 compliant, the LLX08208 is built to withstand dust and water immersion. The light mounts via a pedestal mount and connects via a 2 wire connection.

Features & Benefits

4 Cree LEDs: The 4 x 3 watt Cree LED array delivers 1081 lumens through a flood beam pattern, using a well-regarded LED brand for consistent performance.

IP67 Rated: Rated IP67, the light withstands dust and water immersion suited to demanding vehicle and equipment environments.

CISPR25 Rated: Compliant with the CISPR25 electromagnetic compatibility standard.

12V/24V Compatible: Draws 1.0A at 12V or 0.5A at 24V, suiting both vehicle electrical systems.

Aluminium Body: The aluminium body construction supports heat dissipation and durability over long-term use.

Pedestal Mount: The pedestal mounting arrangement suits applications requiring the light to be raised from the mounting surface.

Compact Size: At 91 x 70 x 41.5mm and 0.34kg, the light is compact and easy to fit in tighter mounting locations.

Technical Specs

Specification Detail
Part No. LLX08208
Brand OEX
Description 4 Cree LED Square Flood Work Light, 12V/24V
Shape Rectangle
LEDs 4 x 3W Cree LEDs
Light Output 1081 Lumens
Beam Pattern Flood
Voltage 12V or 24V
Current Draw 1.0A @ 12V, 0.5A @ 24V
Body Material Aluminium
Lens Material Polycarbonate
Mounting Pedestal
Connector 2 Wires
Environmental Rating IP67
Size 91 x 70 x 41.5mm
Weight 0.34kg

Compatible With

The LLX08208 suits 12V and 24V vehicle and equipment electrical systems, connecting via a 2 wire connection.

Frequently Asked Questions

What is the light output of the LLX08208?

The LLX08208 delivers 1081 lumens through a flood beam pattern using 4 Cree LEDs.

Is the LLX08208 waterproof?

Yes. The LLX08208 is rated IP67, withstanding dust and water immersion.

Does the LLX08208 suit both 12V and 24V systems?

Yes. The LLX08208 draws 1.0A at 12V or 0.5A at 24V, suiting both electrical systems.

How is the LLX08208 mounted?

The LLX08208 uses a pedestal mount.

What material is the LLX08208 body made from?

The LLX08208 has an aluminium body with a polycarbonate lens.
