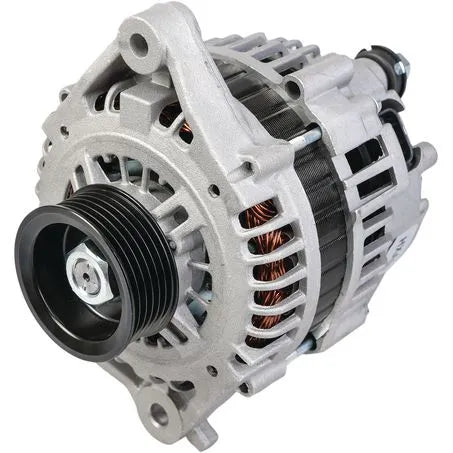

OEX HXA069 Alternator 12V 90A Hitachi Style
Click to open expanded view
OEX logo

OEX HXA069 Alternator 12V 90A Hitachi Style

SKU: HXA069
Price
$408
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX HXA069 Alternator 12V 90A Hitachi Style

The OEX HXA069 is a new 12V 90A alternator, Hitachi style, featuring an internal regulator, twin leg mount, and a 6 groove pulley.

Product Overview

The HXA069 is a new 12V Hitachi style alternator from OEX, delivering 90A of output through an internal regulator. Built with a twin leg mount and a mount centre to centre distance of 168mm, the HXA069 features a 6 groove pulley with a 60mm outside diameter and a 17mm shaft dimension.

Features & Benefits

90A Output at 12V: Delivers 90A of charging output on a standard 12V electrical system.

Internal Regulator: An internal regulator keeps the charging system compact without needing a separate external regulator unit.

Twin Leg Mount: The twin leg mounting arrangement matches the original Hitachi style fitment for straightforward installation.

6 Groove Pulley: The 6 groove pulley at 60mm outside diameter suits the specified fitment applications.

Hitachi Style Design: Built to Hitachi style specifications for compatible fitment across applications originally equipped with a matching Hitachi unit.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. HXA069
Brand OEX
Type Alternator
Voltage 12V
Power Rating 90A
Regulator Type Internal
Suits Unit Make Hitachi
Alternator Mount Twin Leg
Mount Cnt to Cnt 168mm
Inside Mounting Legs 80mm
Adjusting Hole Diameter M8x1.25
Pivot Hole Diameter 10mm
Pulley Outside Diameter 60mm
Pulley Section 6 Groove
Pin Code IR49
Shaft Dimension 17mm
New / Reman. New
Weight 4.8kg

Compatible With

The HXA069 is a Hitachi style 12V 90A alternator with a twin leg mount and 168mm mounting centre to centre distance. Confirm fitment against your original alternator's mounting dimensions and pin code (IR49) before ordering.

Frequently Asked Questions

What voltage and output does the HXA069 provide?

The HXA069 is a 12V alternator delivering 90A of output.

What type of regulator does the HXA069 use?

The HXA069 uses an internal regulator.

How is the HXA069 mounted?

The HXA069 uses a twin leg mount with a 168mm mounting centre to centre distance.

What pulley does the HXA069 use?

The HXA069 uses a 6 groove pulley with a 60mm outside diameter.

Is the HXA069 new or reconditioned?

The HXA069 is supplied new.
