OEX GLX08H4V2 H4 LED Headlight Bulb 12/24V V2 H4 3600Lm 6000K 2 Pce
OEX GLX08H4V2 H4 LED Headlight Bulb 12/24V V2 H4 3600Lm 6000K 2 Pce
OEX GLX08H4V2 H4 LED Headlight Bulb 12/24V V2 H4 3600Lm 6000K 2 Pce
OEX GLX08H4V2 H4 LED Headlight Bulb 12/24V V2 H4 3600Lm 6000K 2 Pce
Click to open expanded view
OEX logo

OEX GLX08H4V2 H4 LED Headlight Bulb 12/24V V2 H4 3600Lm 6000K 2 Pce

SKU: GLX08H4V2
Price
$182
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX GLX08H4V2 H4 LED Headlight Upgrade Globes Pair

The OEX GLX08H4V2 is a 12/24V H4 LED headlight upgrade globe pair, delivering 3,600 lumens combined at 6000K, suitable for negative and positive switching, with an aluminium body heatsink for off-road use.

Product Overview

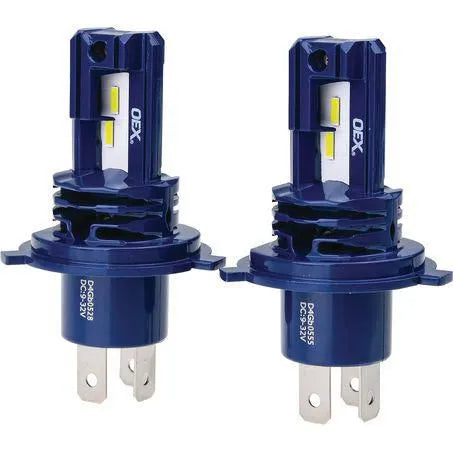

The GLX08H4V2 is a pair of V2 LED headlight upgrade globes from OEX, fitting H4 applications with a P43t-38 base and 3 terminal design to suit H4's dual filament high/low beam function. Delivering 3,600 lumens combined at a cool bright white 6000K colour temperature, these globes offer an easy LED upgrade from original halogen globes, designed for precision cut off and for off-road use.

Suitable for both negative and positive switching, the globes operate across a 12/24V range and feature an aluminium body heatsink, with an IP65 rating and operating temperature range of -40°C to +80°C.

Features & Benefits

3,600 Lumens Per Pair: High brightness LEDs deliver 3,600 lumens combined across the pair, a significant upgrade over standard halogen output.

12/24V Operation: Operating across both 12V and 24V, the globes suit a wide range of vehicle electrical systems.

Cool Bright White 6000K Colour Temperature: The 6000K colour temperature produces a cool, bright white light output.

Suitable for Negative and Positive Switching: Compatible with both negative and positive switching setups, giving broader vehicle compatibility.

Designed for Precision Cut Off: Engineered for a precision cut off, helping maintain a controlled beam pattern.

Easy Upgrade from Halogen: Designed as an easy LED upgrade of original halogen globes, without requiring housing modification.

Aluminium Body Heatsink: The aluminium body heatsink helps manage heat generated by the high brightness LEDs.

IP65 Rated: Rated IP65, the globes are protected against dust and water spray.

Wide Operating Temperature Range: Rated from -40°C to +80°C, suiting extreme off-road conditions.

Designed for Off-Road Use: Intended for off-road use.

Technical Specs

Specification Detail
Part No. GLX08H4V2
Brand OEX
Description H4 LED Headlight Bulb V2, 3600Lm, 6000K, 2 Pce
Globe Style H4
Globe Base P43t-38
Voltage 12/24V
Globe Type LED
Light Output 3,600 Lumens (Pair)
Colour Temperature 6000K
Height 81.9mm
Number of Terminals 3
Switching Negative and Positive Switching Compatible
Environmental Rating IP65
Operating Temperature Range -40°C to +80°C
Pack Quantity 2 (Pair)

Compatible With

The GLX08H4V2 is compatible with H4 fitment headlight housings using a P43t-38 base, operating across 12V and 24V systems, and works with both negative and positive switching. Designed for off-road use; confirm local road rules before fitting to a road-registered vehicle.

Frequently Asked Questions

What is the GLX08H4V2 used for?

The GLX08H4V2 is an LED headlight upgrade globe pair for H4 fitment applications, designed for off-road use as an easy upgrade from original halogen globes.

Why does the GLX08H4V2 have 3 terminals?

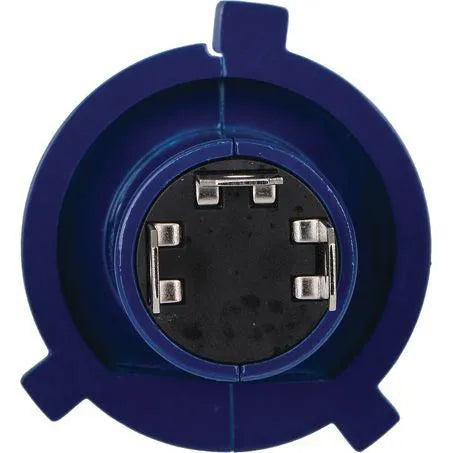

H4 is a dual filament globe covering both high and low beam, which requires a 3 terminal design, unlike single filament globes such as H7.

Does the GLX08H4V2 suit positive or negative switching vehicles?

Both. The GLX08H4V2 is suitable for negative and positive switching setups.

Is the GLX08H4V2 suitable for road use?

The GLX08H4V2 is designed for off-road use. Check local road rules before fitting to a road-registered vehicle.

How many globes come in the pack?

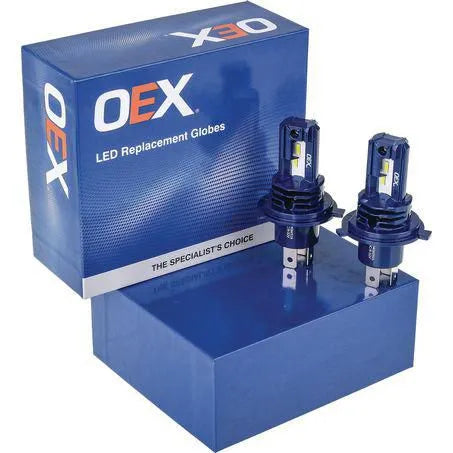

The GLX08H4V2 is supplied as a pair.
