Product features

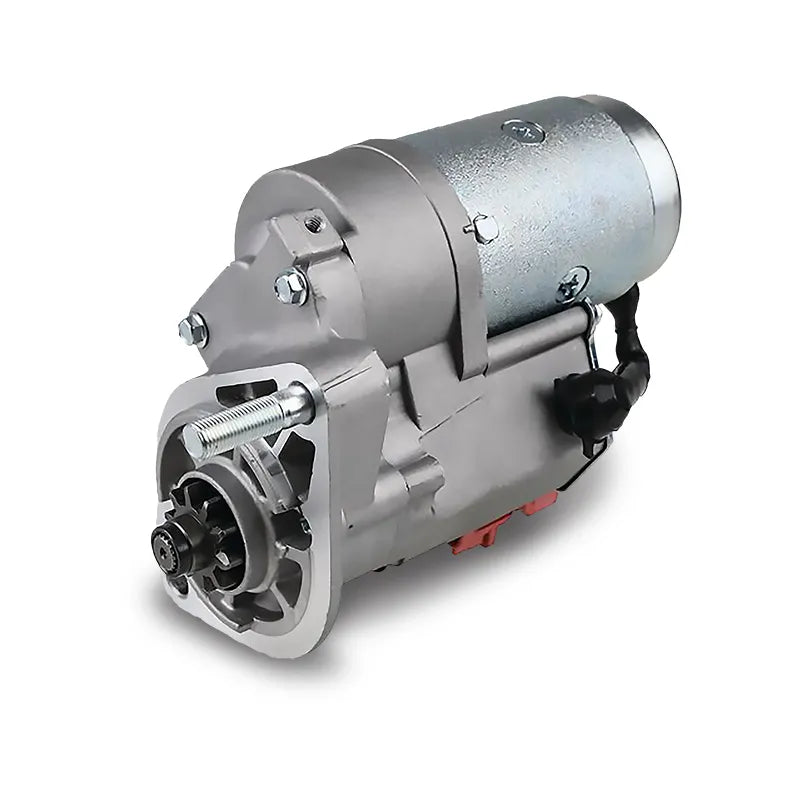

OEX DXS575 Starter Motor 12V 10 Tooth CW Denso Style

The OEX DXS575 is a new 12V starter motor with a 10 tooth clockwise rotation pinion, Denso style, delivering 2.2kW power output with a 2 hole dry clutch mount.

Product Overview

The DXS575 is a new 12V Denso style starter motor from OEX, featuring a 10 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 2.2kW of power, the DXS575 is built to an 82mm flange diameter with 130mm mounting centres and an overall length of 240mm.

The start wire terminal is suitable for both large and small harness connectors, giving flexible fitment. This unit is interchangeable with the 11 tooth version, and replaces the 2.7kW Denso starter despite its own 2.2kW rating.

Features & Benefits

2.2kW Power Rating: The 2.2kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

10 Tooth Pinion, Clockwise Rotation: The 10 tooth pinion with clockwise rotation must match the application exactly for correct fitment.

Denso Style Design: Built to Denso style specifications for compatible fitment across applications originally equipped with a matching Denso unit.

Universal Harness Connector Fitment: The start wire terminal suits both large and small harness connectors, simplifying installation across different applications.

Interchangeable with 11 Tooth Version: This 10 tooth unit is interchangeable with the 11 tooth version, giving added flexibility when sourcing a replacement.

Replaces 2.7kW Denso Starter: Despite its own 2.2kW rating, this unit replaces the higher rated 2.7kW Denso starter.

2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. DXS575
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 2.2kW
Number of Teeth 10
Rotation CW (Clockwise)
Suits Unit Make Denso
Flange Diameter 82mm
Mount Centres A 130mm
Mount Hole Diameter M12 / 14mm
Overall Length 240mm
Pinion at Rest 18mm
Pinion Diameter 38mm
Starter Mount Type 2 Hole
Wet / Dry Clutch Dry
New / Reman. New
Weight 5.9kg

Compatible With

The DXS575 is a Denso style 10 tooth starter motor, interchangeable with the 11 tooth version, and replaces the 2.7kW Denso starter. The start wire terminal suits both large and small harness connectors. Confirm your original starter's specifications match before ordering.

Frequently Asked Questions

Can I use an 11 tooth starter instead of the DXS575?

Yes. The DXS575 is interchangeable with the 11 tooth version.

Does the DXS575 replace a 2.7kW Denso starter?

Yes. Despite being rated at 2.2kW itself, the DXS575 replaces the 2.7kW Denso starter.

What harness connectors does the DXS575 support?

The start wire terminal is suitable for both large and small harness connectors.

What is the power rating of the DXS575?

The DXS575 has a 2.2kW power rating.

Is the DXS575 new or reconditioned?

The DXS575 is supplied new.
