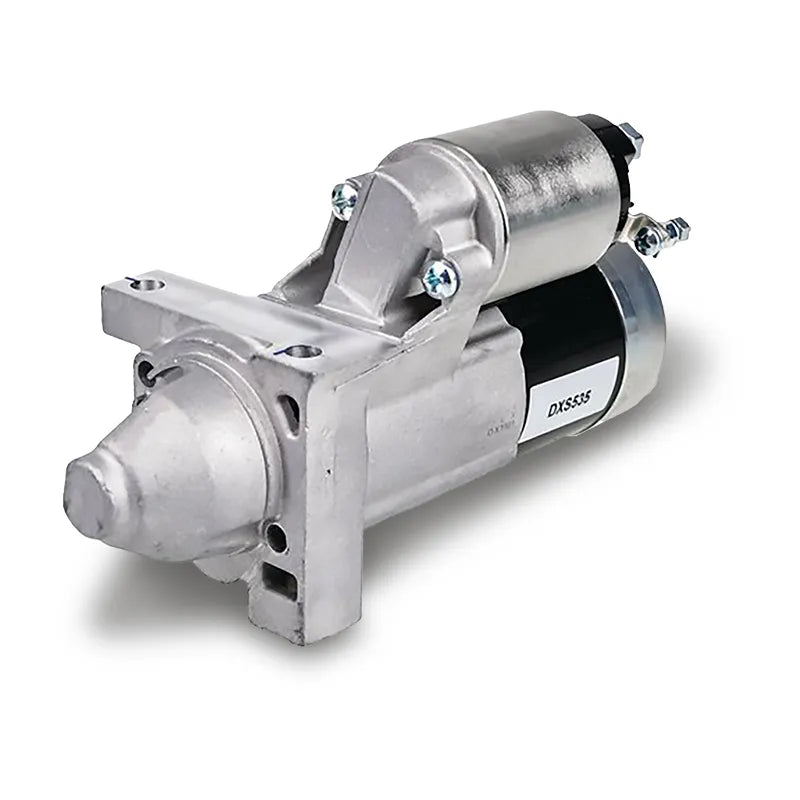

OEX DXS535 Starter Motor 12V 10Th CW Delco Style
Click to open expanded view
OEX logo

OEX DXS535 Starter Motor 12V 10Th CW Delco Style

SKU: DXS535
Price
$251
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX DXS535 Starter Motor 12V 10 Tooth CW Delco Style

The OEX DXS535 is a new 12V starter motor with a 10 tooth clockwise rotation pinion, Delco style, delivering 1.2kW power output with a pad mount.

Product Overview

The DXS535 is a new 12V Delco style starter motor from OEX, featuring a 10 tooth clockwise rotation pinion and a pad mounting arrangement. Delivering 1.2kW of power, the DXS535 is built to a 58mm flange diameter with 74mm mounting centres and an overall length of 226mm.

The OEX brand is sourced from market leading original equipment manufacturers and aftermarket suppliers. OEX products are sourced from ISO certified factories, and each product is backed by a comprehensive nationwide warranty.

Features & Benefits

1.2kW Power Rating: The 1.2kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

10 Tooth Pinion, Clockwise Rotation: The 10 tooth pinion with clockwise rotation must match the application exactly for correct fitment.

Delco Style Design: Built to Delco style specifications for compatible fitment across applications originally equipped with a matching Delco unit.

Pad Mount: The pad mounting arrangement with a dry clutch design suits the specified fitment applications.

ISO Certified Manufacturing: Sourced from ISO certified factories, supporting consistent quality and reliability.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. DXS535
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 1.2kW
Number of Teeth 10
Rotation CW (Clockwise)
Suits Unit Make Delco
Flange Diameter 58mm
Mount Centres A 74mm
Mount Hole Diameter 10mm
Overall Length 226mm
Pinion at Rest 11mm
Pinion Diameter 28mm
Starter Mount Type Pad
Wet / Dry Clutch Dry
New / Reman. New
Weight 3.72kg

Compatible With

The DXS535 is a Delco style 10 tooth starter motor. Confirm your original starter's specifications match before ordering.

Frequently Asked Questions

What is the power rating of the DXS535?

The DXS535 has a 1.2kW power rating.

How many teeth does the DXS535 pinion have?

The DXS535 has a 10 tooth pinion with clockwise rotation.

What mounting type does the DXS535 use?

The DXS535 uses a pad mounting arrangement with a dry clutch design.

Is the DXS535 new or reconditioned?

The DXS535 is supplied new.

What quality assurance backs the DXS535?

OEX products are sourced from ISO certified factories and backed by a comprehensive nationwide warranty.
