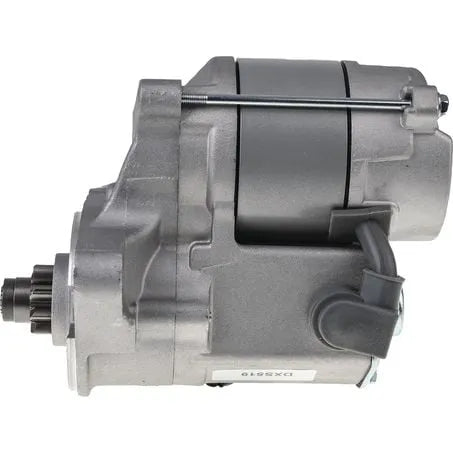

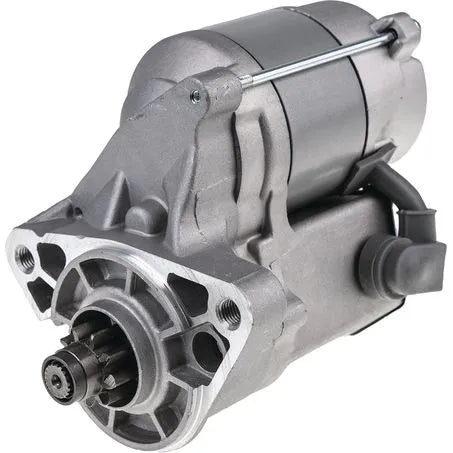

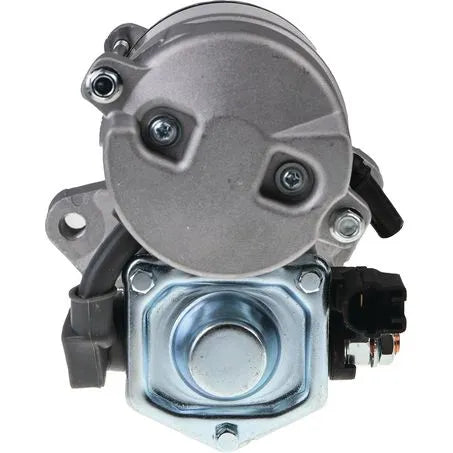

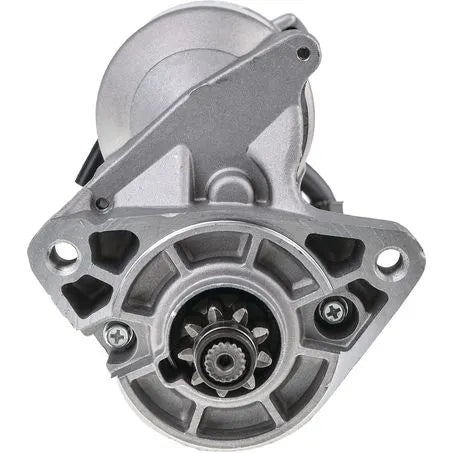

OEX DXS519 Starter Motor 12V 9Th CW Denso Style M10x1.25

SKU: DXS519
Price
$242
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX DXS519 Starter Motor 12V 9 Tooth CW Denso Style

The OEX DXS519 is a new 12V starter motor with a 9 tooth clockwise rotation pinion, Denso style, delivering 1.2kW power output with a compact 2 hole dry clutch mount.

Product Overview

The DXS519 is a new 12V Denso style starter motor from OEX, featuring a 9 tooth clockwise rotation pinion and a 2 hole dry clutch mounting arrangement. Delivering 1.2kW of power, the DXS519 is built to a 74mm flange diameter with 104mm mounting centres and a compact overall length of 180mm.

The OEX brand is sourced from market leading original equipment manufacturers and aftermarket suppliers. OEX products are sourced from ISO certified factories, and each product is backed by a comprehensive nationwide warranty.

Features & Benefits

1.2kW Power Rating: The 1.2kW power rating provides reliable cranking performance suited to the applications this starter is designed for.

9 Tooth Pinion, Clockwise Rotation: The 9 tooth pinion with clockwise rotation must match the application exactly for correct fitment.

Denso Style Design: Built to Denso style specifications for compatible fitment across applications originally equipped with a matching Denso unit.

Compact 180mm Length: At just 180mm overall length, the DXS519 is the shortest unit in OEX's comparable Denso style starter range.

2 Hole Dry Clutch Mount: The 2 hole mounting arrangement with a dry clutch design suits the specified fitment applications.

ISO Certified Manufacturing: Sourced from ISO certified factories, supporting consistent quality and reliability.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. DXS519
Brand OEX
Type Starter Motor
Voltage 12V
Power Rating 1.2kW
Number of Teeth 9
Rotation CW (Clockwise)
Suits Unit Make Denso
Flange Diameter 74mm
Mount Centres A 104mm
Mount Hole Diameter M10x1.25
Overall Length 180mm
Pinion at Rest 20mm
Pinion Diameter 29mm
Starter Mount Type 2 Hole
Wet / Dry Clutch Dry
New / Reman. New
Weight 3.44kg

Compatible With

The DXS519 is a Denso style 9 tooth starter motor with a compact 180mm overall length. Confirm your original starter's specifications match before ordering.

Frequently Asked Questions

What is the power rating of the DXS519?

The DXS519 has a 1.2kW power rating.

How many teeth does the DXS519 pinion have?

The DXS519 has a 9 tooth pinion with clockwise rotation.

How compact is the DXS519?

The DXS519 has an overall length of just 180mm, the shortest among OEX's comparable Denso style starter range.

What mounting type does the DXS519 use?

The DXS519 uses a 2 hole mounting arrangement with a dry clutch design.

Is the DXS519 new or reconditioned?

The DXS519 is supplied new.
