OEX DXS4006 Starter Motor 12V 1.6kW 13 Tooth CCW Denso Style

SKU: DXS4006
Price
$231
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

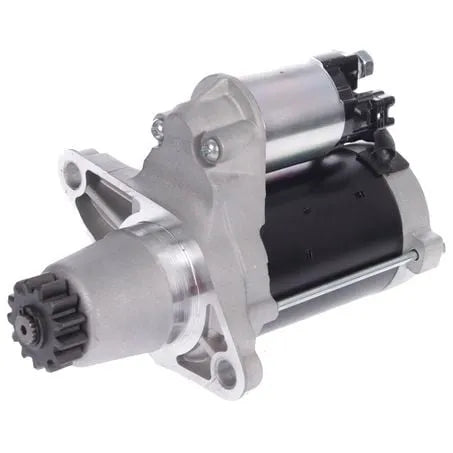

OEX DXS4006 starter motor, side view with the pinion end

OEX DXS4006 Starter Motor 12V 1.6kW 13 Tooth CCW Denso Style

Price
$231

Product features

A starter that clicks but will not crank usually means a worn solenoid or motor. The OEX DXS4006 is a new 12V Denso style starter motor with 1.6kW output, a 13 tooth counter clockwise pinion and a 2 hole dry clutch mount.

OEX parts come from ISO certified factories that supply original equipment and the aftermarket. This unit is new, not reconditioned.

Problems it solves

  • A reman starter of unknown history. The DXS4006 is supplied new.
  • A replacement that turns the wrong way. Rotation is counter clockwise; match it to your old starter.
  • Bolt holes that will not line up. Mount centres are 122mm with 11mm holes on a 55mm flange.

DXS4006 specifications

  • Voltage: 12V
  • Power: 1.6kW
  • Teeth: 13
  • Rotation: CCW
  • Suits unit make: Denso
  • Flange diameter: 55mm
  • Mount centres: 122mm
  • Mount hole diameter: 11mm
  • Overall length: 209mm
  • Pinion at rest: 66mm
  • Pinion diameter: 41mm
  • Mount: 2 hole
  • Clutch: dry
  • Weight: 3.0kg

Fitment and compatibility

Applications fitted with a matching Denso style 12V starter with a 13 tooth CCW pinion and 2 hole dry clutch mount. No vehicle list is given, so match your old unit against the measurements here.

What is in the box

Supplied as the starter motor only, so reuse your existing bolts and cable nuts if they are in good order.

Install notes

Disconnect the battery negative before removing the old starter.

Lay old and new side by side and check flange, bolt centres and pinion position before fitting.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

DXS4006 FAQs

Which way does the DXS4006 turn?

Counter clockwise.

Is the OEX DXS4006 a reconditioned unit?

No, it is new.

How far apart are the DXS4006 mounting holes?

122mm centres, with 11mm holes.
