OEX DXA596 Alternator 12V 90A Denso Style Suits Toyota

SKU: DXA596
Price
$420
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX DXA596 Alternator 12V 90A Denso Style Suits Toyota

The OEX DXA596 is a new 12V 90A alternator, Denso style, suiting Toyota Workmate applications, featuring an internal regulator, twin leg mount, and a 7 groove pulley.

Product Overview

The DXA596 is a new 12V Denso style alternator from OEX, delivering 90A of output through an internal regulator, and suits the Toyota Workmate. Built with a twin leg mount and a mount centre to centre distance of 167mm, the DXA596 features a 7 groove pulley with a 54mm outside diameter.

Please confirm against the original unit fitted to the vehicle before ordering. Some applications may require a 130A alternator with an additional mounting leg instead; in that case, use the DXA4000.

Features & Benefits

90A Output at 12V: Delivers 90A of charging output on a standard 12V electrical system.

Internal Regulator: An internal regulator keeps the charging system compact without needing a separate external regulator unit.

Twin Leg Mount: The twin leg mounting arrangement matches the original Denso style fitment for straightforward installation.

7 Groove Pulley: The 7 groove pulley at 54mm outside diameter suits the specified fitment applications.

Suits Toyota Workmate: Specifically matched to the Toyota Workmate application.

DXA4000 Alternative Available: Some Workmate applications may require a 130A alternator with an additional mounting leg; the DXA4000 covers this requirement.

New Unit: Supplied new, not reconditioned.

Technical Specs

Specification Detail
Part No. DXA596
Brand OEX
Type Alternator
Voltage 12V
Power Rating 90A
Regulator Type Internal
Suits Unit Make Denso
Suits Vehicle Toyota Workmate
Alternator Mount Twin Leg
Mount Cnt to Cnt 167mm
Inside Mounting Legs 45mm
Adjusting Hole Diameter 11mm
Pivot Hole Diameter M10x1.25 / 11mm
Pulley Outside Diameter 54mm
Pulley Section 7 Groove

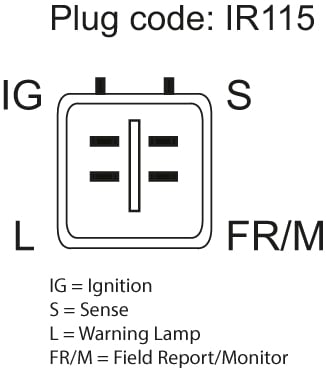

Pin Code IR115
New / Reman. New
Weight 4.24kg

Compatible With

The DXA596 is a Denso style 12V 90A alternator suiting the Toyota Workmate. Please confirm against the original unit fitted to your vehicle before ordering, as some applications may require the higher output DXA4000 (130A) with an additional mounting leg instead.

Frequently Asked Questions

Which vehicle does the DXA596 suit?

The DXA596 suits the Toyota Workmate. Please confirm against the original unit fitted to your vehicle before ordering.

Could my Workmate need a different alternator?

Yes, potentially. Some Workmate applications may require a 130A alternator with an additional mounting leg the DXA4000 covers this requirement.

What voltage and output does the DXA596 provide?

The DXA596 is a 12V alternator delivering 90A of output.

How is the DXA596 mounted?

The DXA596 uses a twin leg mount with a 167mm mounting centre to centre distance.

Is the DXA596 new or reconditioned?

The DXA596 is supplied new.
